Duct - Air Recirculating: Removal

  1. Remove the instrument panel. For additional information, refer to INSTRUMENT PANEL .
  2. Remove the plenum chamber. For additional information, refer to PLENUM CHAMBER  .
  3. Remove the RH front wheel and tire.
  4. Remove the bolts and reposition the fender apron.

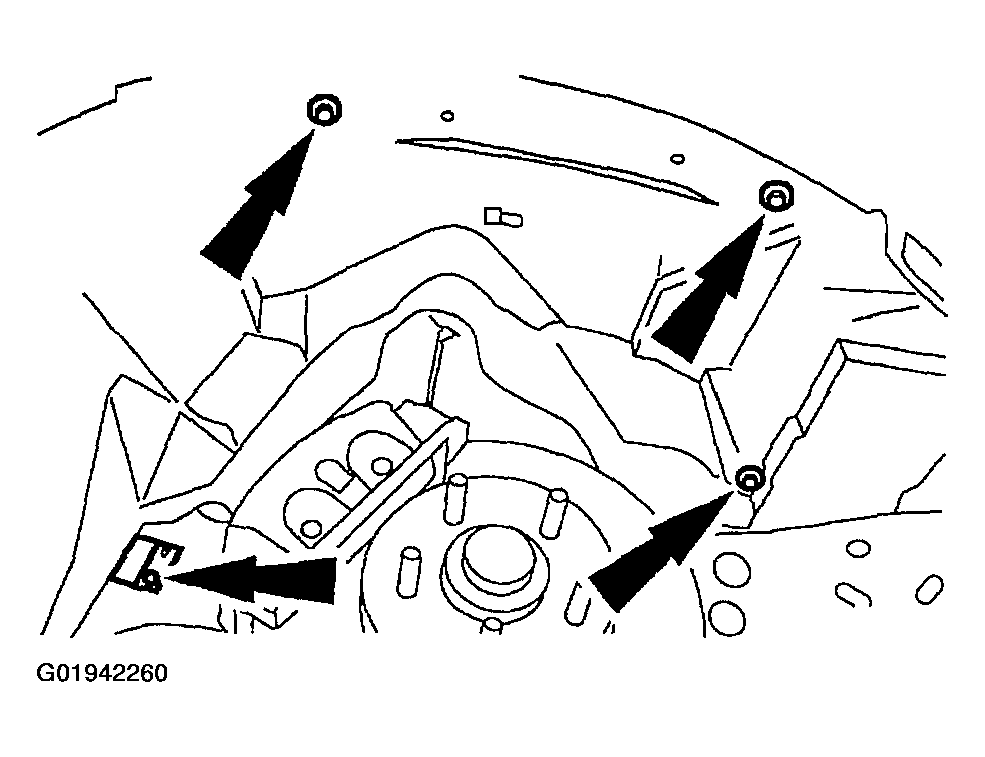

    Fig 1: Identifying Fender Apron Bolts
    G01942260Courtesy of FORD MOTOR CO.
  5. Remove the bolt.

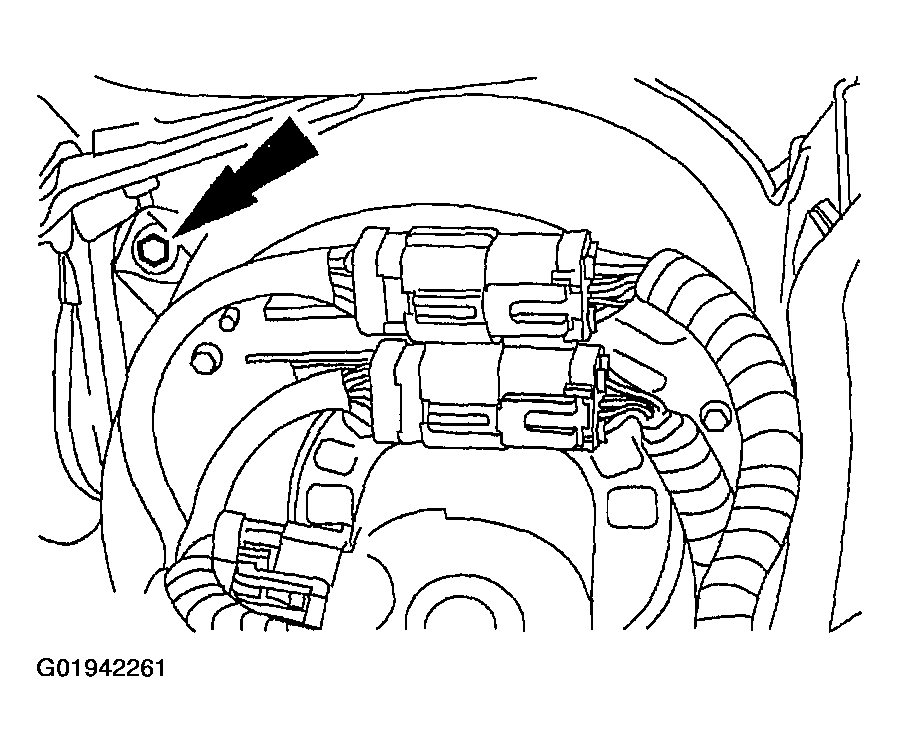

    Fig 2: Identifying Bolt
    G01942261Courtesy of FORD MOTOR CO.
  6. Remove the screws and the pin-type retainer and reposition the cowl top cover to access the duct nut.

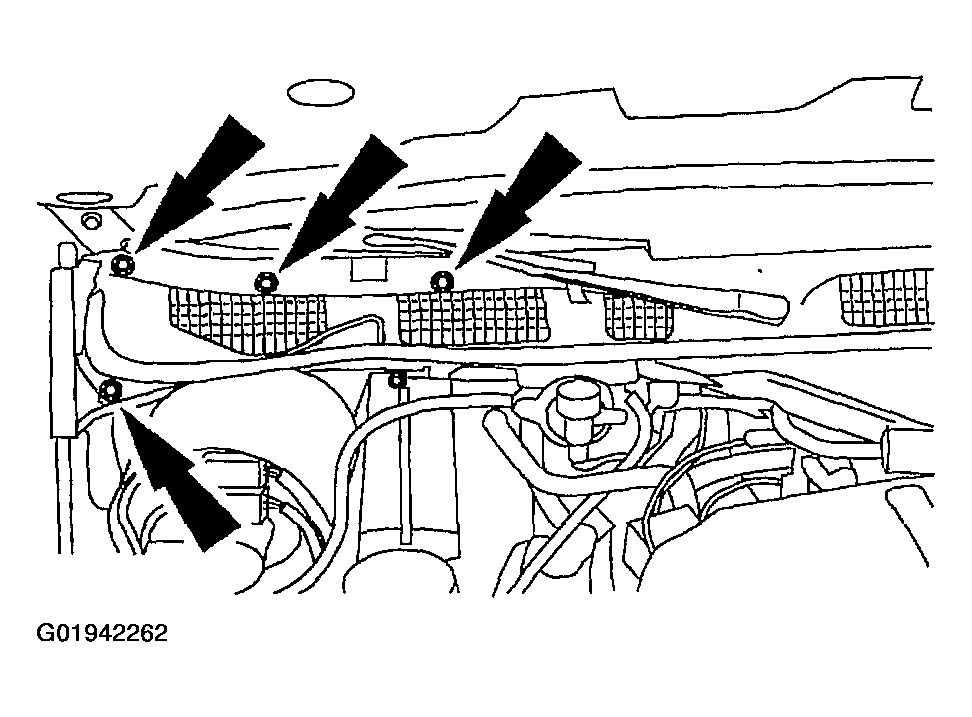

    Fig 3: Identifying Cowl Top Cover Screws & Pin-Type
    G01942262Courtesy of FORD MOTOR CO.
  7. Remove the nut.

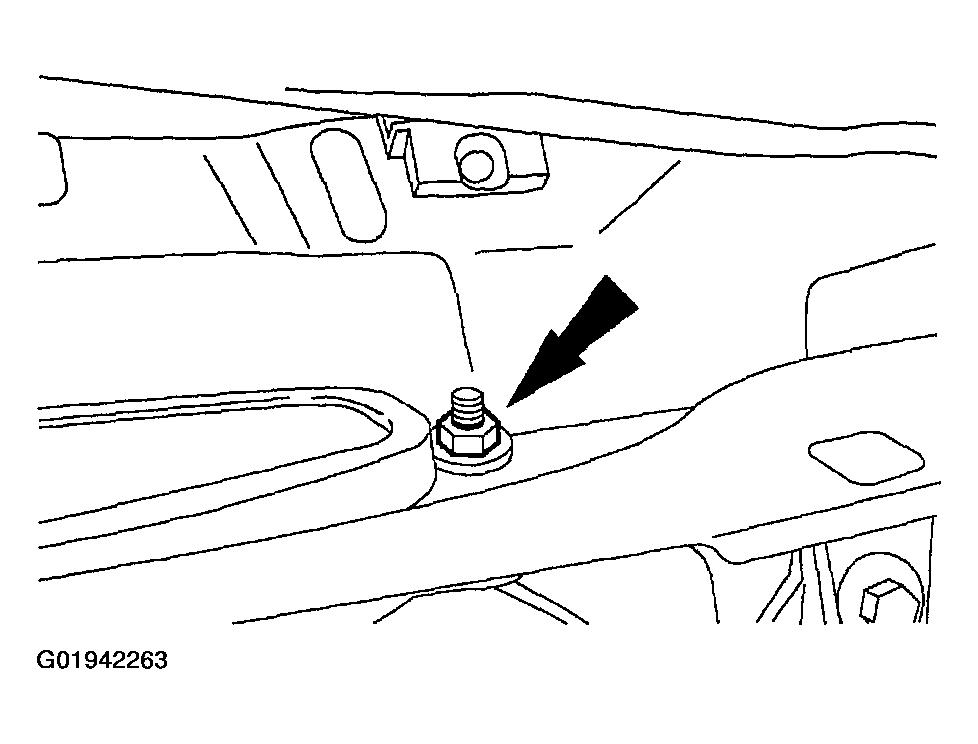

    Fig 4: Identifying Duct Nut
    G01942263Courtesy of FORD MOTOR CO.
  8. Remove the nut and position the harness cover aside.

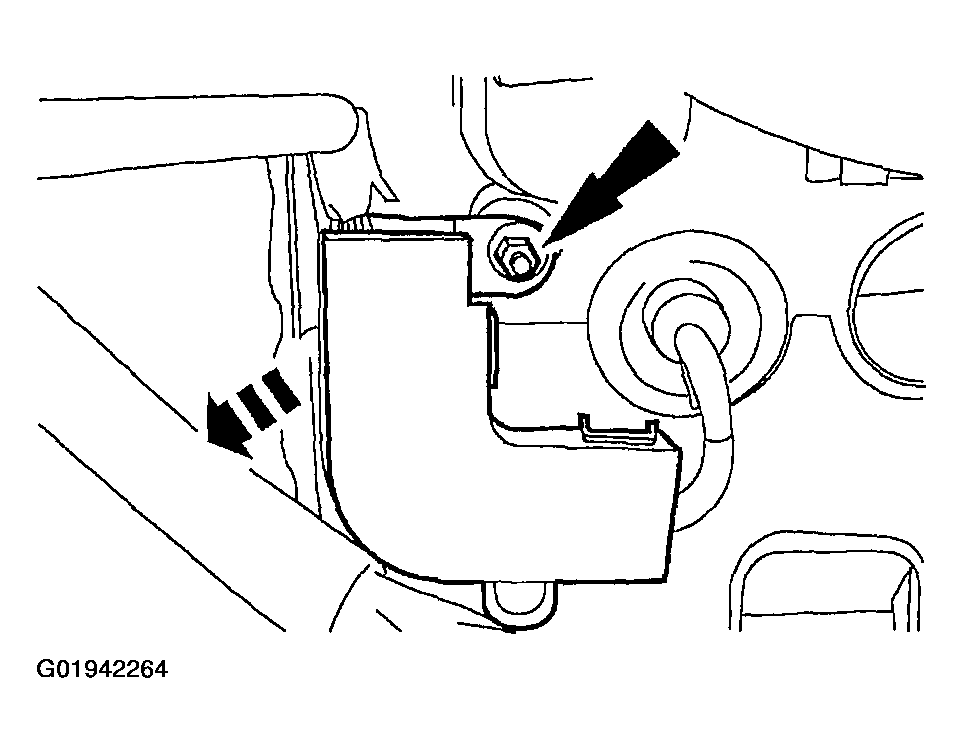

    Fig 5: Identifying Harness Cover Nut
    G01942264Courtesy of FORD MOTOR CO.
  9. Remove the nut.

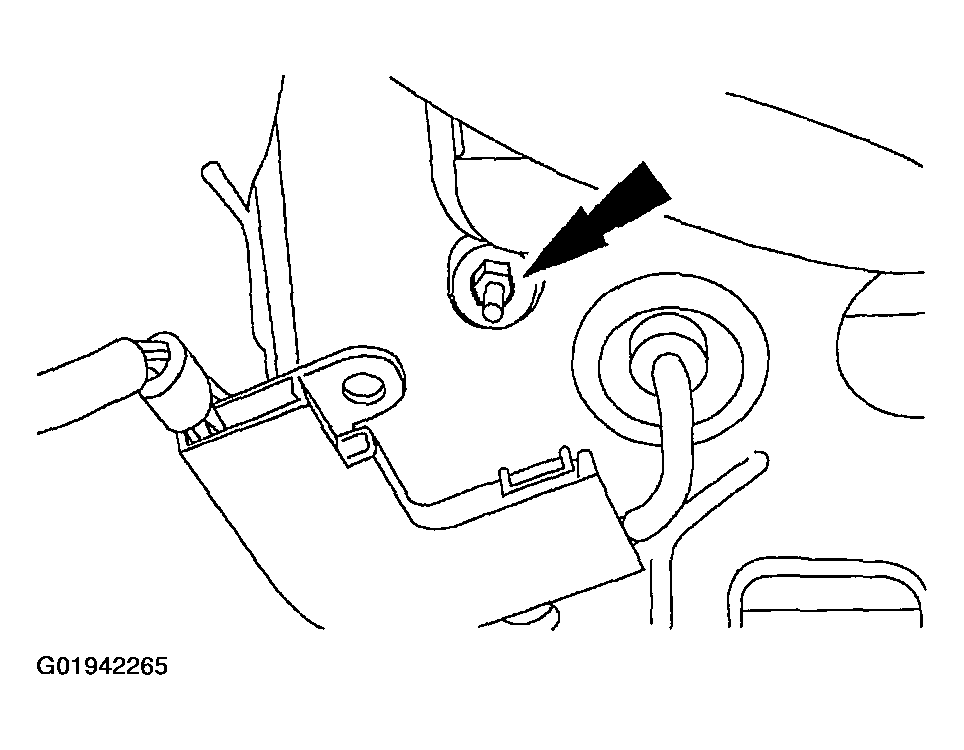

    Fig 6: Identifying Nut
    G01942265Courtesy of FORD MOTOR CO.

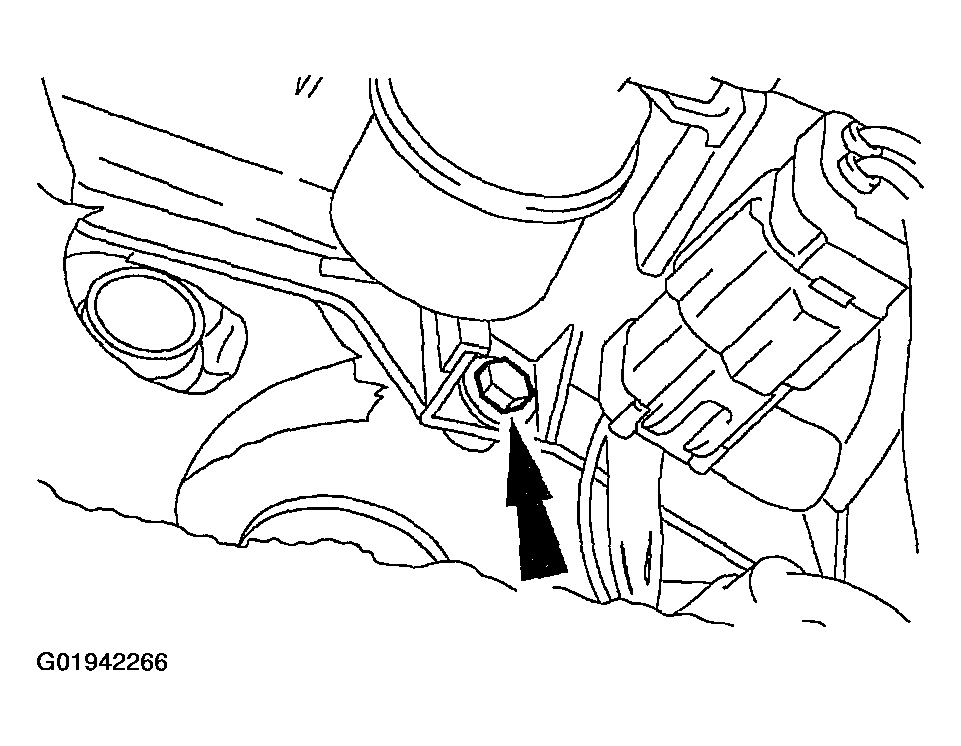

  10. Remove the bolt.
    Fig 7: Identifying Bolt
    G01942266Courtesy of FORD MOTOR CO.
  11. Remove the wiring harness.

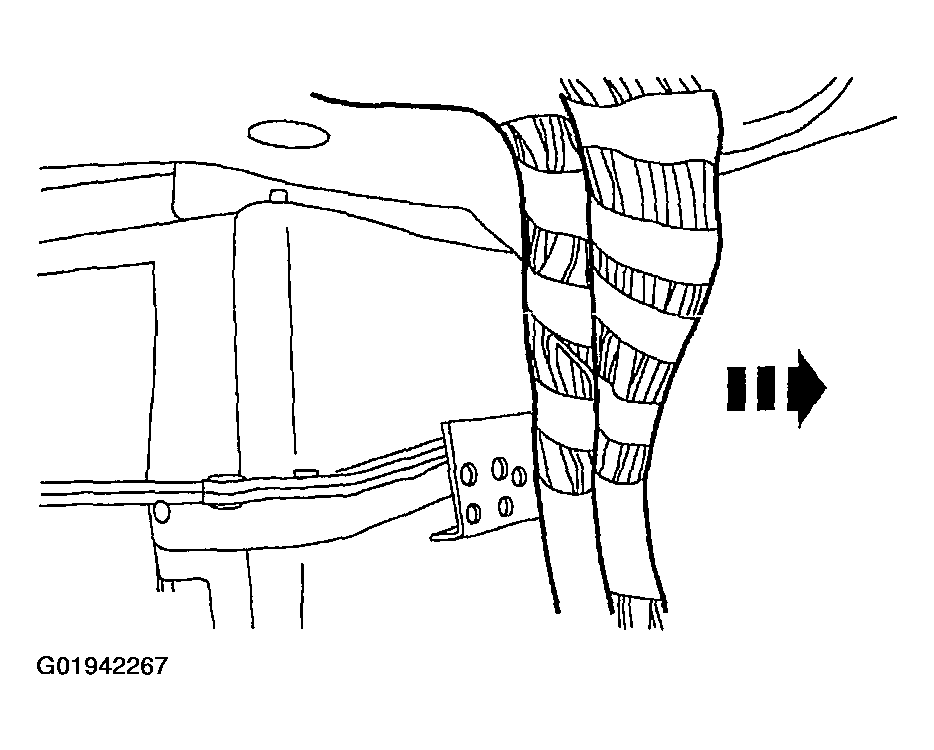

    Fig 8: Identifying Wiring Harness
    G01942267Courtesy of FORD MOTOR CO.
  12. Disengage the connectors and remove the air recirculating duct.

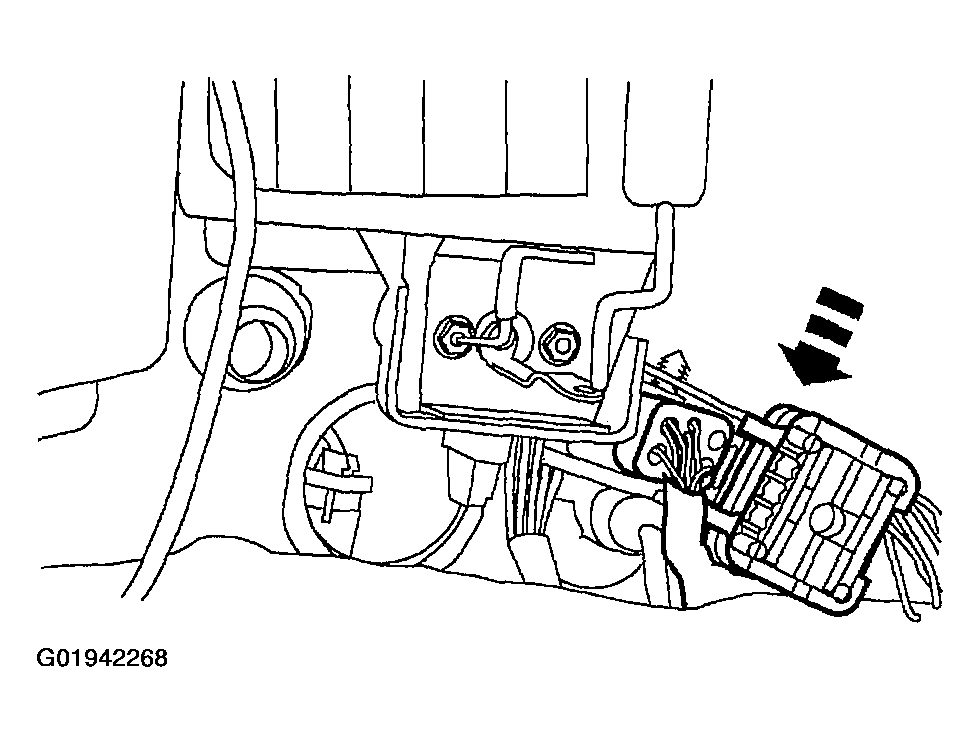

    Fig 9: Identifying Connectors
    G01942268Courtesy of FORD MOTOR CO.
