Duct - Rear Seat Airflow: Removal

  1. Remove the seats. For additional information, refer to SEATING .
  2. Remove the carpet.
  3. Remove the pin-type retainer on each side of the duct and remove the duct.

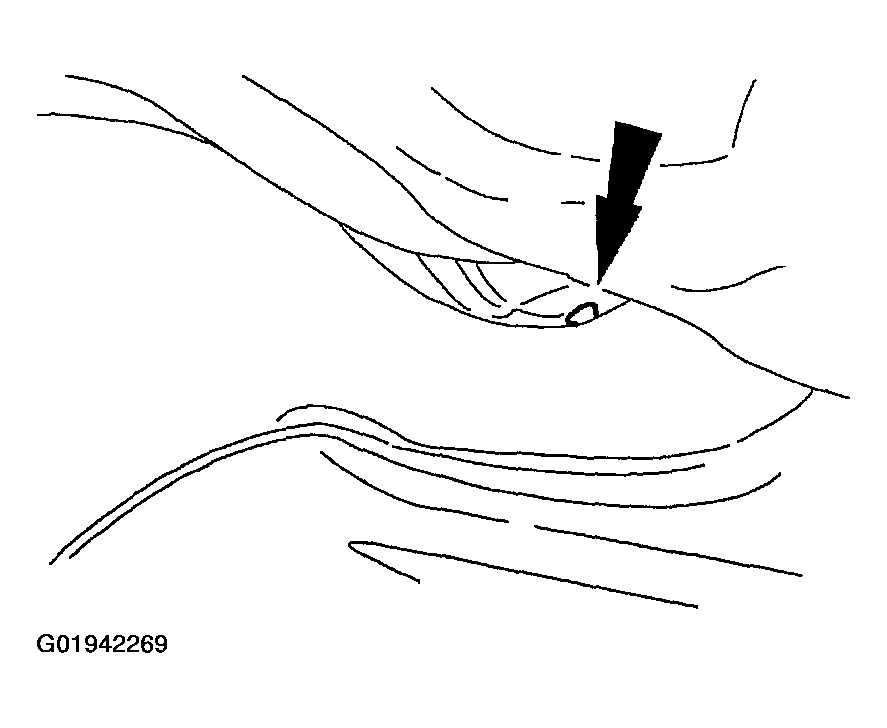

    Fig 1: Identifying Rear Seat Airflow Duct Pin-Type Retainer
    G01942269Courtesy of FORD MOTOR CO.
