Door - Recirculating Air Duct: Removal

  1. Remove the recirculating air duct. For additional information, refer to DUCT - AIR RECIRCULATING  .
  2. Remove the heater and the air recirculating duct door.
    1. Remove the screw.
    2. Remove the heater and the recirculating duct door.

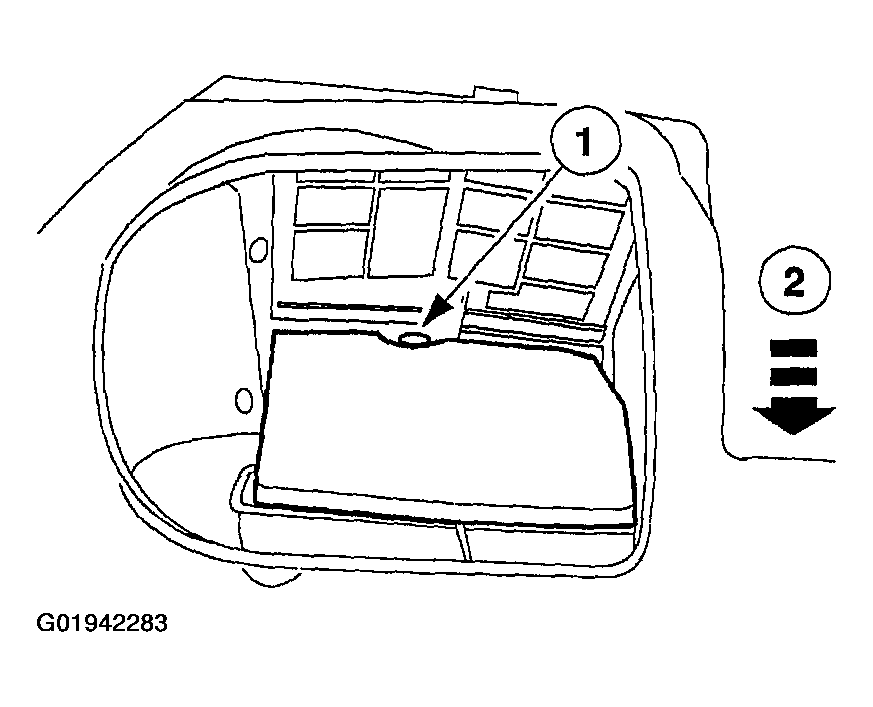

      Fig 1: Identifying Recirculating Duct Door Screw
      G01942283Courtesy of FORD MOTOR CO.
