Instrument Panel Air Distribution Ducts: Disassembly

Remove the instrument panel. For additional information, refer to INSTRUMENT PANEL .
Remove the screw and remove the bracket.

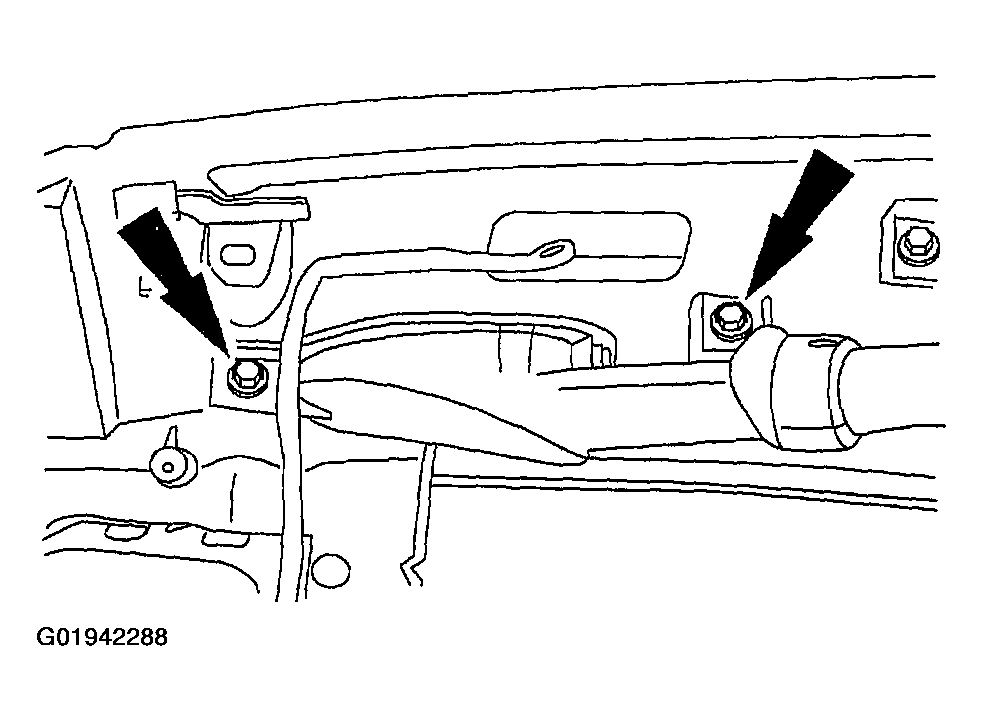

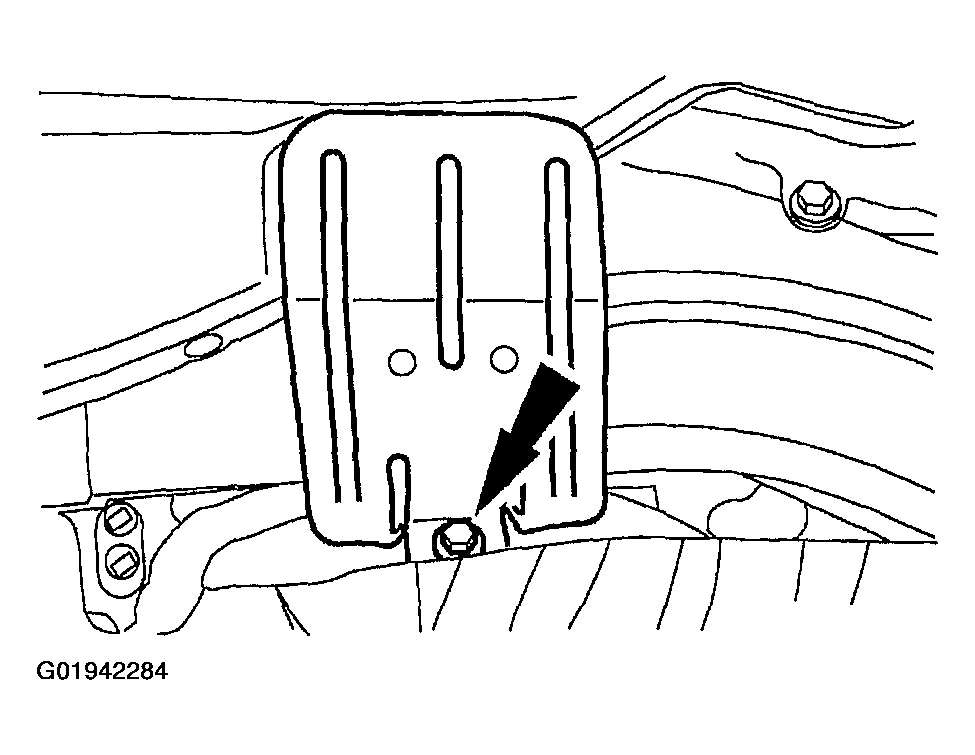

Fig 1: Identifying Bracket Screw
Courtesy of FORD MOTOR CO.
Disengage the in-car temperature sensor hose retainers.

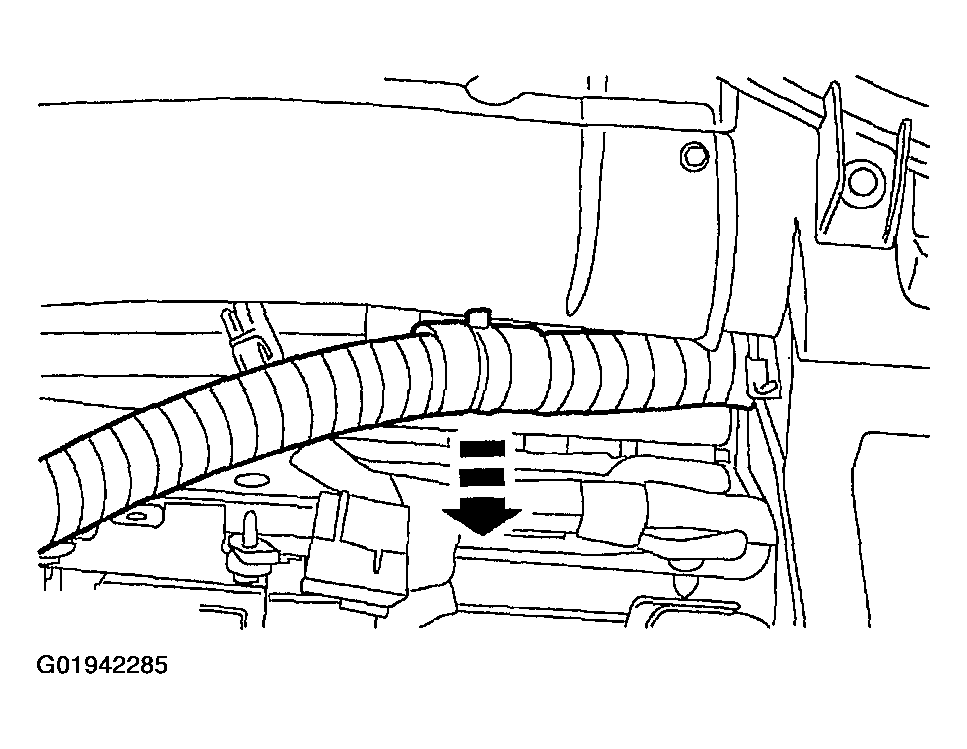

Fig 2: Identifying In-Car Temperature Sensor Hose Retainers
Courtesy of FORD MOTOR CO.
Remove the screws.

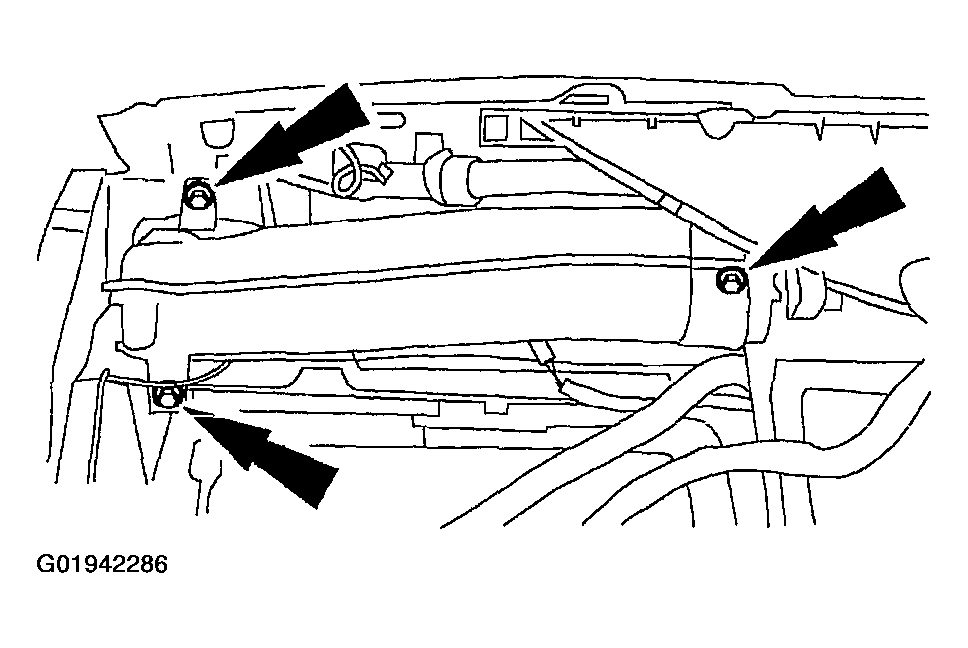

Fig 3: Identifying RH Panel Duct Screws
Courtesy of FORD MOTOR CO.
Remove the RH panel duct.

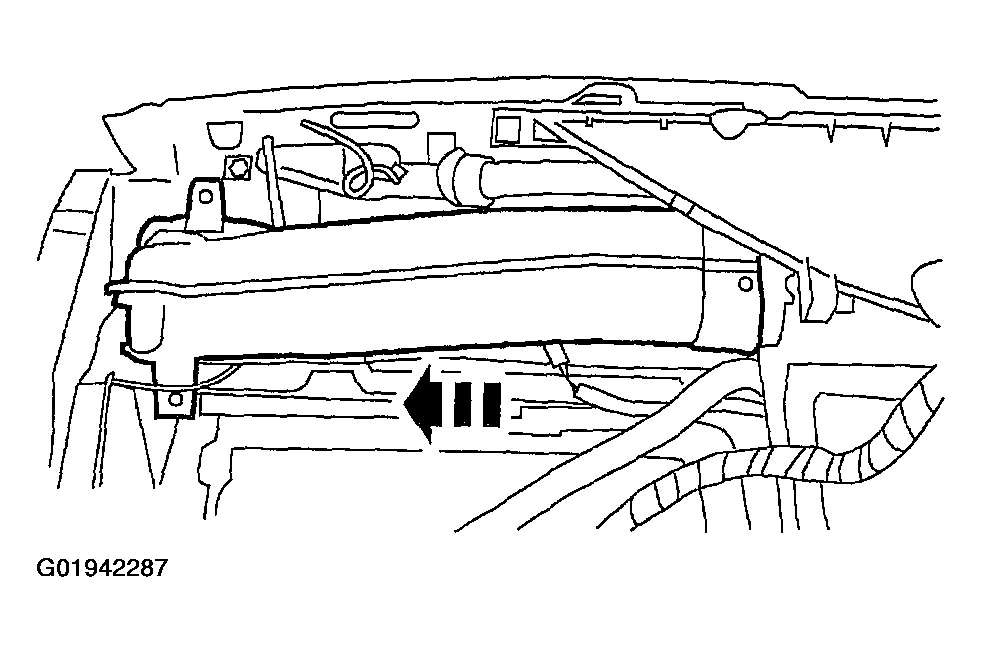

Fig 4: Identifying RH Panel Duct
Courtesy of FORD MOTOR CO.
Remove the screws and the RH demister nozzle.

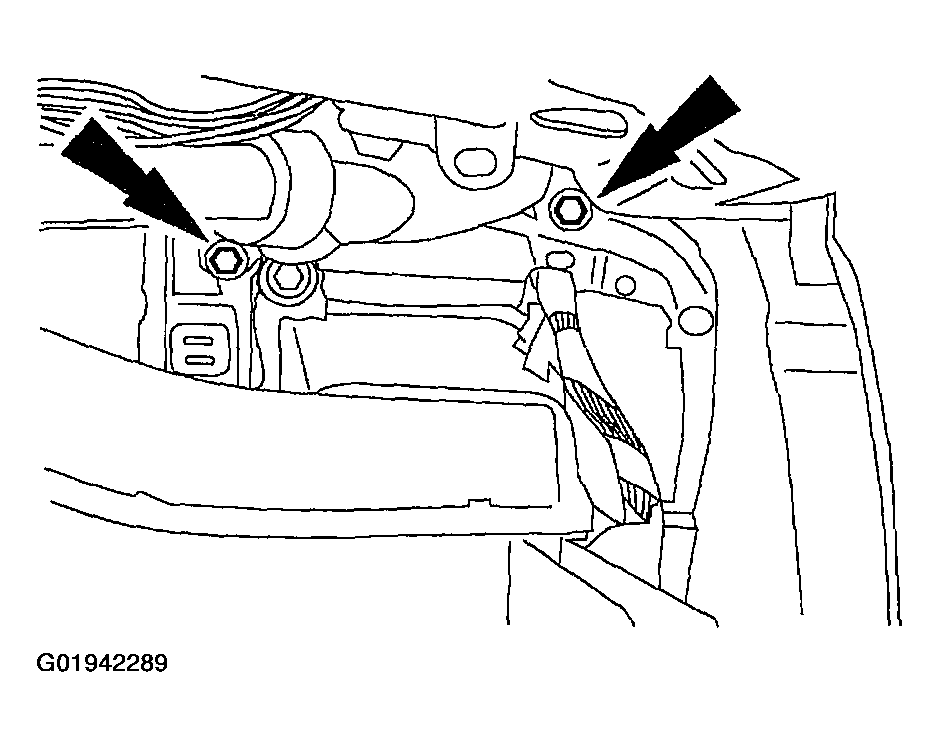

Fig 5: Identifying RH Demister Nozzle Screws
Courtesy of FORD MOTOR CO.
Remove the screws and the LH demister nozzle.

Fig 6: Identifying LH Demister Nozzle Screws
Courtesy of FORD MOTOR CO.
Disengage the radio antenna.

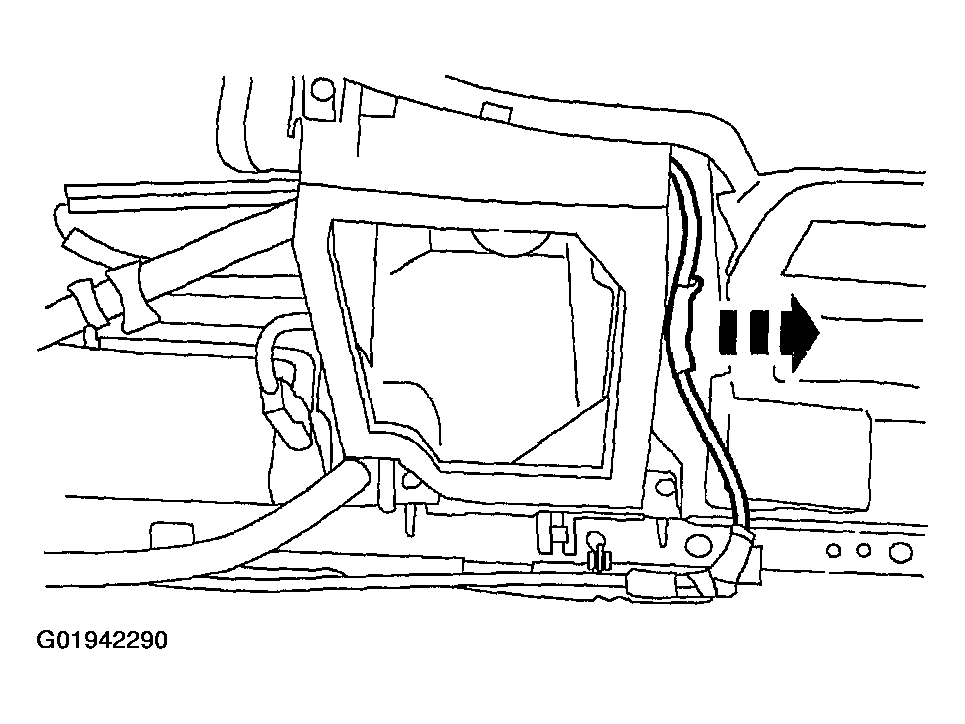

Fig 7: Identifying Radio Antenna
Courtesy of FORD MOTOR CO.
Remove the screws retaining the LH panel duct to the defroster duct, but do not remove the duct.

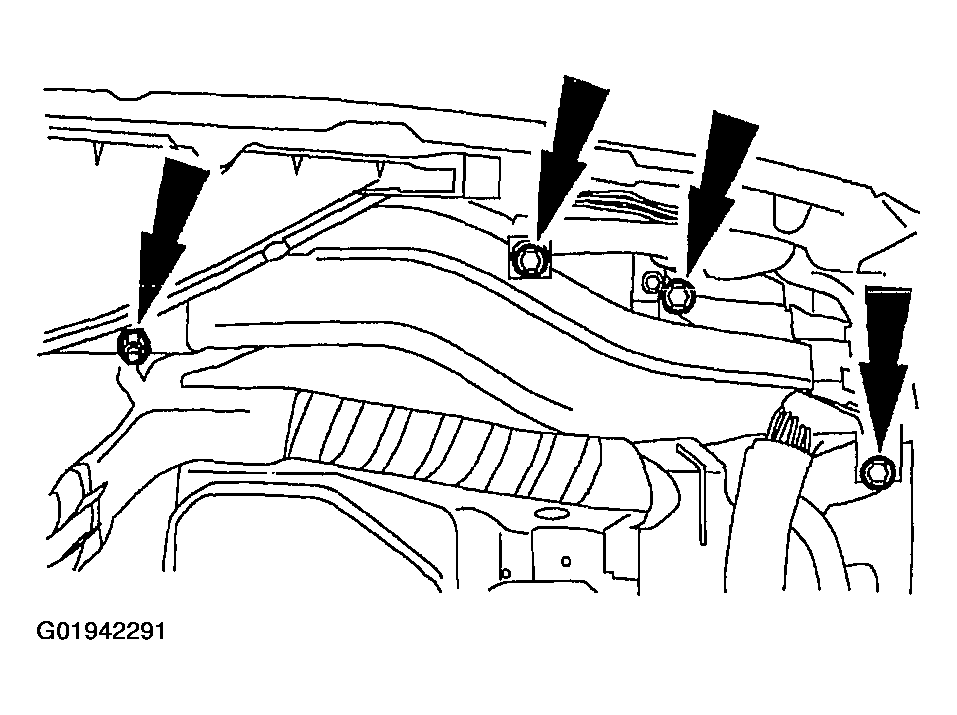

Fig 8: Identifying LH Panel Duct-To-Defroster Duct Screws
Courtesy of FORD MOTOR CO.
Remove the screws and remove the defroster duct.

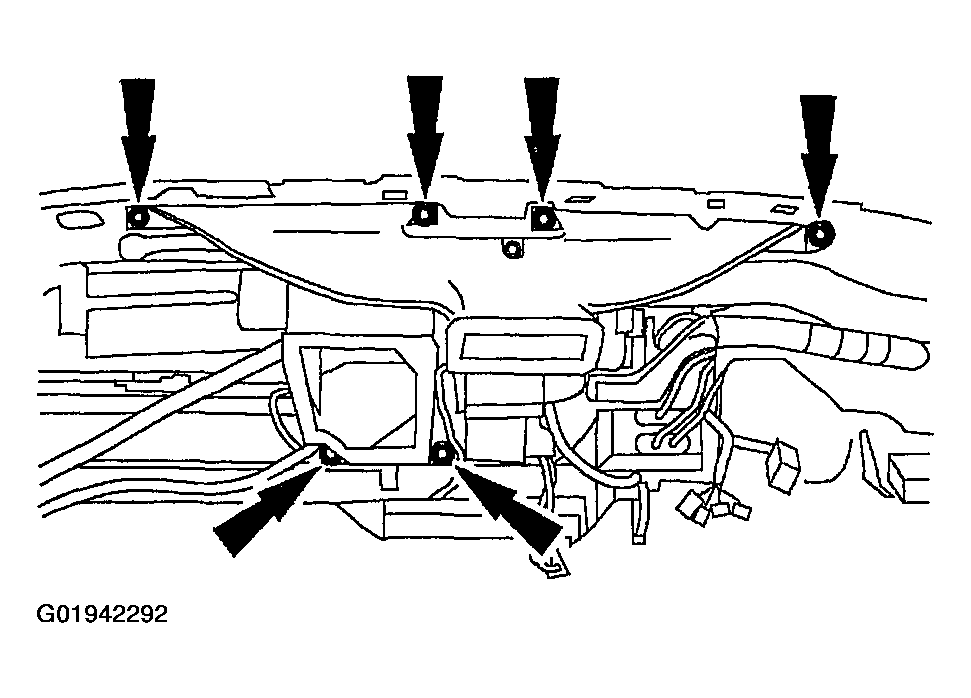

Fig 9: Identifying Defroster Duct Screws
Courtesy of FORD MOTOR CO.
Remove the LH panel duct.
