Vacuum Control Motors

Vacuum control motors are used to move the floor/panel and panel/defrost doors.

System Response

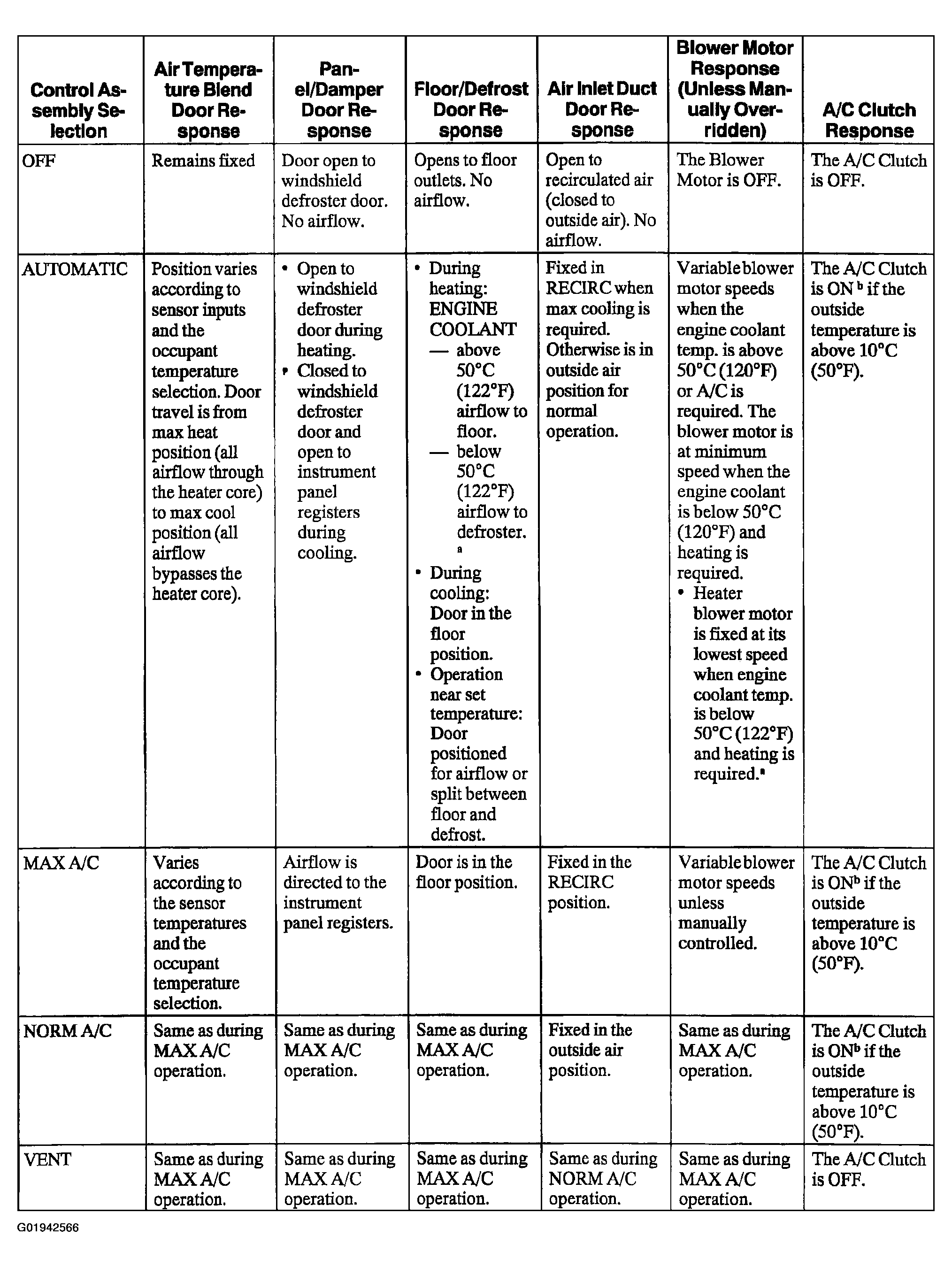

Fig 1: System Response (1 Of 2)
G01942566Courtesy of FORD MOTOR CO.

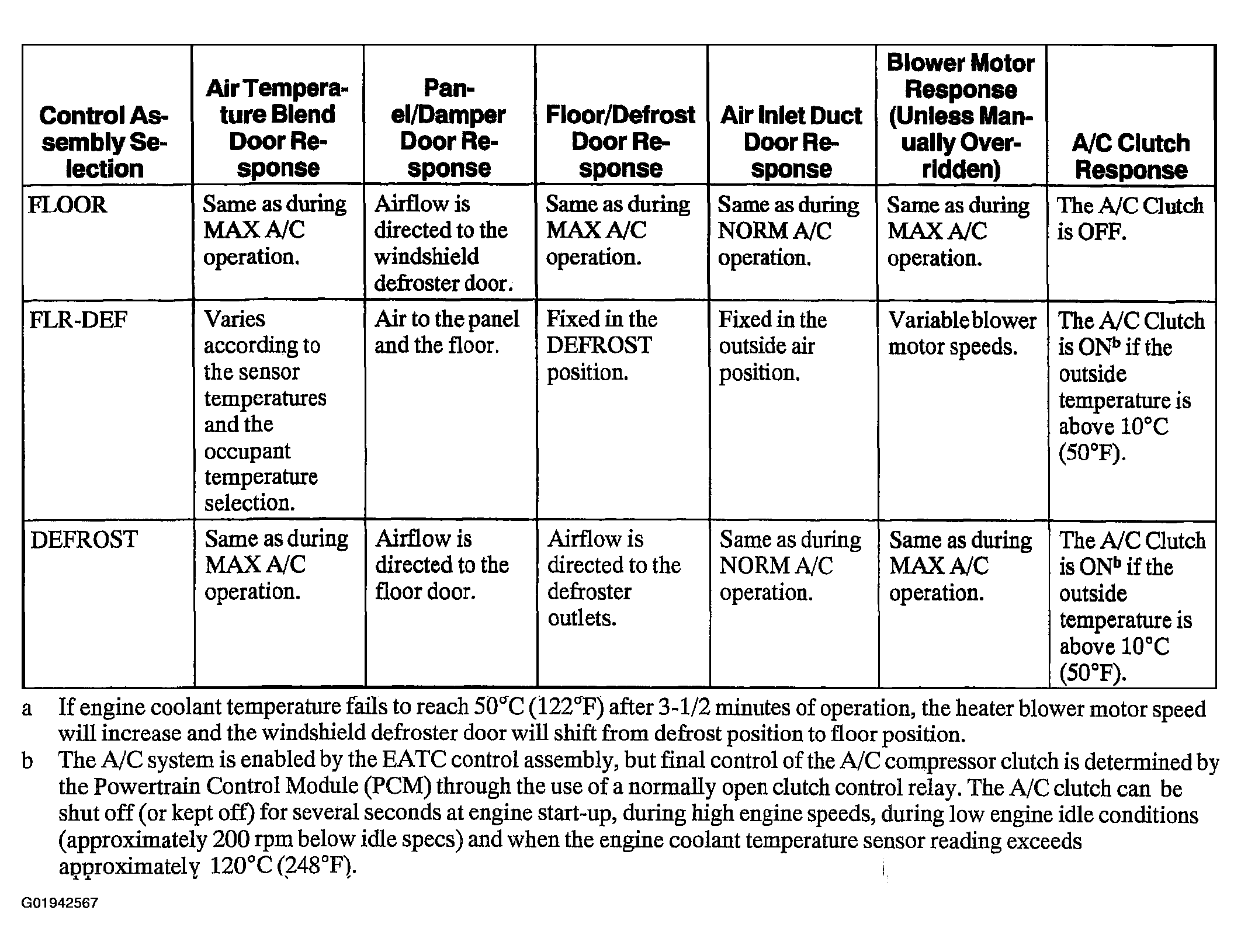

Fig 2: System Response (2 Of 2)
G01942567Courtesy of FORD MOTOR CO.
