Component Locations
Component Locations

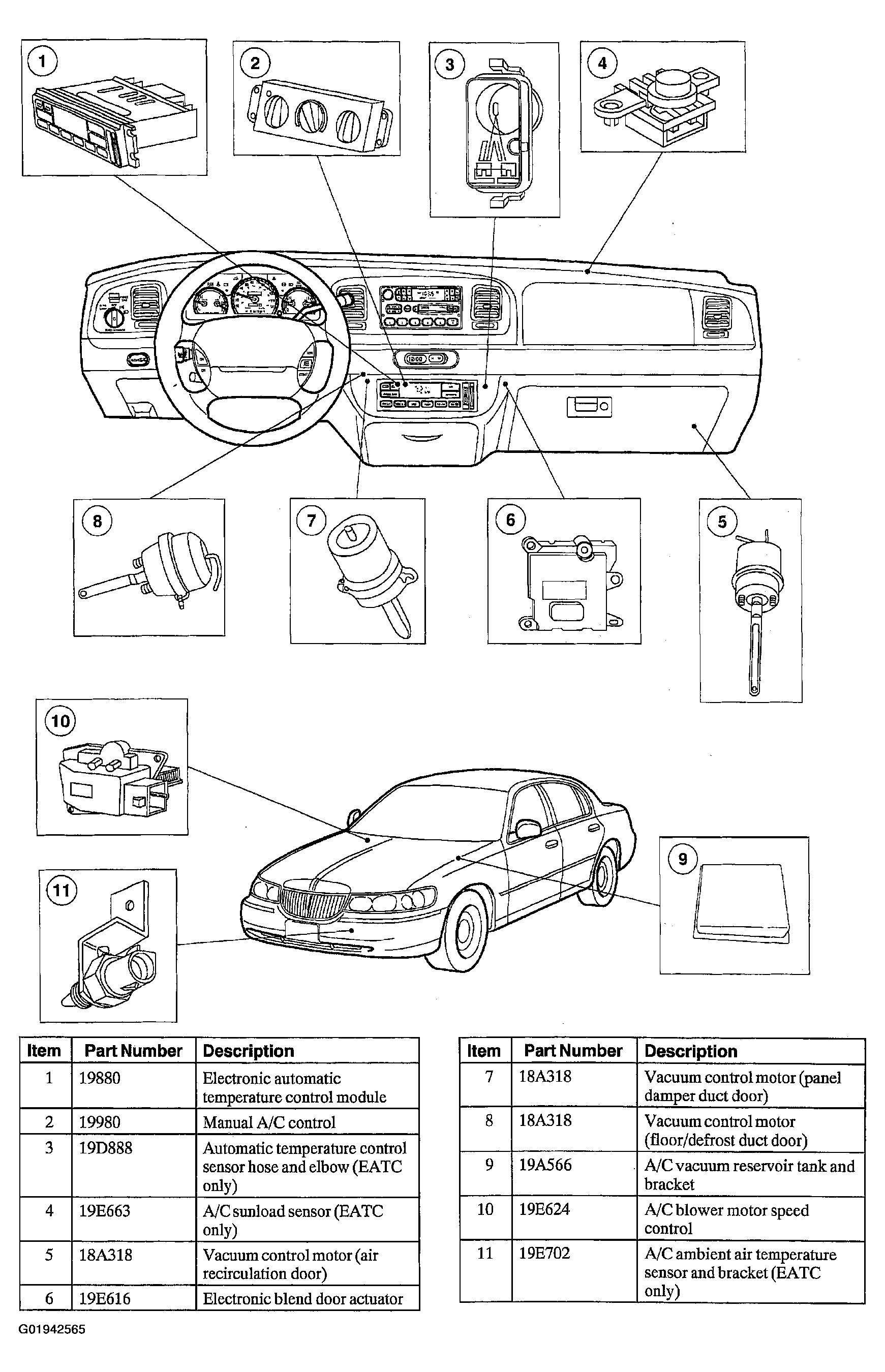

Fig 1: Identifying Component Locations
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
