Control Assembly - Manual A/C: Removal

  1. Remove the finish panel.

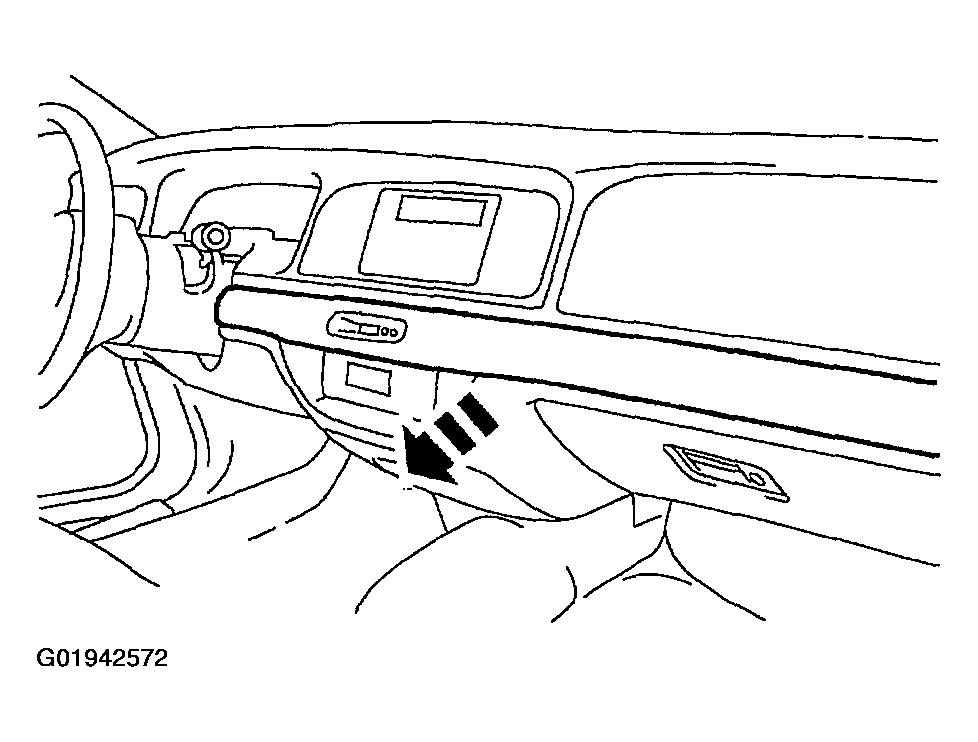

    Fig 1: Removing Finish Panel
    G01942572Courtesy of FORD MOTOR CO.
  2. Disconnect the connector.

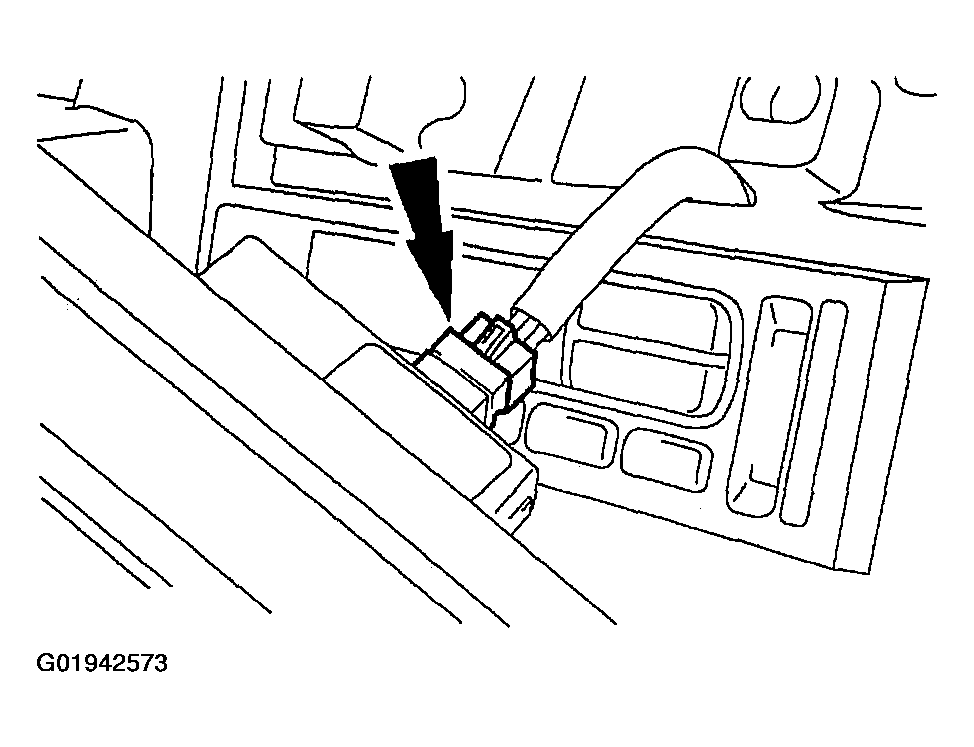

    Fig 2: Identifying Electrical Connector
    G01942573Courtesy of FORD MOTOR CO.
  3. Remove the climate control head.
    1. Remove the screws.
    2. Remove the climate control head.

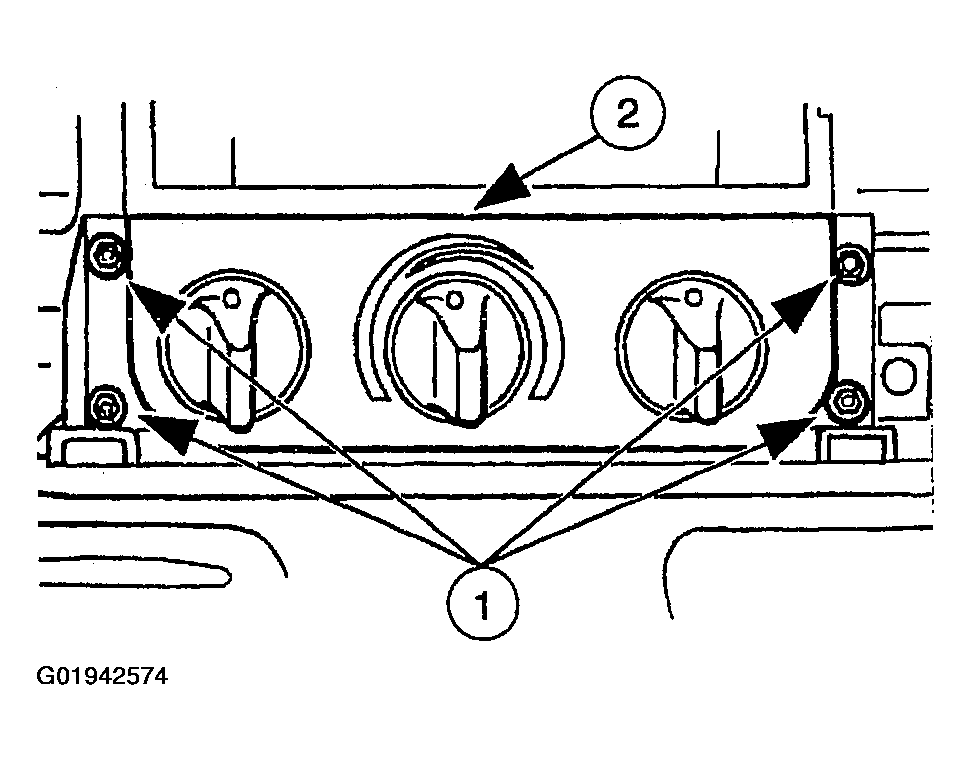

      Fig 3: Identifying Climate Control Head & Screws
      G01942574Courtesy of FORD MOTOR CO.
  4. Disconnect the climate control head.
    • Disconnect the electrical connectors.
    • Disconnect the vacuum line connector.

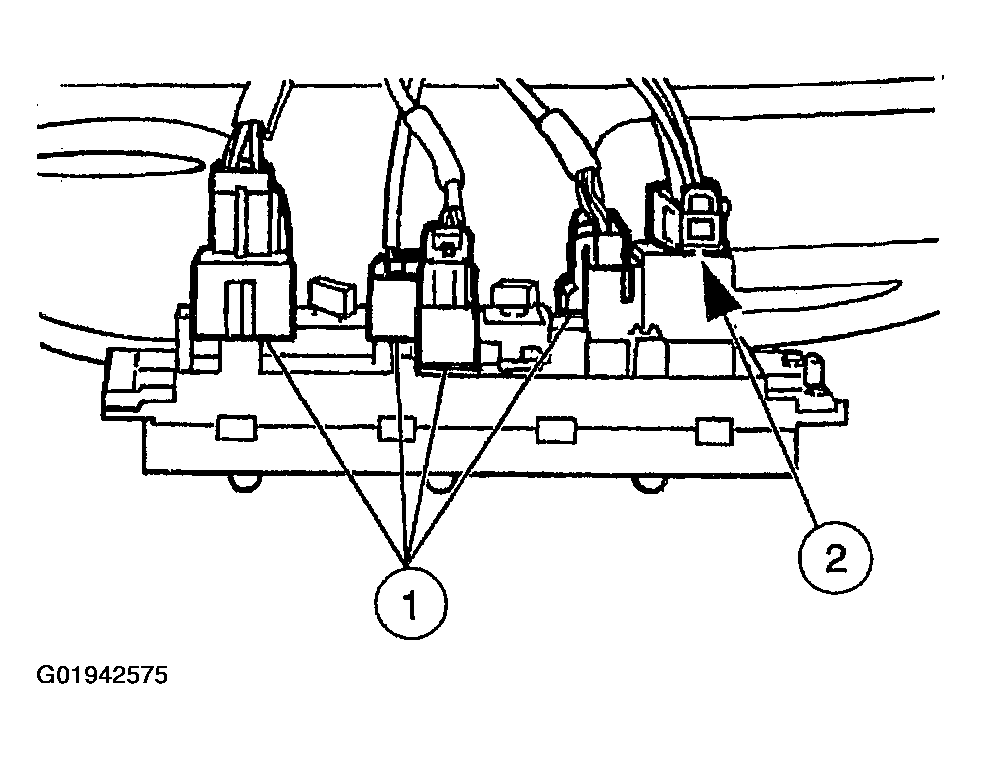

      Fig 4: Identifying Climate Control Head Electrical Connectors & Vacuum Line Connector
      G01942575Courtesy of FORD MOTOR CO.
