Crankshaft Front Oil Seal: Installation

  1. Lubricate the (A) engine front cover (6019) and the (B) front oil seal inner lip with clean engine oil.

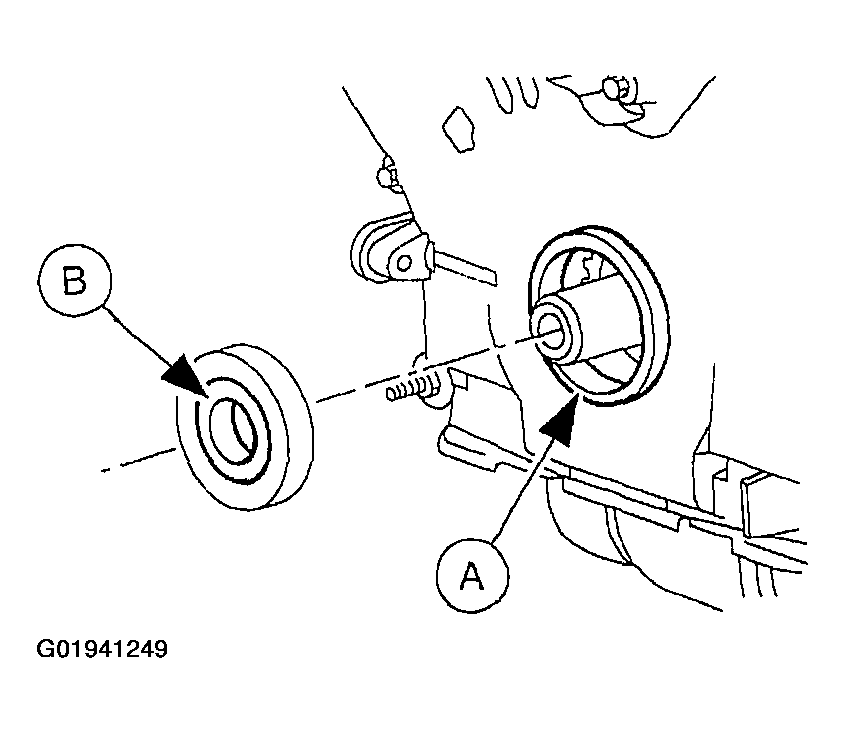

    Fig 1: Identifying Engine Front Cover & Front Oil Seal
    G01941249Courtesy of FORD MOTOR CO.
  2. Use the (A) Crankshaft Seal Replacer/Cover Aligner to install the (B) crankshaft front seal (6700) into the (C) engine front cover.

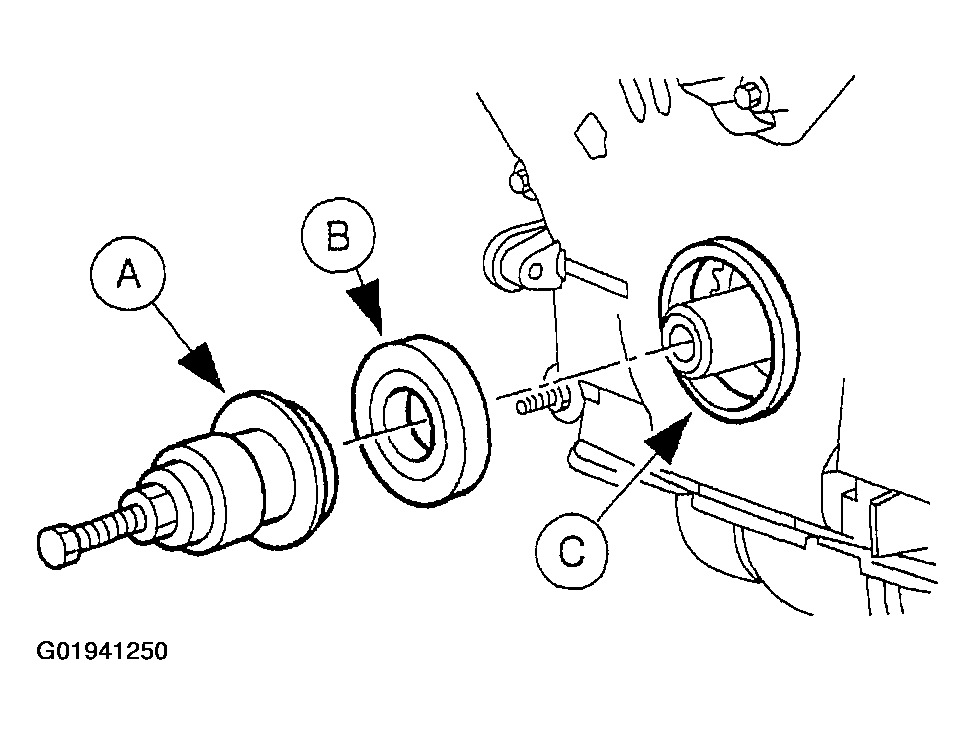

    Fig 2: Identifying Crankshaft Seal Replacer/Cover Aligner & Crankshaft Front Seal
    G01941250Courtesy of FORD MOTOR CO.
  3. Install the crankshaft pulley. For additional information, refer to CRANKSHAFT PULLEY .
