Valve Springs: Installation

  1. Position the valve spring and the valve spring retainers.

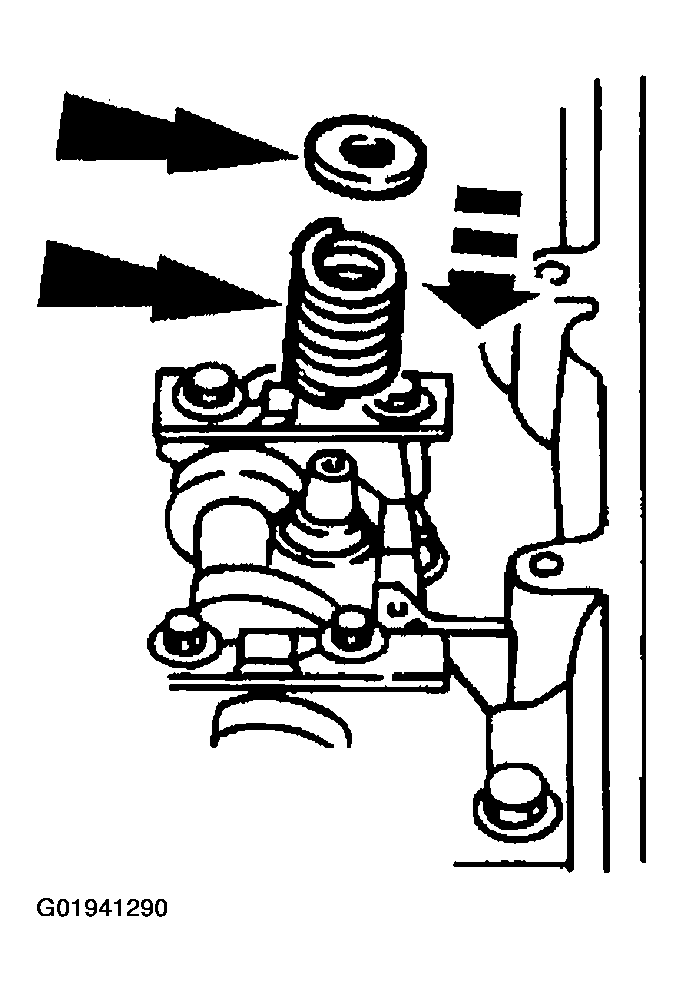

    Fig 1: Identifying Valve Spring & Valve Spring Retainers
    G01941290Courtesy of FORD MOTOR CO.
  2. Install the Valve Spring Spacer between the valve spring coils to prevent valve stem seal damage.

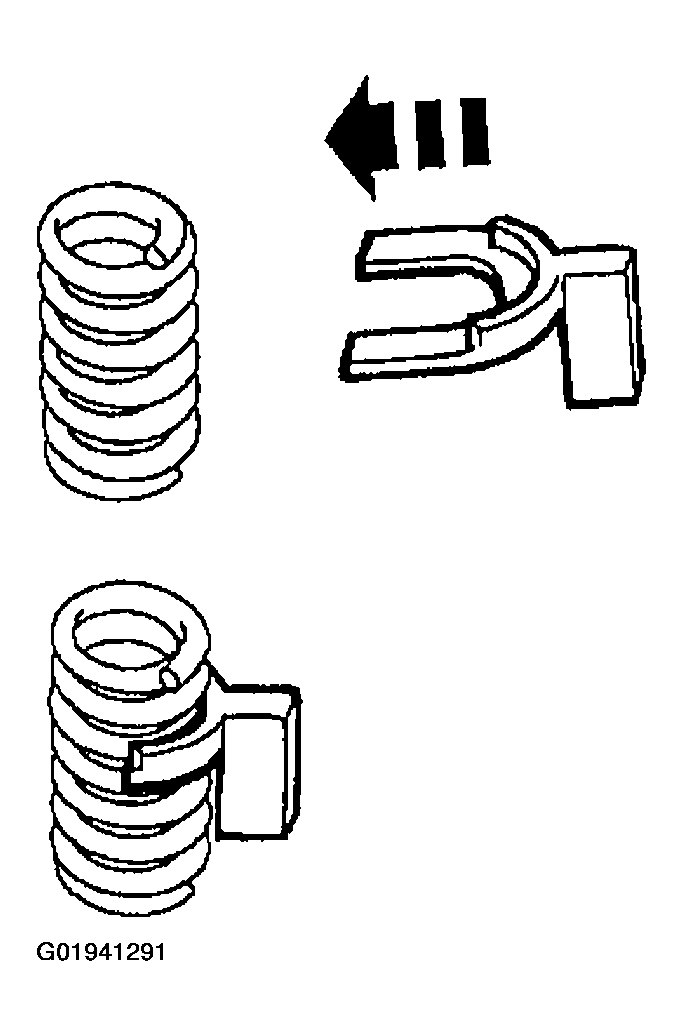

    Fig 2: Installing Valve Spring Spacer Between Valve Spring Coils
    G01941291Courtesy of FORD MOTOR CO.
  3. Use the Valve Spring Compressor to compress the valve spring. Install the valve spring retainer keys.

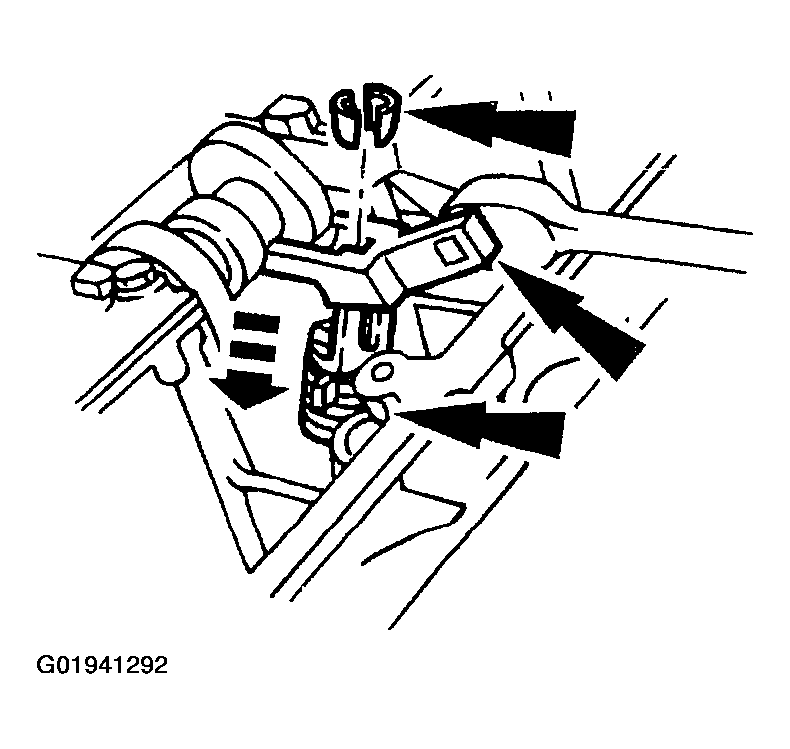

    Fig 3: Identifying Valve Spring Compressor To Compress & Valve Spring Retainer Keys
    G01941292Courtesy of FORD MOTOR CO.
  4. Install the camshaft roller followers. For additional information, refer to CAMSHAFT ROLLER FOLLOWER .
