Removal & Installation

  1. Raise the vehicle.
  2. Remove the left front wheel and tire.
  3. Separate the exhaust at the exhaust manifold. For additional information, refer to EXHAUST SYSTEM .
  4. Remove the eight nuts.

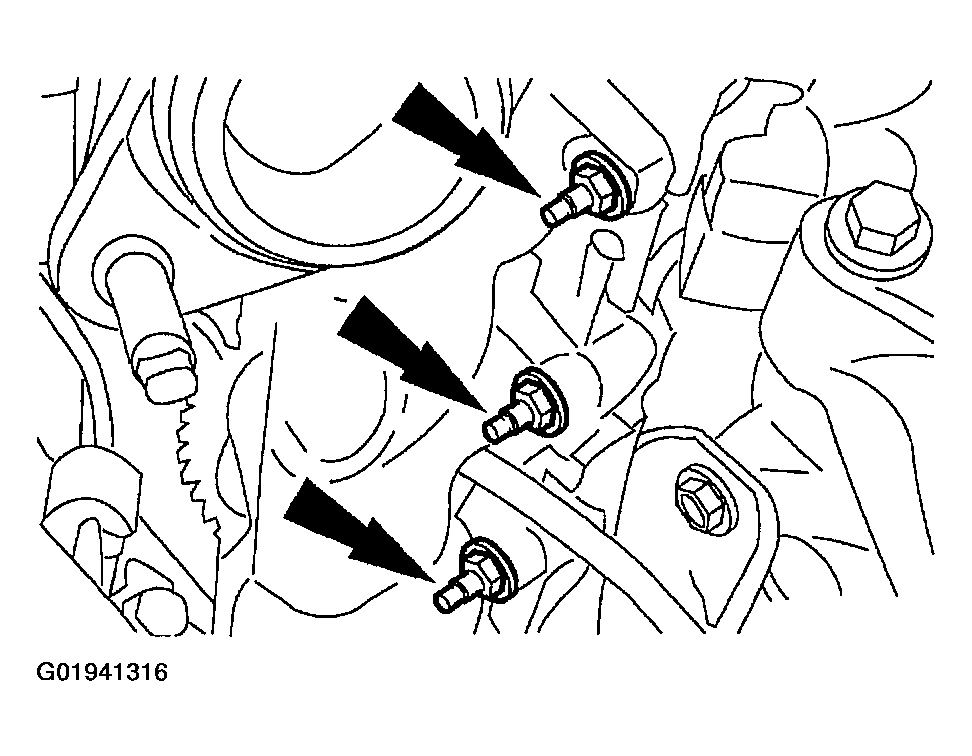

    Fig 1: Identifying Exhaust Manifold Nuts
    G01941316Courtesy of FORD MOTOR CO.
  5. Remove the exhaust manifold and the gasket.

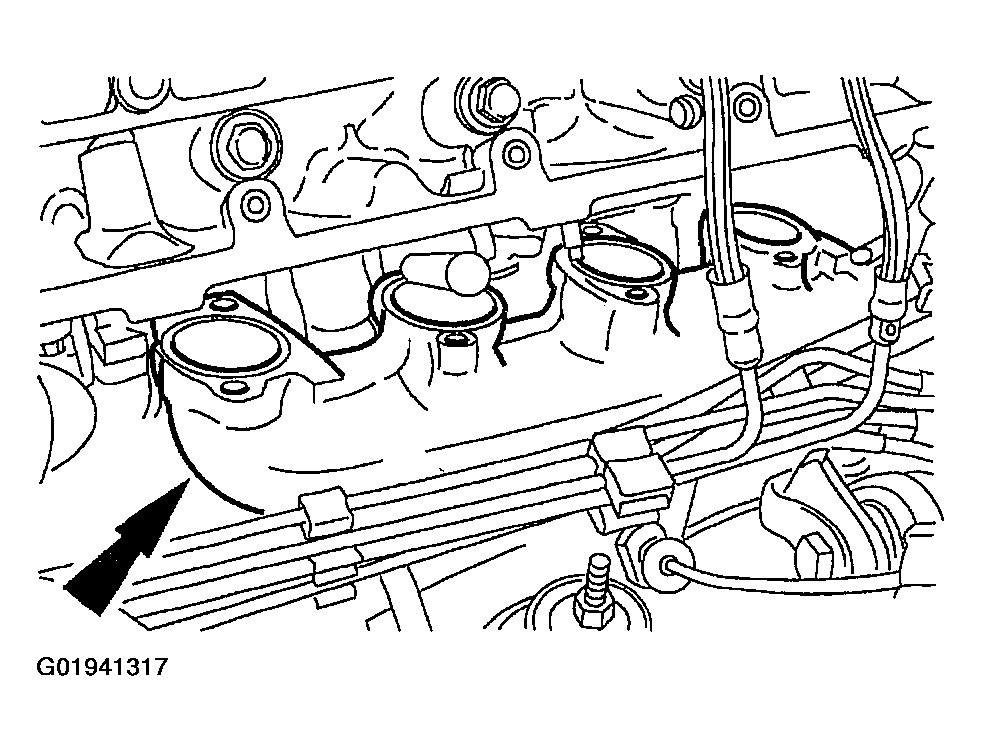

    Fig 2: Identifying Exhaust Manifold
    G01941317Courtesy of FORD MOTOR CO.
  6. To install, reverse the removal procedure.
