Removal & Installation

  1. Remove the exhaust manifold. For additional information, refer to EXHAUST MANIFOLD - LH .
  2. Remove the oil level indicator tube.
    • Remove the bolt.
    • Remove the tube.

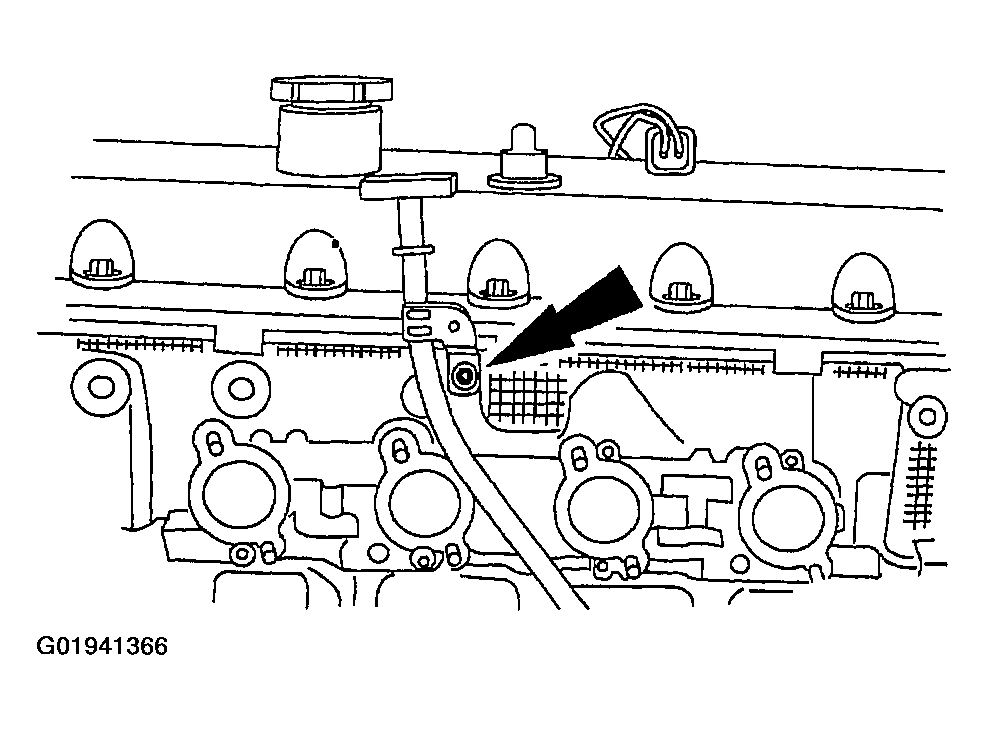

    Fig 1: Identifying Oil Level Indicator Tube Bolt
    G01941366Courtesy of FORD MOTOR CO.
  3. Inspect the O-ring seal.

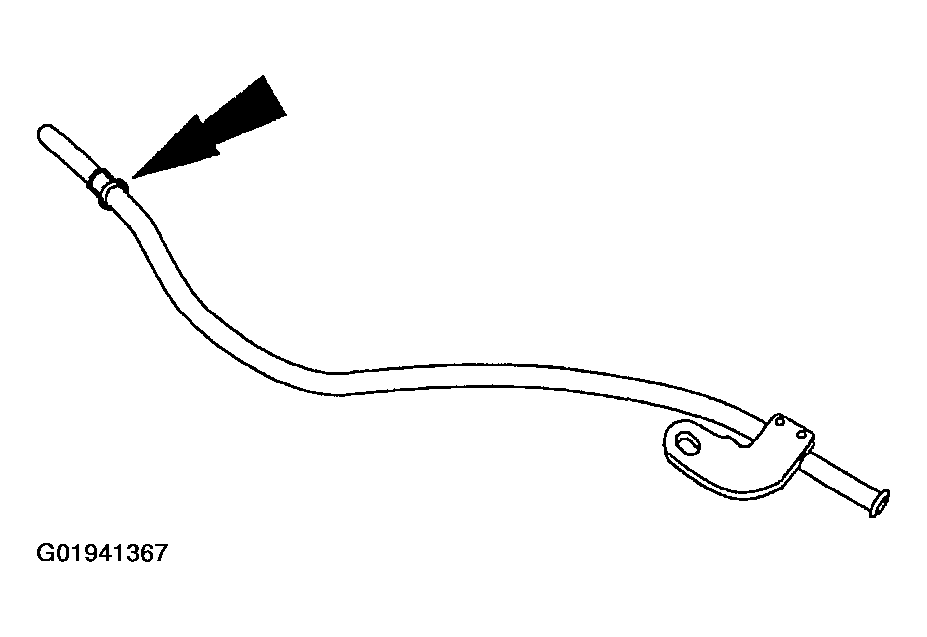

    Fig 2: Identifying Oil Level Indicator Tube O-Ring Seal
    G01941367Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.

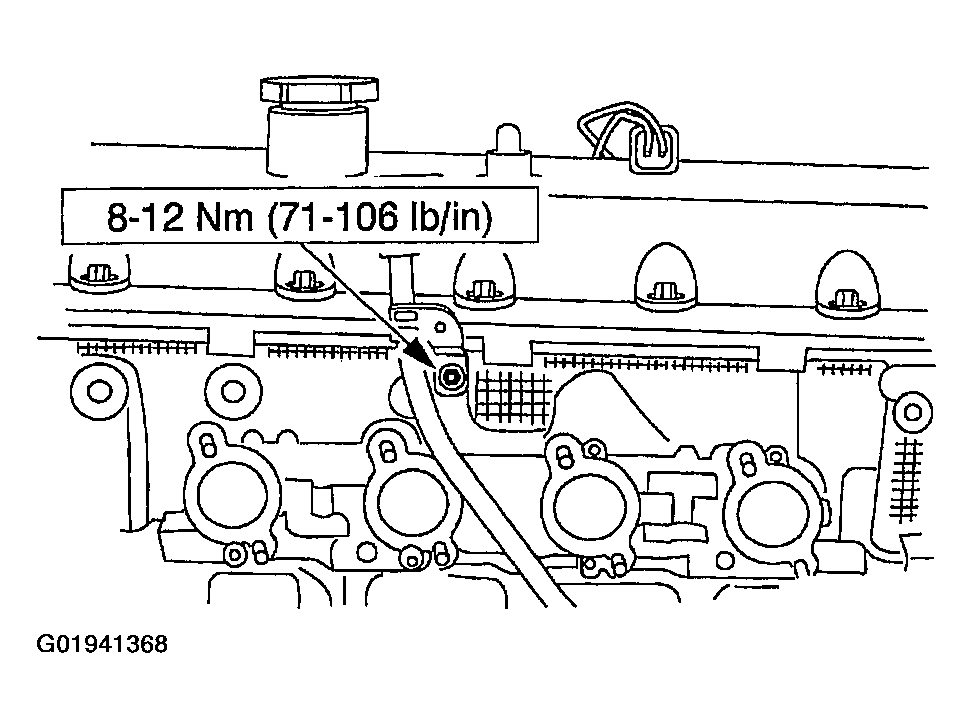

    Fig 3: Tightening Oil Level Indicator Tube Bolt
    G01941368Courtesy of FORD MOTOR CO.
