Removal & Installation

  1. Remove the oil level indicator tube. For additional information, refer to OIL LEVEL INDICATOR & TUBE .
  2. Suitably support the engine.
  3. Remove the three bolts.

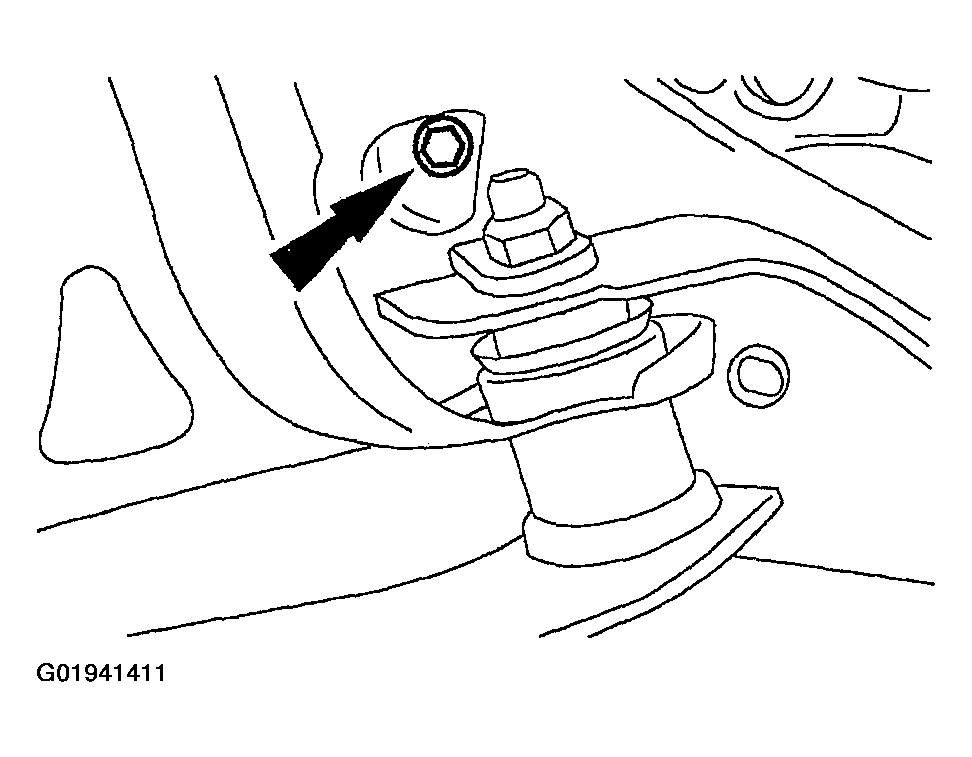

    Fig 1: Identifying LH Motor Mount-To-Engine Bolts
    G01941411Courtesy of FORD MOTOR CO.
  4. Remove the three bolts.

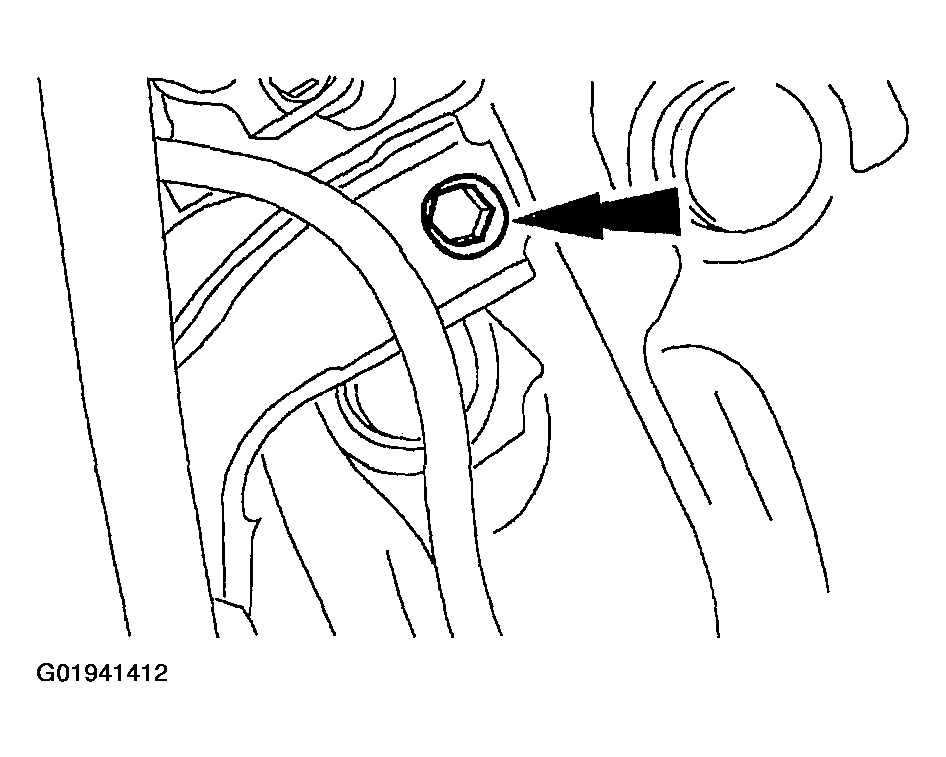

    Fig 2: Identifying LH Motor Mount-To-Frame Bolts
    G01941412Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.

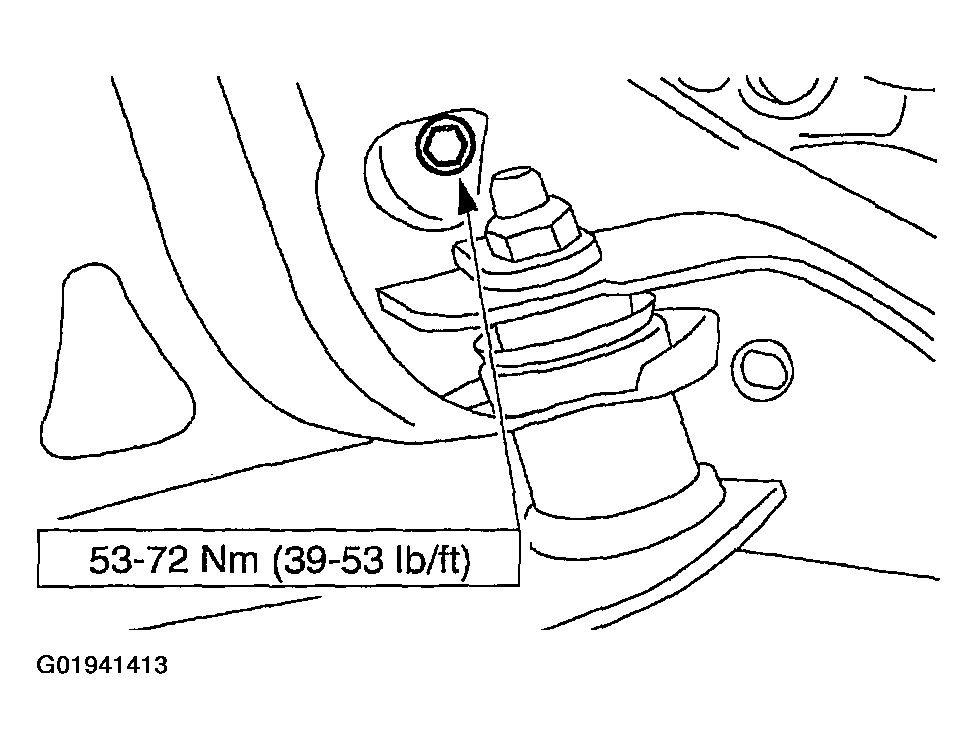

    Fig 3: Tightening LH Motor Mount-To-Engine Bolts
    G01941413Courtesy of FORD MOTOR CO.

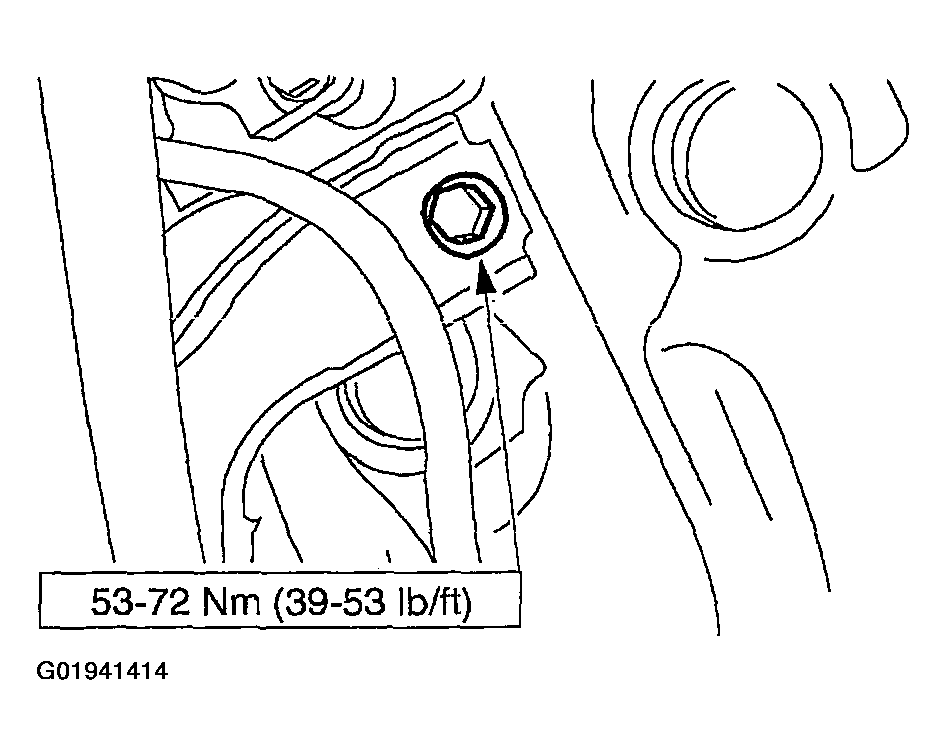

    Fig 4: Tightening LH Motor Mount-To-Frame Bolts
    G01941414Courtesy of FORD MOTOR CO.
