Piston - Pin Connecting Rod Assembly, Press Fit: Assembly

  1. Lubricate the piston pin (6135) and piston pin bore with clean engine oil.

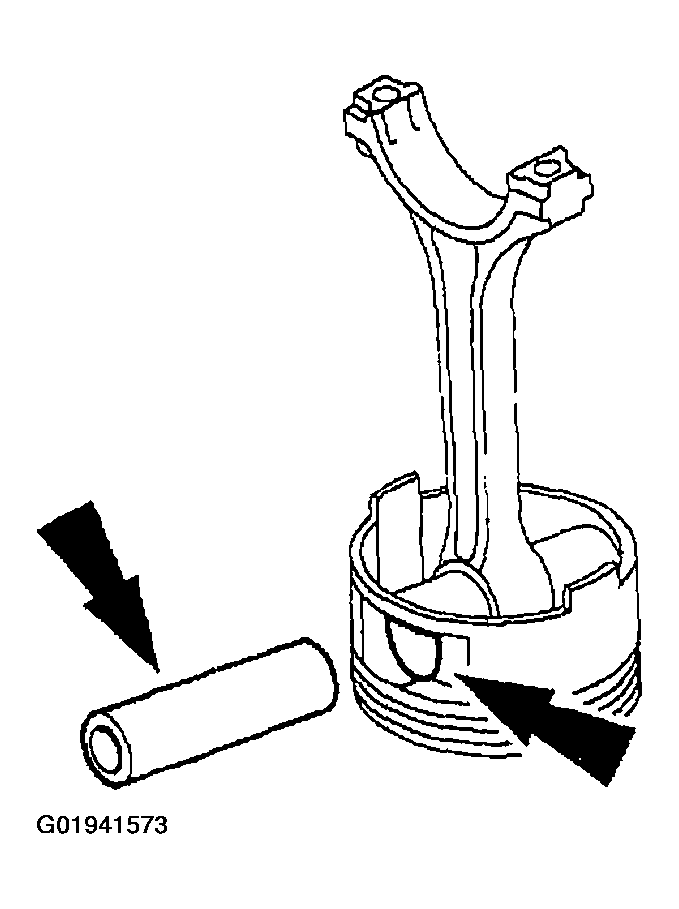

    Fig 1: Identifying Piston Pin & Piston
    G01941573Courtesy of FORD MOTOR CO.
    2. NOTE: The connecting rod can be installed in either direction.

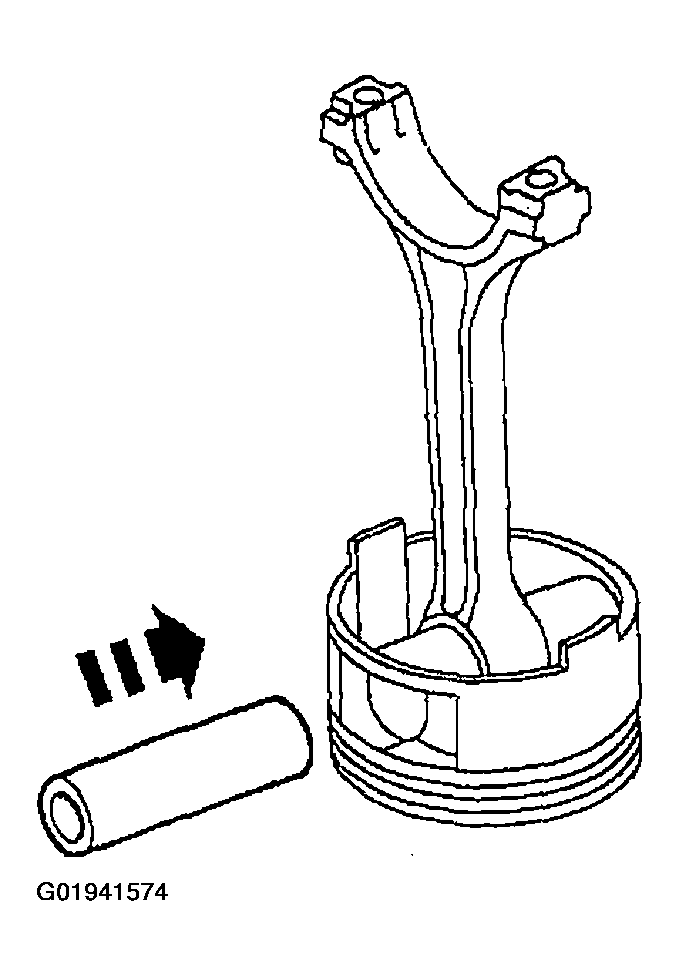

    Fig 2: Positioning Piston Pin In Connecting Rod Bore
    G01941574Courtesy of FORD MOTOR CO.
  2. Position the piston pin in the bore aligned with the connecting rod bore.
  3. Use the Piston Pin Tool to press the piston pin into the piston and rod assembly.

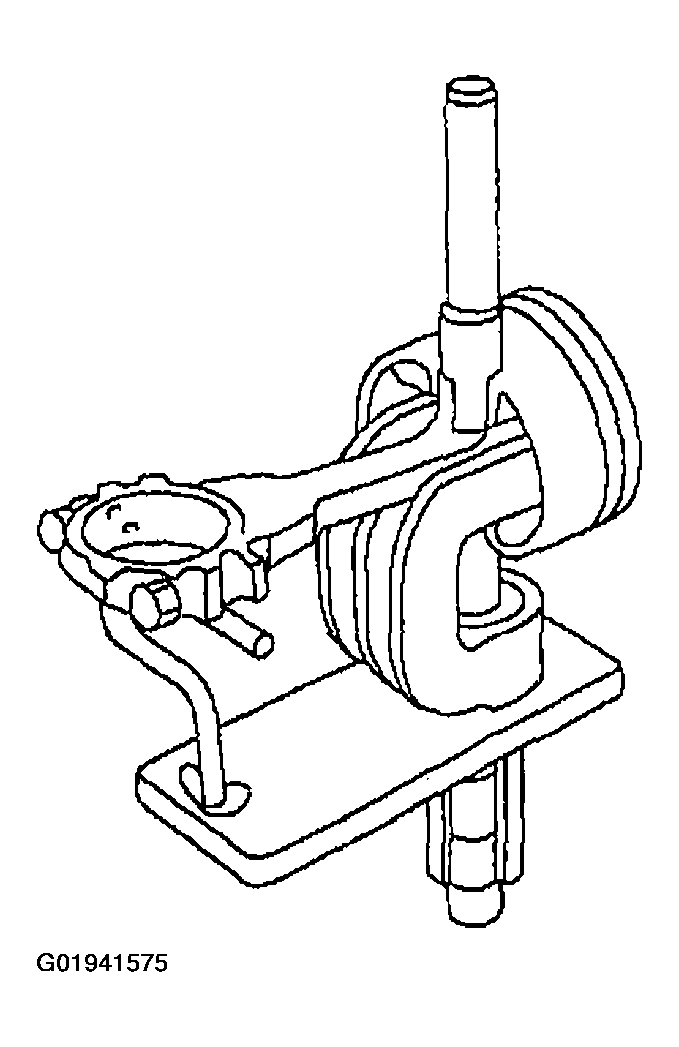

    Fig 3: Installing Piston Pin In Connecting Rod Bore
    G01941575Courtesy of FORD MOTOR CO.
