Pinpoint Test F: The Intermittent Wiper Speed Does Not Operate Correctly

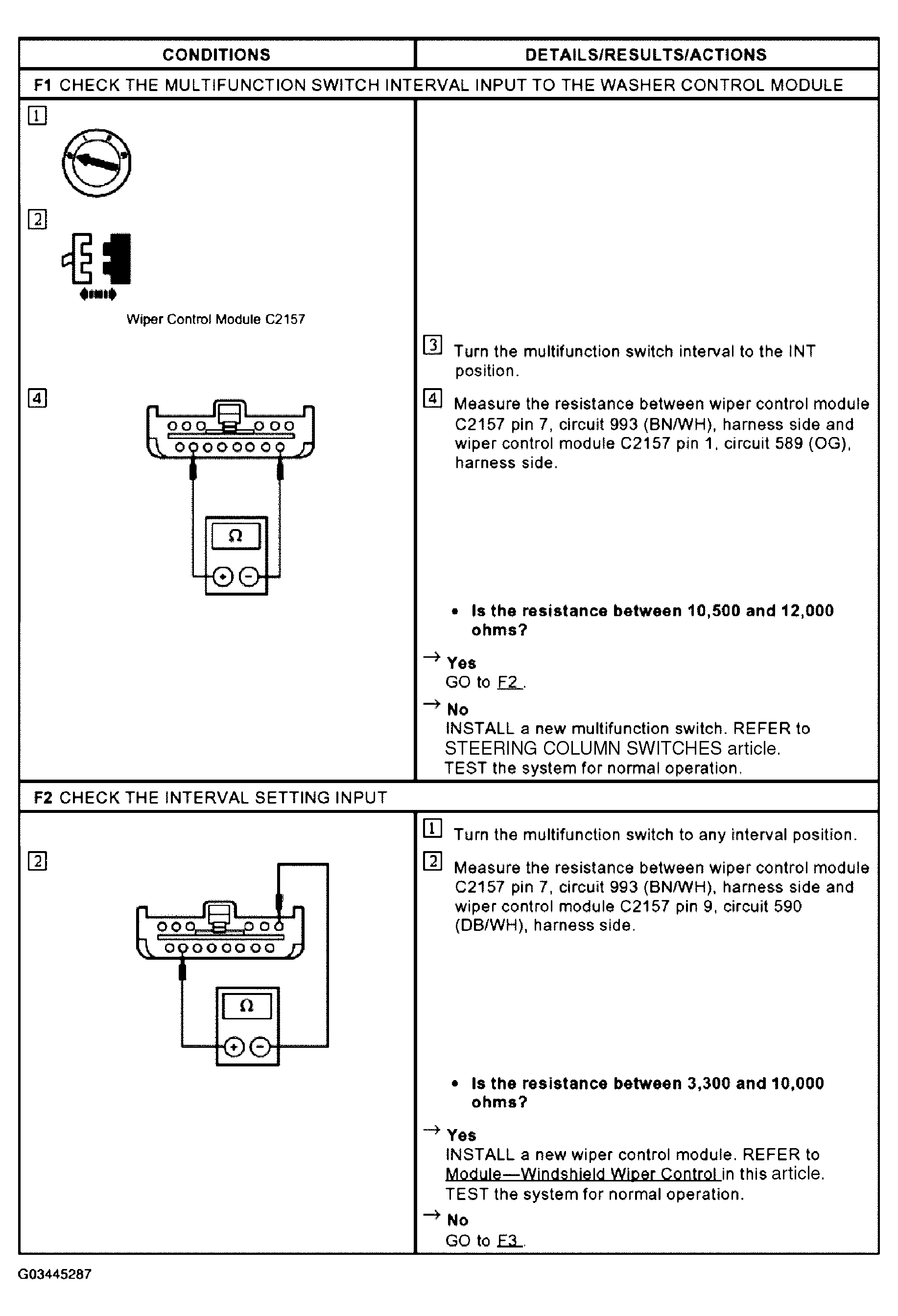

Fig 1: Pinpoint Test F: Intermittent Wiper Speed Does Not Operate Correctly (F1 - F2)
G03445287Courtesy of FORD MOTOR CO.

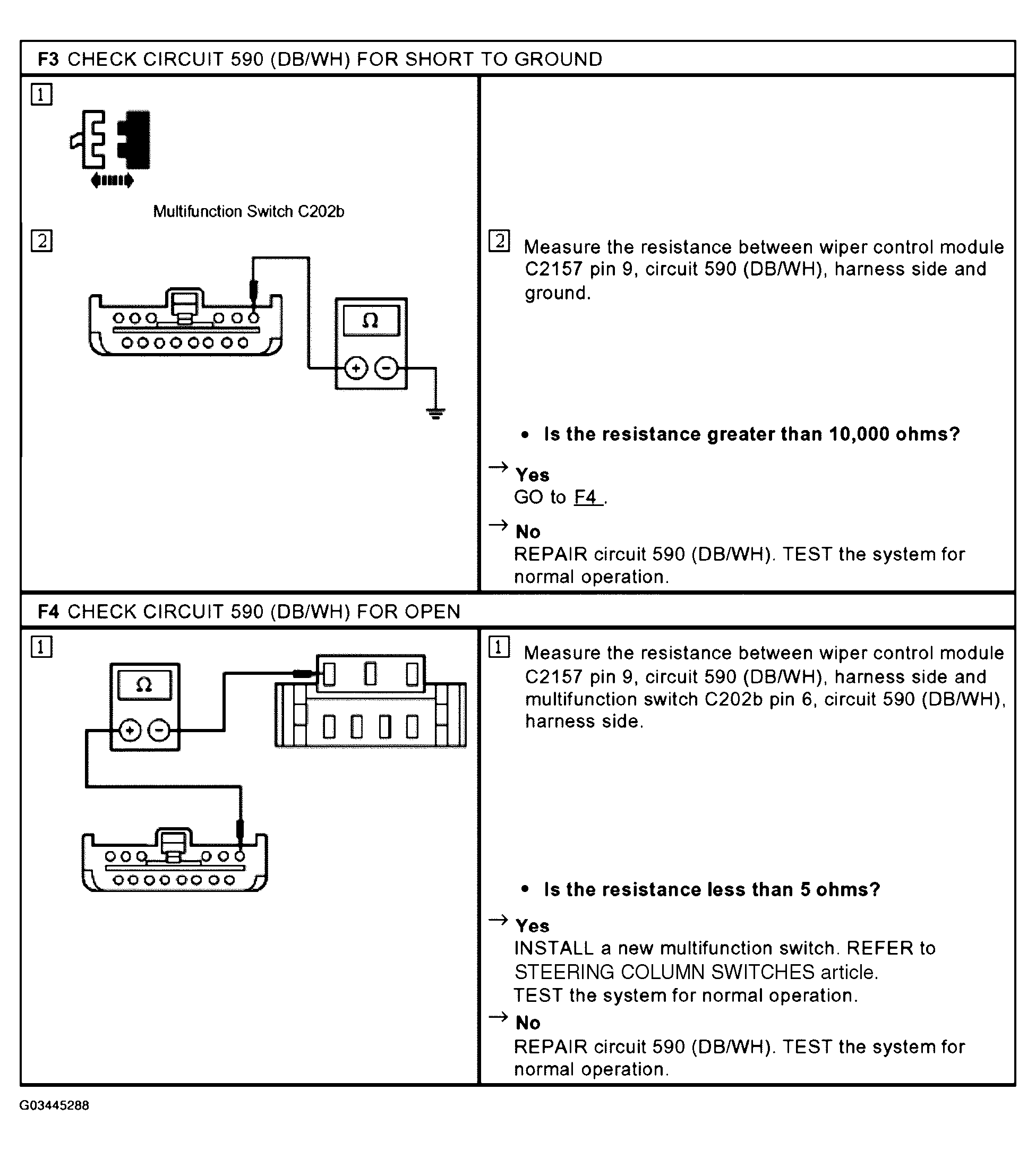

Fig 2: Pinpoint Test F: Intermittent Wiper Speed Does Not Operate Correctly (F3 - F4)
G03445288Courtesy of FORD MOTOR CO.
