Pinpoint Test A: Ignition Switch Is Inoperative

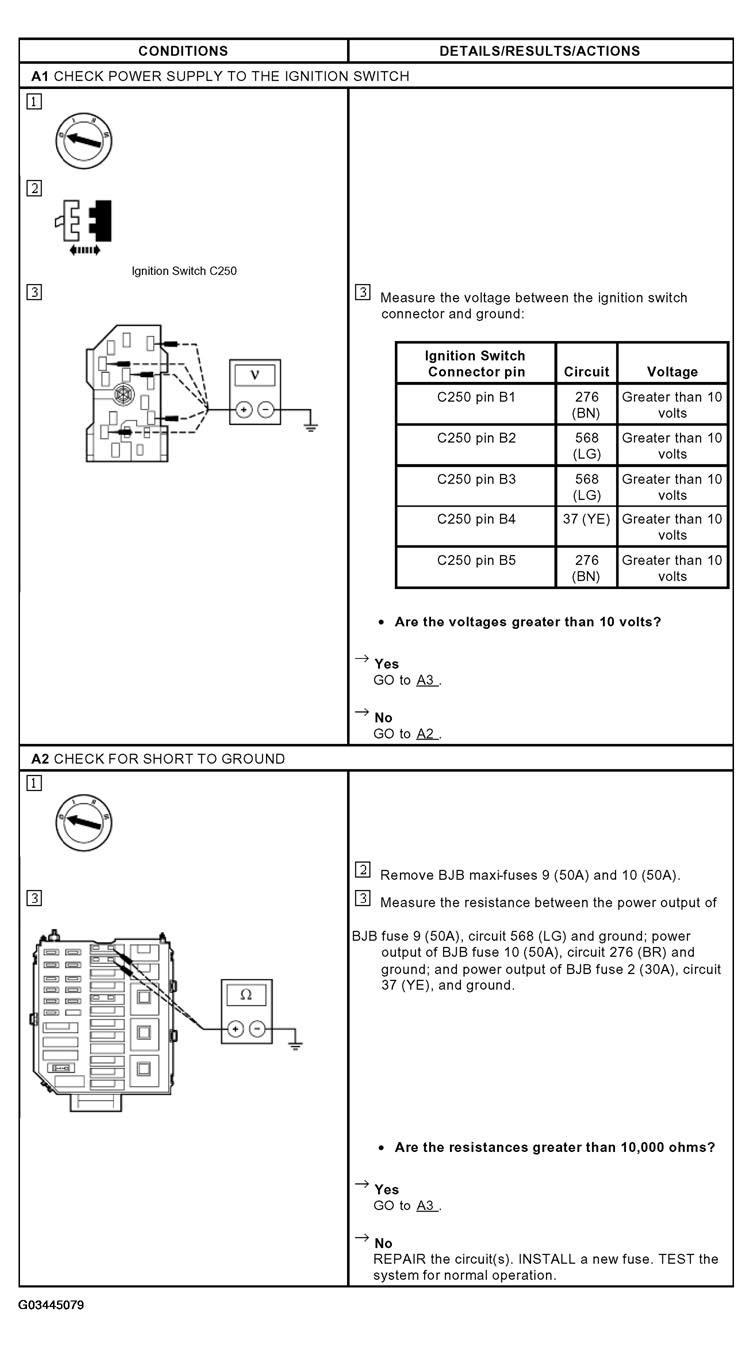

Fig 1: Pinpoint Test A: Ignition Switch Is Inoperative (A1 - A2)
G03445079Courtesy of FORD MOTOR CO.

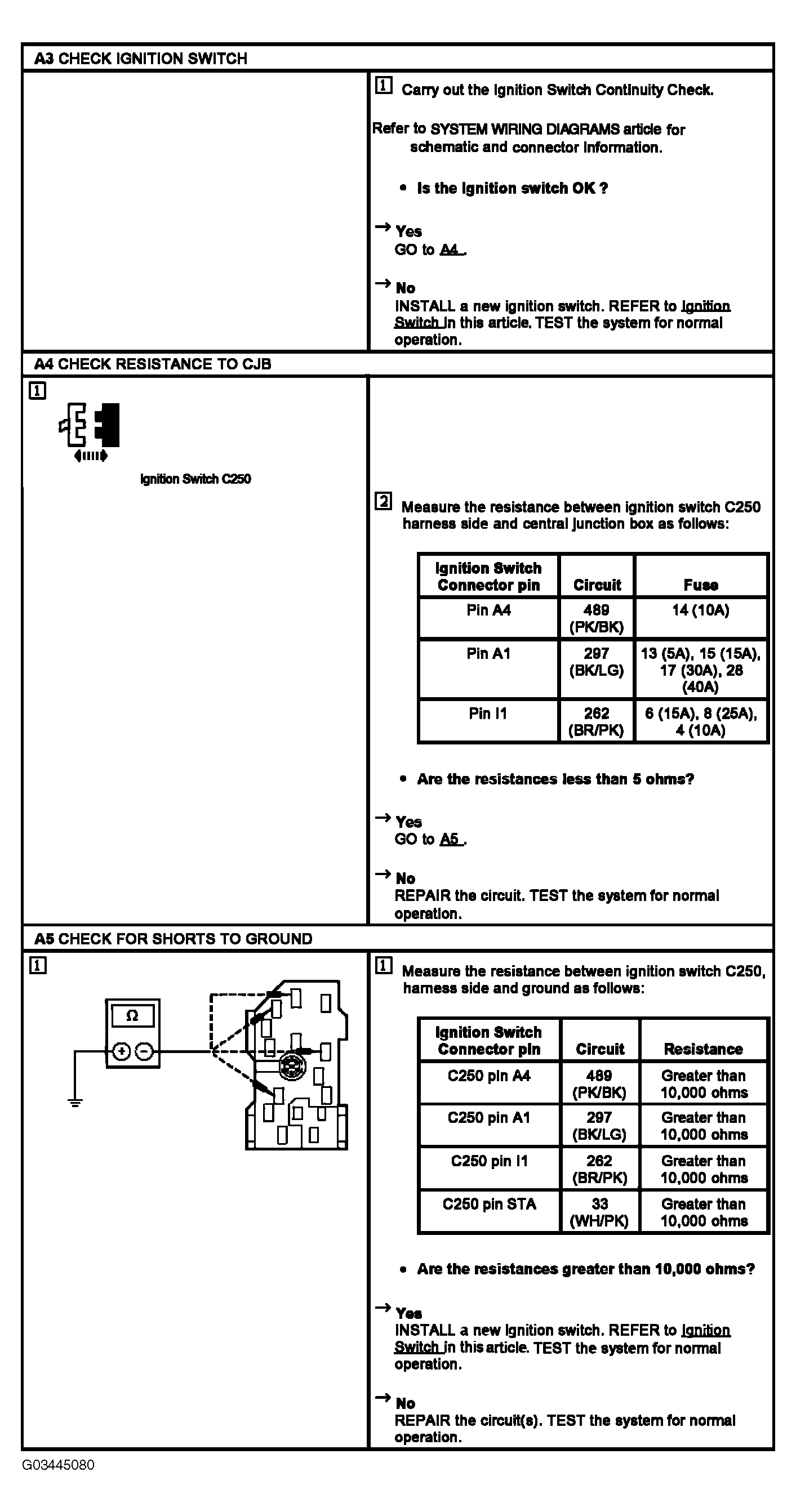

Fig 2: Pinpoint Test A: Ignition Switch Is Inoperative (A3 - A5)
G03445080Courtesy of FORD MOTOR CO.
