Pinpoint Test E: MULTIFUNCTION Switch Does Not Operate Correctly

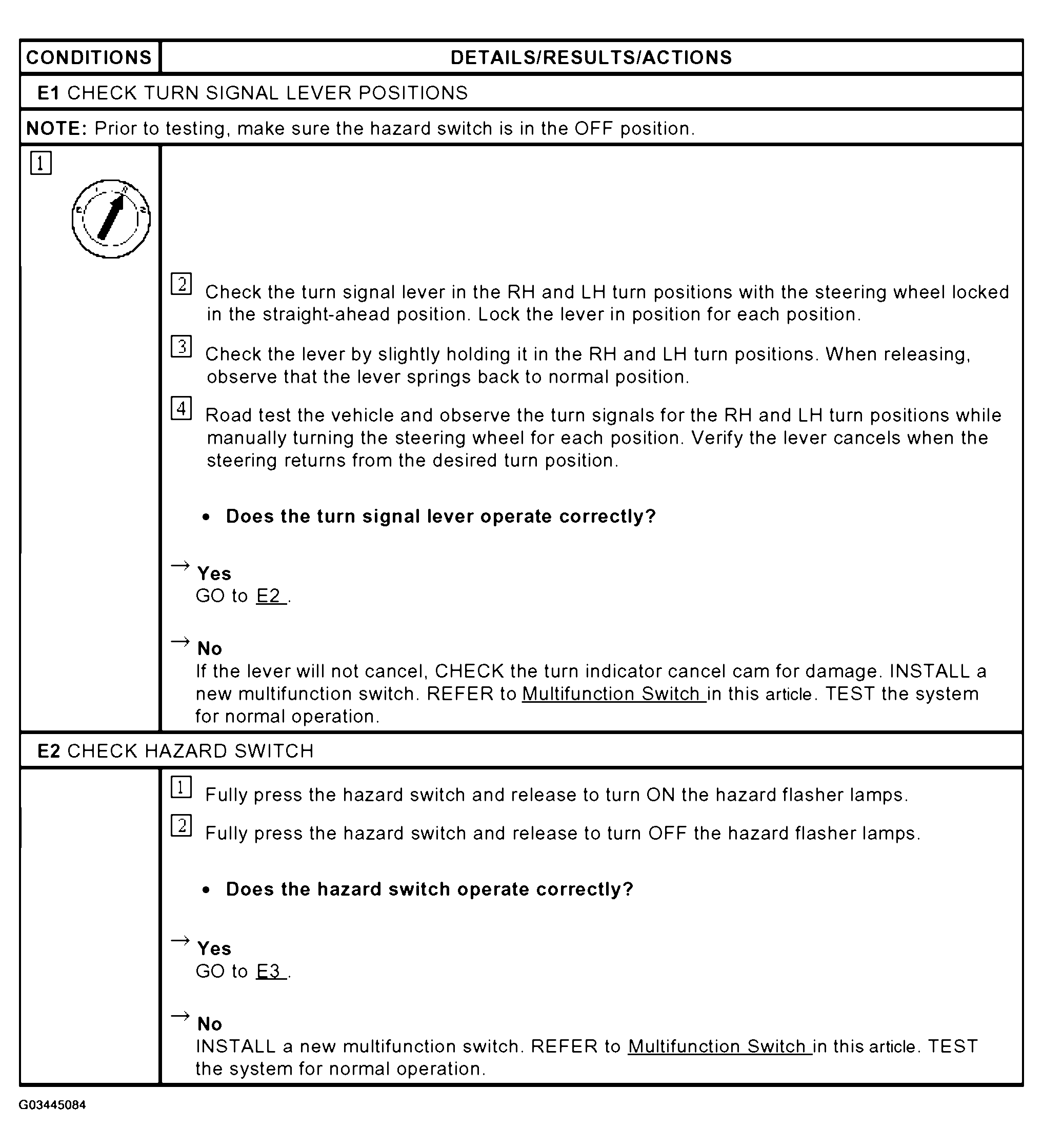

Fig 1: Pinpoint Test E: Multifunction Switch Does Not Operate Correctly (E1 - E2)
G03445084Courtesy of FORD MOTOR CO.

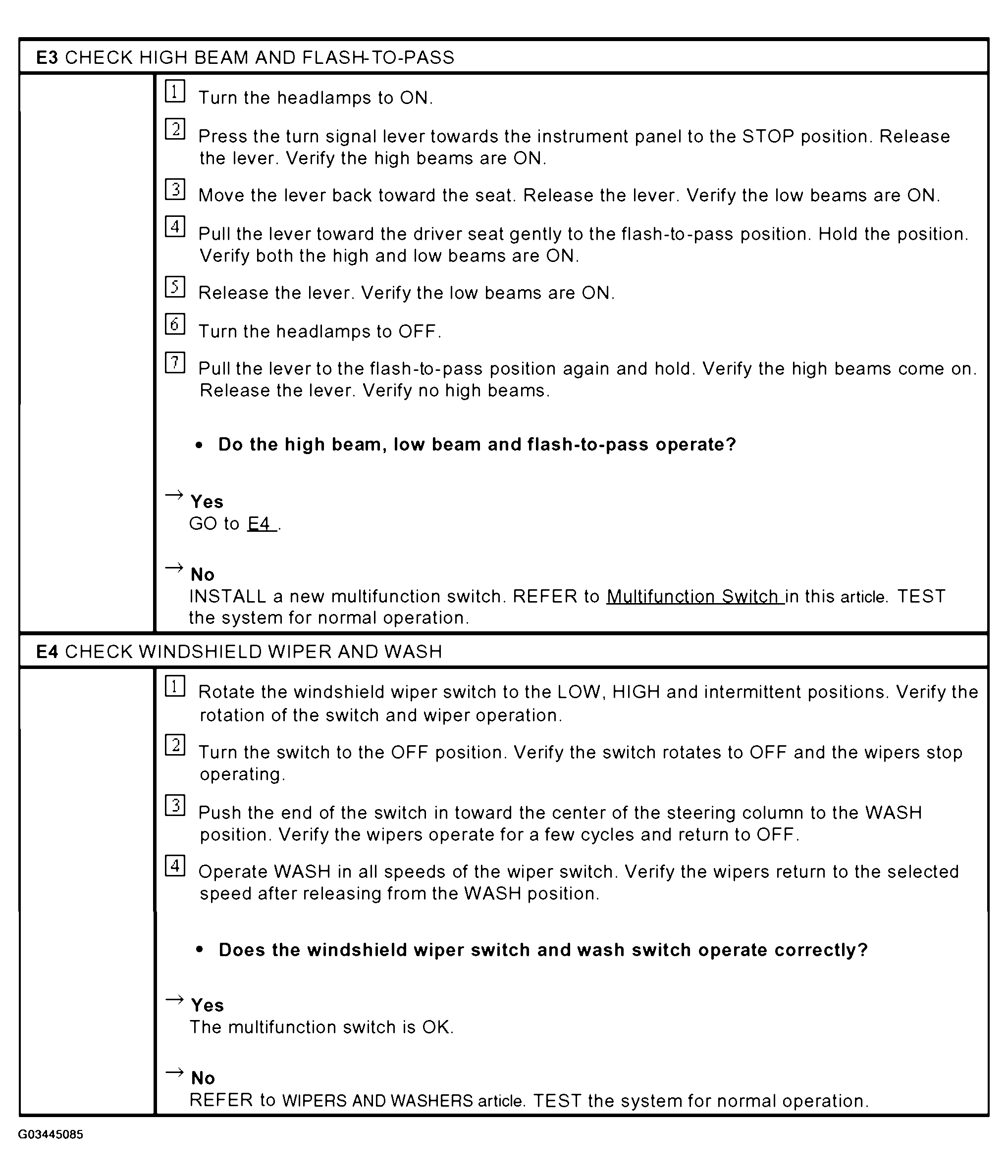

Fig 2: Pinpoint Test E: Multifunction Switch Does Not Operate Correctly (E3 - E4)
G03445085Courtesy of FORD MOTOR CO.
