Ignition Switch: Installation

To install, reverse the removal procedure.
- Repower the supplemental restraint system (SRS). For additional information, refer to AIR BAG RESTRAINT SYSTEMS .

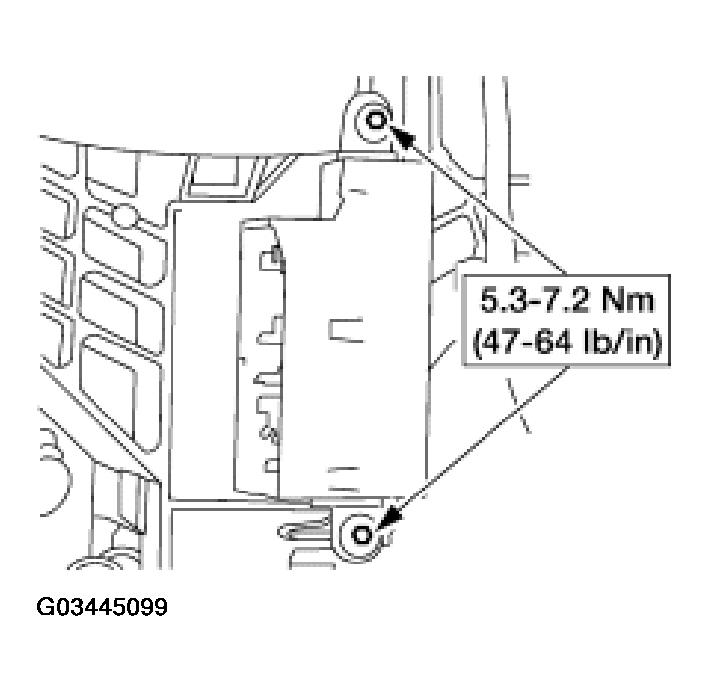

Fig 1: Installing Ignition Switch
Courtesy of FORD MOTOR CO.

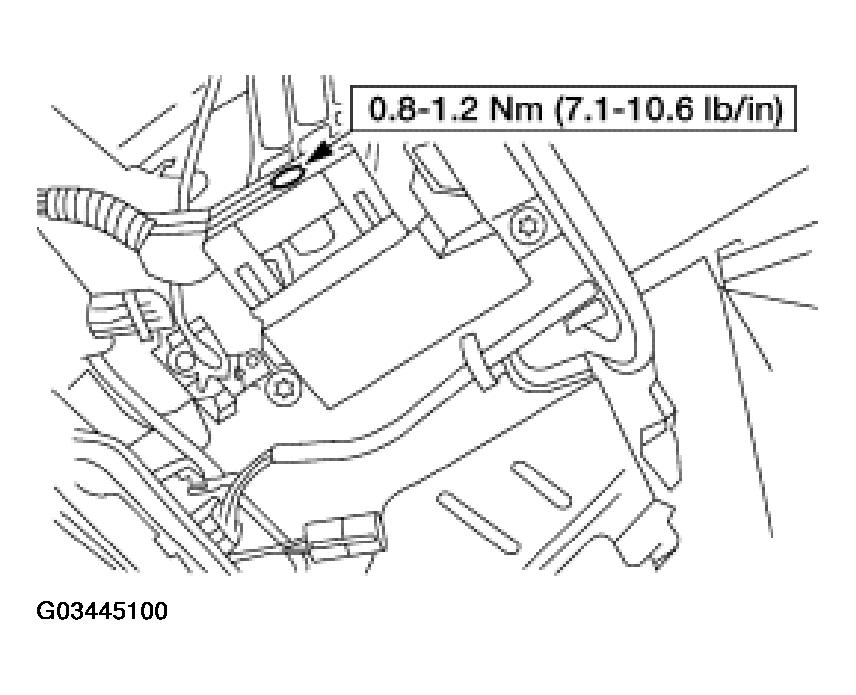

Fig 2: Connecting Ignition Switch Connector
Courtesy of FORD MOTOR CO.

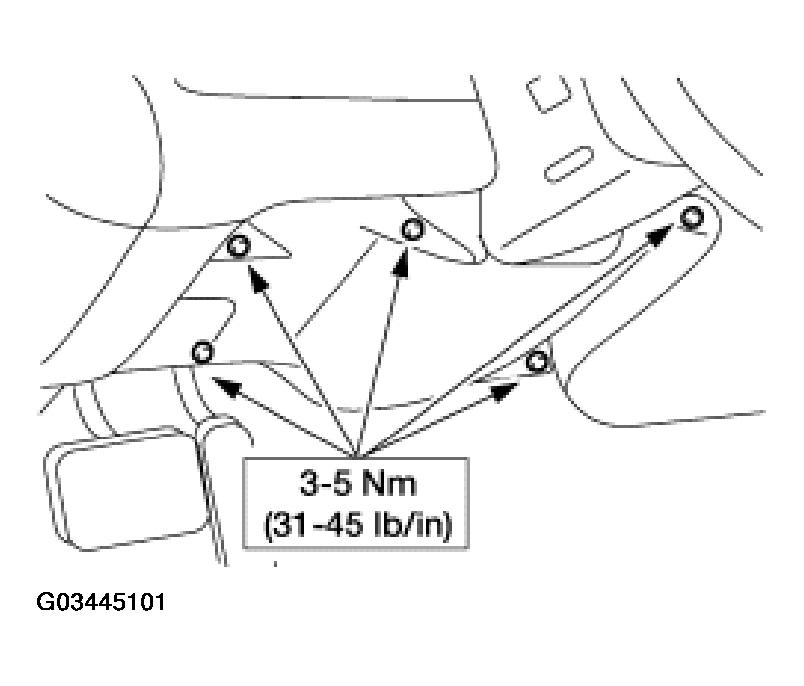

Fig 3: Installing Instrument Panel Steering Column Opening Cover Reinforcement
Courtesy of FORD MOTOR CO.

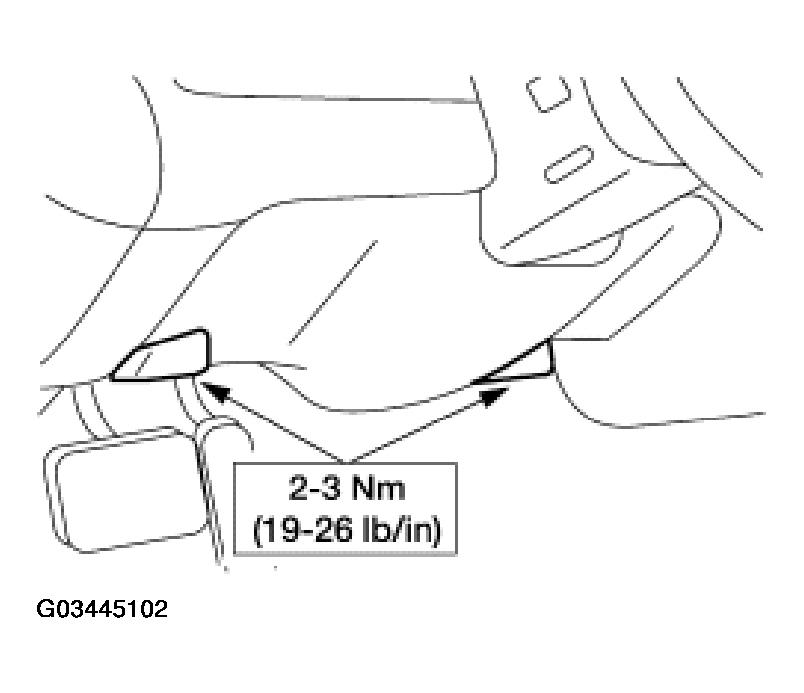

Fig 4: Installing Lower Instrument Panel Steering Column Opening Cover
Courtesy of FORD MOTOR CO.
