Pinpoint Test A: The Instrument Cluster Is Inoperative

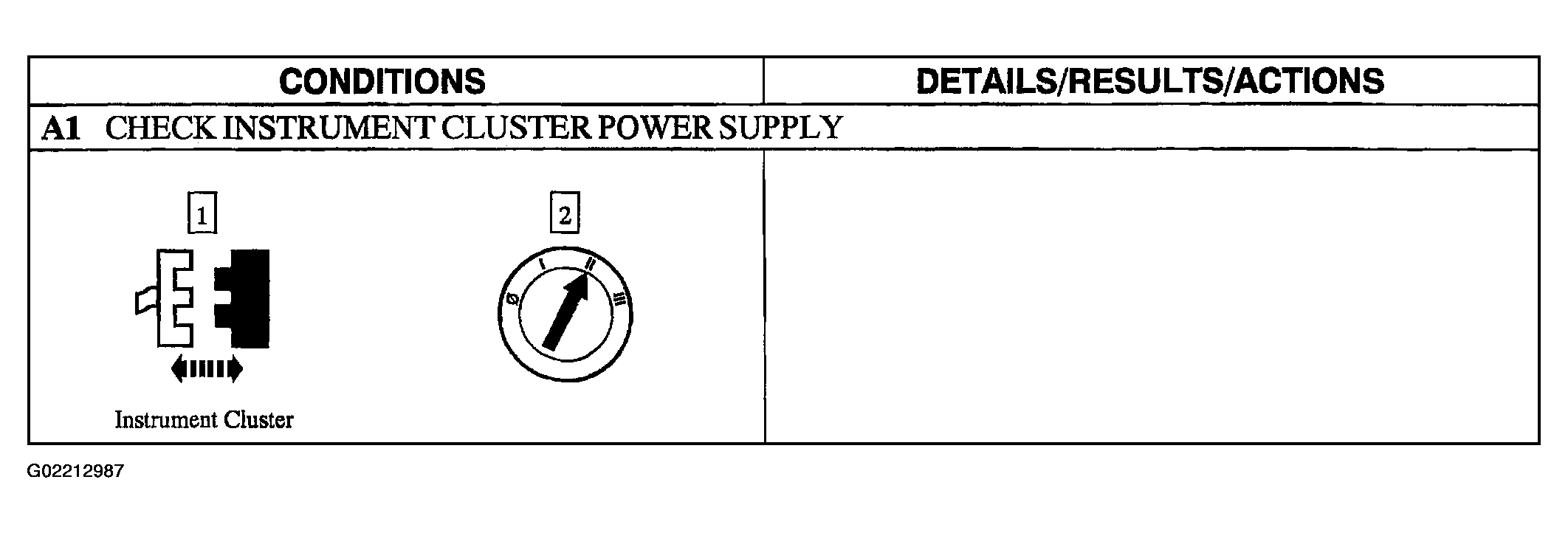

Fig 1: Pinpoint Test A: The Instrument Cluster Is Inoperative (Step A1)
G02212987Courtesy of FORD MOTOR CO.

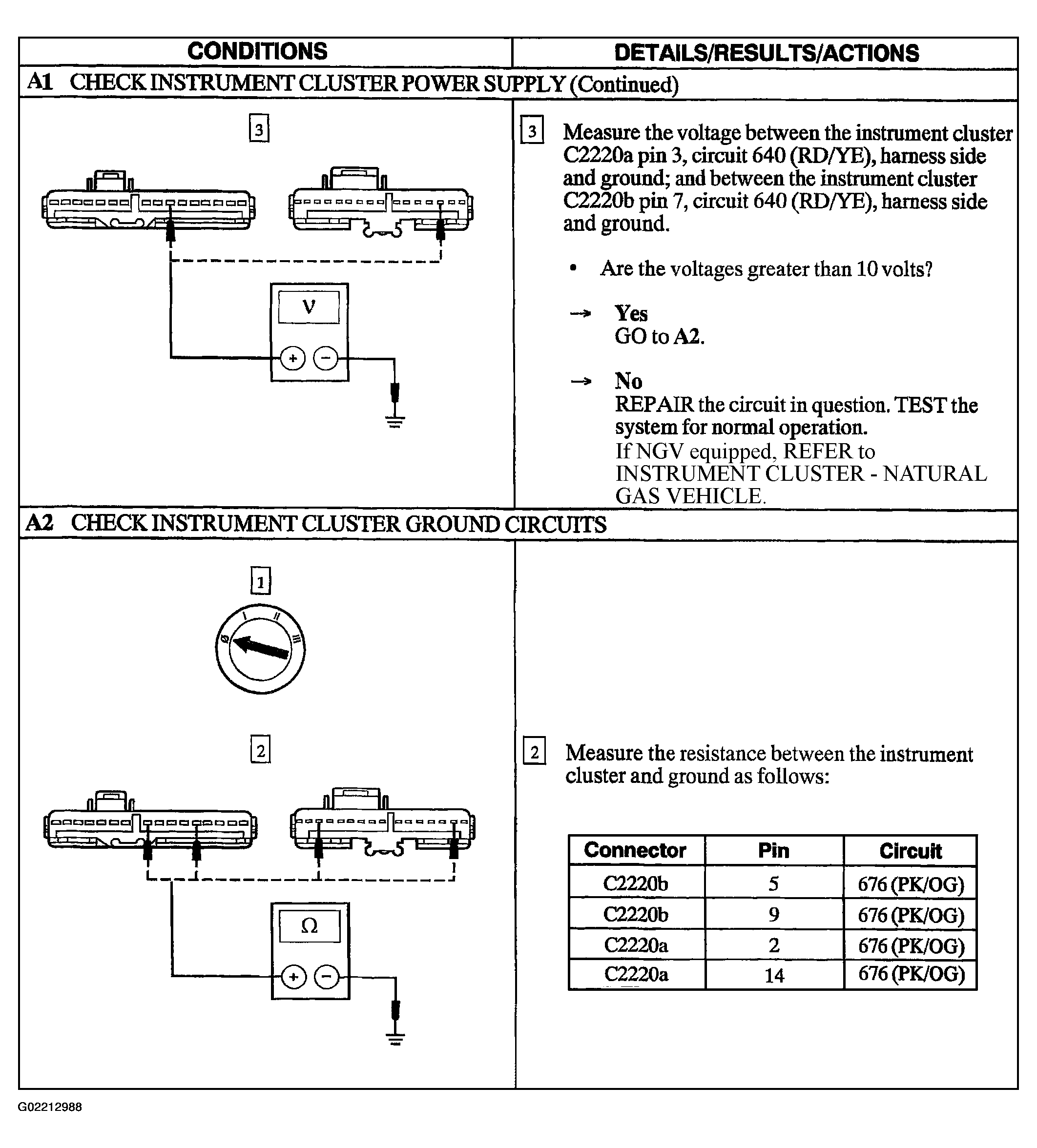

Fig 2: Pinpoint Test A: The Instrument Cluster Is Inoperative (Steps A1 Cont.-A2)
G02212988Courtesy of FORD MOTOR CO.

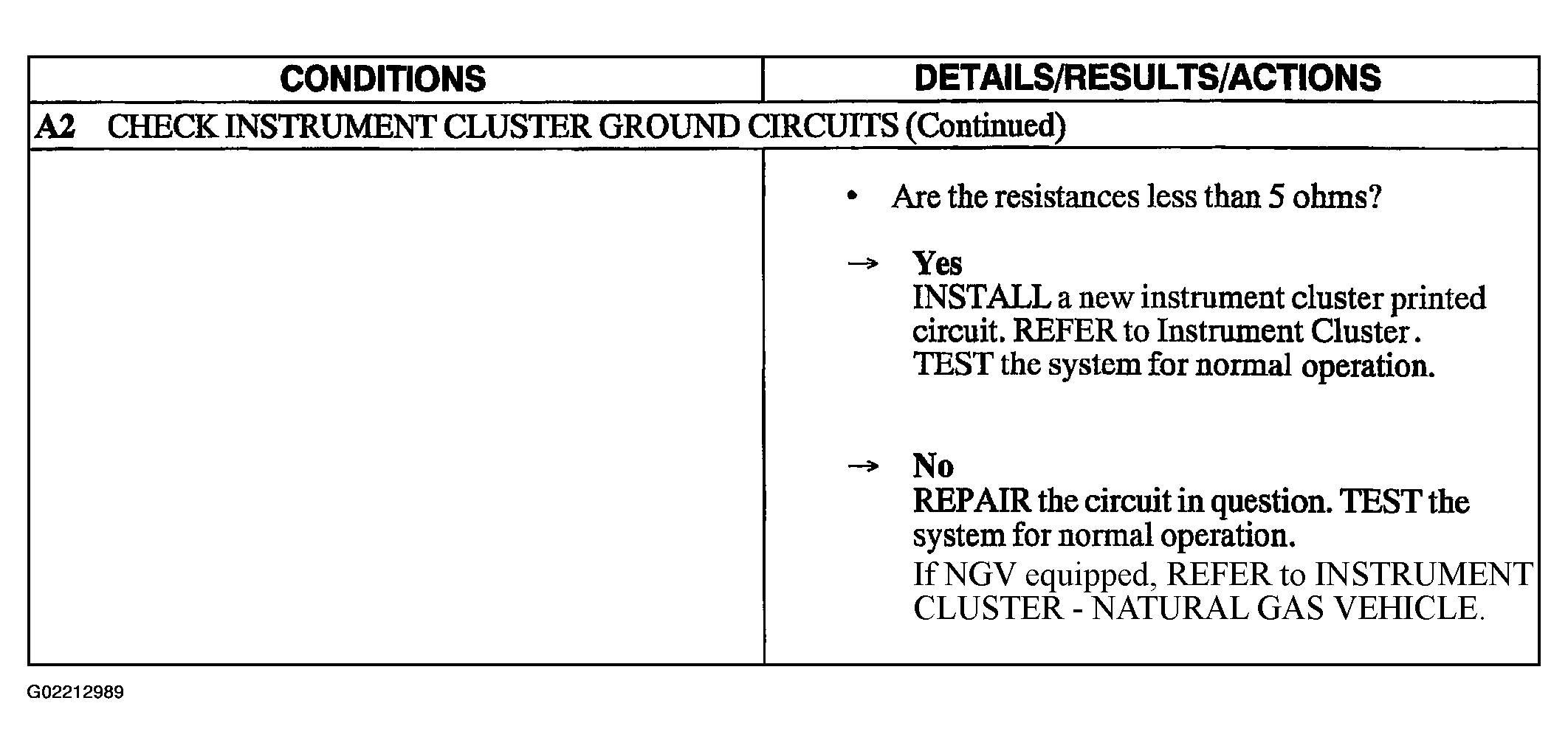

Fig 3: Pinpoint Test A: The Instrument Cluster Is Inoperative (Step A2 Cont.)
G02212989Courtesy of FORD MOTOR CO.
