Pinpoint Test J: The Safety Belt Warning Indicator Is Inoperative (Chime Is Operative)

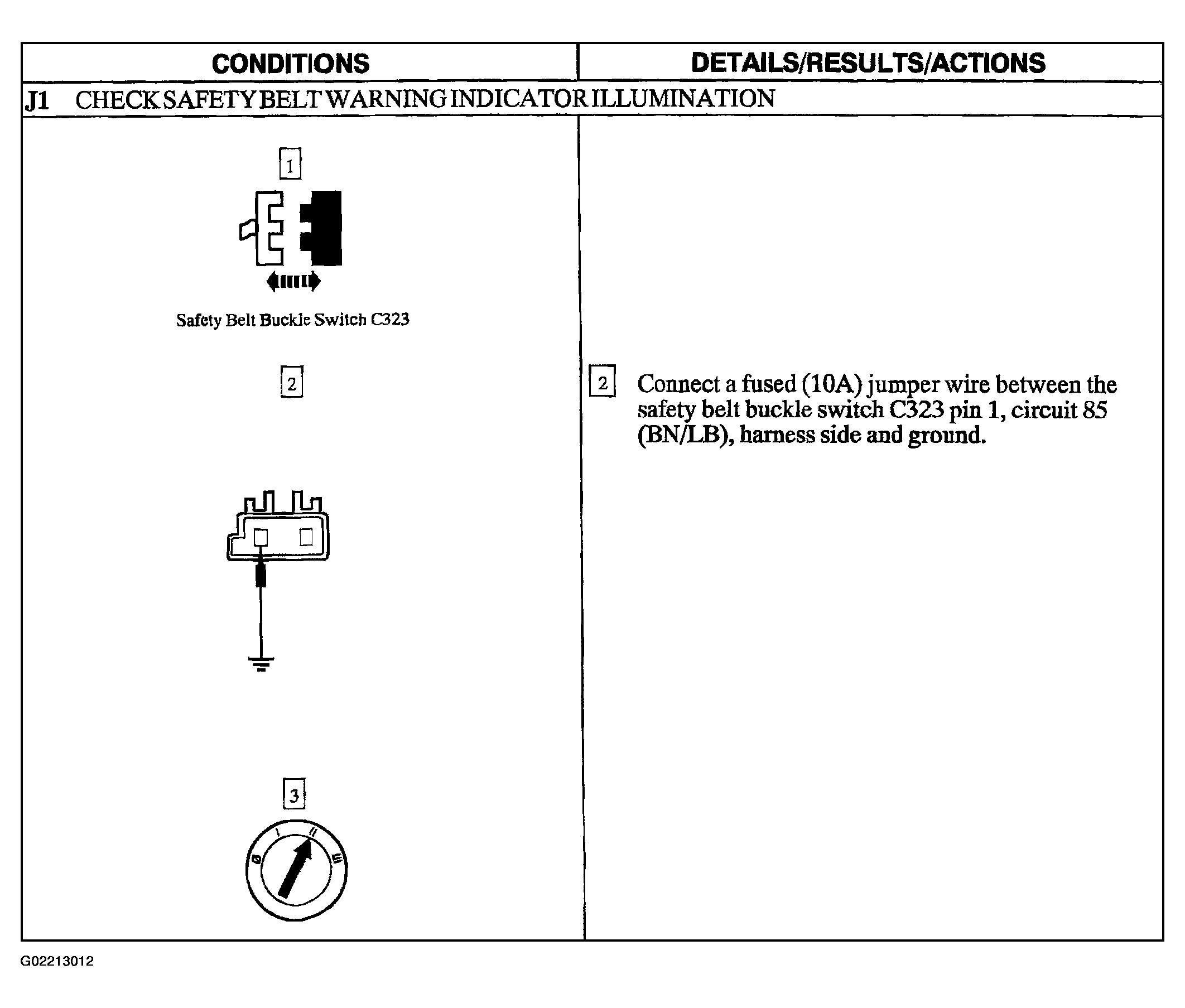

Fig 1: Pinpoint Test J: The Safety Belt Warning Indicator Is Inoperative (Chime Is Operative) (Step J1)
G02213012Courtesy of FORD MOTOR CO.

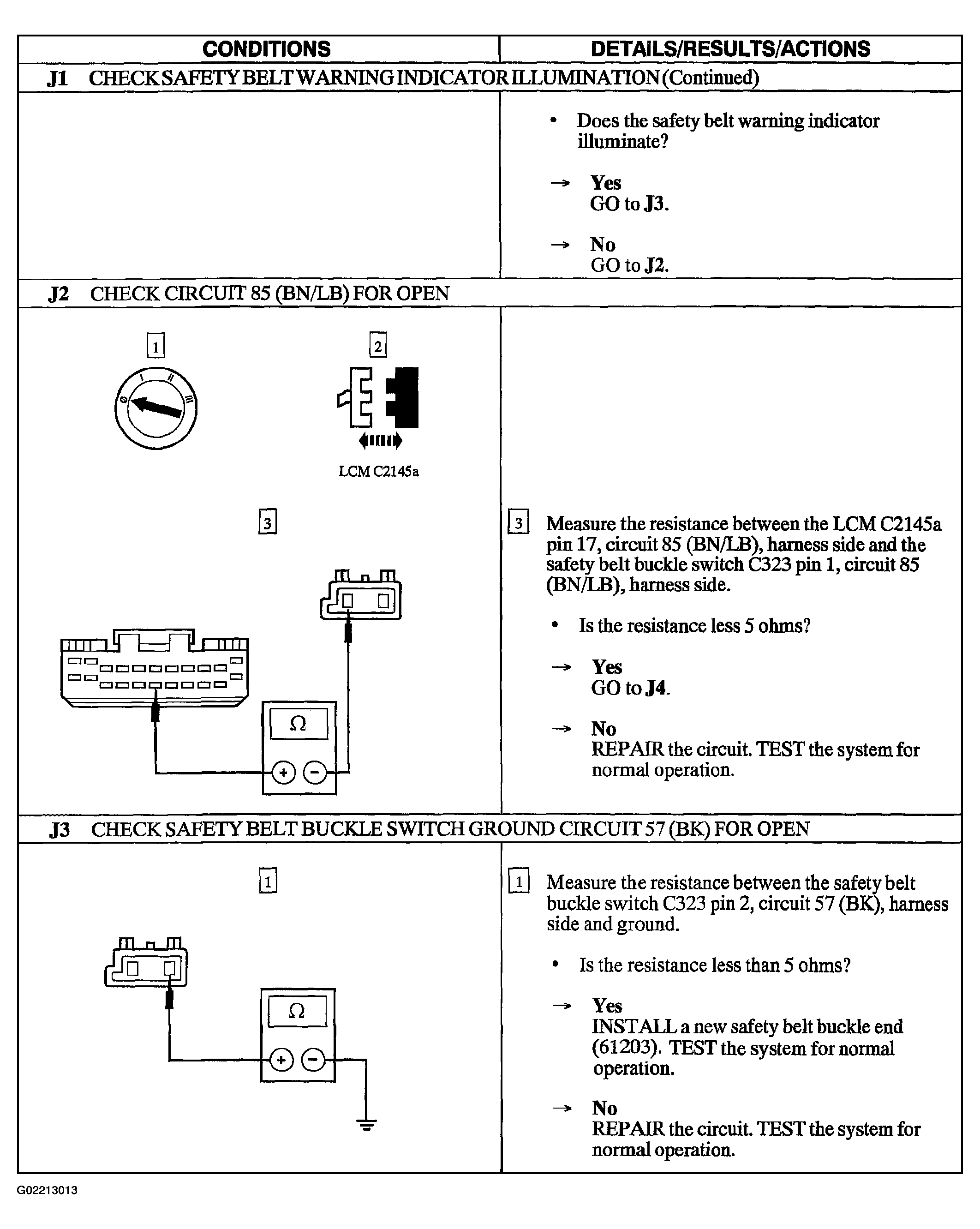

Fig 2: Pinpoint Test J: The Safety Belt Warning Indicator Is Inoperative (Chime Is Operative) (Steps J1 Cont.-J3)
G02213013Courtesy of FORD MOTOR CO.

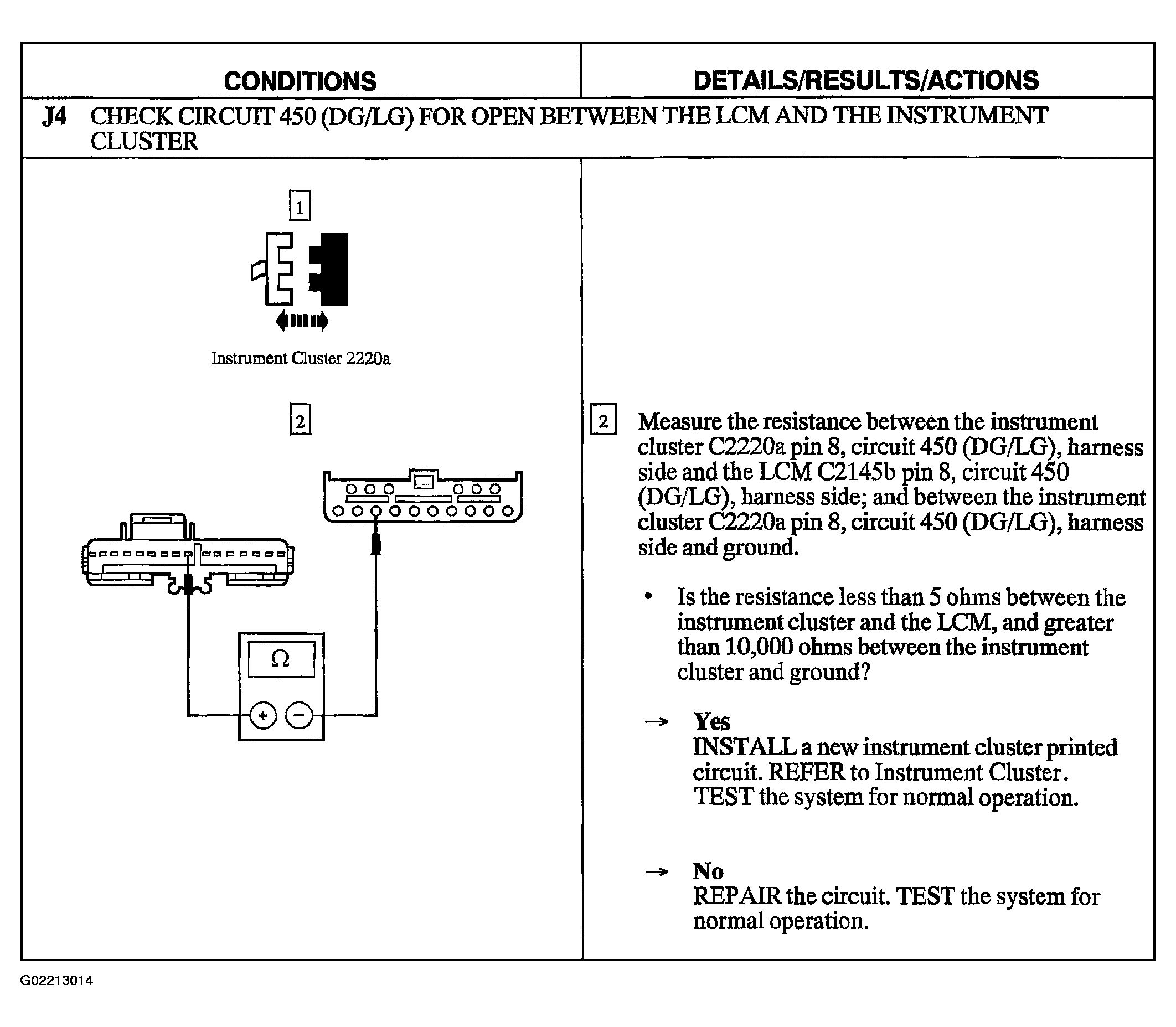

Fig 3: Pinpoint Test J: The Safety Belt Warning Indicator Is Inoperative (Chime Is Operative) (Step J4)
G02213014Courtesy of FORD MOTOR CO.
