Pinpoint Test P: The O/D Off Indicator Is Never On

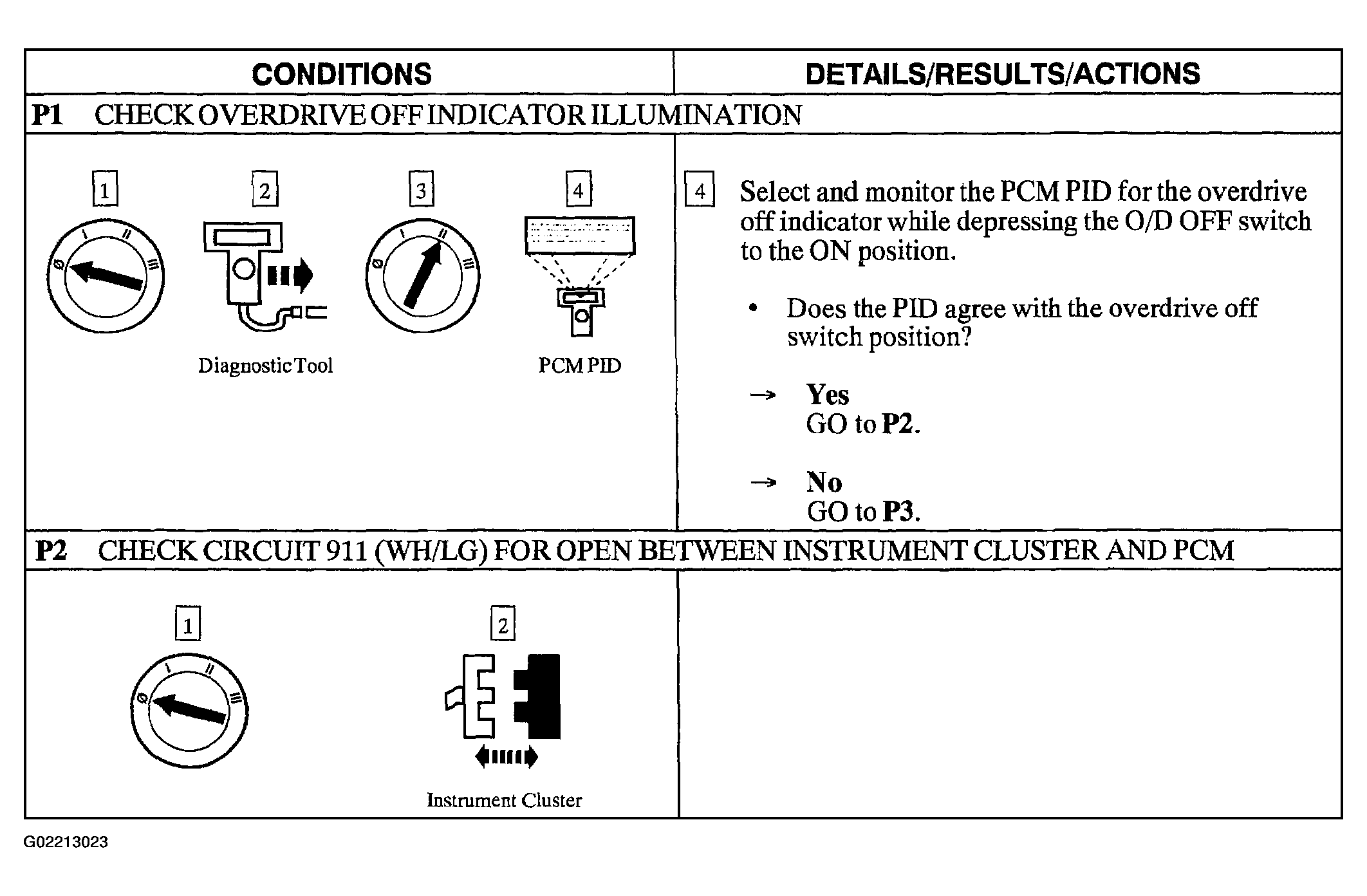

Fig 1: Pinpoint Test P: The O/D Off Indicator Is Never On (Steps P1-P2)

Courtesy of FORD MOTOR CO.

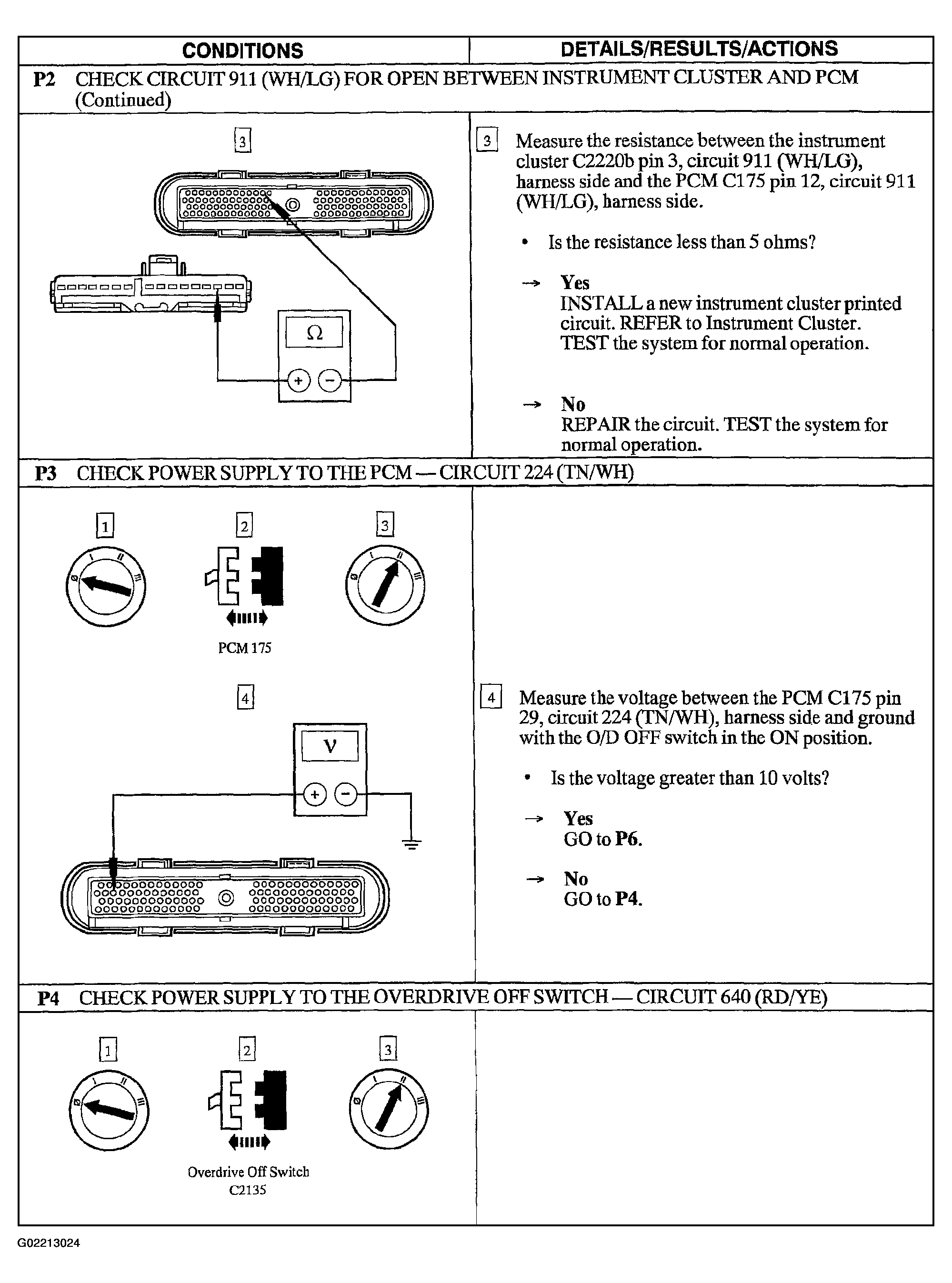

Fig 2: Pinpoint Test P: The O/D Off Indicator Is Never On (Steps P2 Cont.-P4)

Courtesy of FORD MOTOR CO.

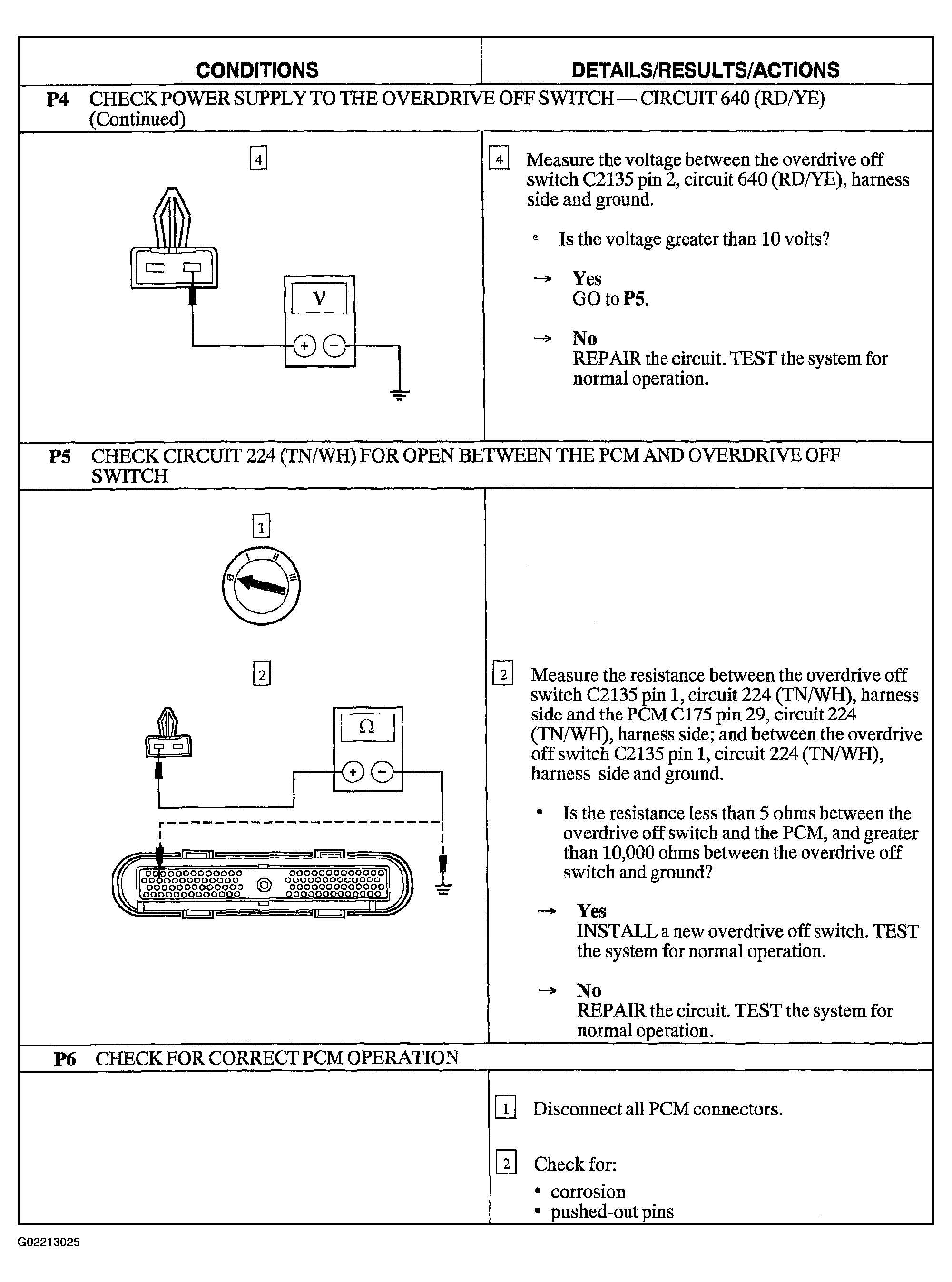

Fig 3: Pinpoint Test P: The O/D Off Indicator Is Never On (Steps P4 Cont.-P6)

Courtesy of FORD MOTOR CO.

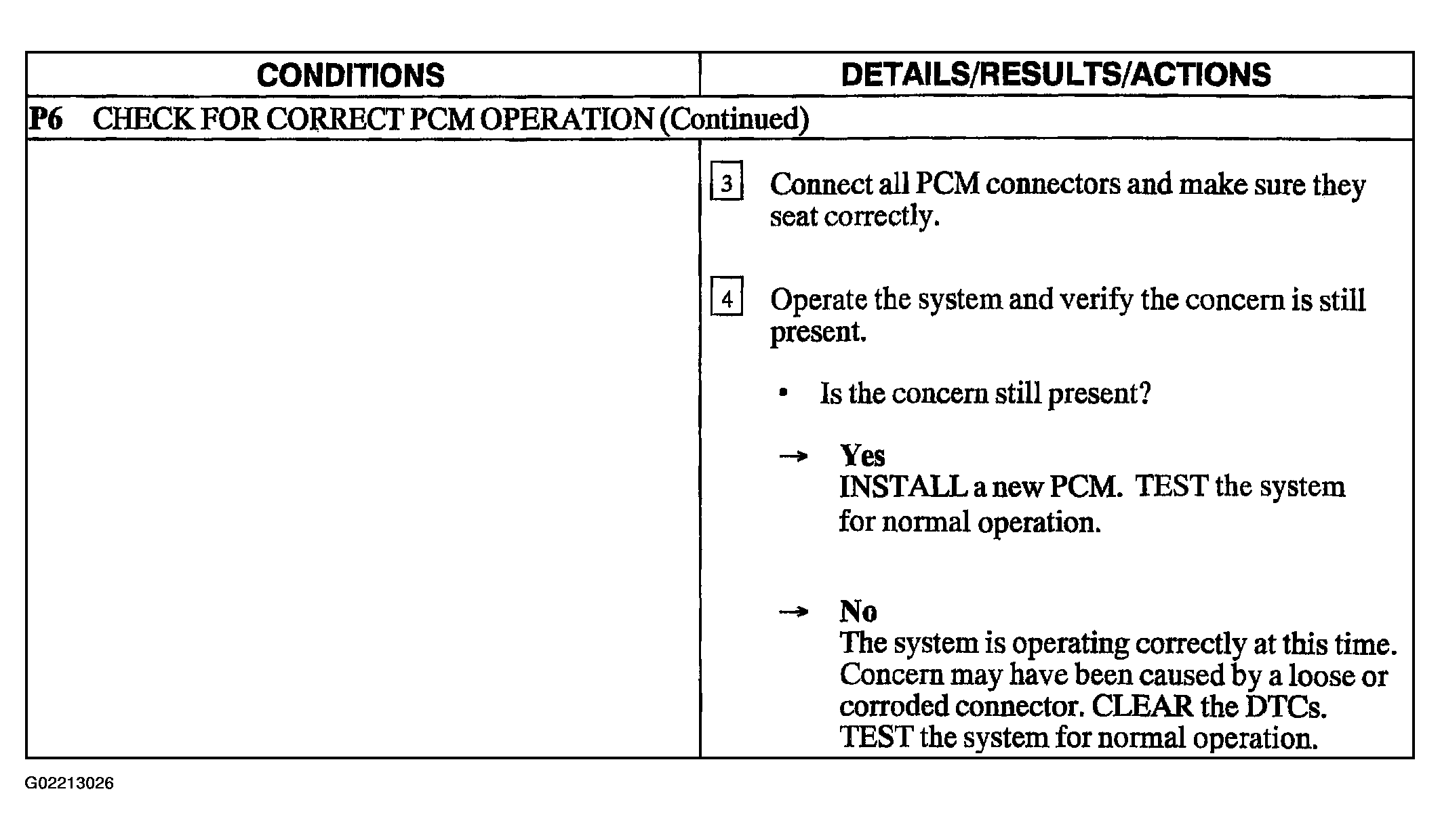

Fig 4: Pinpoint Test P: The O/D Off Indicator Is Never On (Step P6 Cont.)

Courtesy of FORD MOTOR CO.
