Pinpoint Test Q: The ABS Indicator Is Never On

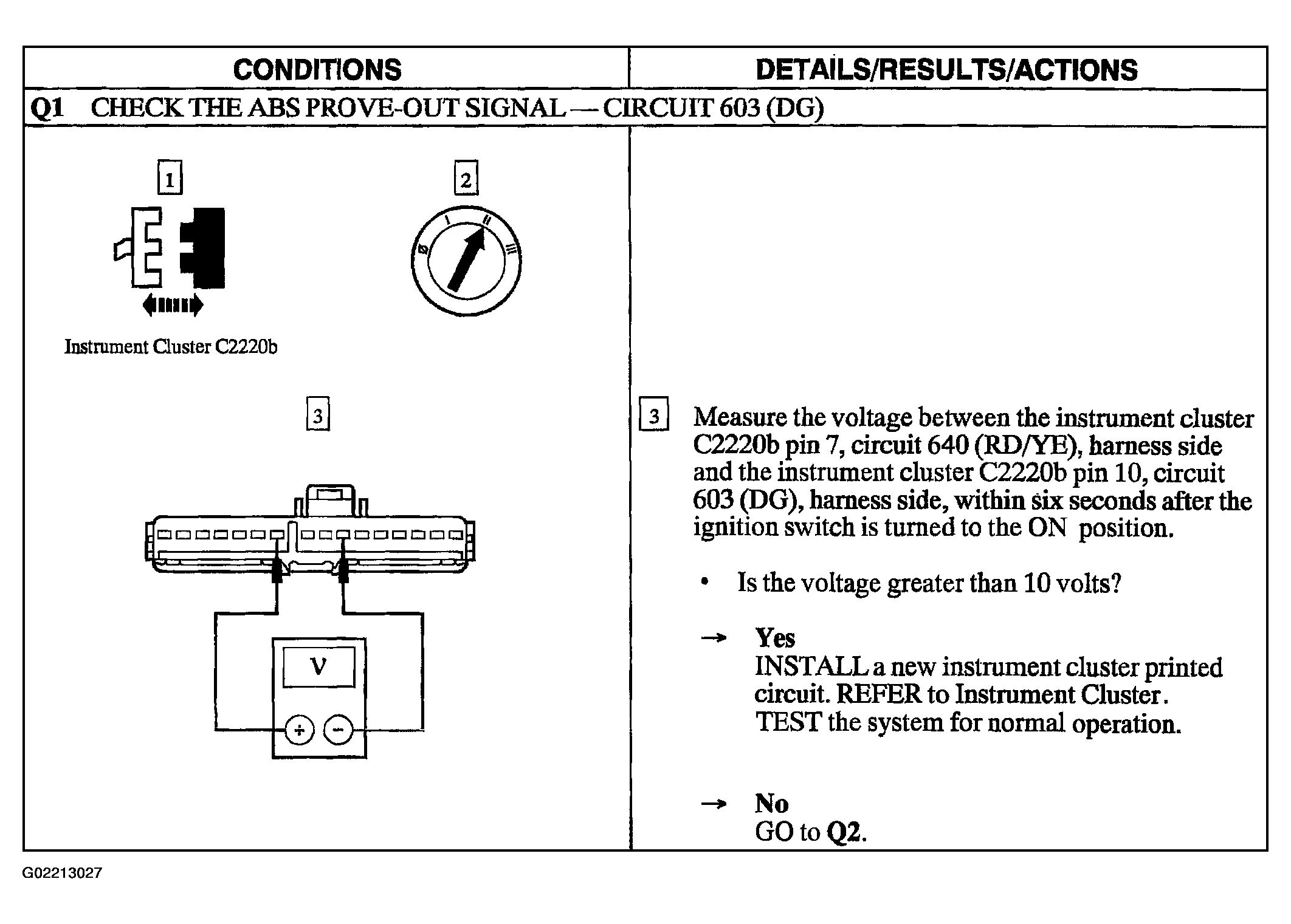

Fig 1: Pinpoint Test Q: The ABS Indicator Is Never On (Step Q1)
G02213027Courtesy of FORD MOTOR CO.

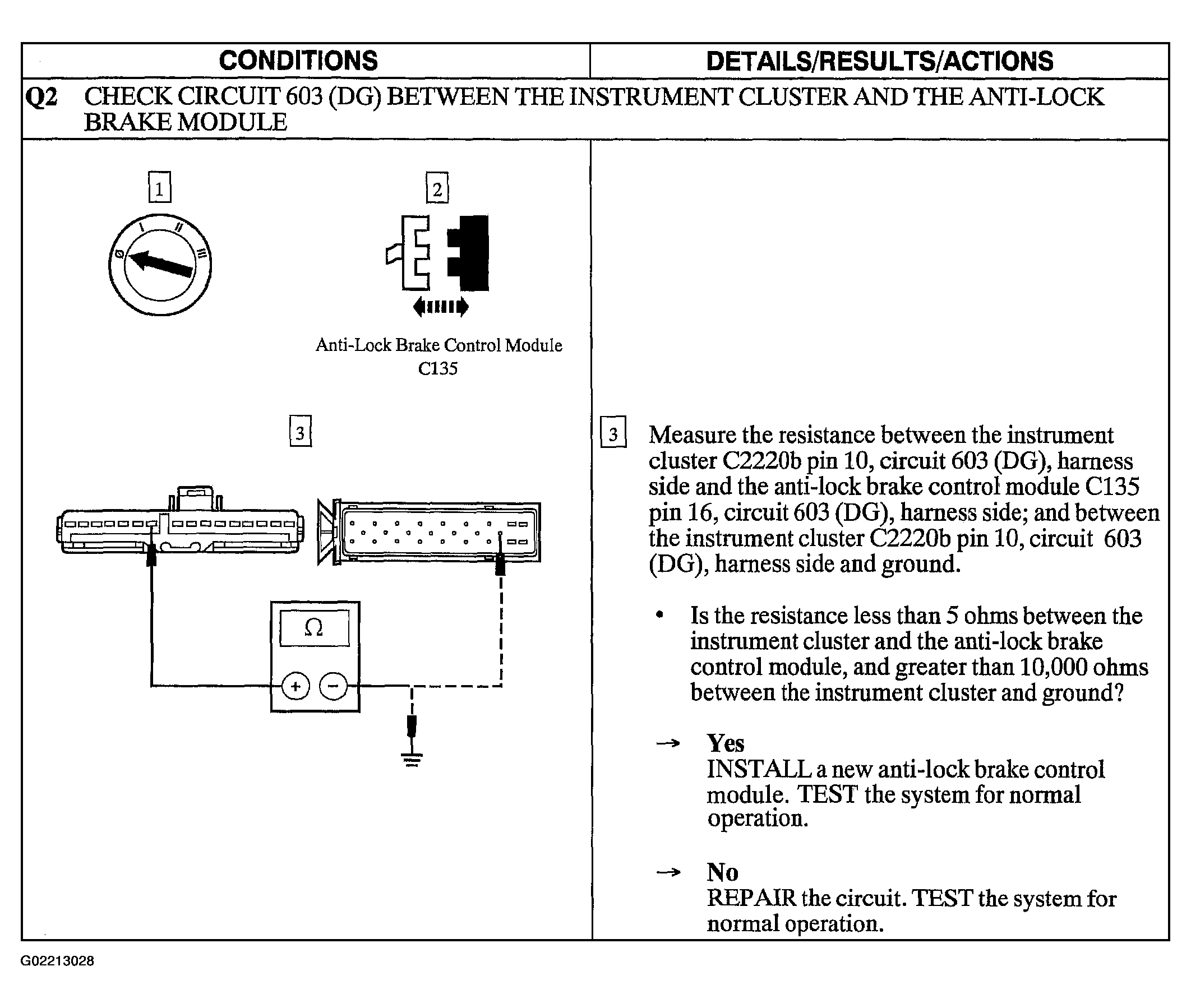

Fig 2: Pinpoint Test Q: The ABS Indicator Is Never On (Step Q2)
G02213028Courtesy of FORD MOTOR CO.
