Removal & Installation (Right & Left Rear)

Disconnect negative battery cable. Pry up power window switch plate, unhook rear edge of housing and remove from armrest. See STEP 1 in Fig 3. Remove screws from harness connector and pry switch from connector with small screwdriver. See STEP 2 in Fig 3. To install, reverse removal procedure.

Fig 1: Removing & Installing Master Power Window Switch
G00191653Courtesy of FORD MOTOR CO.
Fig 2: Removing & Installing Right Front Power Window Switch
G00191654Courtesy of FORD MOTOR CO.

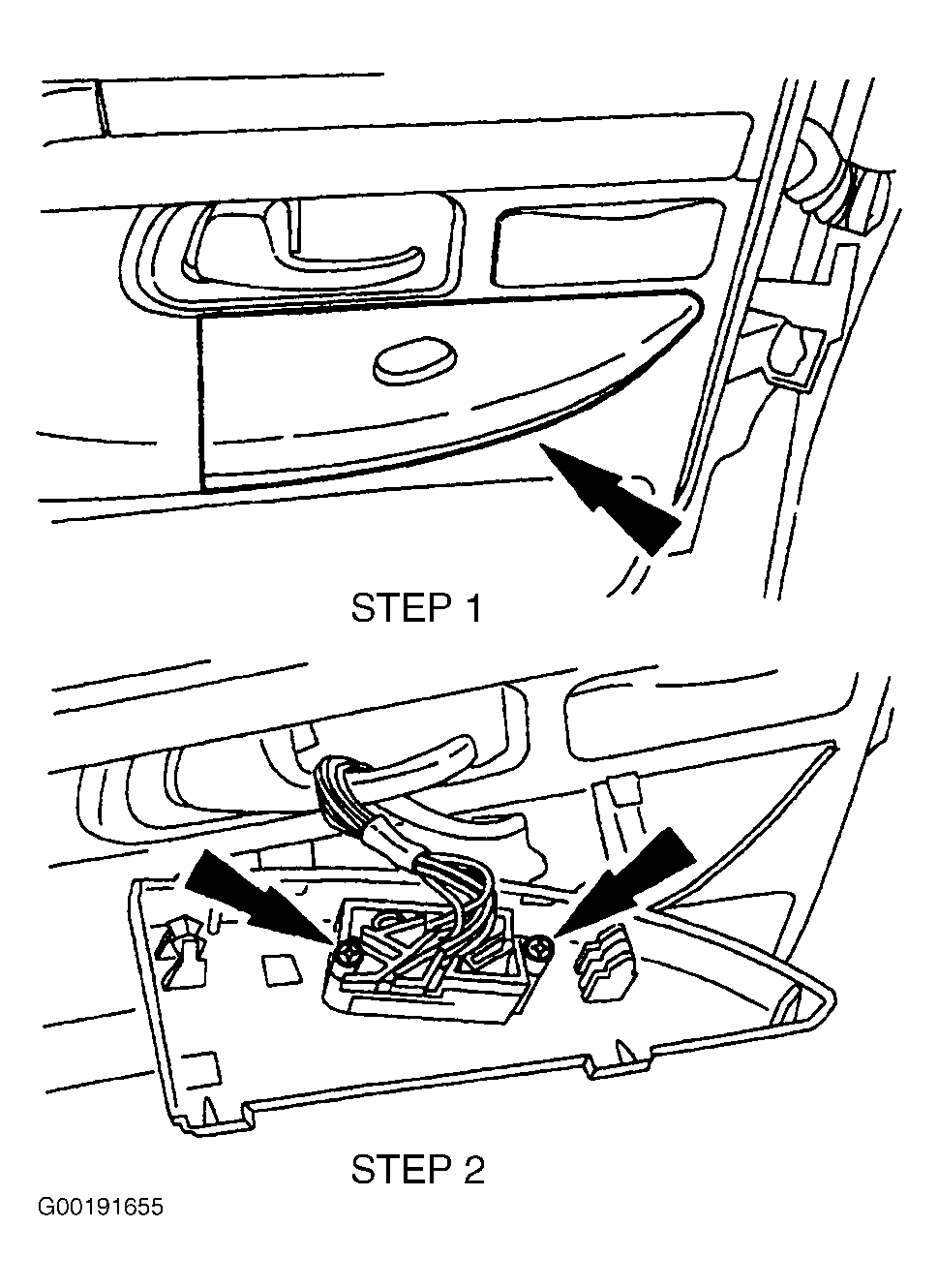

Fig 3: Removing & Installing Rear Doors Power Window Switch
G00191655Courtesy of FORD MOTOR CO.
