Pinpoint Test B: The Headlamps Are On Continuously

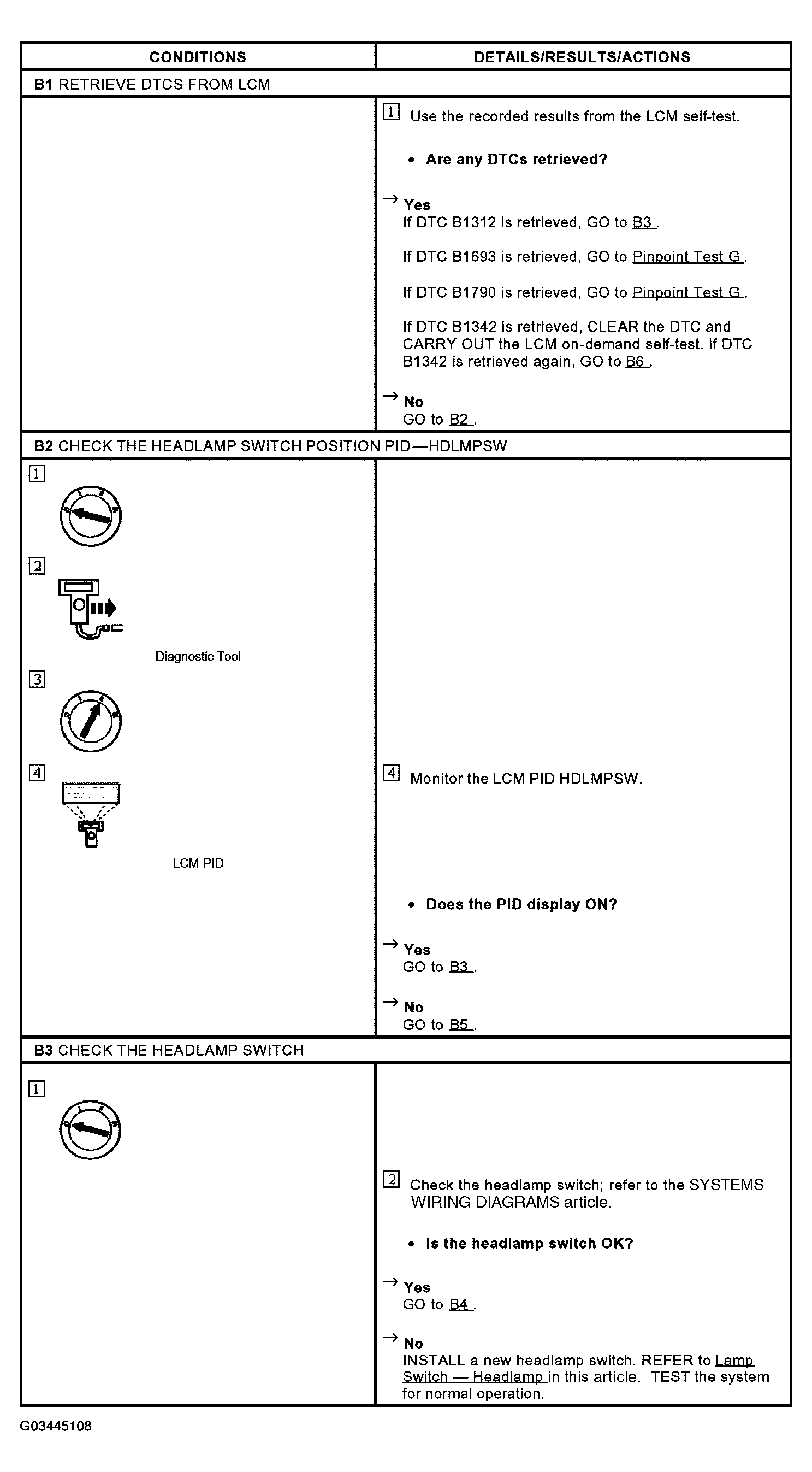

Fig 1: Pinpoint Test B: The Headlamps Are On Continuously (B1 To B3)
G03445108Courtesy of FORD MOTOR CO.

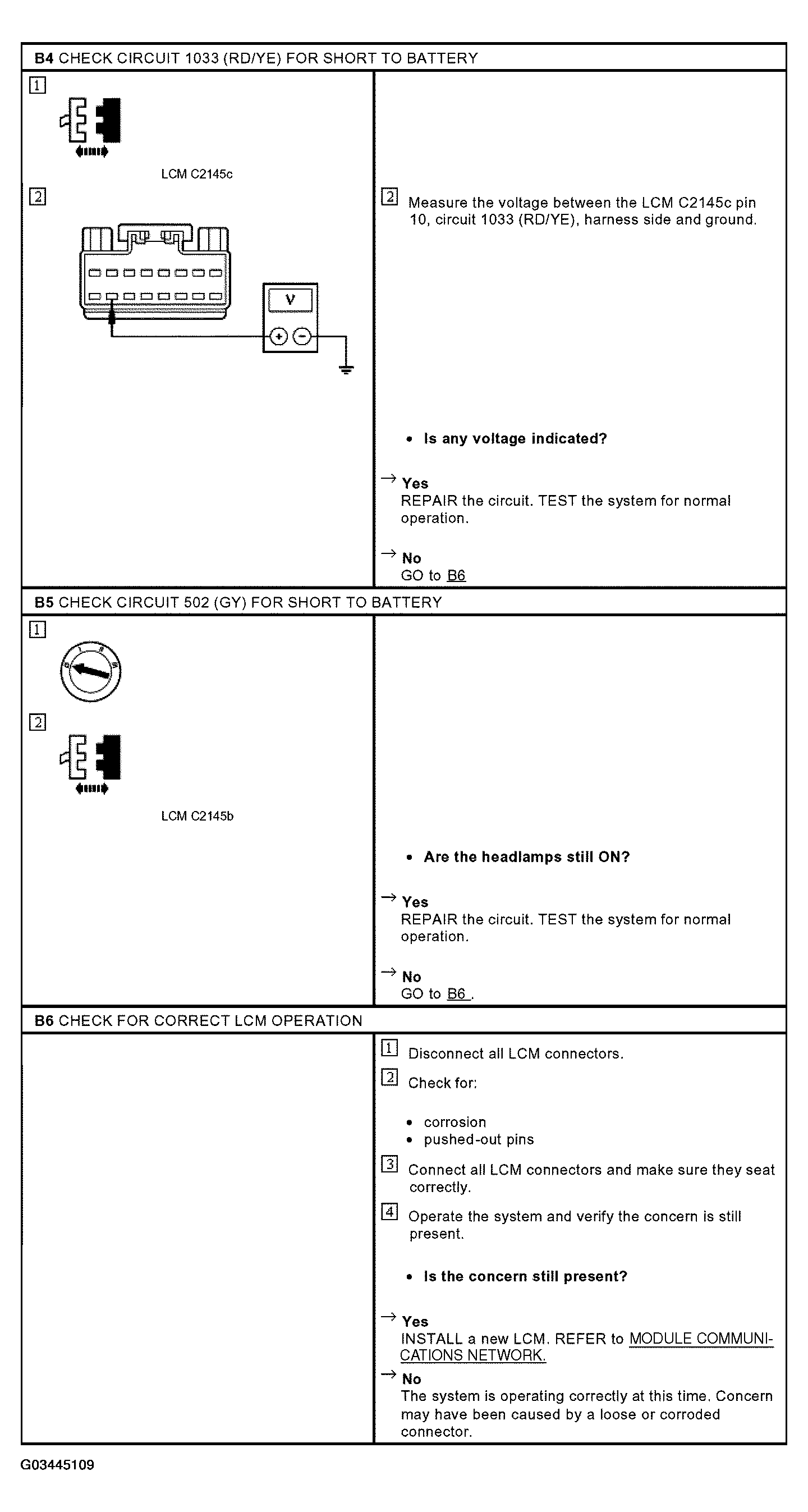

Fig 2: Pinpoint Test B: The Headlamps Are On Continuously (B4 To B6)
G03445109Courtesy of FORD MOTOR CO.
