Pinpoint Test A: Both Headlamps Are Inoperative-High Beams And Low Beams

NOTE: Due to varying wattage ratings and resulting current draw, certain aftermarket headlamp bulbs may cause the lighting control module (LCM) to shut down the short circuit protection, resulting in the low beams becoming inoperative. Verify that the bulbs meet Ford specifications.

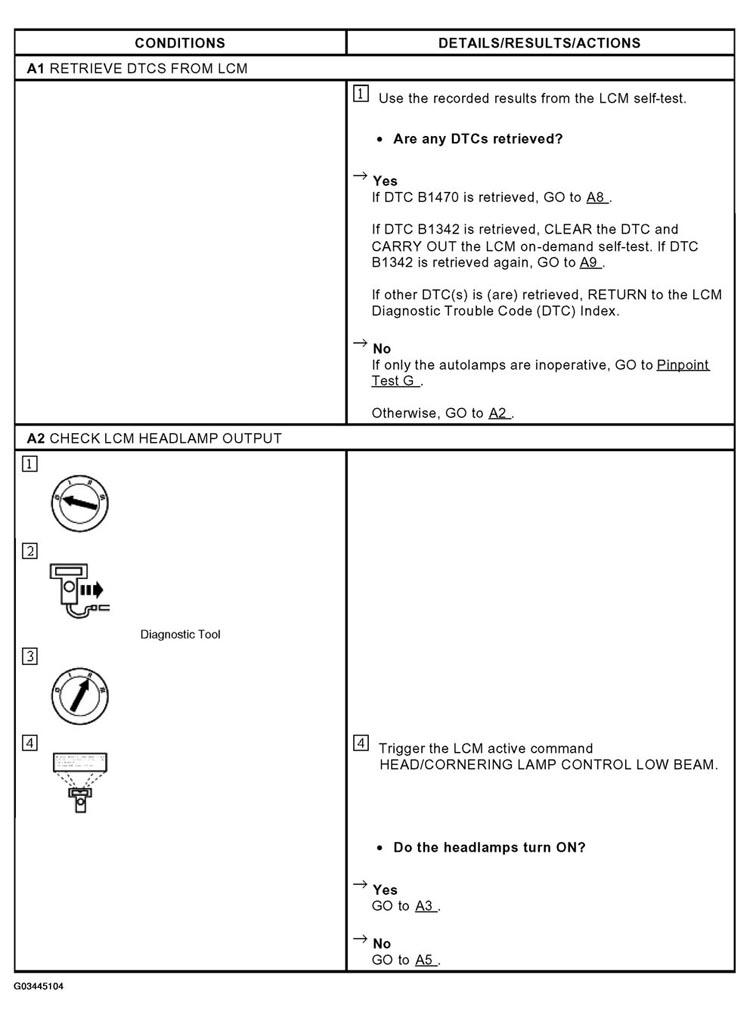

Fig 1: Pinpoint Test A: Both Headlamps Are Inoperative -High Beams And Low Beams (A1 To A2)

Courtesy of FORD MOTOR CO.

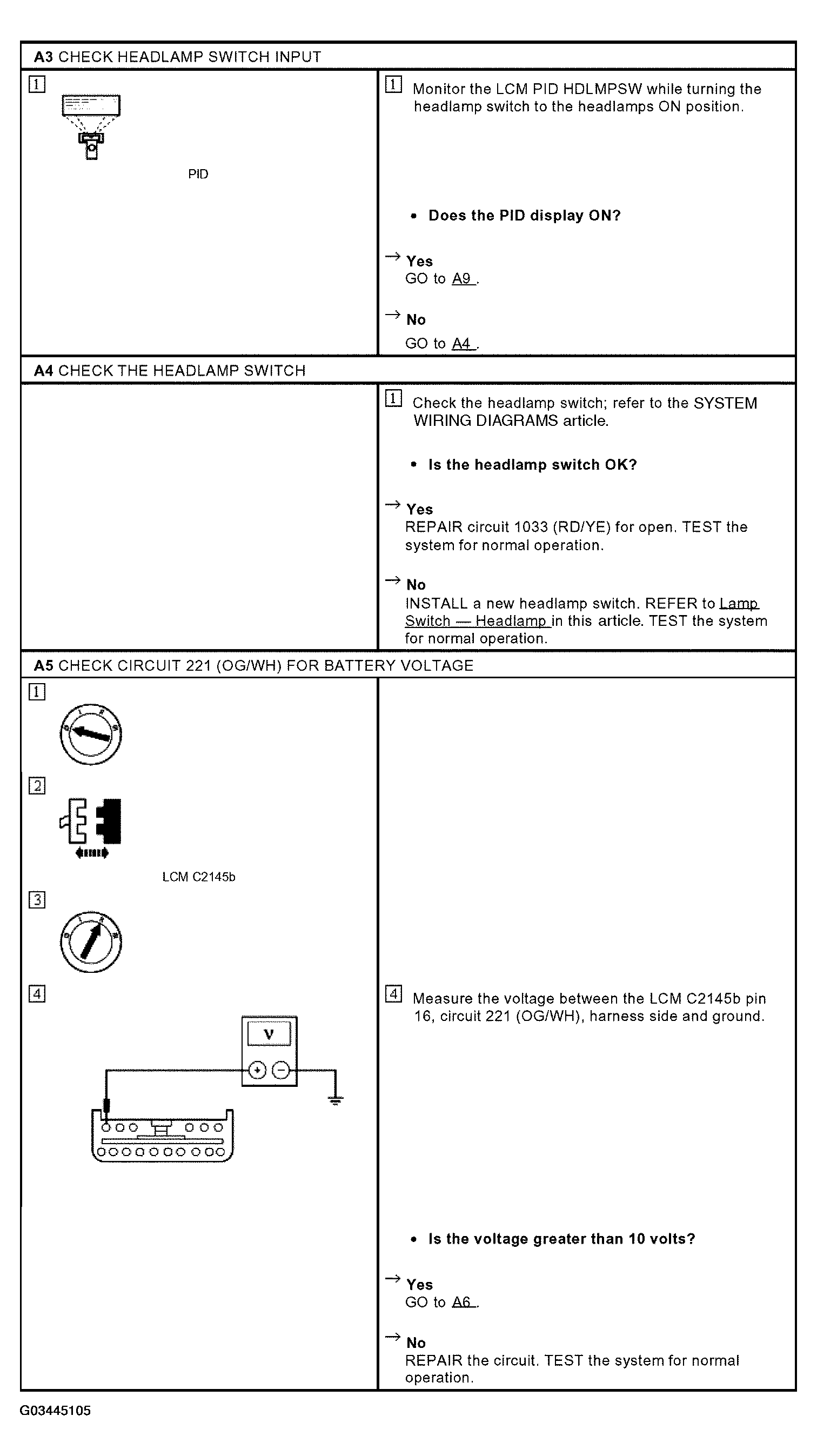

Fig 2: Pinpoint Test A: Both Headlamps Are Inoperative -High Beams And Low Beams (A3 To A5)

Courtesy of FORD MOTOR CO.

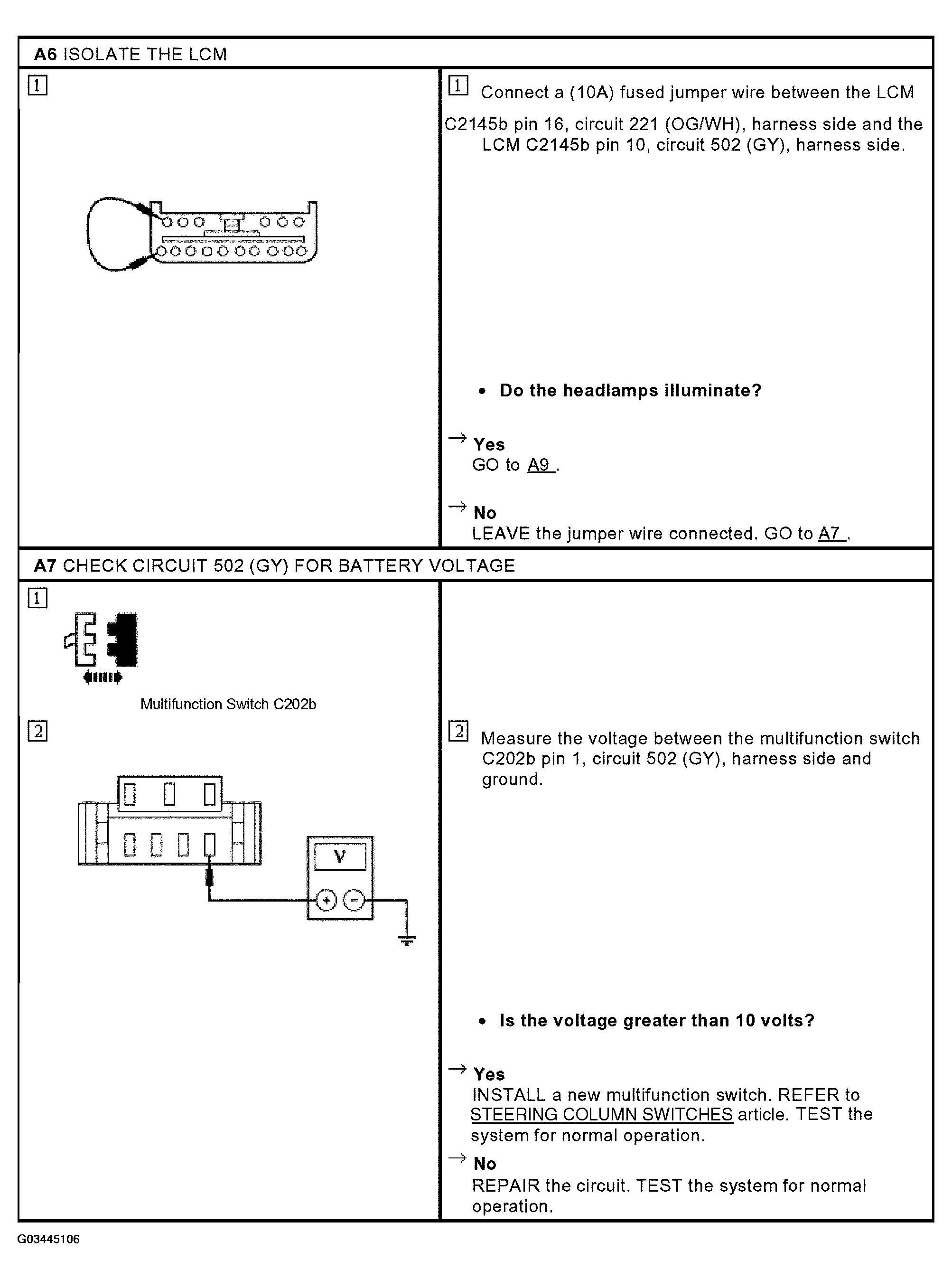

Fig 3: Pinpoint Test A: Both Headlamps Are Inoperative -High Beams And Low Beams (A6 To A7)

Courtesy of FORD MOTOR CO.

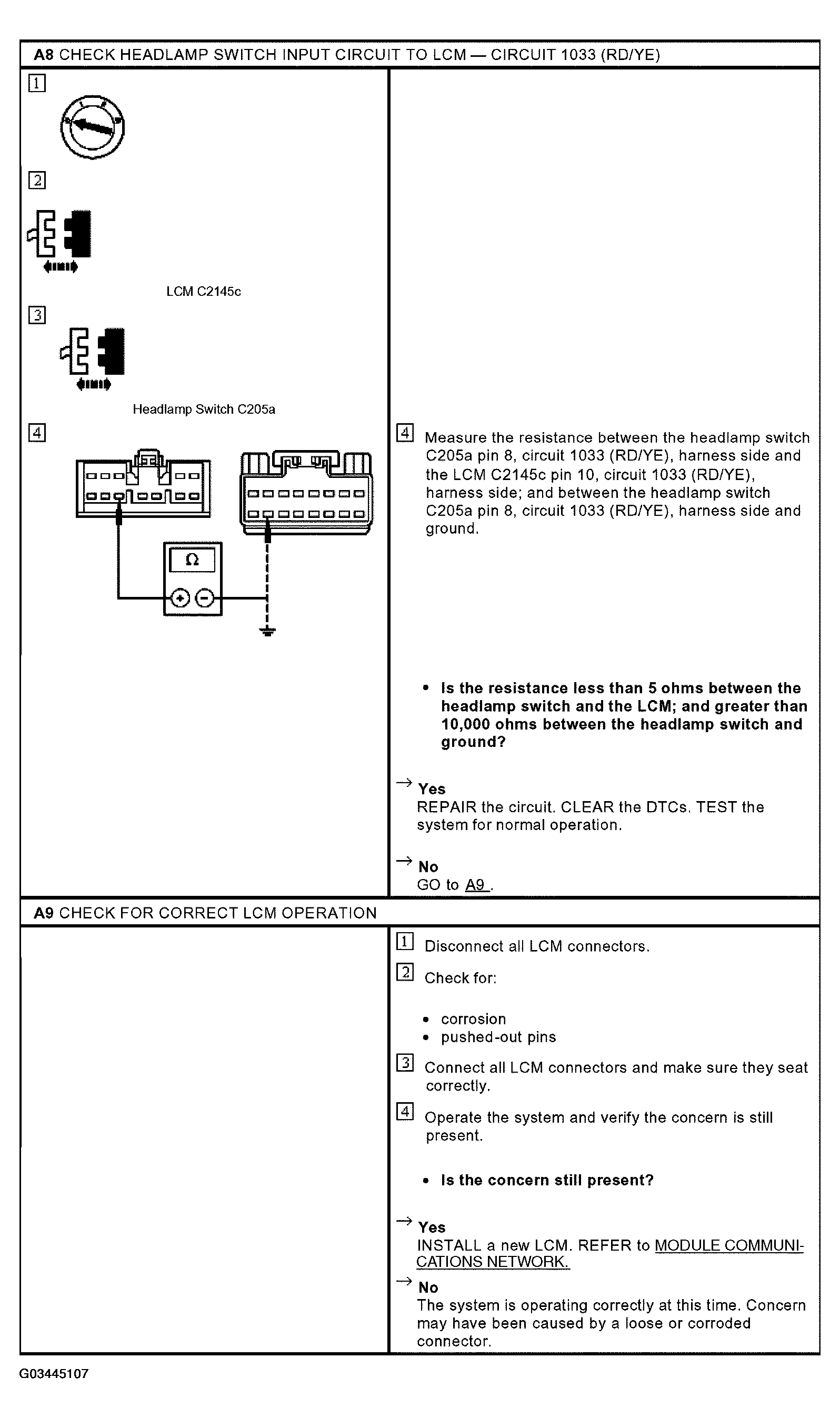

Fig 4: Pinpoint Test A: Both Headlamps Are Inoperative -High Beams And Low Beams (A8 To A9)

Courtesy of FORD MOTOR CO.
