Pinpoint Test T: DTC B1575: Lamp Park Input Circuit Failure/DTC B1577: Lamp Park Input Circuit Short To Battery

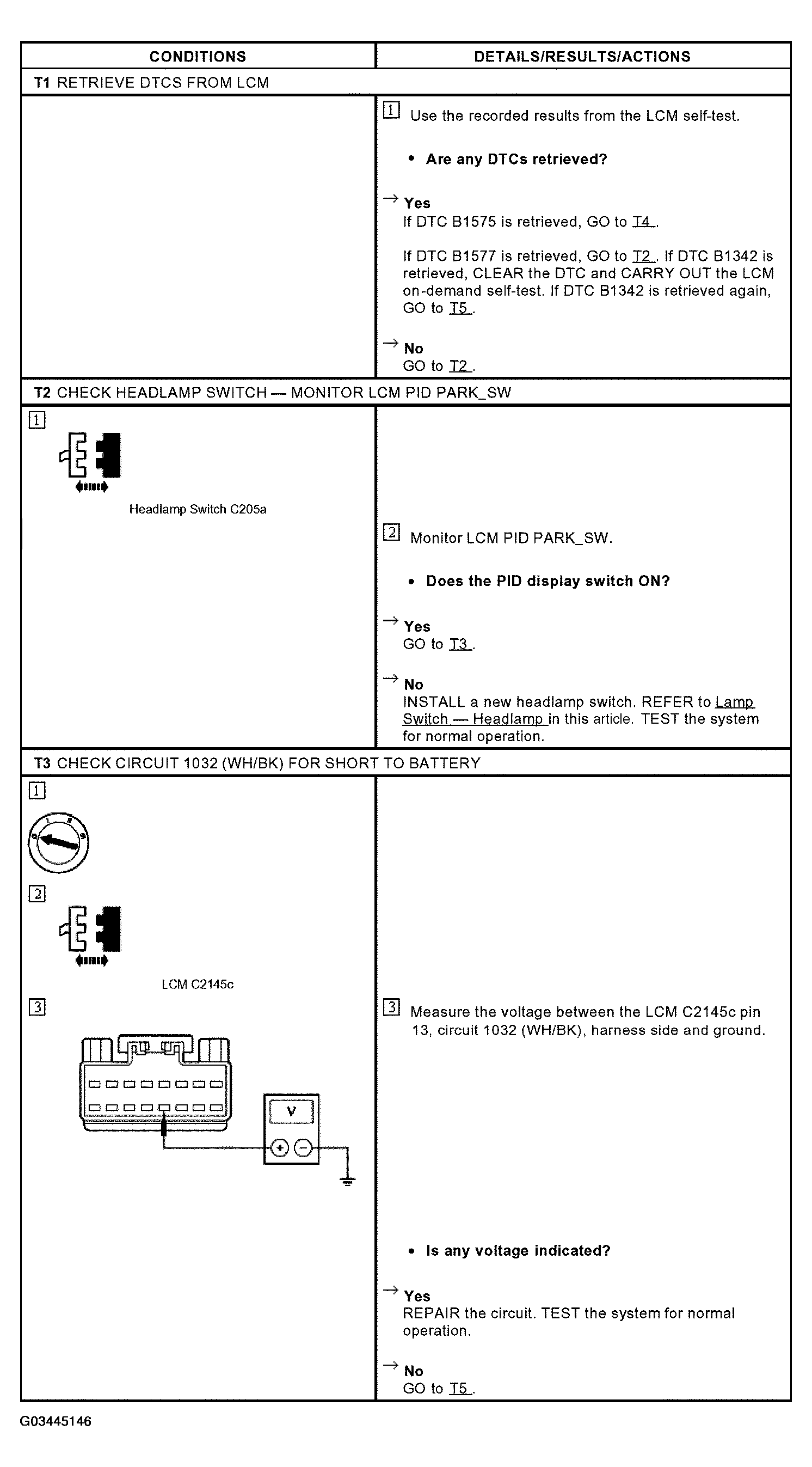

Fig 1: Pinpoint Test T: DTC B1575: Lamp Park Input Circuit Failure/DTC B1577: Lamp Park Input Circuit Short To Battery (T1 Of T3)
G03445146Courtesy of FORD MOTOR CO.

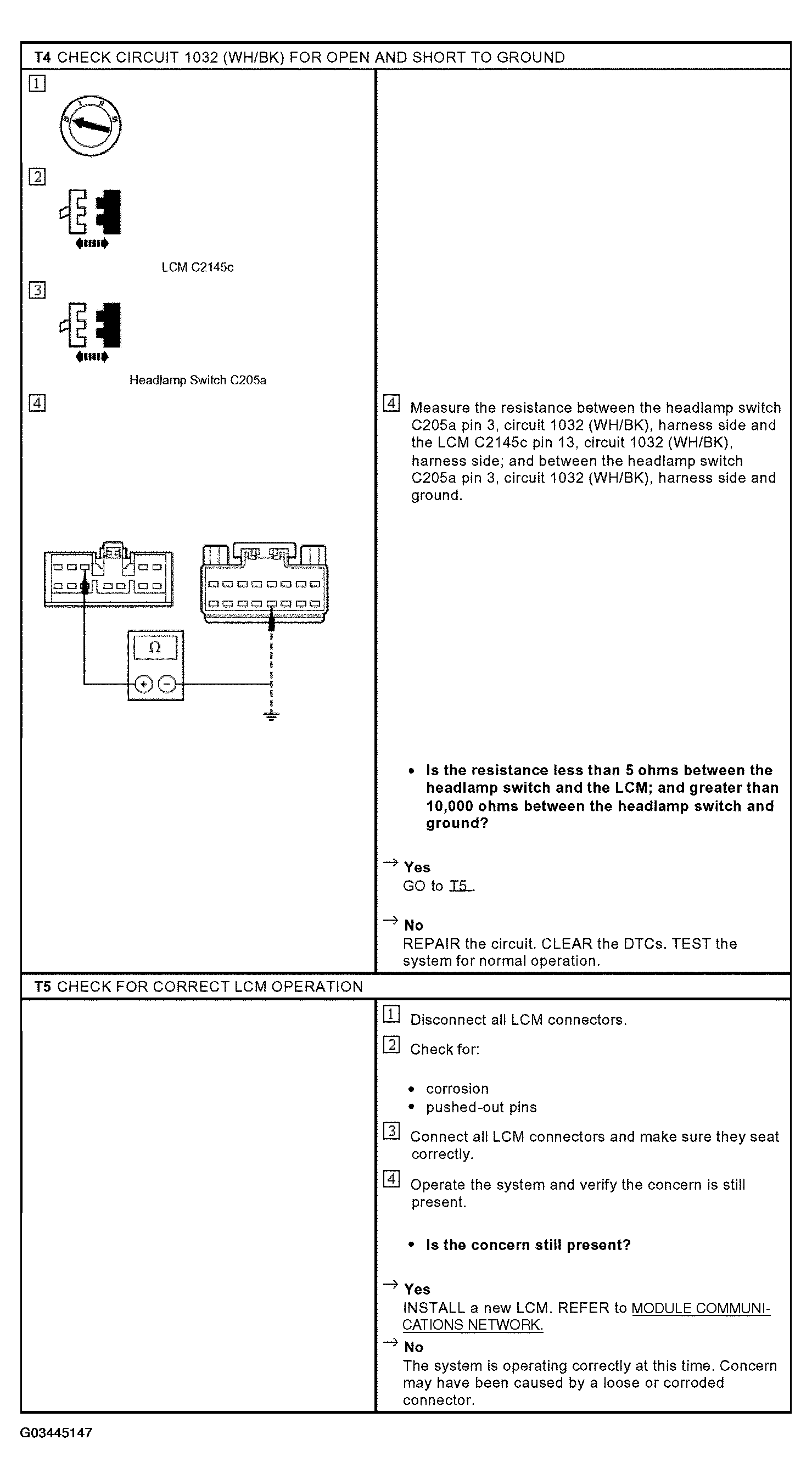

Fig 2: Pinpoint Test T: DTC B1575: Lamp Park Input Circuit Failure/DTC B1577: Lamp Park Input Circuit Short To Battery (T4 Of T5)
G03445147Courtesy of FORD MOTOR CO.
