Pinpoint Test G: The AUTOLAMPS Are Inoperative - The AUTOLAMPS Are Always On

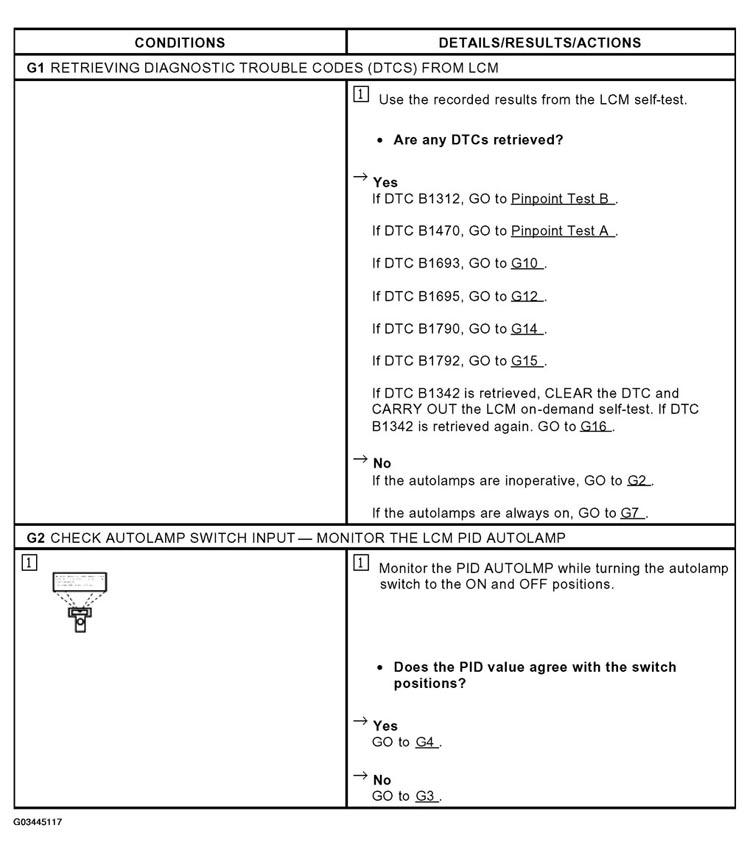

Fig 1: Pinpoint Test G: Autolamps Are Inoperative - Autolamps Are Always On (G1 Of G2)

Courtesy of FORD MOTOR CO.

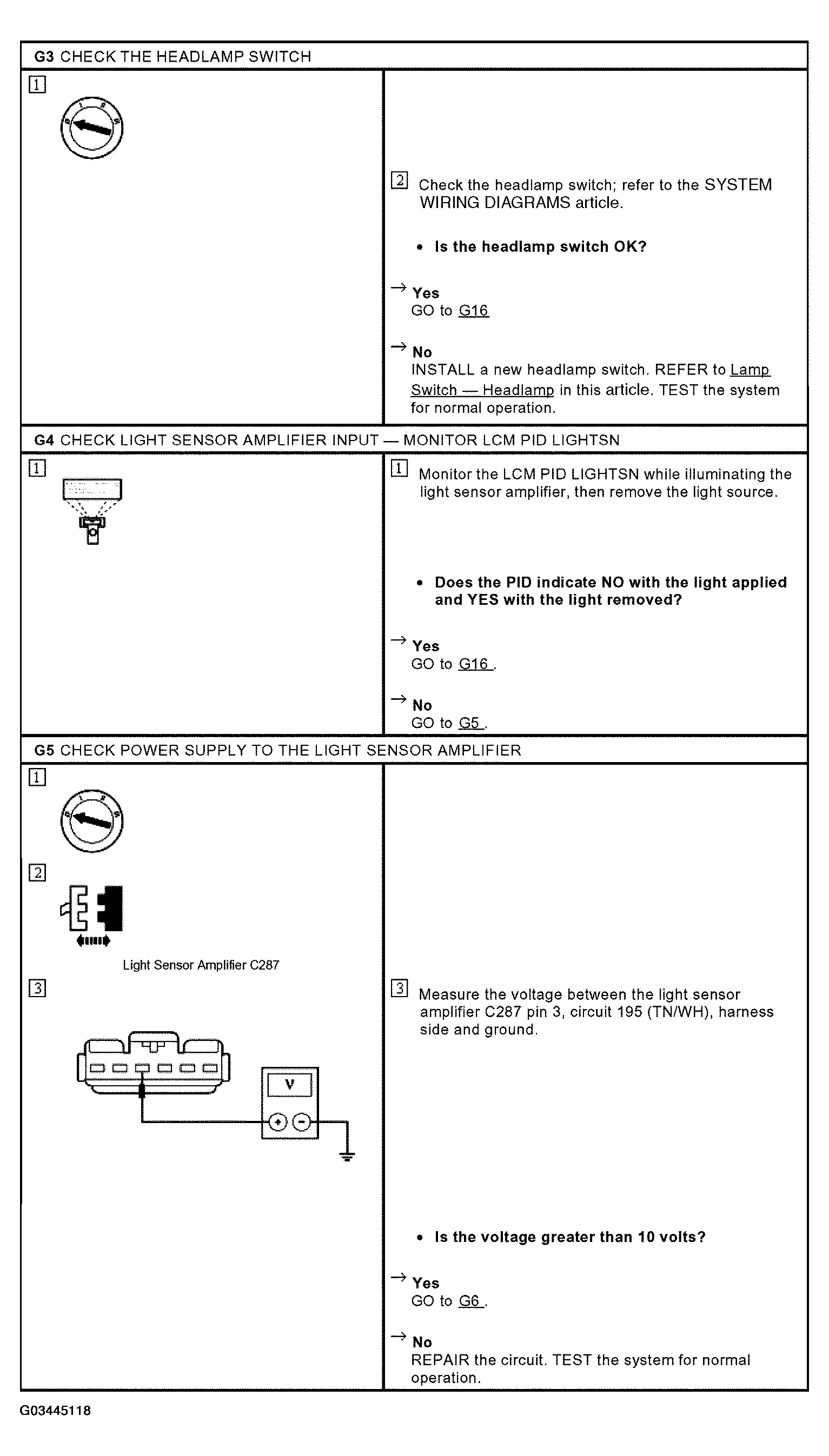

Fig 2: Pinpoint Test G: Autolamps Are Inoperative - Autolamps Are Always On (G3 Of G5)

Courtesy of FORD MOTOR CO.

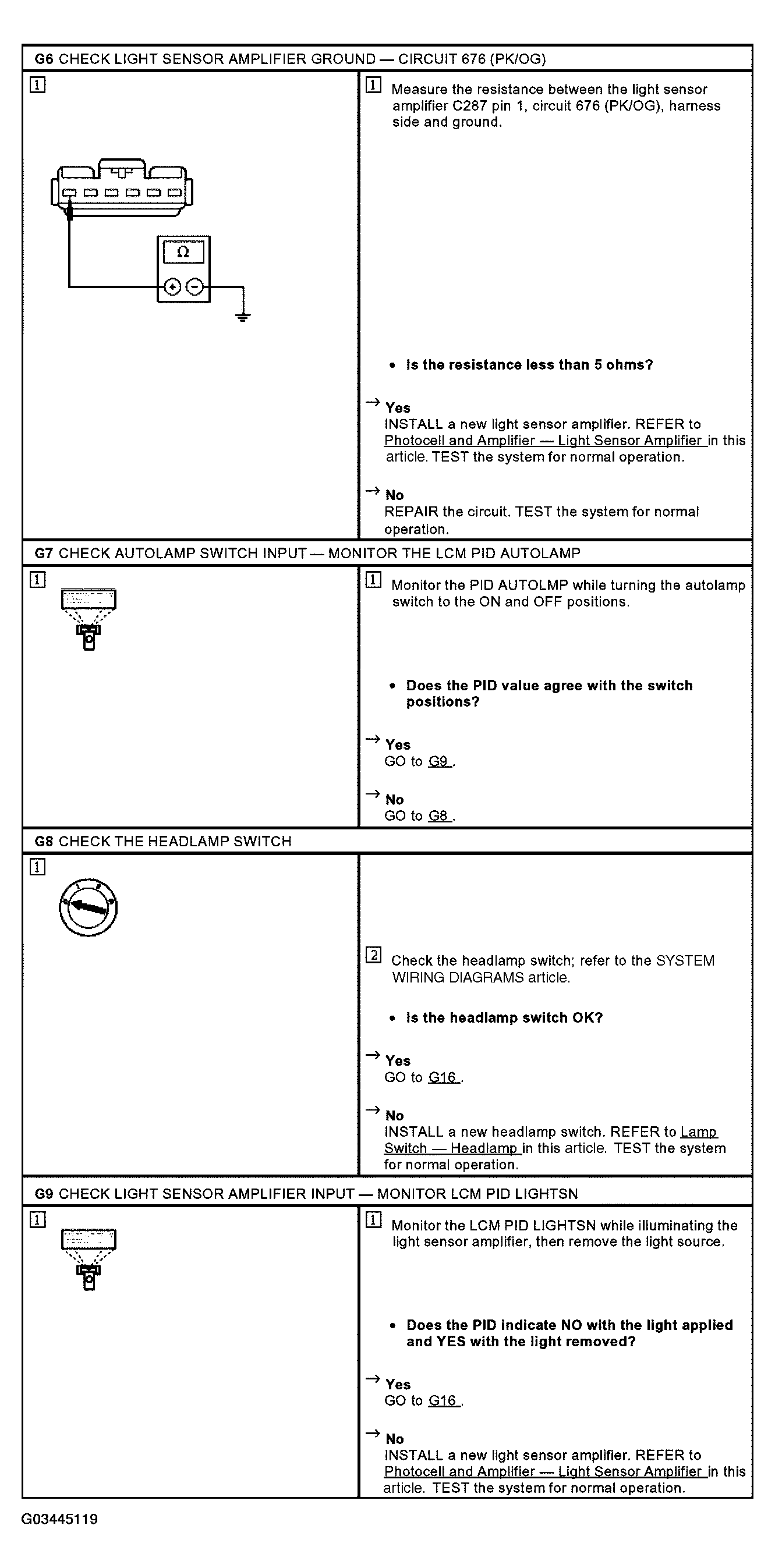

Fig 3: Pinpoint Test G: Autolamps Are Inoperative - Autolamps Are Always On (G6 Of G9)

Courtesy of FORD MOTOR CO.

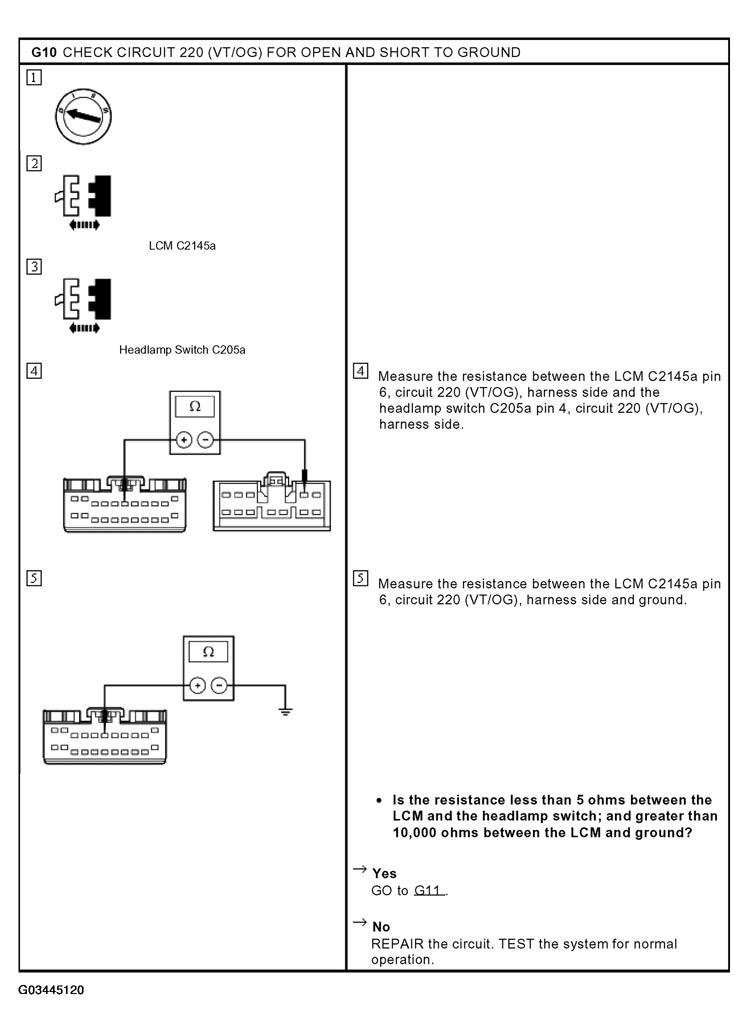

Fig 4: Pinpoint Test G: Autolamps Are Inoperative - Autolamps Are Always On (G10)

Courtesy of FORD MOTOR CO.

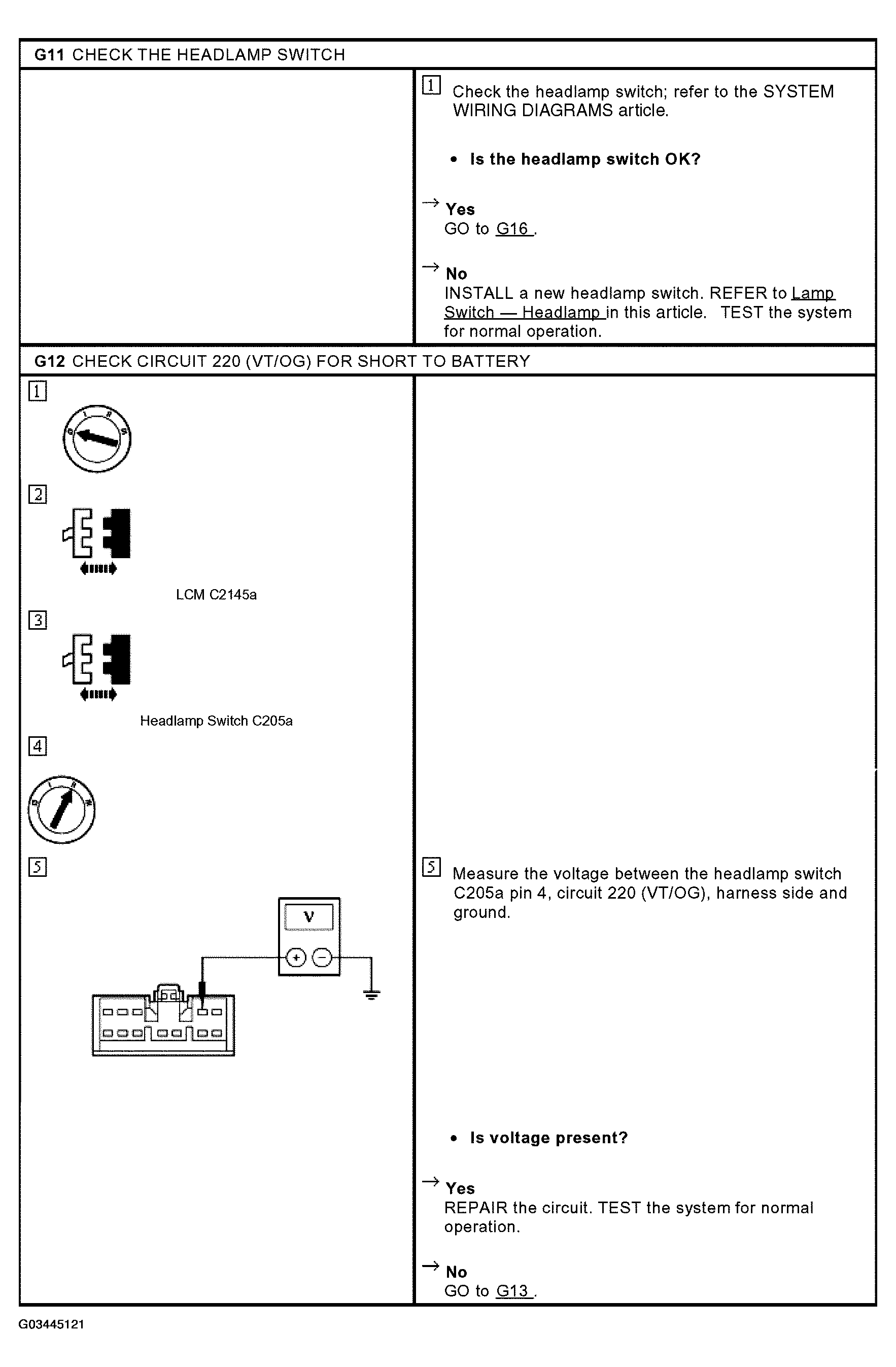

Fig 5: Pinpoint Test G: Autolamps Are Inoperative - Autolamps Are Always On (G11 Of G12)

Courtesy of FORD MOTOR CO.

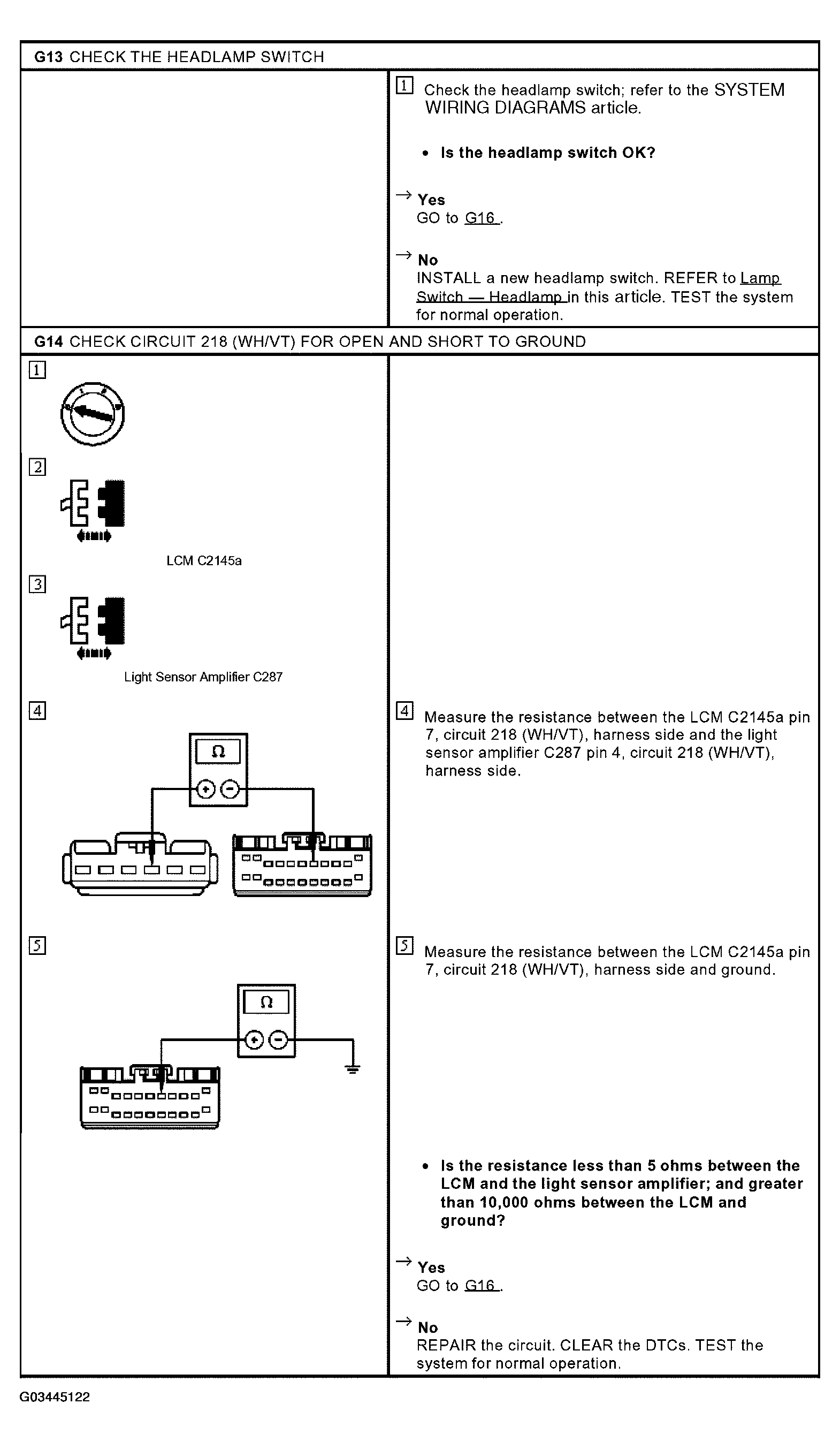

Fig 6: Pinpoint Test G: Autolamps Are Inoperative - Autolamps Are Always On (G13 Of G14)

Courtesy of FORD MOTOR CO.

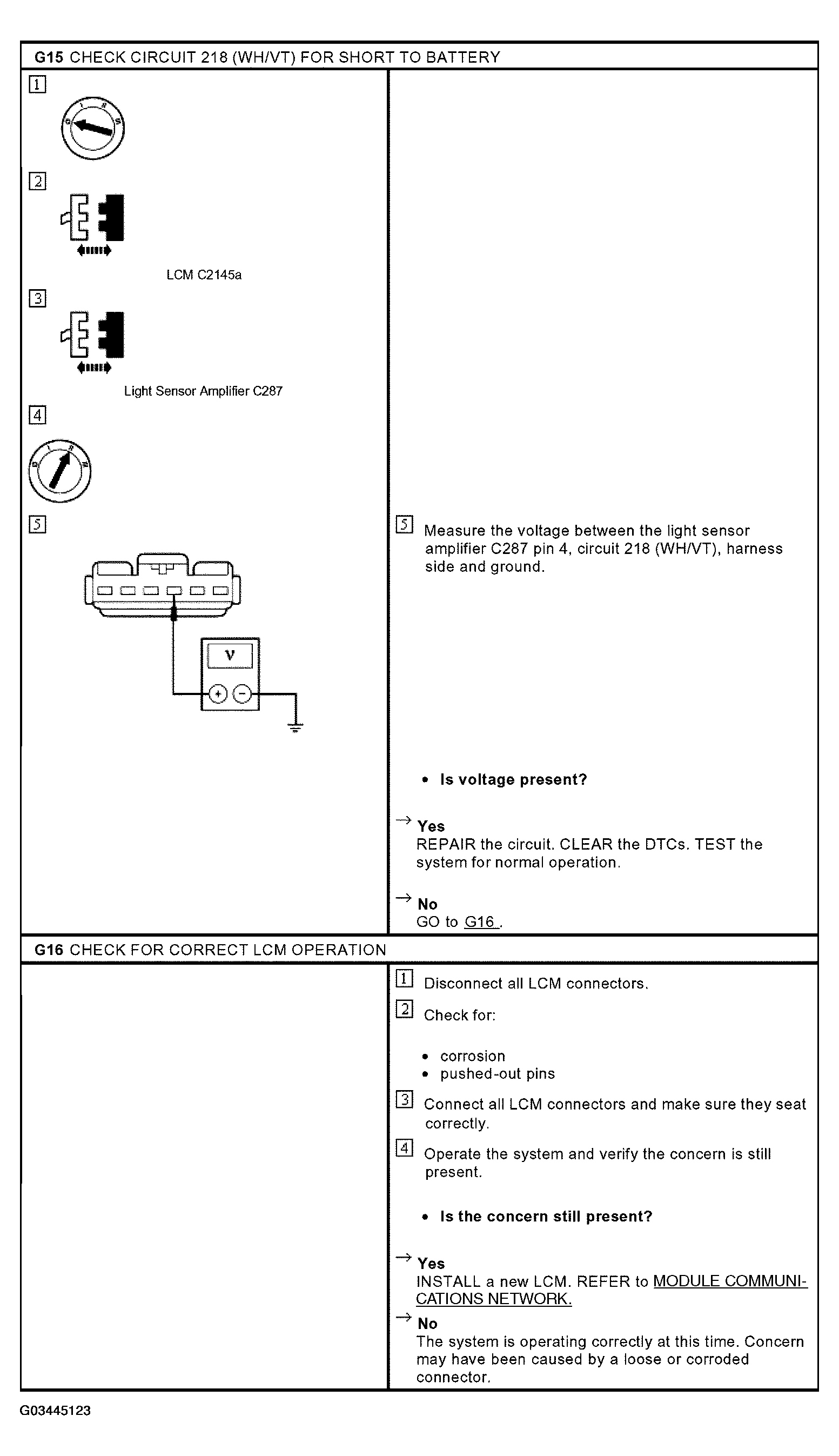

Fig 7: Pinpoint Test G: Autolamps Are Inoperative - Autolamps Are Always On (G15 Of G16)

Courtesy of FORD MOTOR CO.
