Pinpoint Test M: DTC B1873: Turn Signal/Hazard Power Feed Circuit Short To Ground

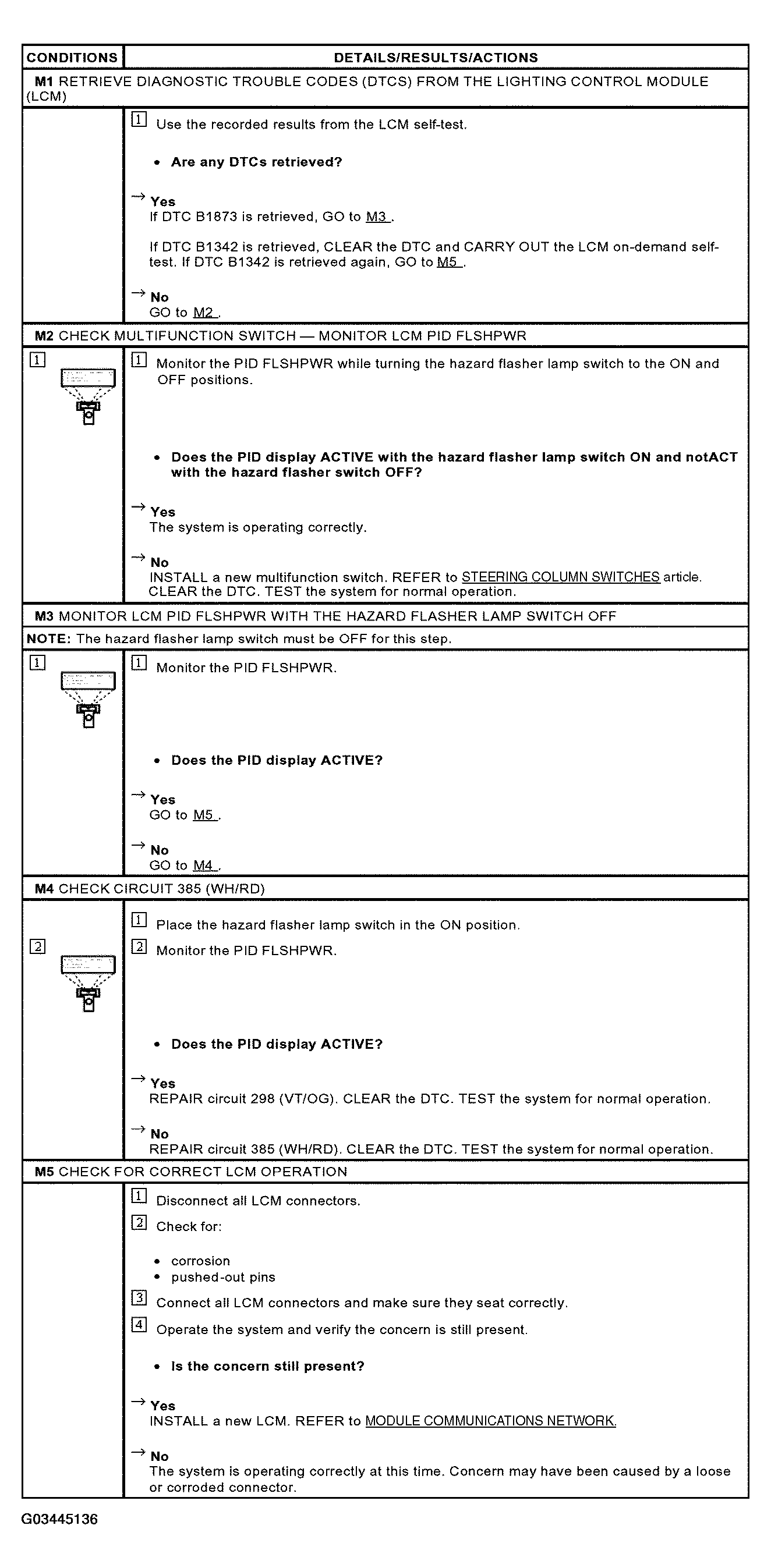

Fig 1: Pinpoint Test M: DTC B1873: Turn Signal/Hazard Power Feed Circuit Short To Ground

G03445136

Courtesy of FORD MOTOR CO.
