Pinpoint Test D: The Low Beams Are Inoperative

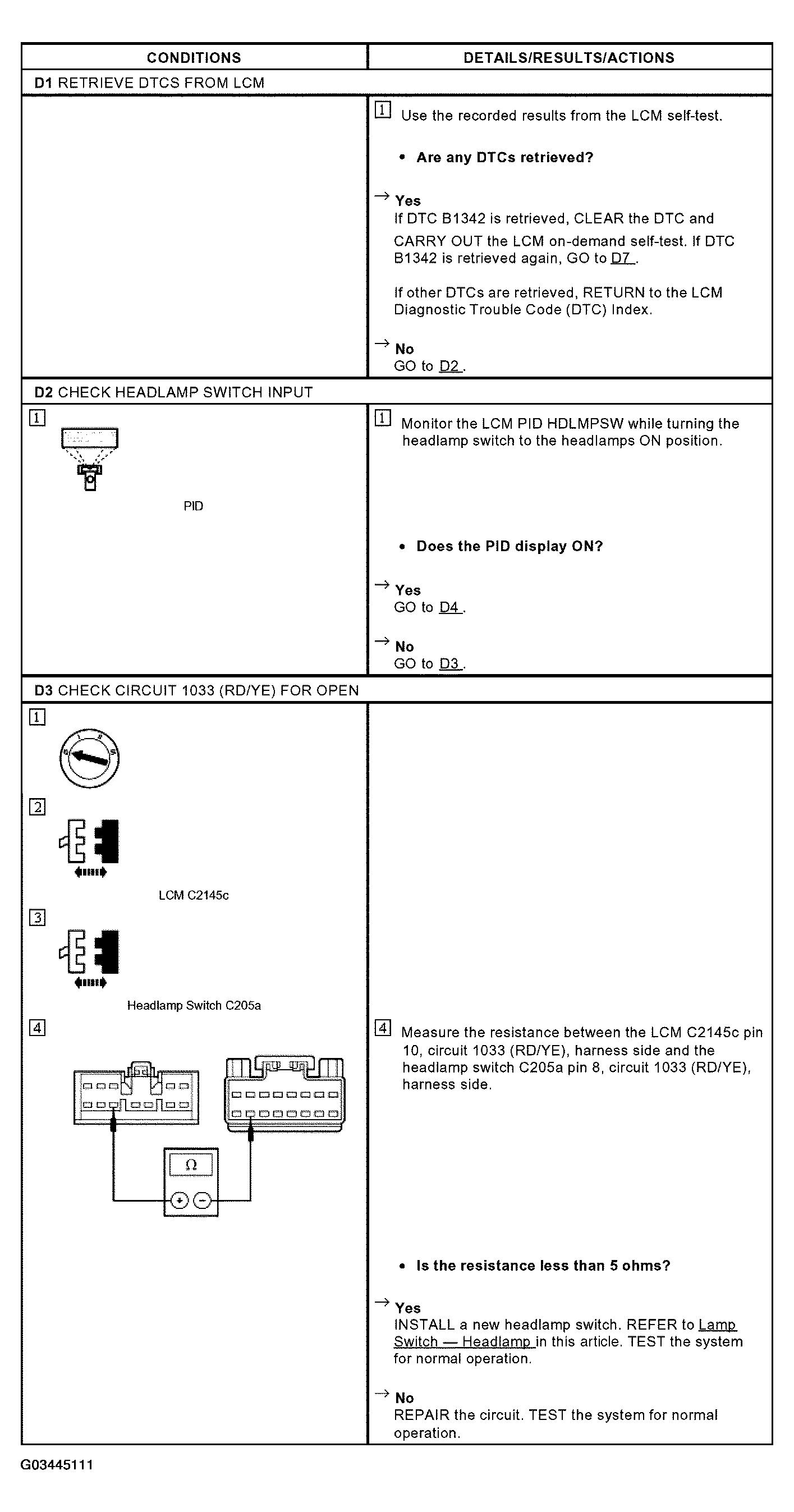

Fig 1: Pinpoint Test D: The Low Beams Are Inoperative (D1 To D3)
G03445111Courtesy of FORD MOTOR CO.

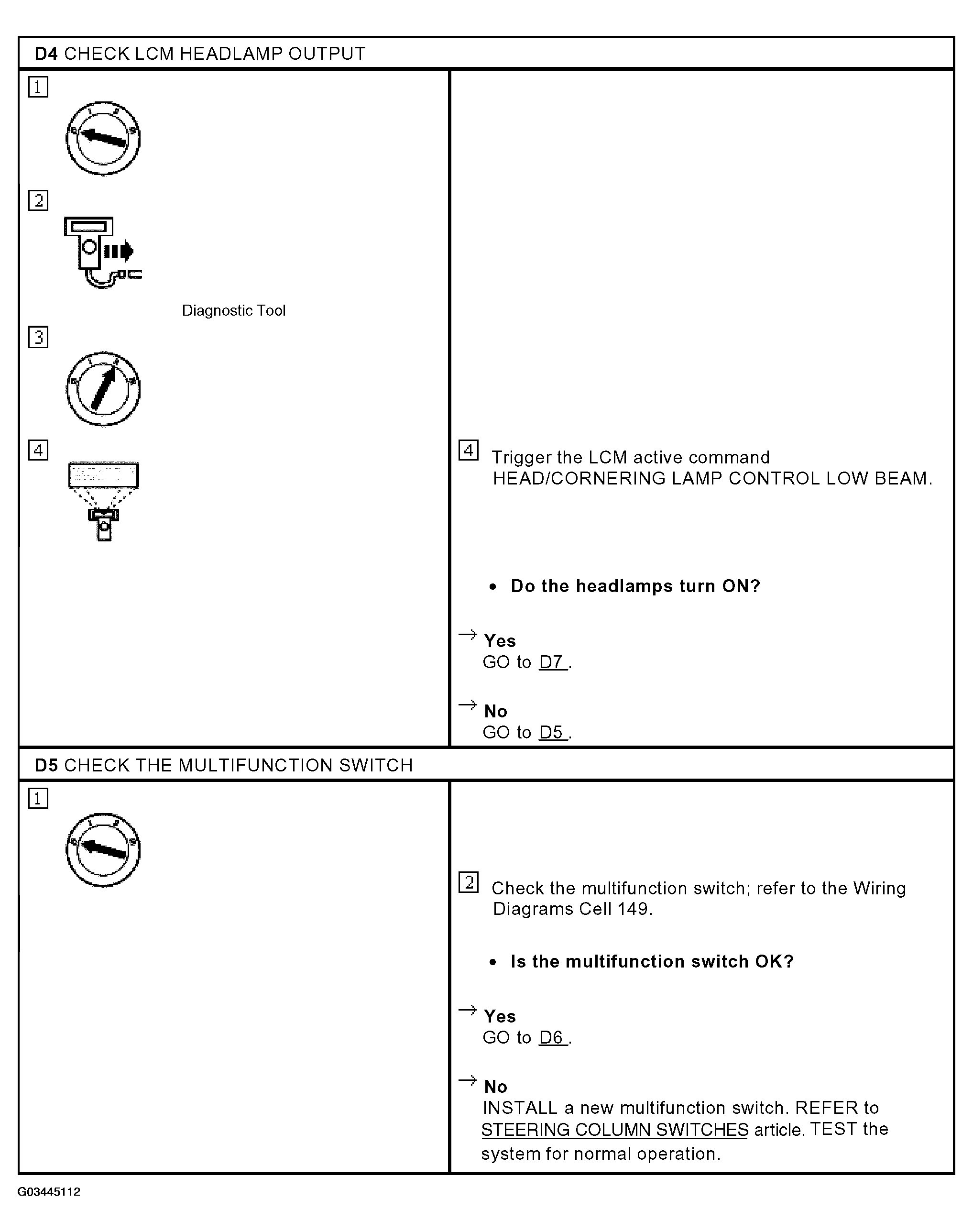

Fig 2: Pinpoint Test D: The Low Beams Are Inoperative (D4 To D5)
G03445112Courtesy of FORD MOTOR CO.

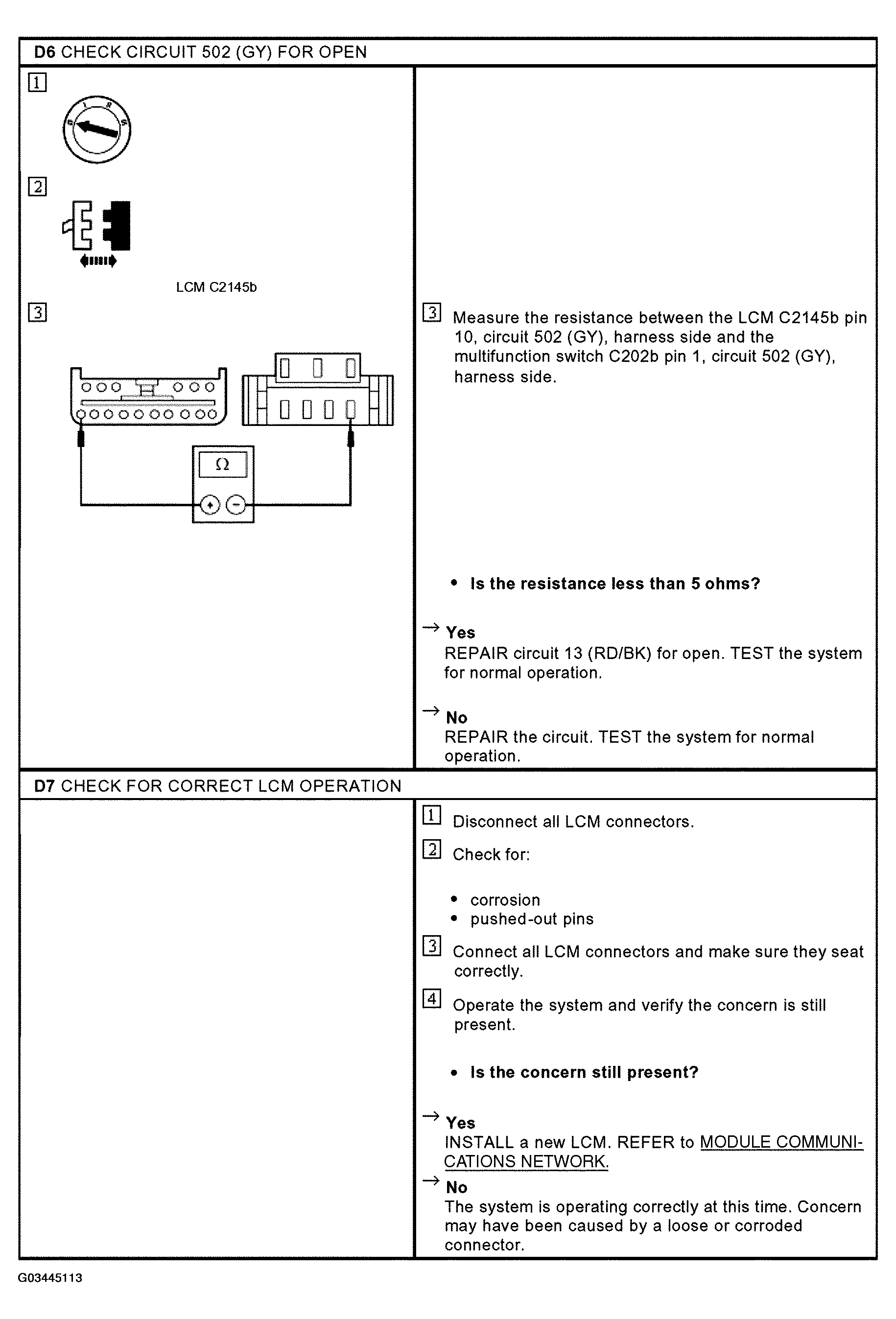

Fig 3: Pinpoint Test D: The Low Beams Are Inoperative (D6 To D7)
G03445113Courtesy of FORD MOTOR CO.
