Pinpoint Test I: The STOPLAMPS Are Inoperative

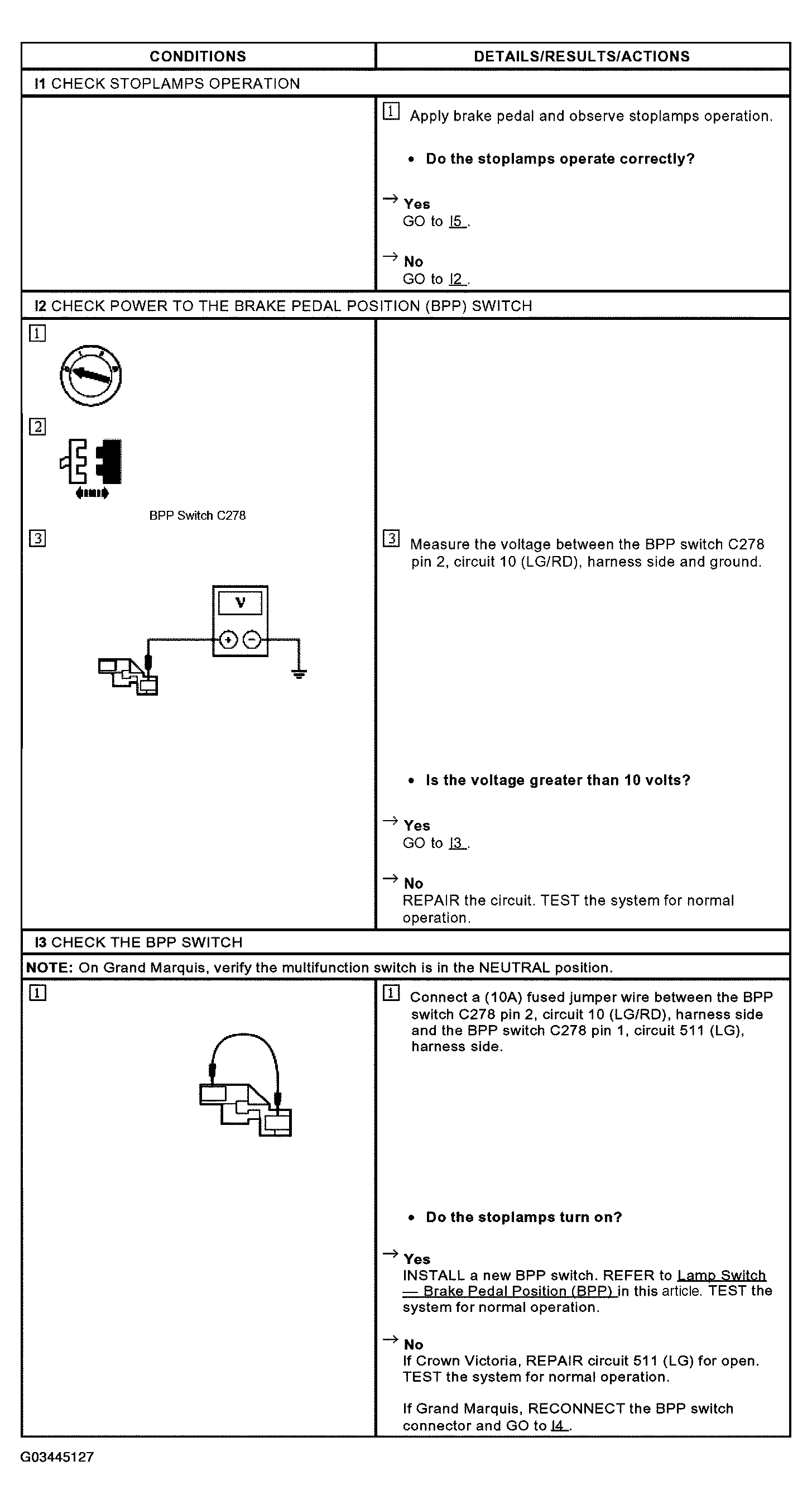

Fig 1: Pinpoint Test I: Stoplamps Are Inoperative (I1 Of I3)
G03445127Courtesy of FORD MOTOR CO.

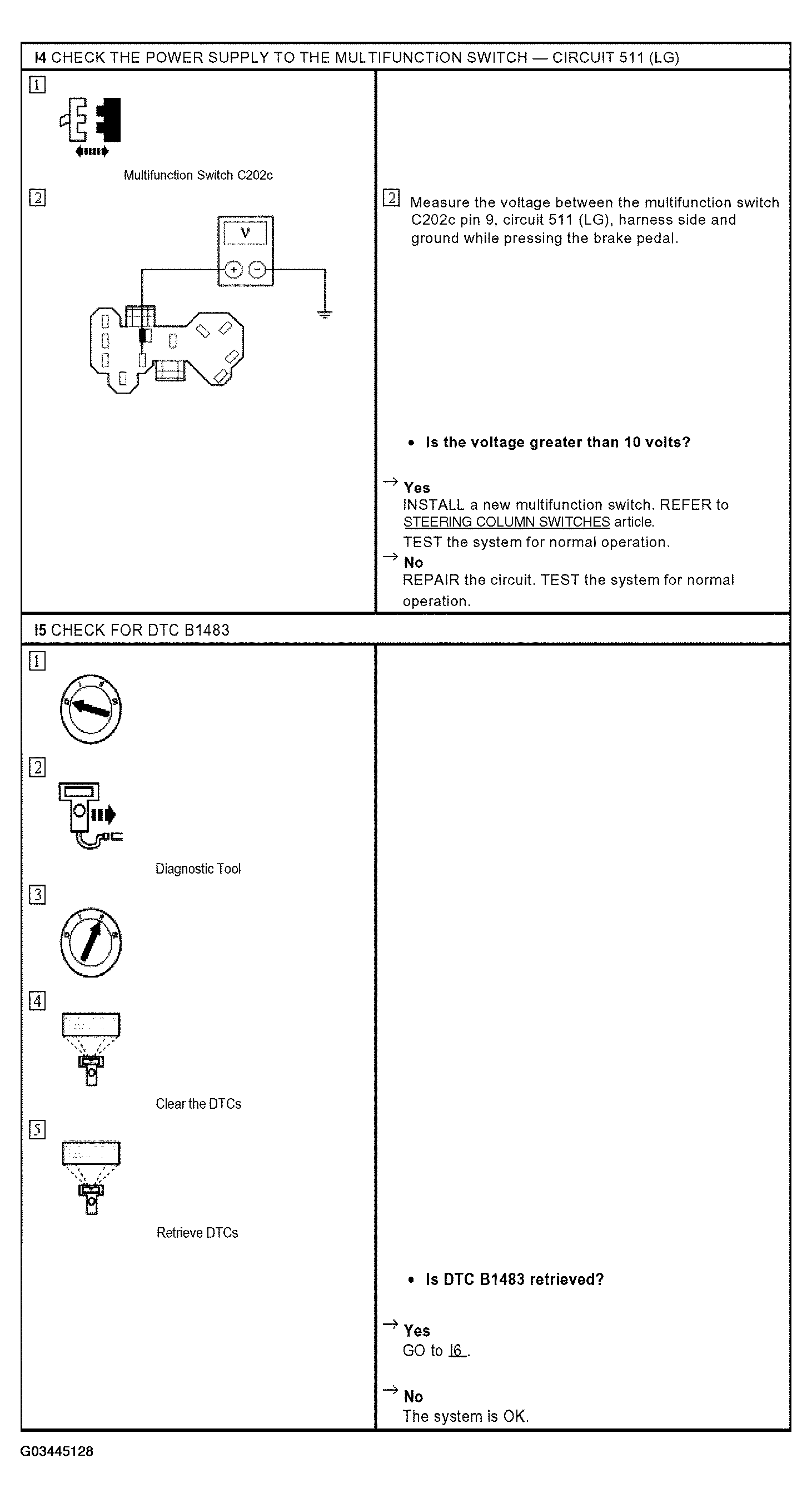

Fig 2: Pinpoint Test I: Stoplamps Are Inoperative (I4 Of I5)
G03445128Courtesy of FORD MOTOR CO.

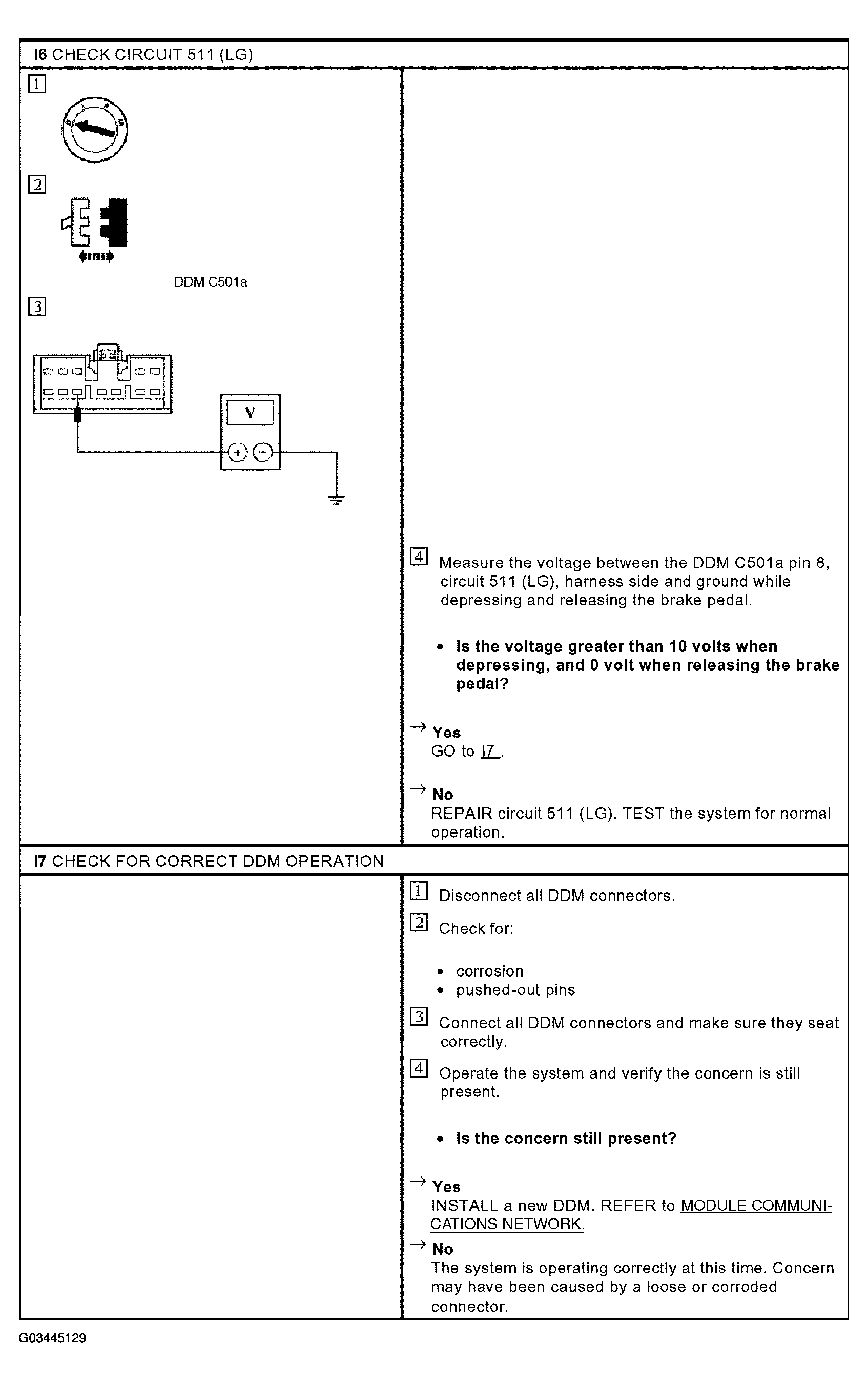

Fig 3: Pinpoint Test I: Stoplamps Are Inoperative (I6 Of I7)
G03445129Courtesy of FORD MOTOR CO.
