Pinpoint Test N: The Turn Signal Lamps Are Never On - The Hazard Lamps Are Never On

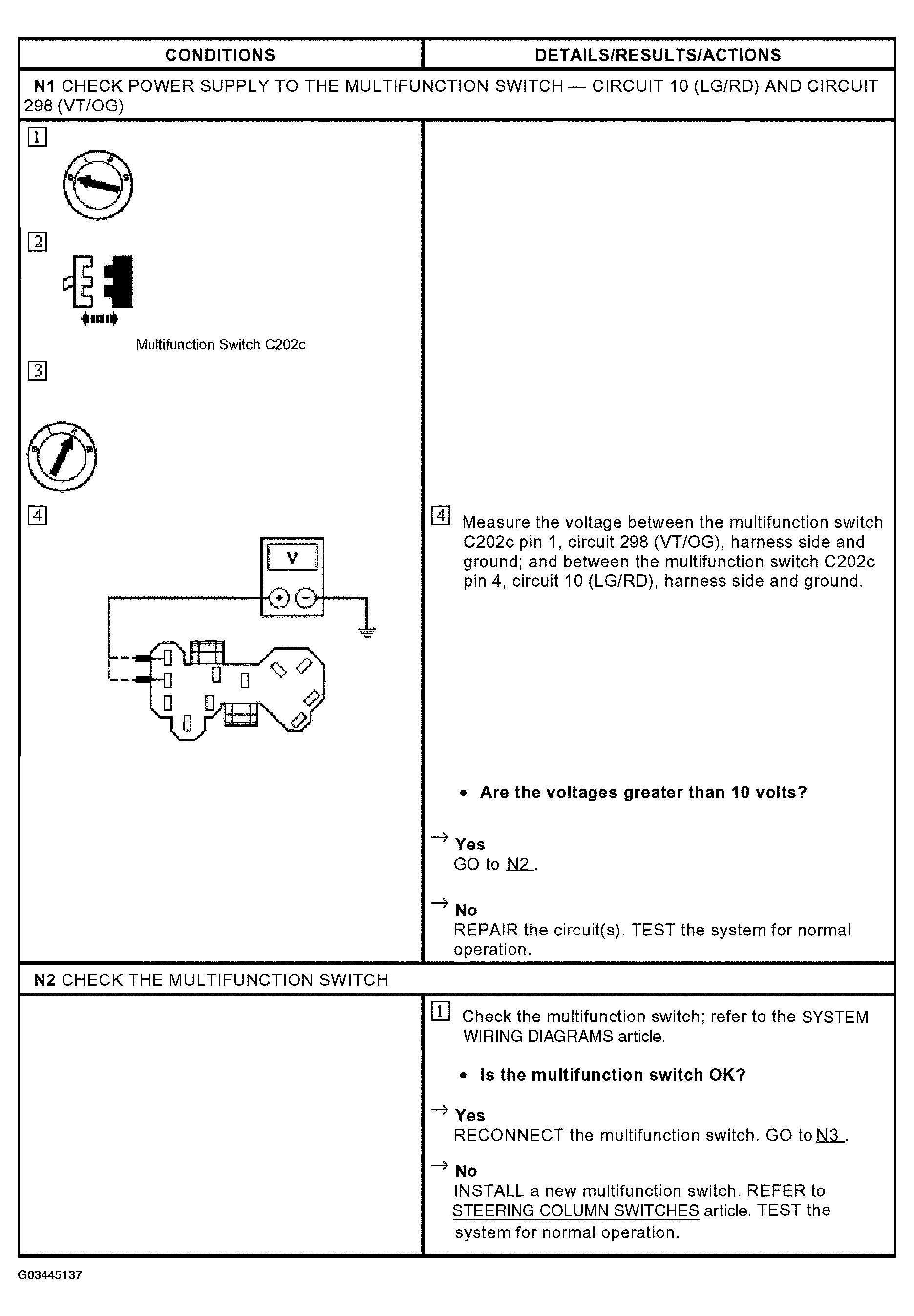

Fig 1: Pinpoint Test N: Turn Signal Lamps Are Never On - Hazard Lamps Are Never On (N1 Of N2)

Courtesy of FORD MOTOR CO.

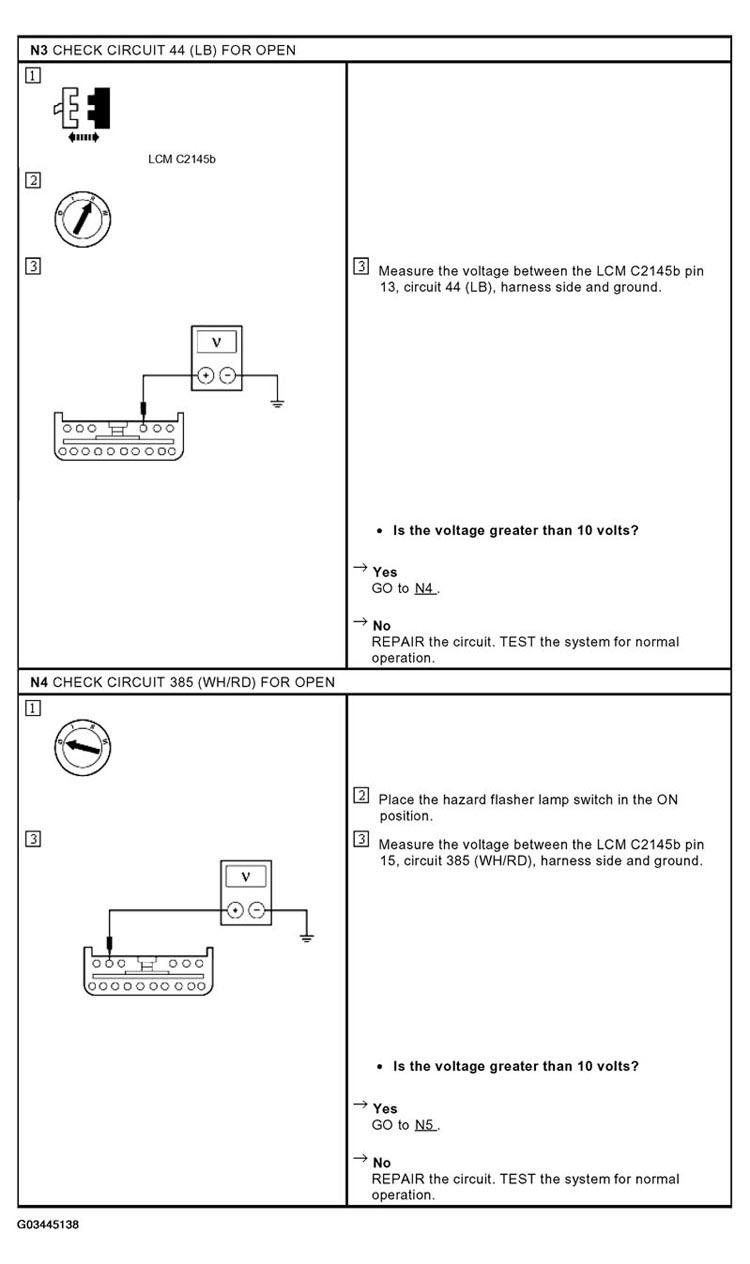

Fig 2: Pinpoint Test N: Turn Signal Lamps Are Never On - Hazard Lamps Are Never On (N3 Of N4)

Courtesy of FORD MOTOR CO.

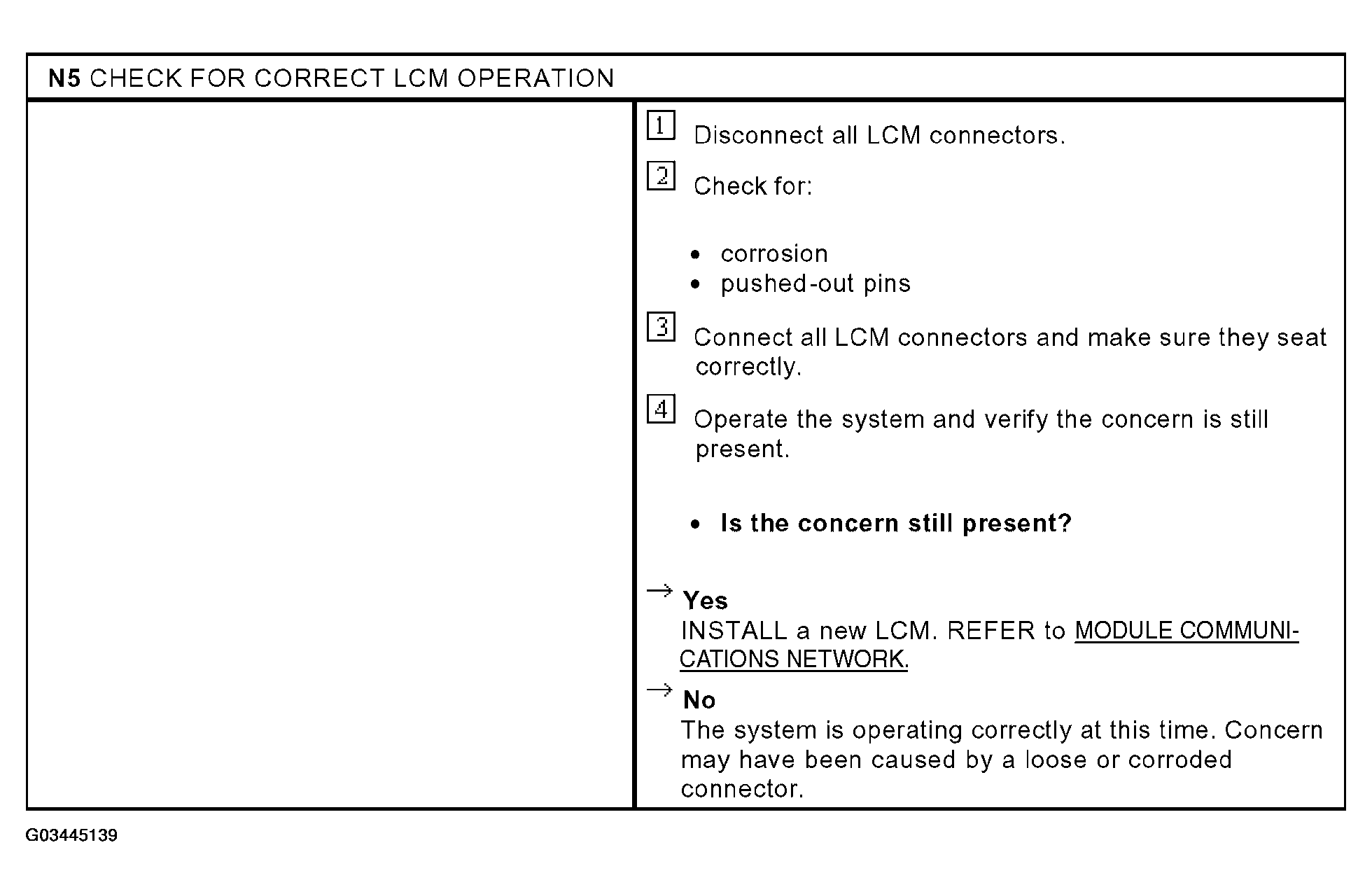

Fig 3: Pinpoint Test N: Turn Signal Lamps Are Never On - Hazard Lamps Are Never On (N5)

Courtesy of FORD MOTOR CO.
