Lamp Assembly - Rear: Removal

  1. Position the luggage compartment trim aside.
    • Remove the pin-type retainer.
    Fig 1: Removing Pin-Type Retainer
    G03445180Courtesy of FORD MOTOR CO.
  2. Remove the rear lamp nuts.

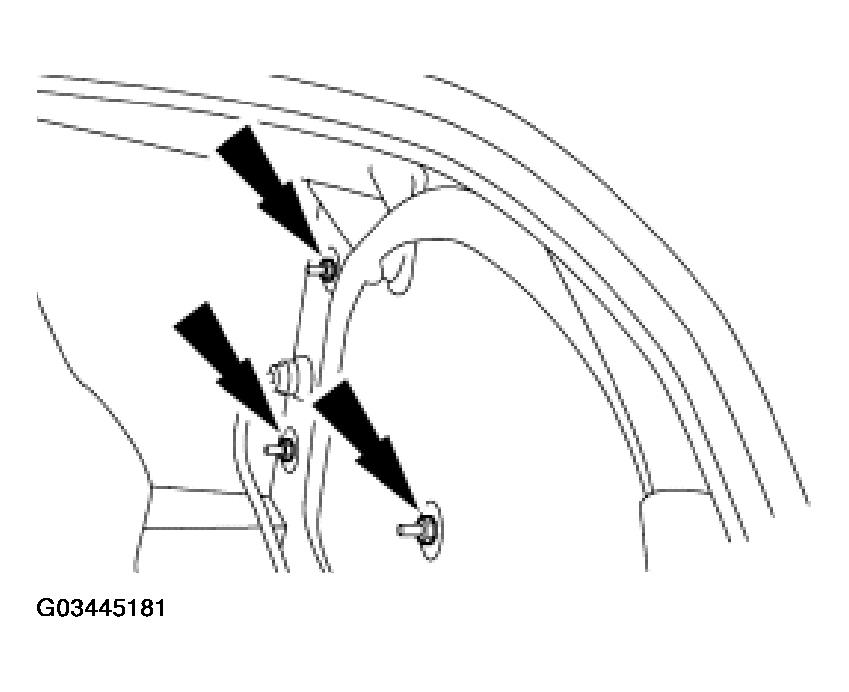

    Fig 2: Removing Rear Lamp Nuts
    G03445181Courtesy of FORD MOTOR CO.
  3. Remove the rear lamp assembly and disconnect the electrical connectors.

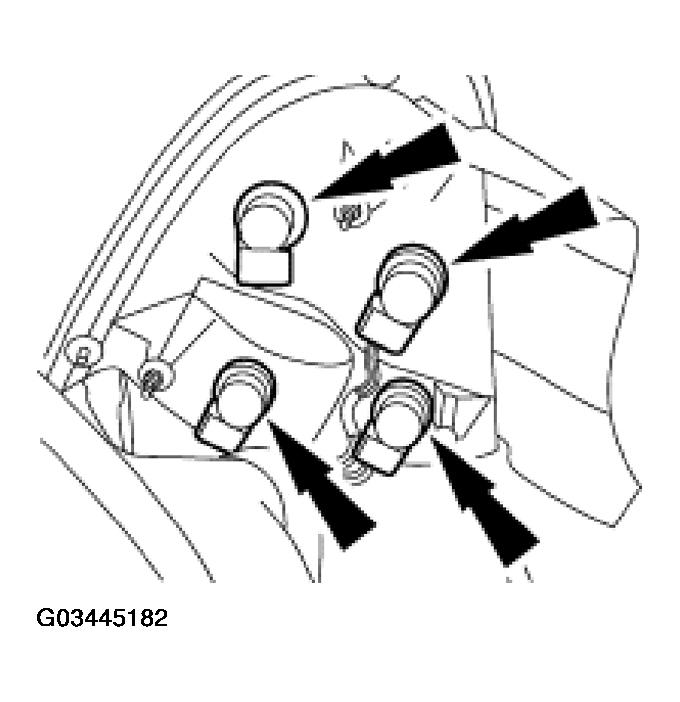

    Fig 3: Removing Rear Lamp Assembly
    G03445182Courtesy of FORD MOTOR CO.
