Removal and Installation

CAUTION: Cover the end of the tool with tape to prevent damage to the trim panel.

NOTE: Use a thin-bladed tool to remove the headlamp switch assembly.

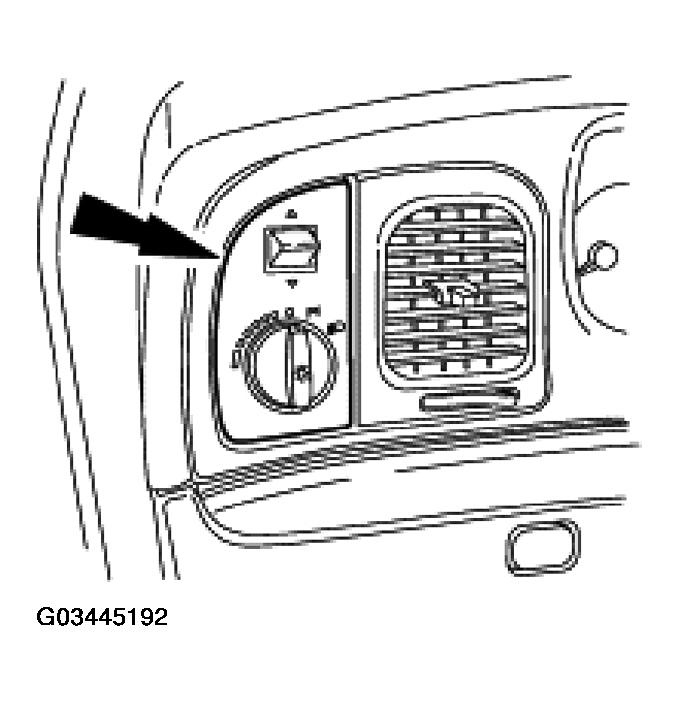

Fig 1: Removing Headlamp Switch And Bezel Assembly

Courtesy of FORD MOTOR CO.

Remove the headlamp switch and bezel assembly.
- Disconnect the electrical connectors.
To install, reverse the removal procedure.
