Crown Victoria Base, 4.6 9
>>
Repair and Diagnosis
>>
Electrical
>>
Gauges
>>
Instrument Cluster System & Panel Illumination
>>
Diagnosis & Testing
>>
Symptom Chart
Symptom Chart

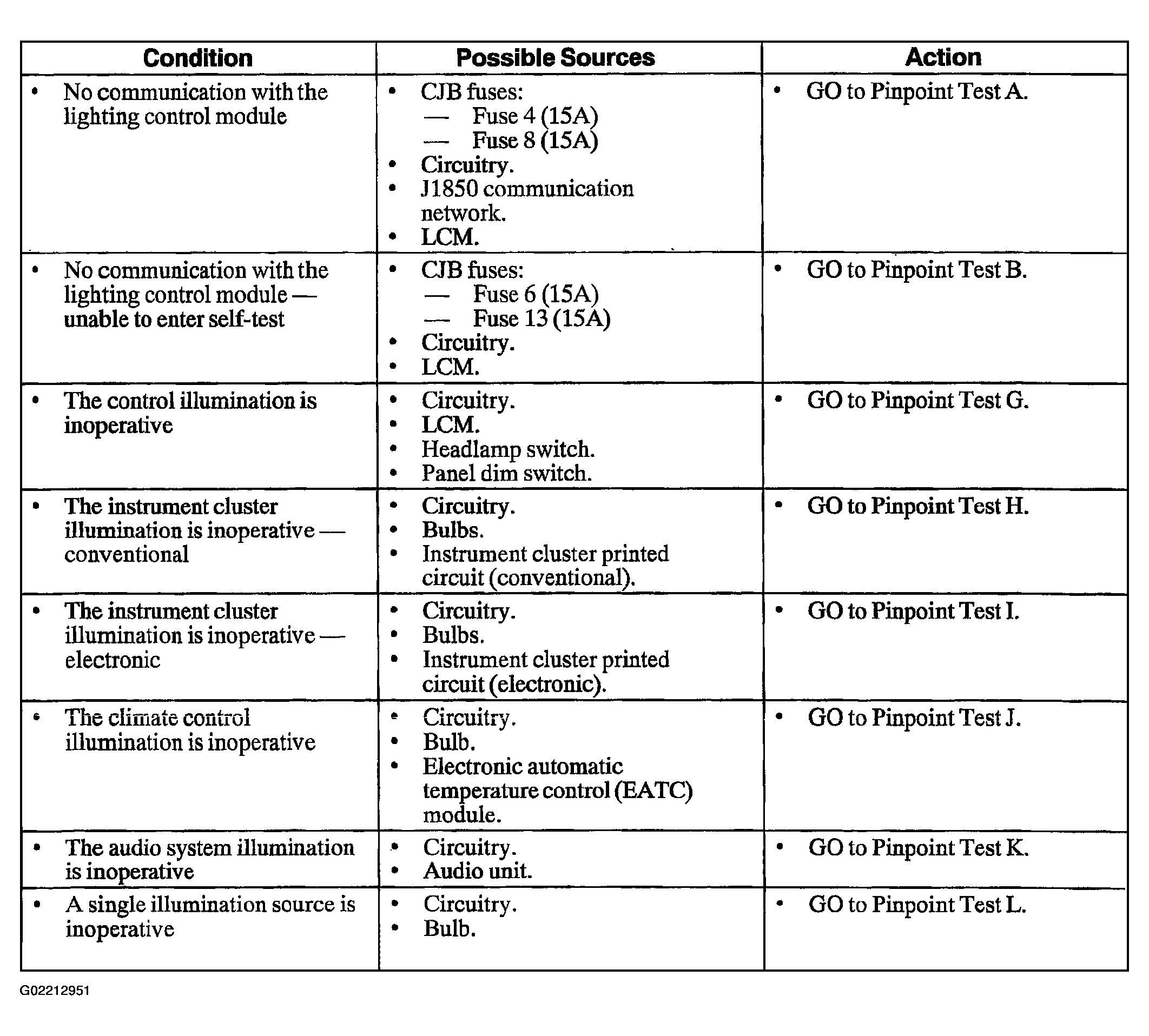

Fig 1: Identifying Symptom Chart (1 Of 2)
Courtesy of FORD MOTOR CO.

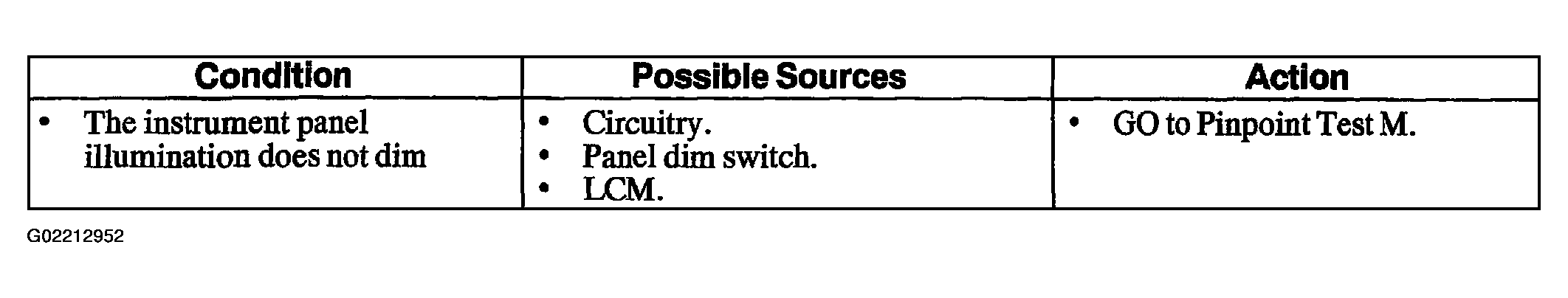

Fig 2: Identifying Symptom Chart (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
