Pinpoint Test F: DTC B1585: Dim Panel Decrease Input Circuit Short To Battery

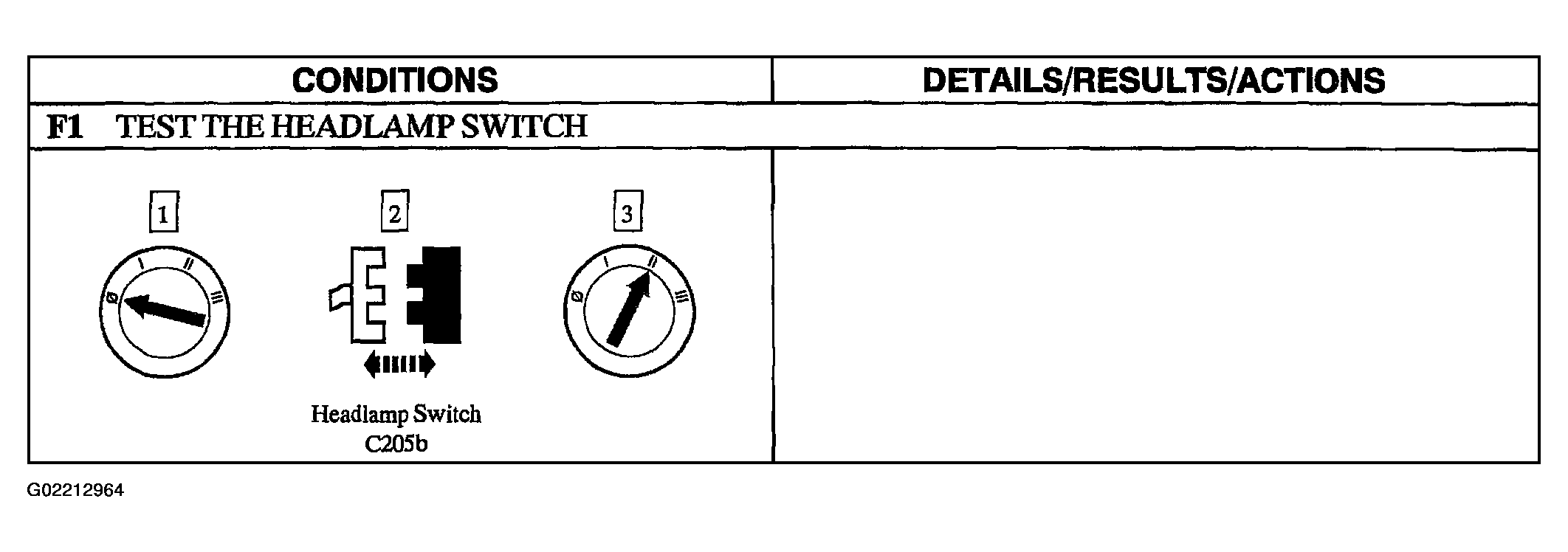

Fig 1: Pinpoint Test F: DTC B1585: Dim Panel Decrease Input Circuit Short To Battery (Step F1)

Courtesy of FORD MOTOR CO.

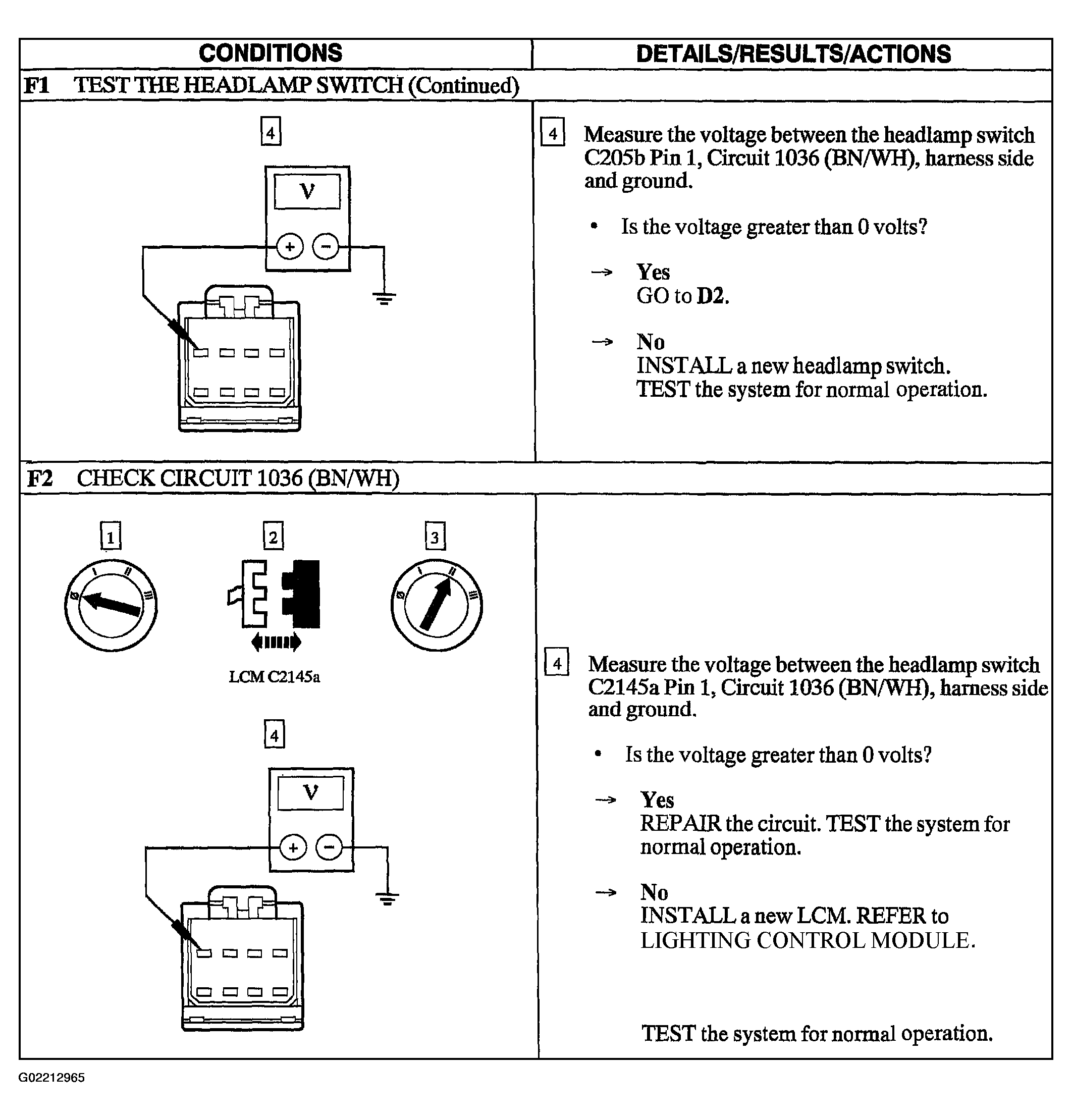

Fig 2: Pinpoint Test F: DTC B1585: Dim Panel Decrease Input Circuit Short To Battery (Steps F1 Cont.-F2)

Courtesy of FORD MOTOR CO.
