Pinpoint Test J: The Climate Control Illumination Is Inoperative

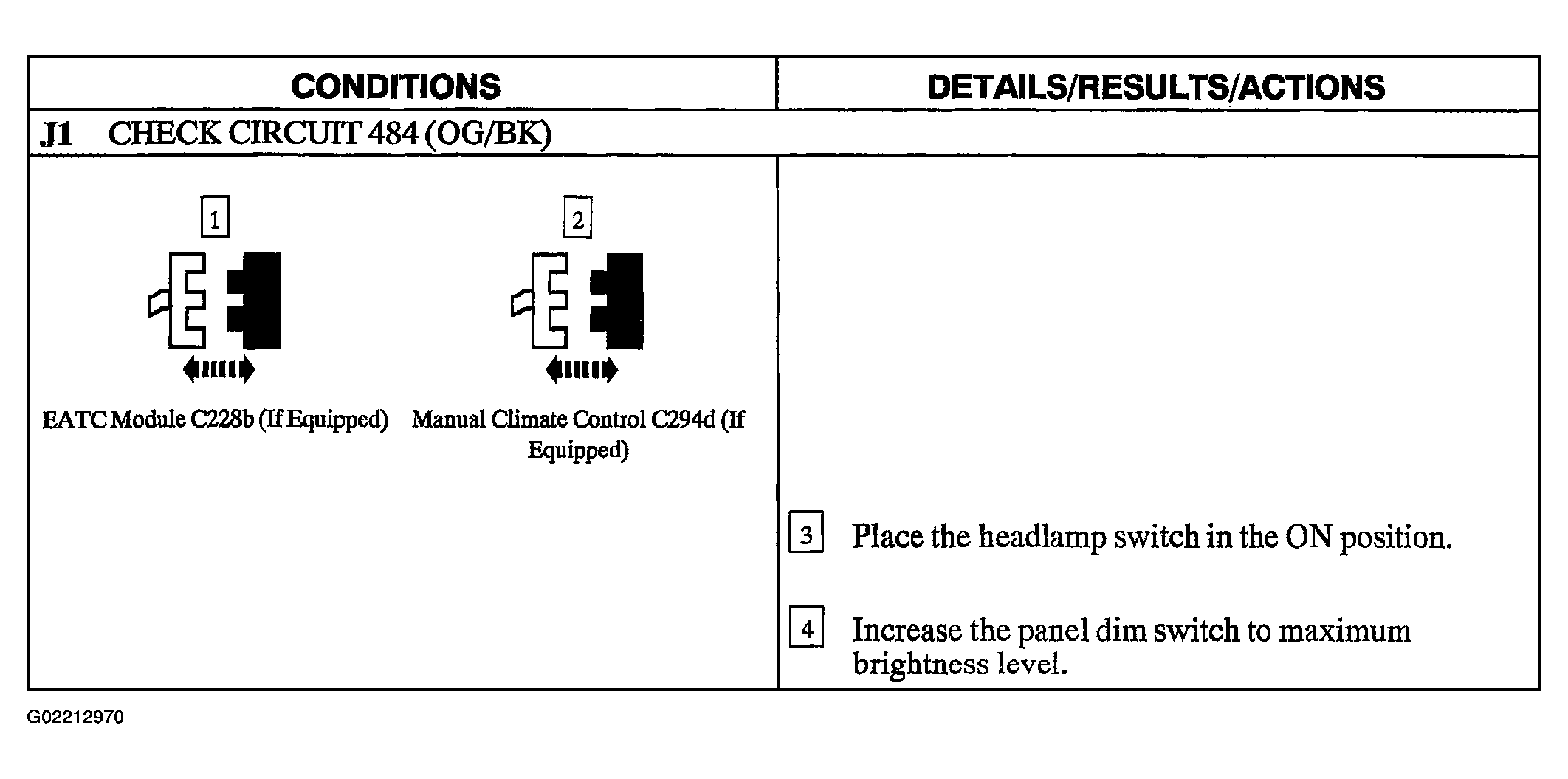

Fig 1: Pinpoint Test J: The Climate Control Illumination Is Inoperative (Steps J1)
G02212970Courtesy of FORD MOTOR CO.

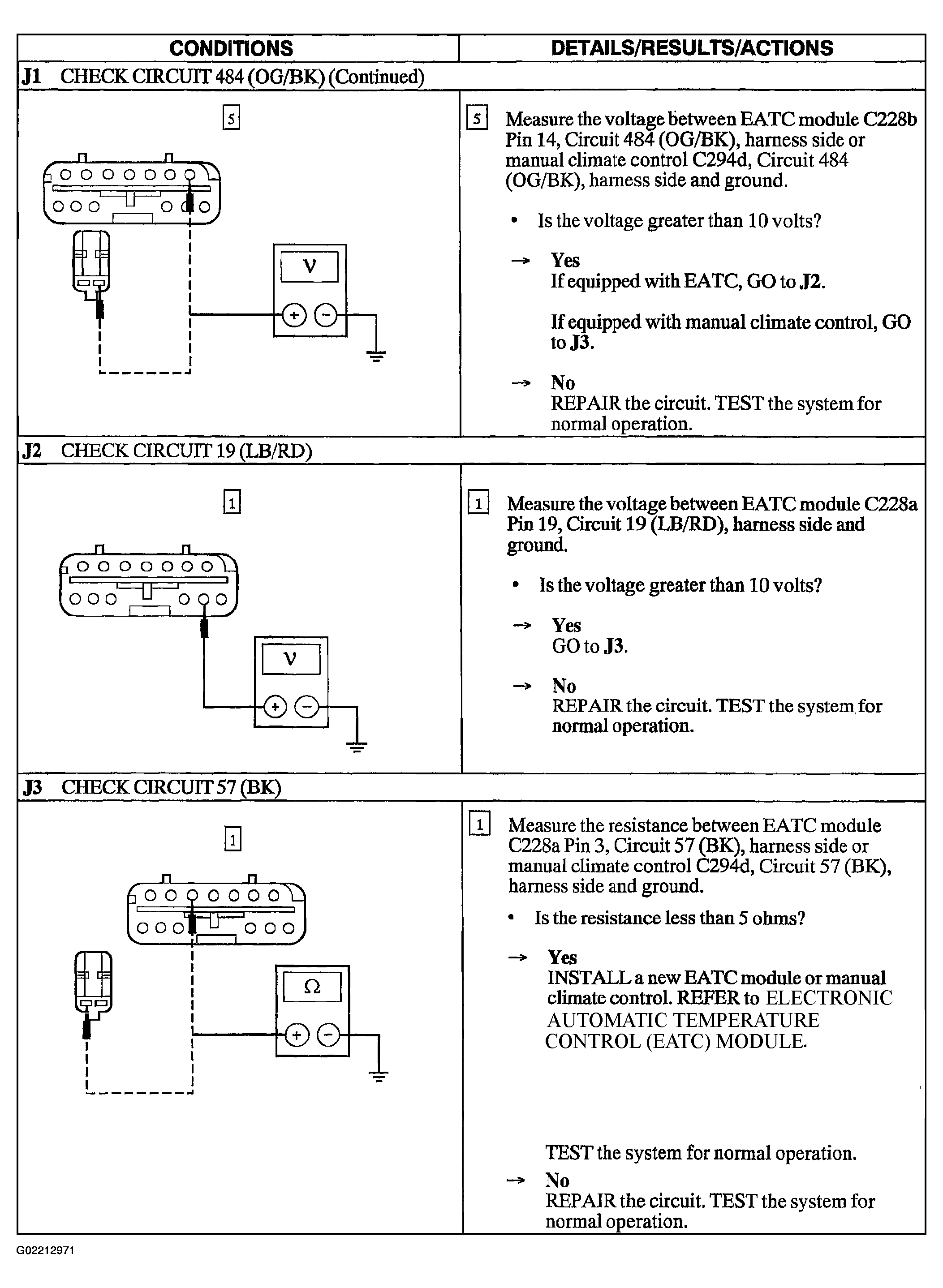

Fig 2: Pinpoint Test J: The Climate Control Illumination Is Inoperative (Steps J1 Cont.-J3)
G02212971Courtesy of FORD MOTOR CO.
