Module-Daytime Running Lamps (DRL): Removal

  1. Remove the battery ground cable.
  2. Remove the sight shield.
    • Twist the clips.

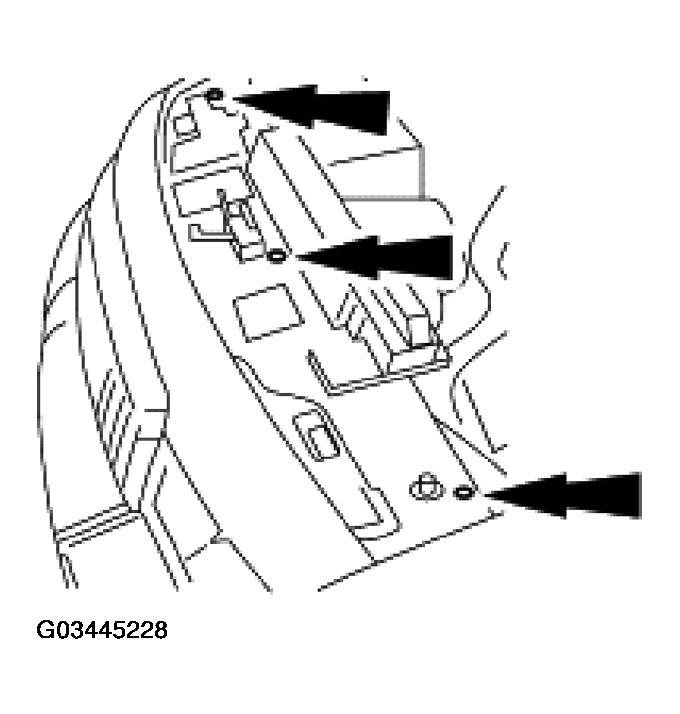

    Fig 1: Removing Sight Shield
    G03445228Courtesy of FORD MOTOR CO.
  3. Remove the daytime running lamps (DRL) module.
    1. Disconnect the electrical connector.
    2. Remove the bolt.
    3. Remove the DRL module.

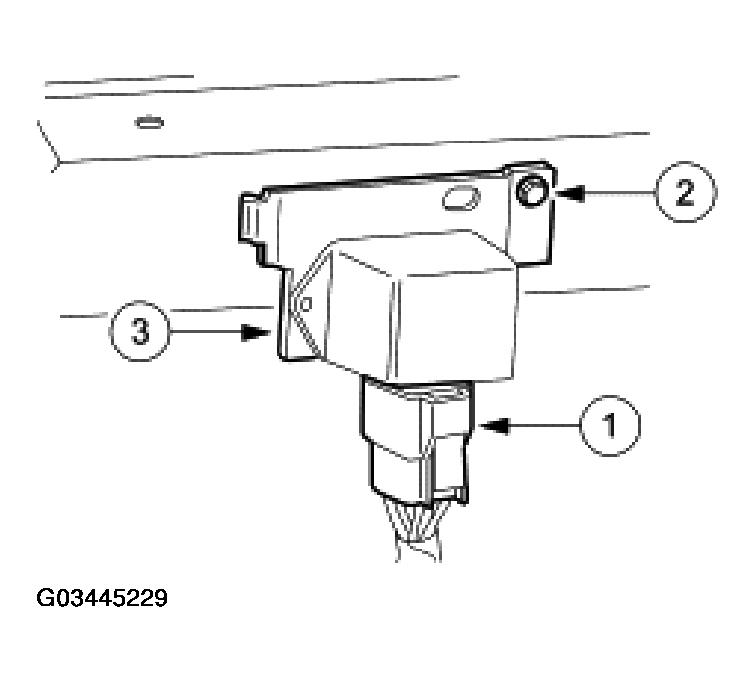

    Fig 2: Removing Daytime Running Lamps Module
    G03445229Courtesy of FORD MOTOR CO.
