Pinpoint Test N: DTC B1342 - ECU Is Defective Or Incorrect Fuel Gauge Indication

CAUTION: Use correct probe adapter(s) when making measurements. Failure to use correct probe adapter(s) may damage the connector.

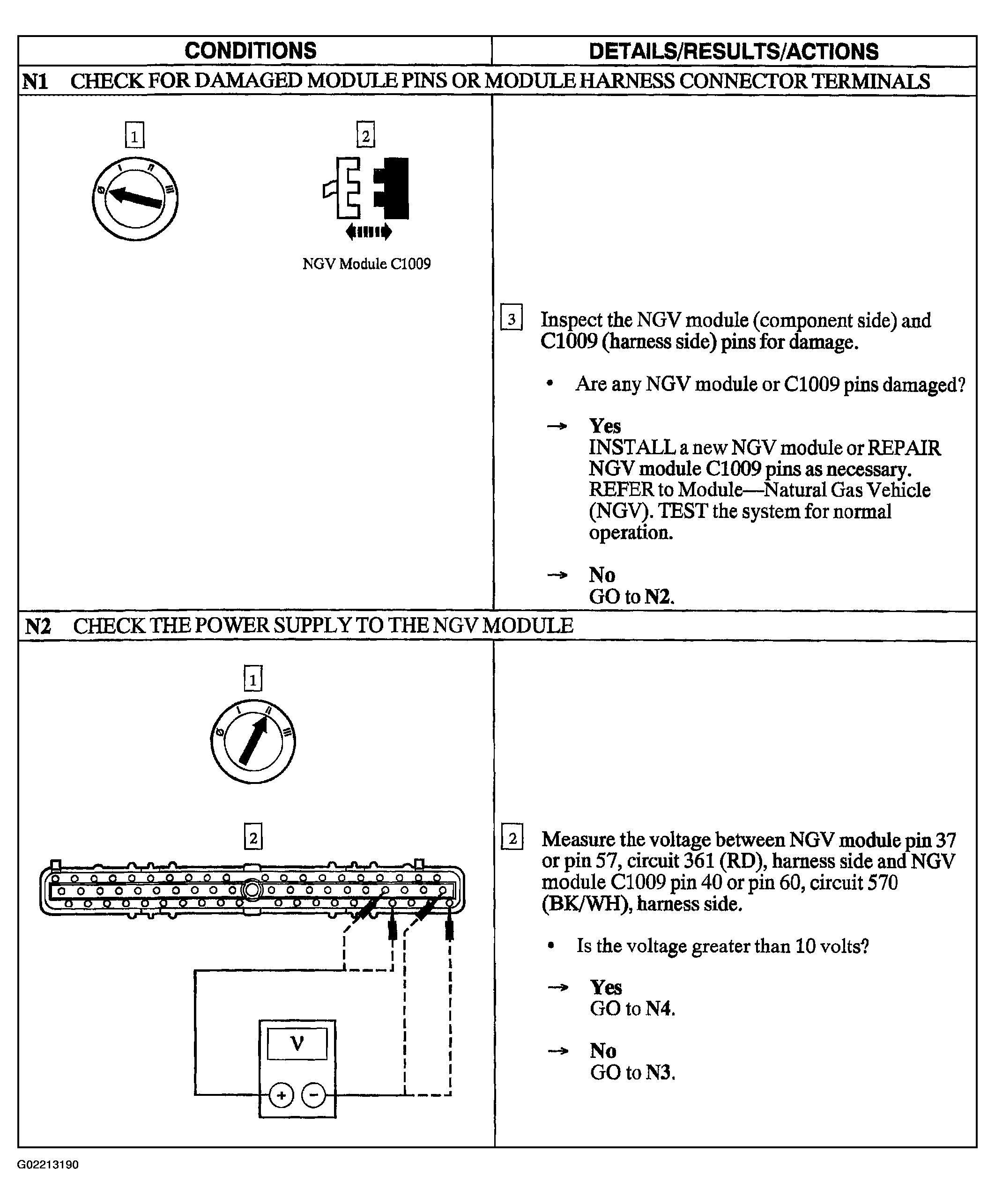

Fig 1: Pinpoint Test N: DTC B1342 - ECU Is Defective Or Incorrect Fuel Gauge Indication (Steps N1-N2)

Courtesy of FORD MOTOR CO.

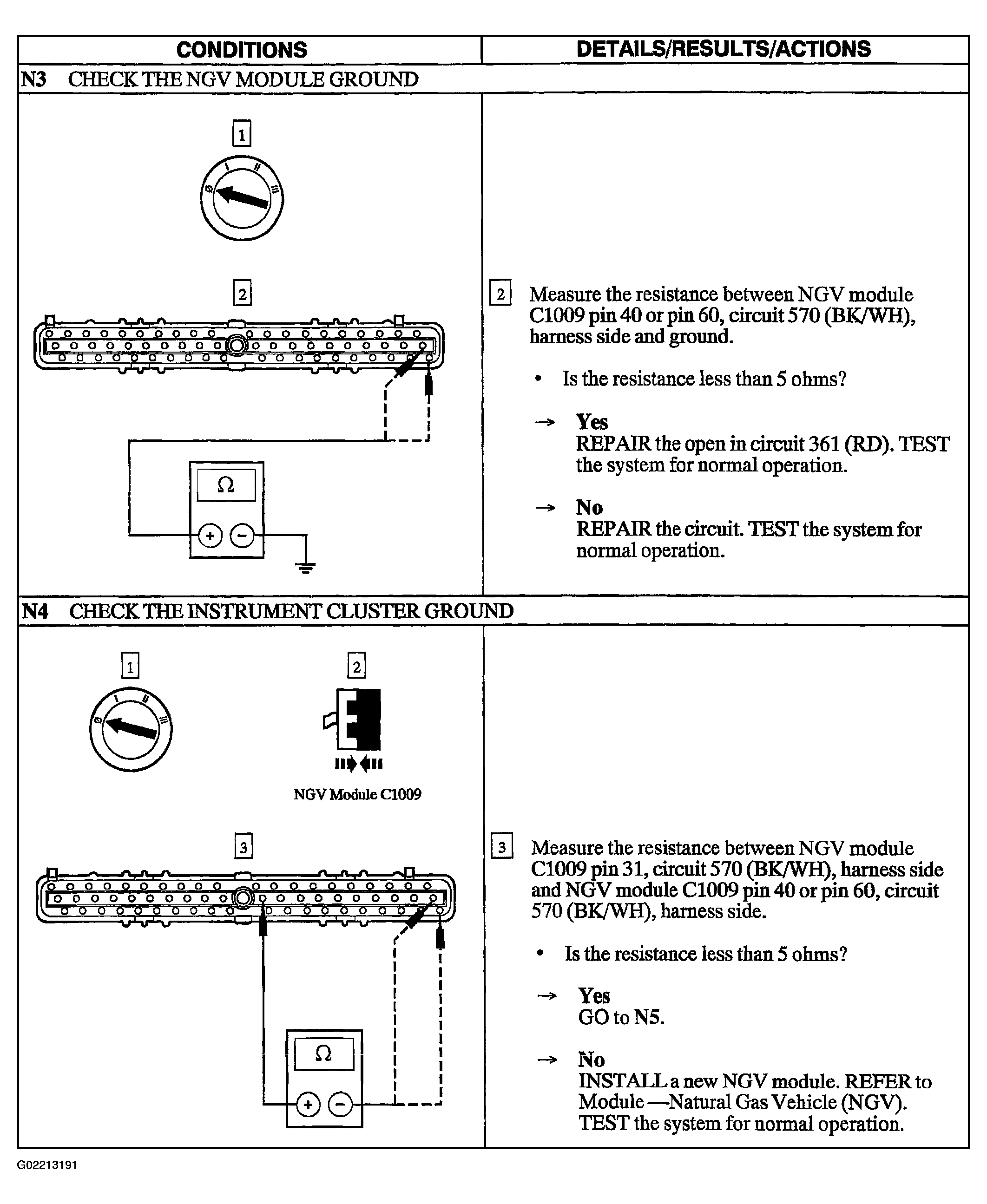

Fig 2: Pinpoint Test N: DTC B1342 - ECU Is Defective Or Incorrect Fuel Gauge Indication (Steps N3-N4)

Courtesy of FORD MOTOR CO.

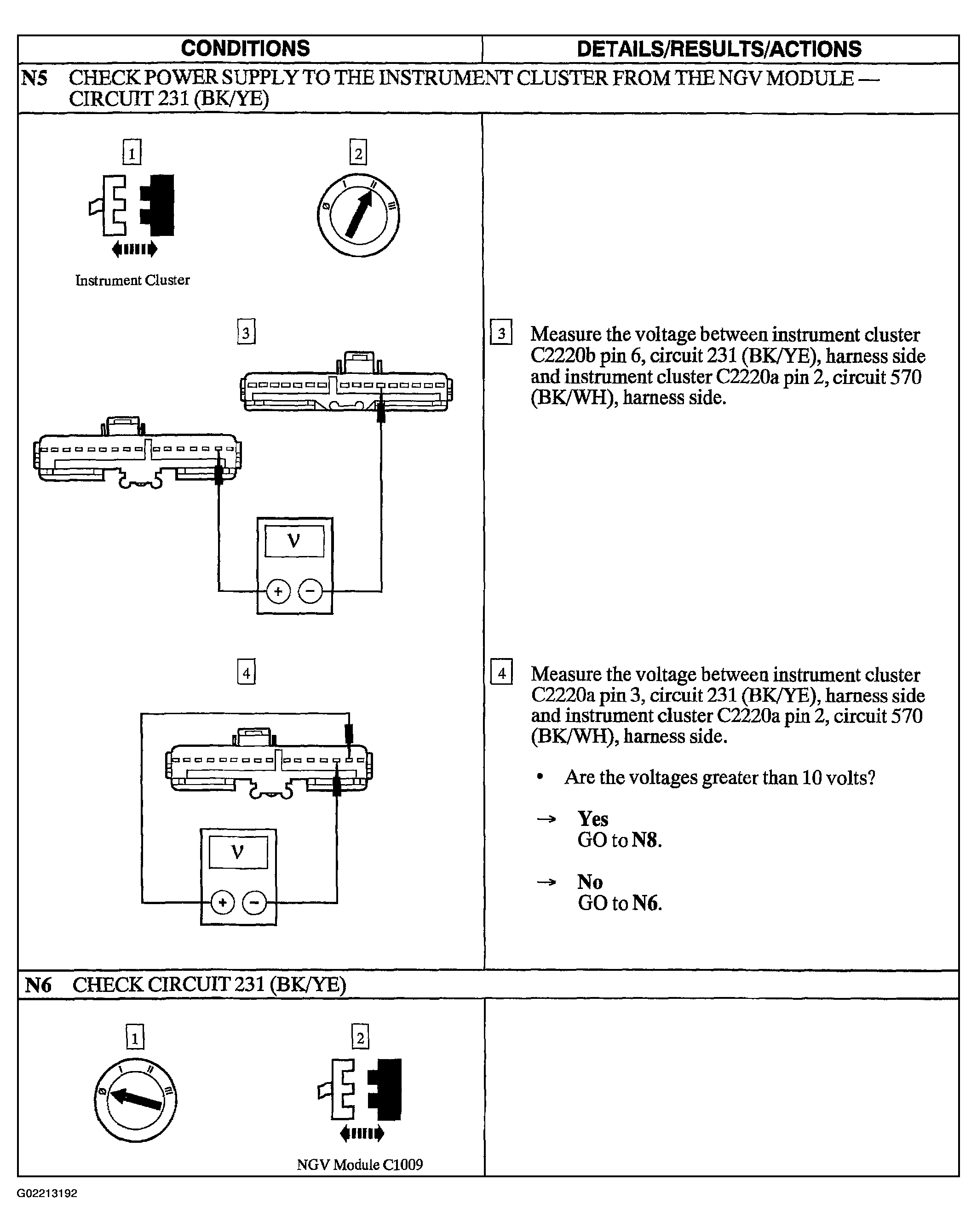

Fig 3: Pinpoint Test N: DTC B1342 - ECU Is Defective Or Incorrect Fuel Gauge Indication (Steps N5-N6)

Courtesy of FORD MOTOR CO.

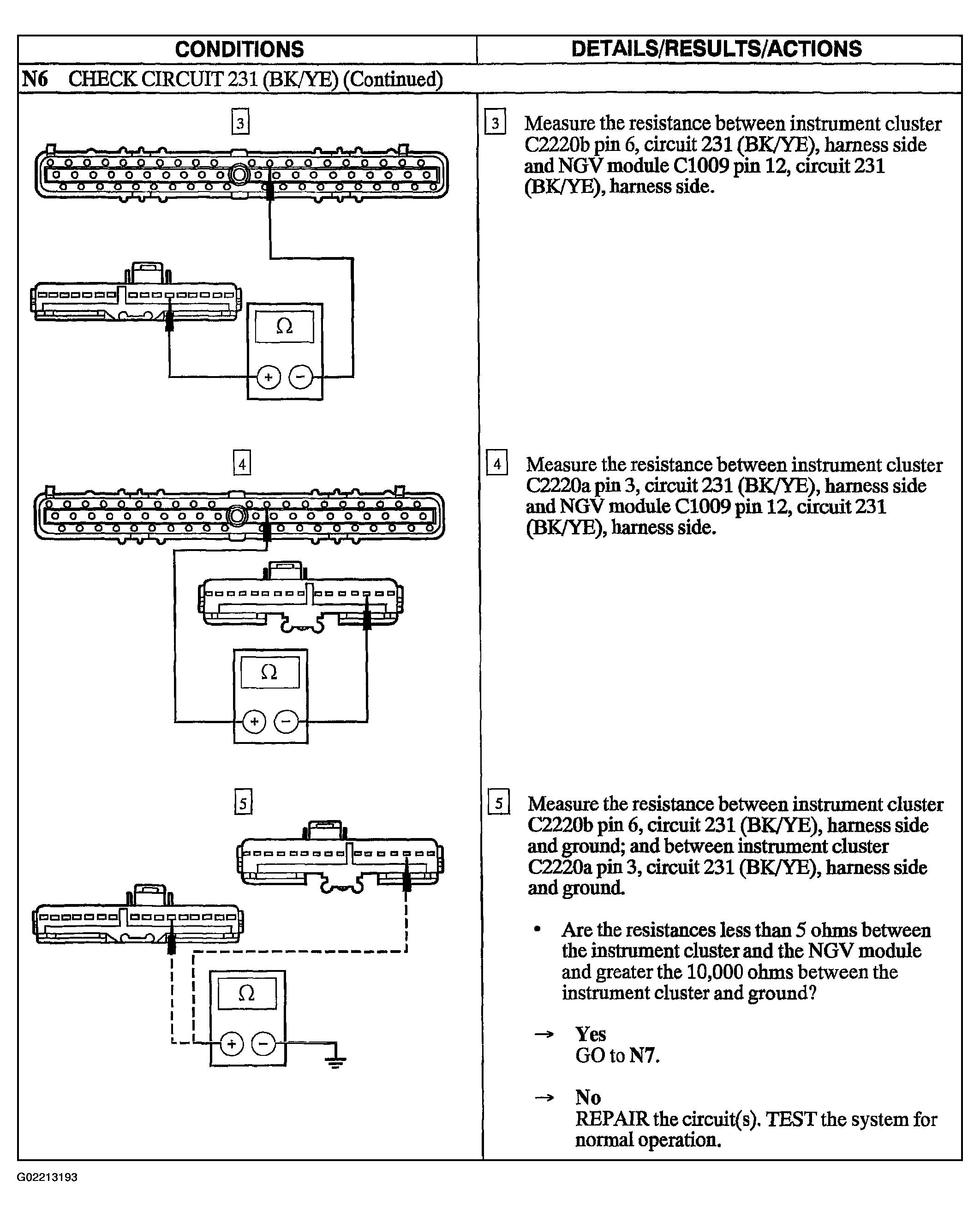

Fig 4: Pinpoint Test N: DTC B1342 - ECU Is Defective Or Incorrect Fuel Gauge Indication (Step N6 Cont.)

Courtesy of FORD MOTOR CO.

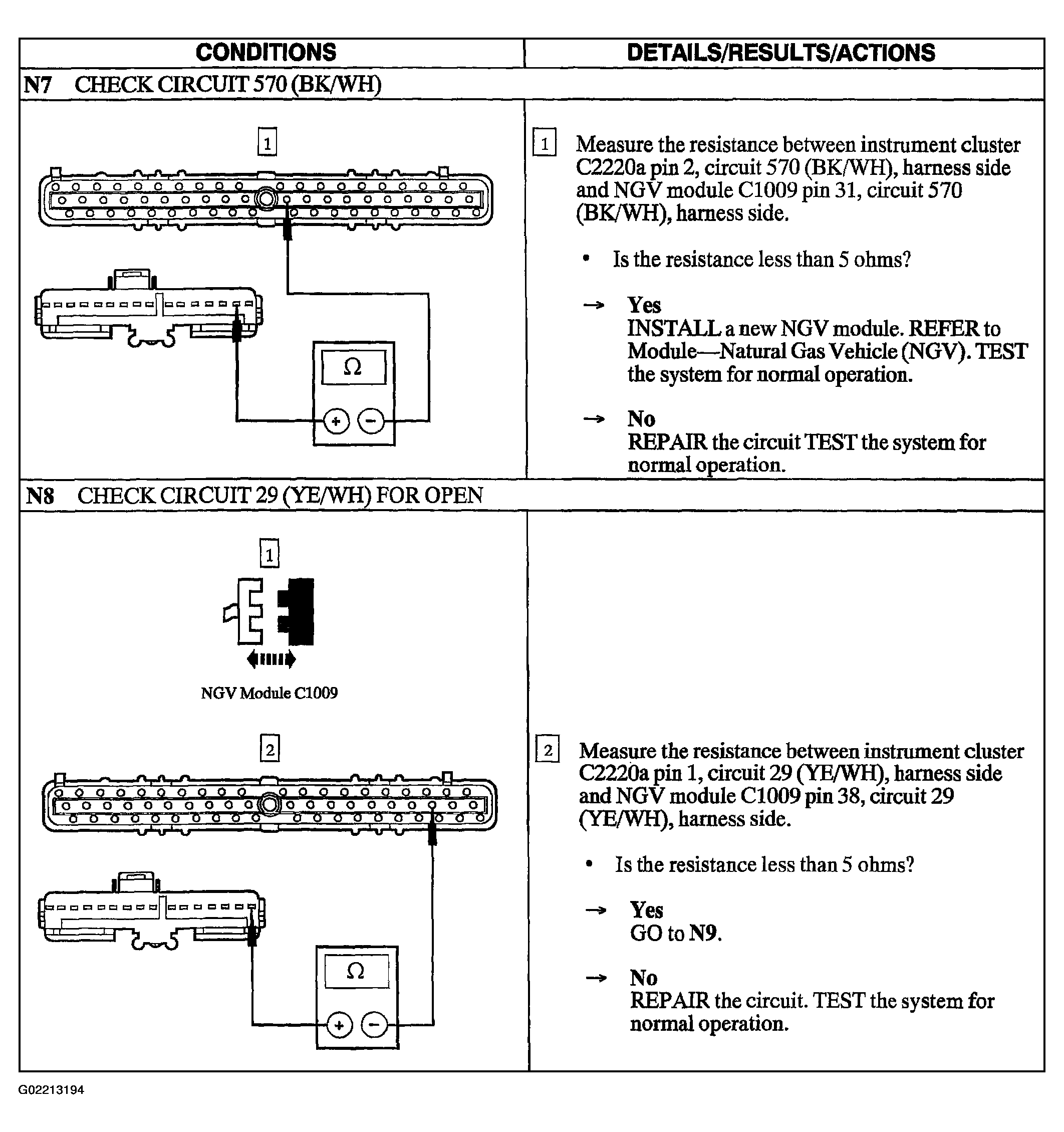

Fig 5: Pinpoint Test N: DTC B1342 - ECU Is Defective Or Incorrect Fuel Gauge Indication (Steps N7-N8)

Courtesy of FORD MOTOR CO.

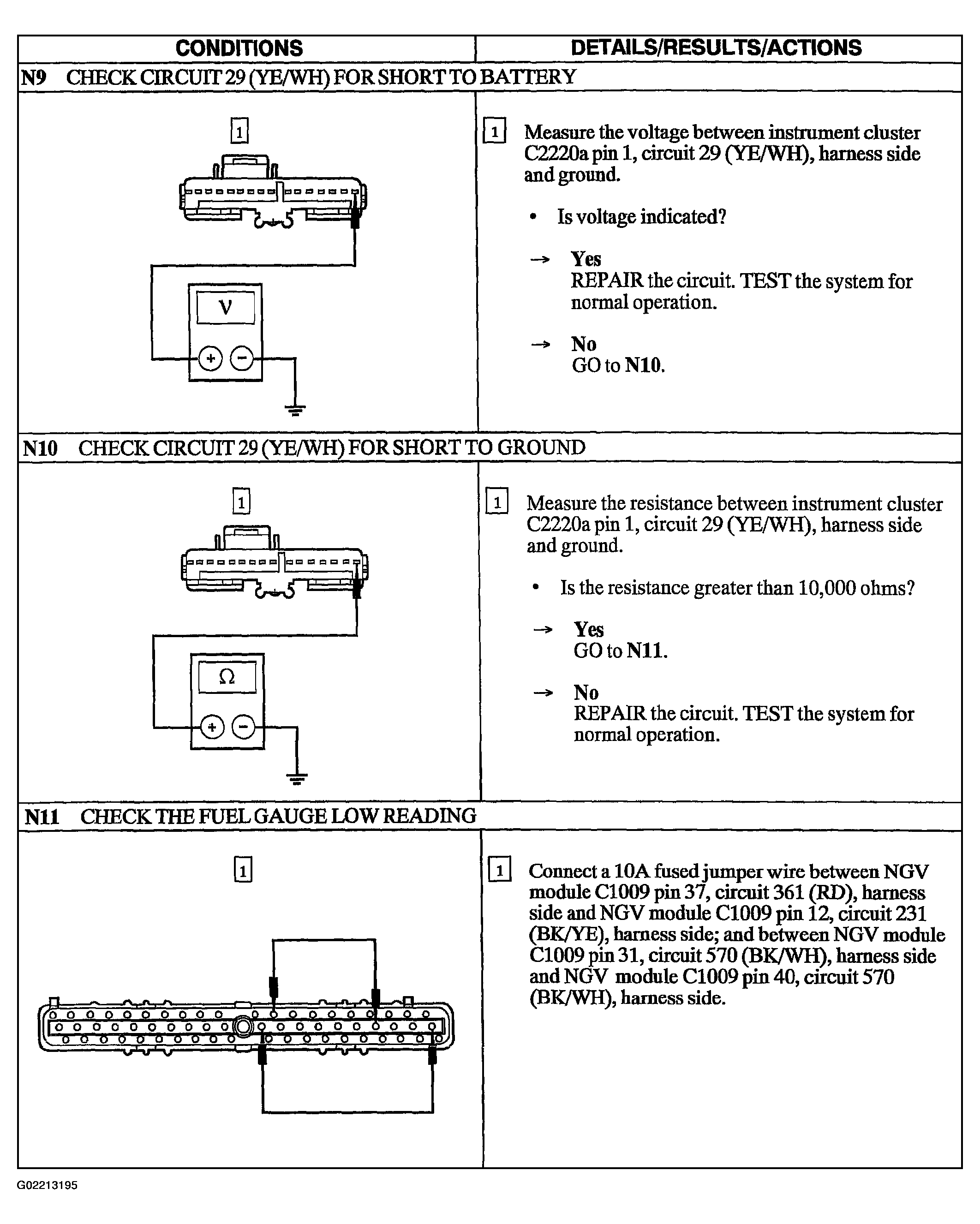

Fig 6: Pinpoint Test N: DTC B1342 - ECU Is Defective Or Incorrect Fuel Gauge Indication (Steps N9-N11)

Courtesy of FORD MOTOR CO.

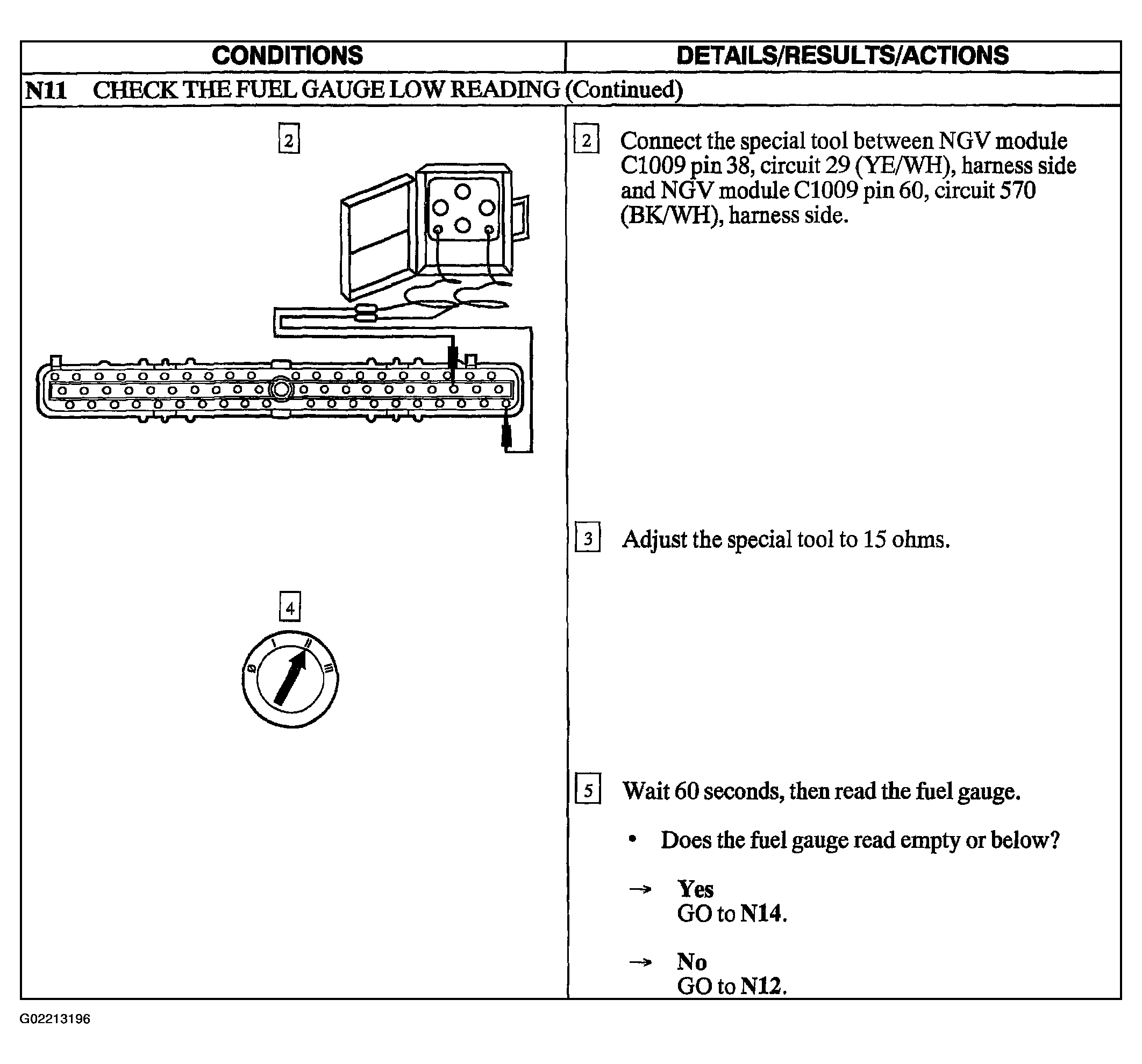

Fig 7: Pinpoint Test N: DTC B1342 - ECU Is Defective Or Incorrect Fuel Gauge Indication (Step N11 Cont.)

Courtesy of FORD MOTOR CO.

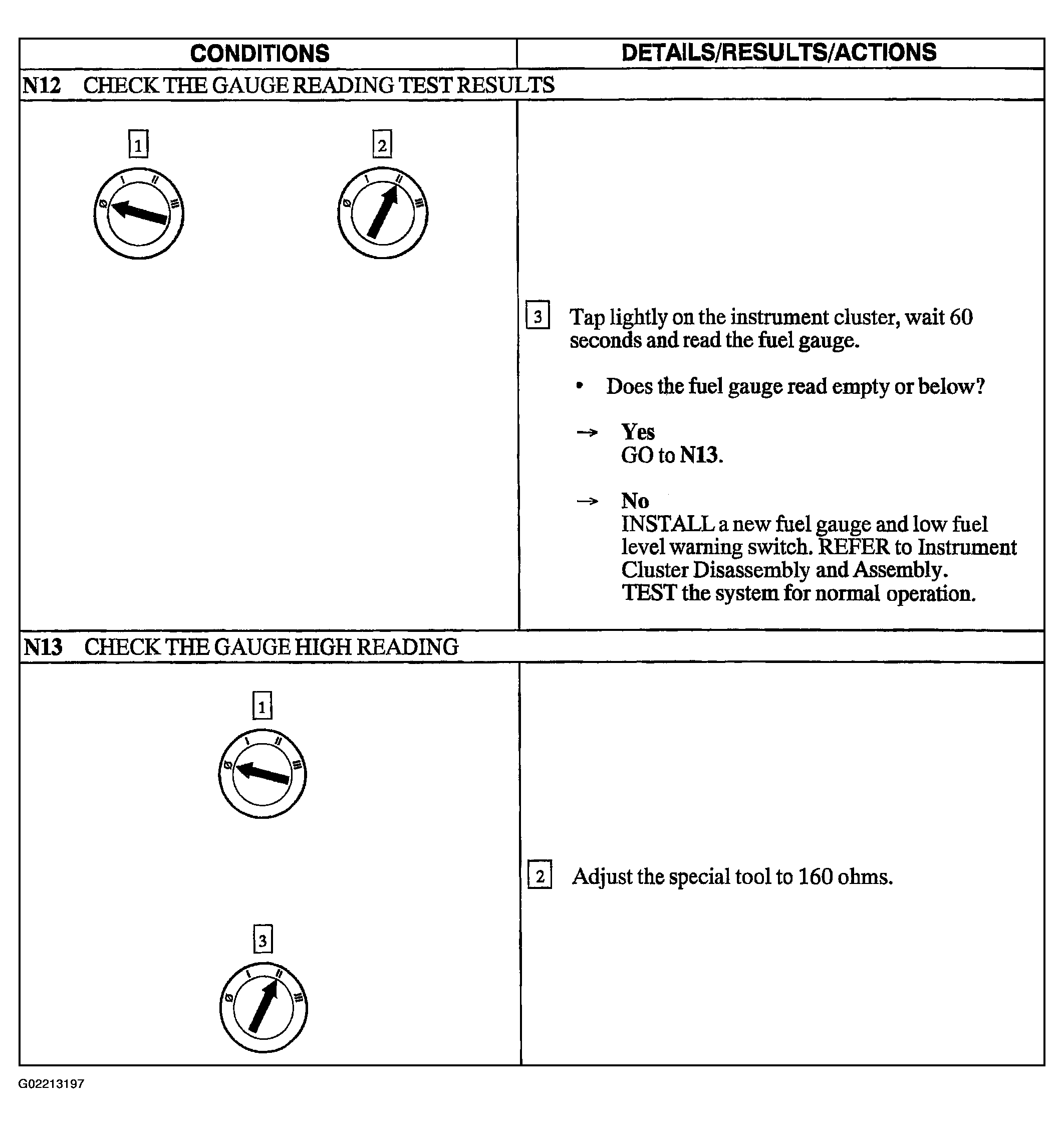

Fig 8: Pinpoint Test N: DTC B1342 - ECU Is Defective Or Incorrect Fuel Gauge Indication (Steps N12-N13)

Courtesy of FORD MOTOR CO.

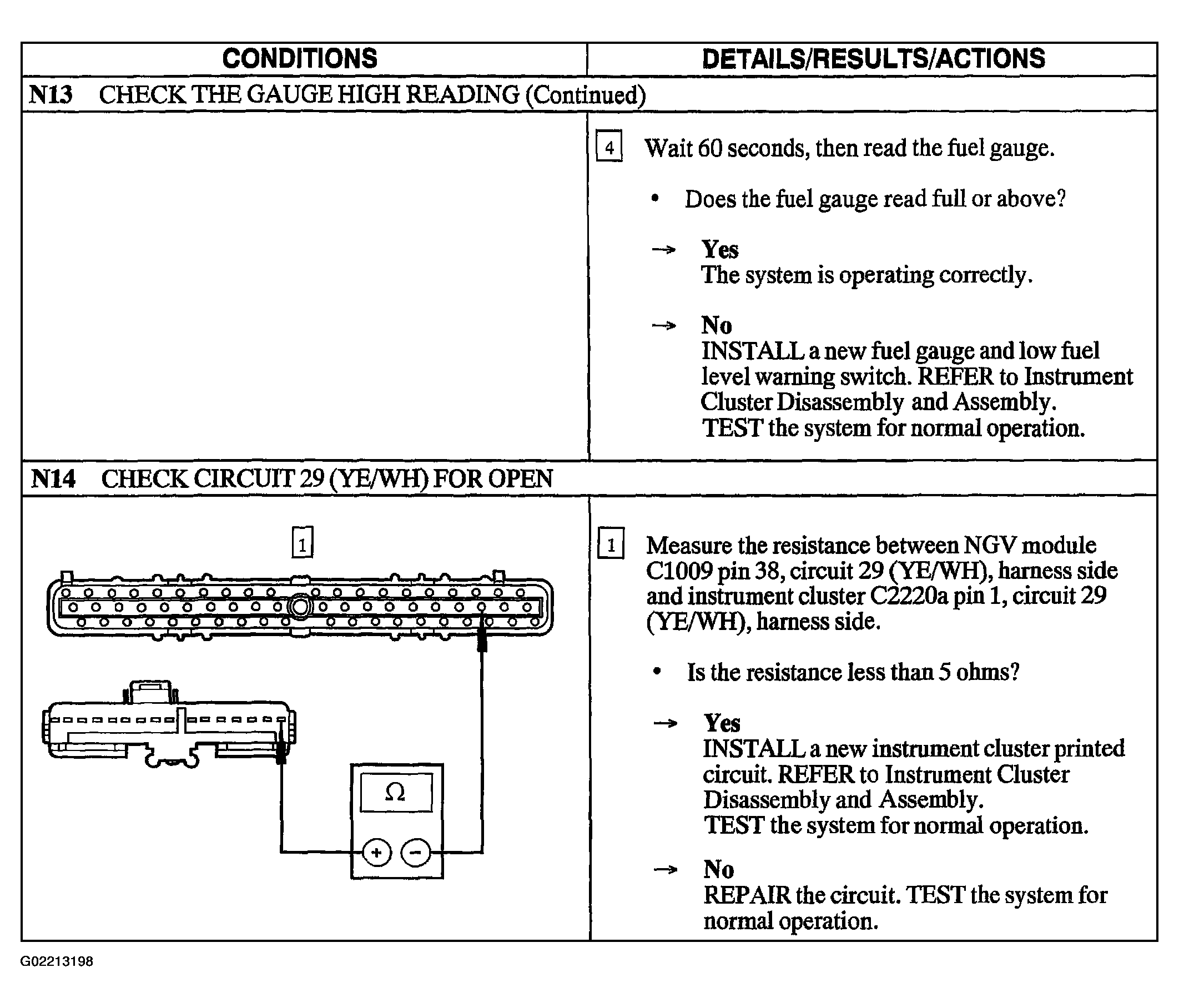

Fig 9: Pinpoint Test N: DTC B1342 - ECU Is Defective Or Incorrect Fuel Gauge Indication (Steps N13 Cont.-N14)

Courtesy of FORD MOTOR CO.
