Pinpoint Test B: No Communication With The Lighting Control Module - Unable To Enter Self-Test

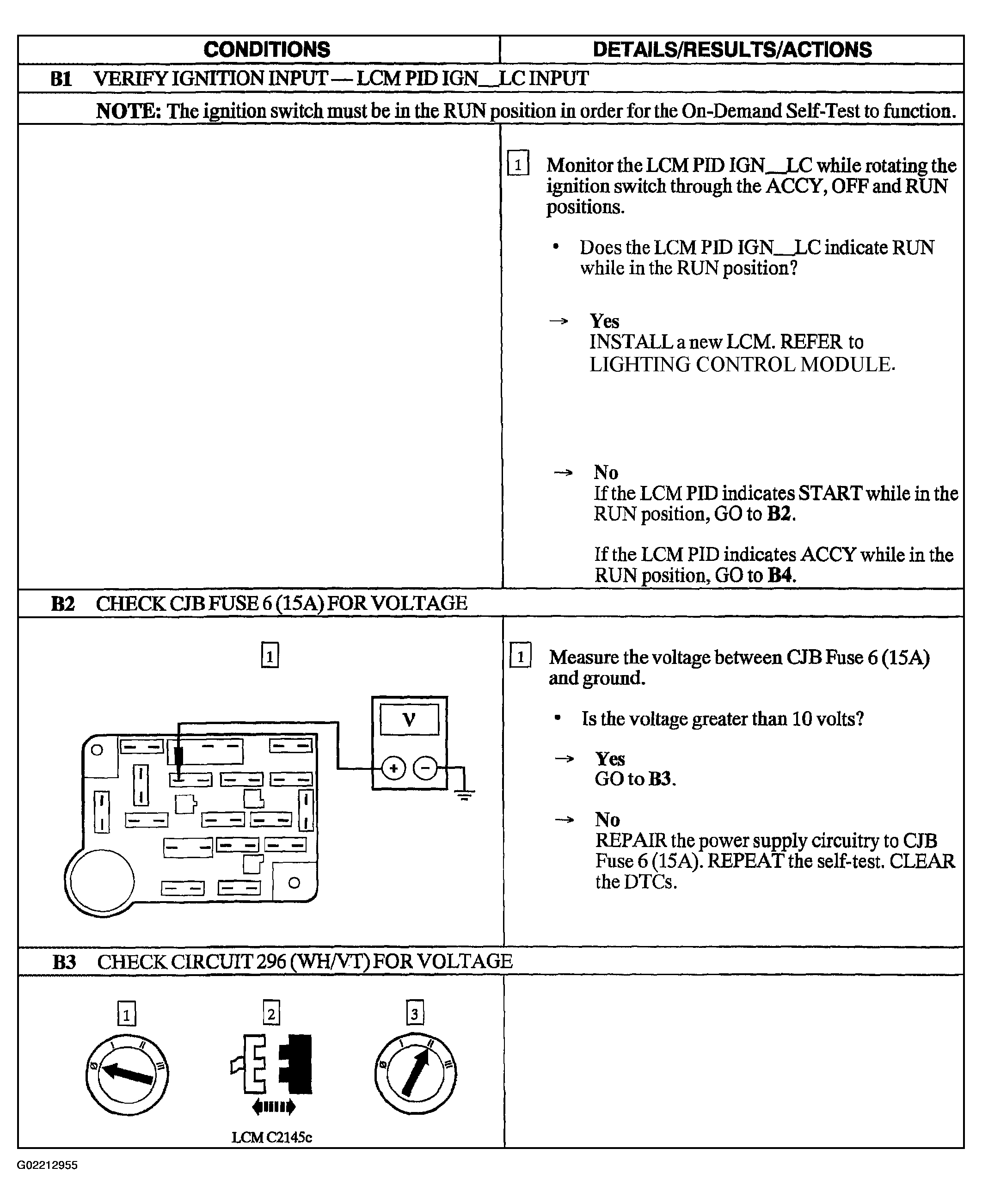

Fig 1: Pinpoint Test B: No Communication With The Lighting Control Module - Unable To Enter Self-Test (Steps B1-B3)

Courtesy of FORD MOTOR CO.

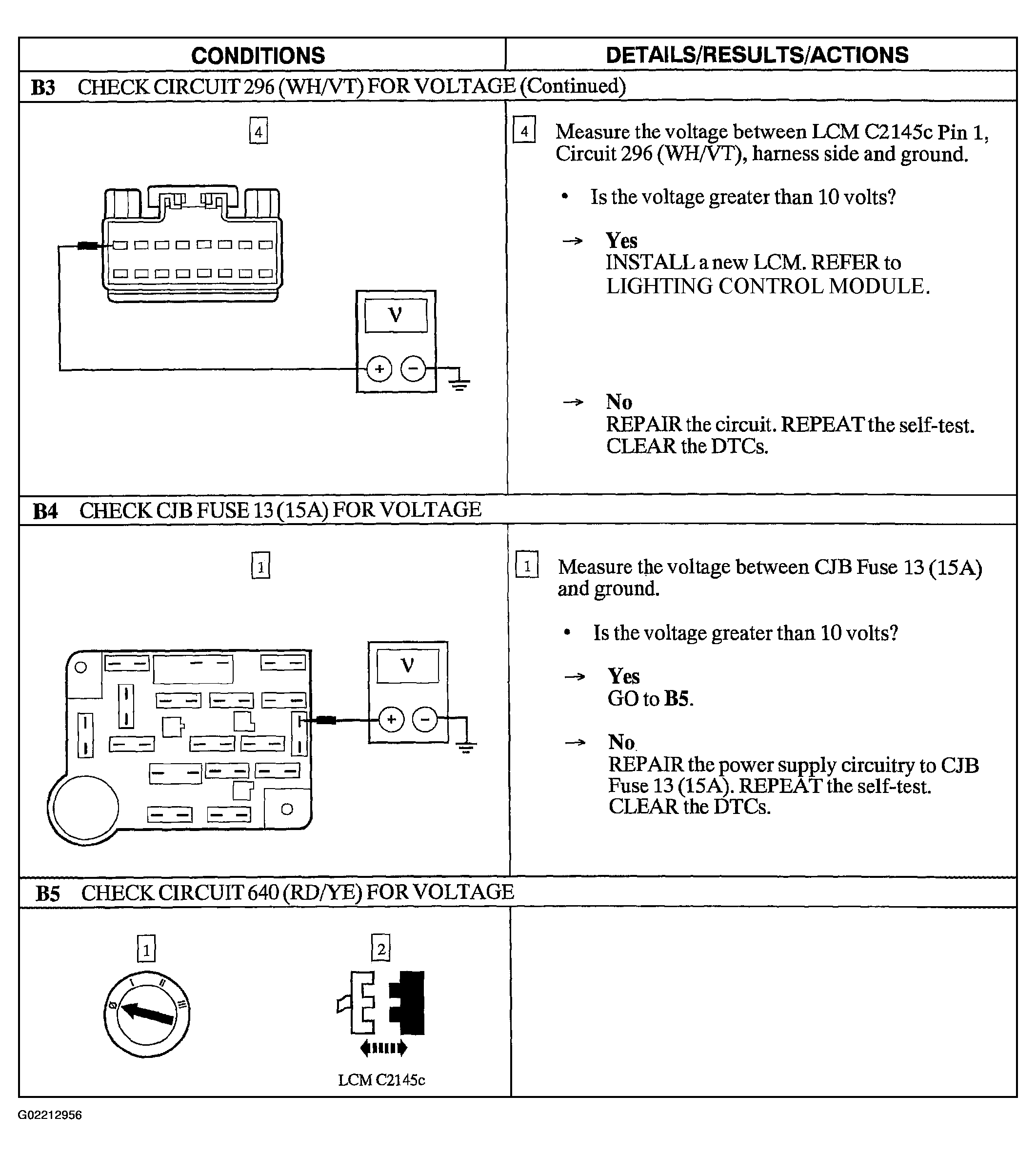

Fig 2: Pinpoint Test B: No Communication With The Lighting Control Module - Unable To Enter Self-Test (Steps B3 Cont.-B5)

Courtesy of FORD MOTOR CO.

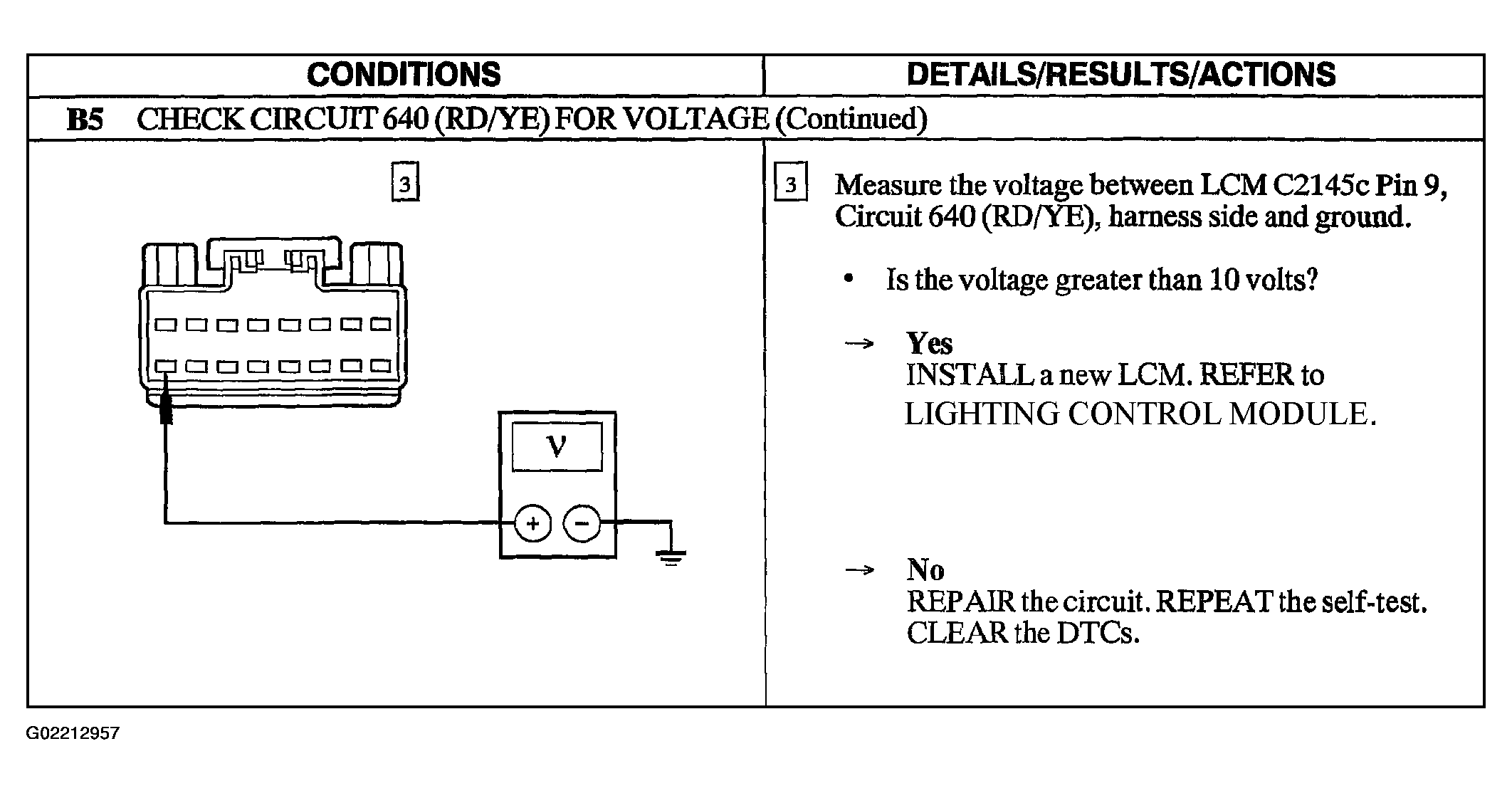

Fig 3: Pinpoint Test B: No Communication With The Lighting Control Module - Unable To Enter Self-Test (Step B5 Cont.)

Courtesy of FORD MOTOR CO.
