Pinpoint Test H: The Instrument Cluster Illumination Is Inoperative - Conventional

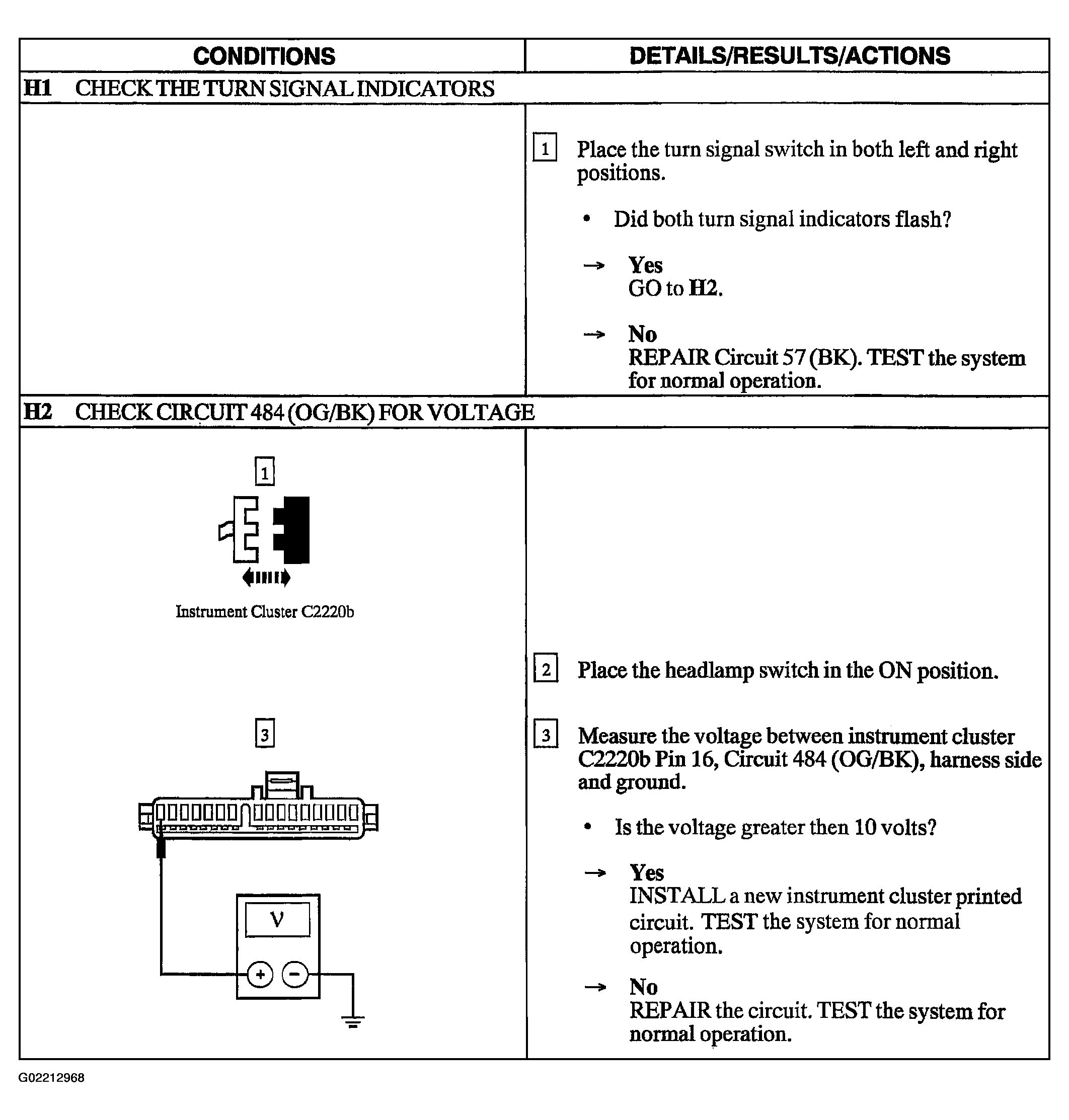

Fig 1: Pinpoint Test H: The Instrument Cluster Illumination Is Inoperative - Conventional (Steps H1-H2)
G02212968Courtesy of FORD MOTOR CO.
