Pinpoint Test K: The Audio System Illumination Is Inoperative

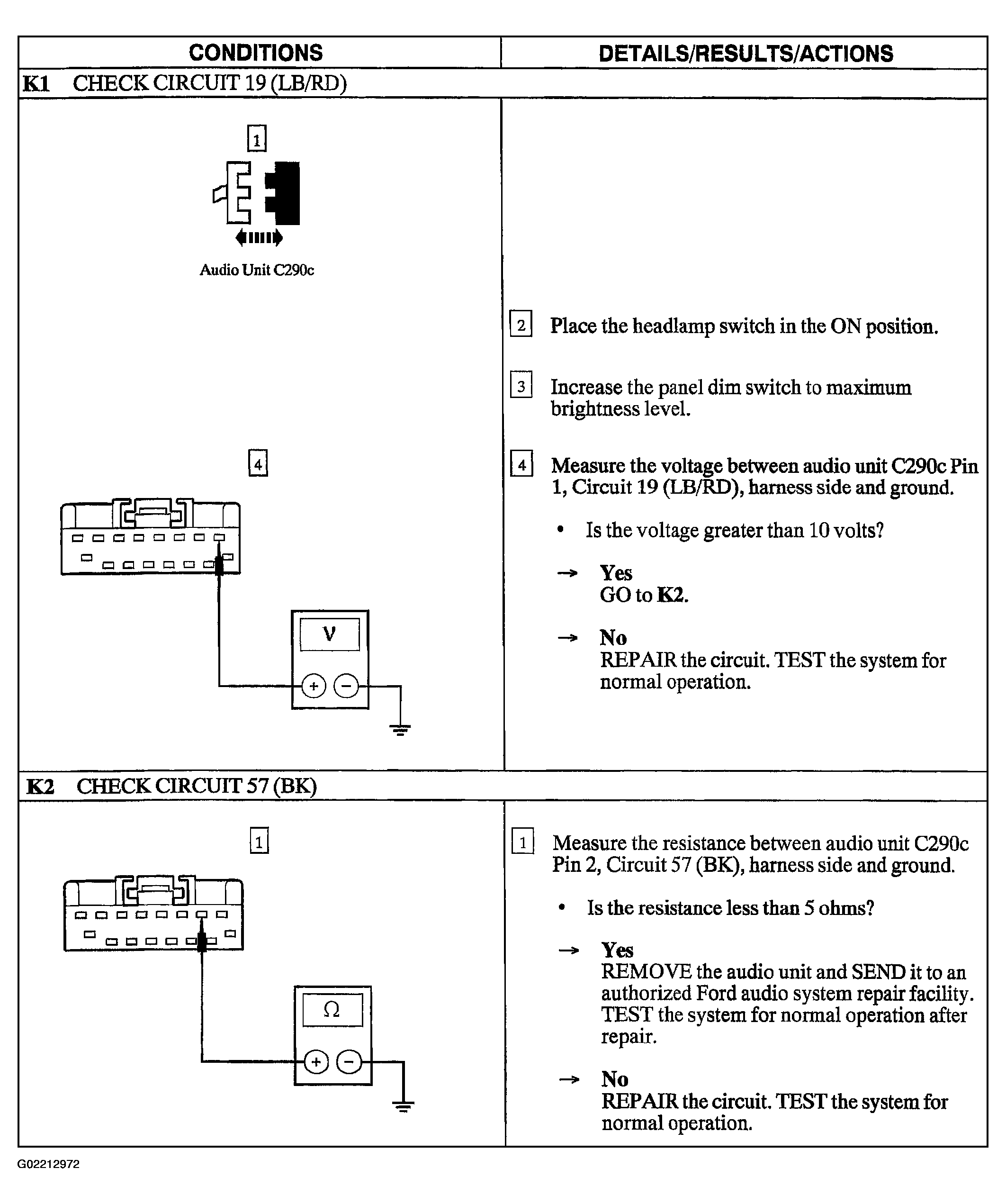

Fig 1: Pinpoint Test K: The Audio System Illumination Is Inoperative (Steps K1-K2)

G02212972

Courtesy of FORD MOTOR CO.
