Special Tool(s)

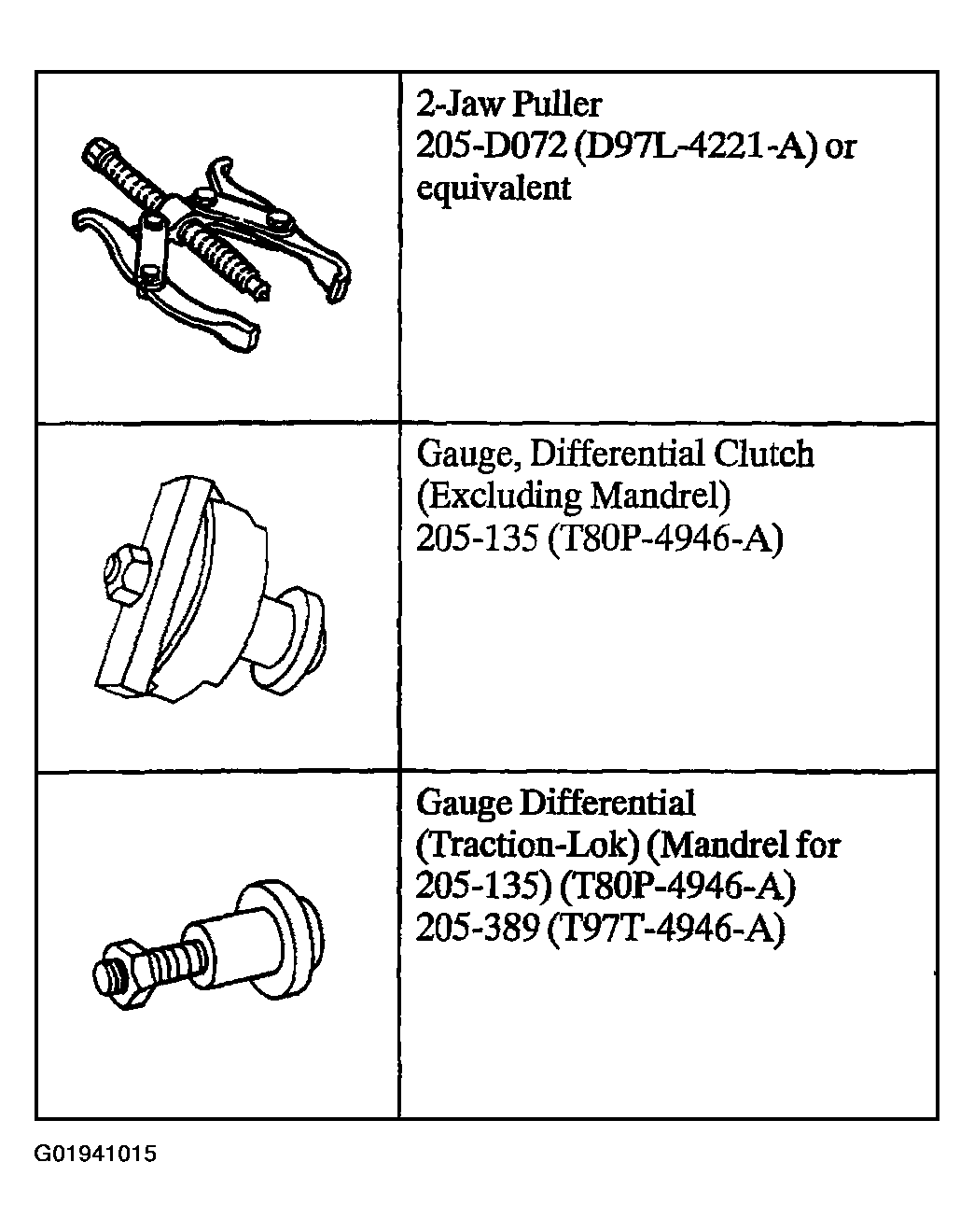

Fig 1: Identifying 2-jaw Puller, Differential Clutch Gauge & Gauge Differential
G01941015Courtesy of FORD MOTOR CO.

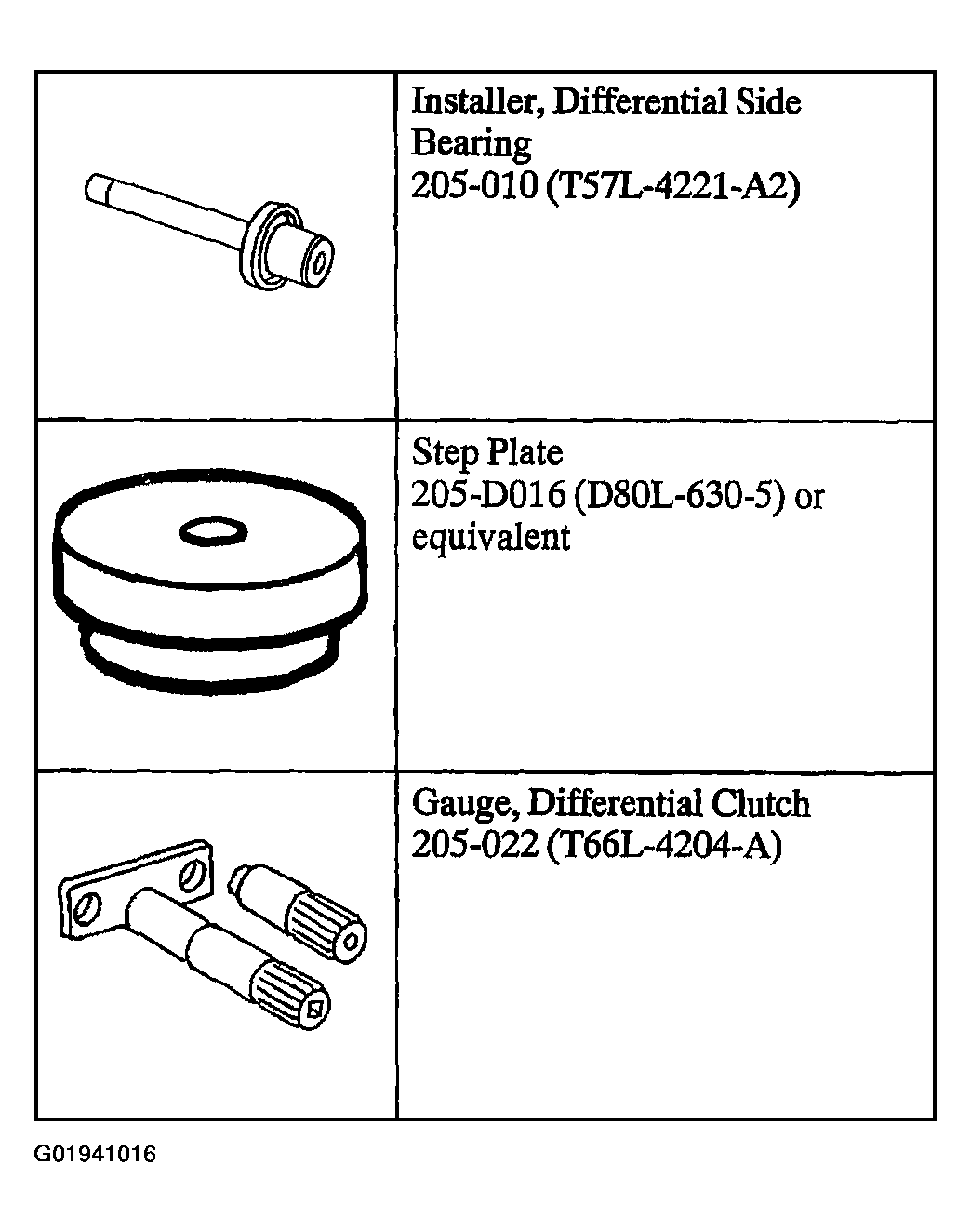

Fig 2: Identifying Differential Side Bearing Installer, Step Plate & Differential Clutch Gauge
G01941016Courtesy of FORD MOTOR CO.
