Differential Case & Ring Gear - Traction-LOK®: Disassembly
- Remove the differential assembly from the differential housing (4010). For additional information, refer to DIFFERENTIAL CASE .

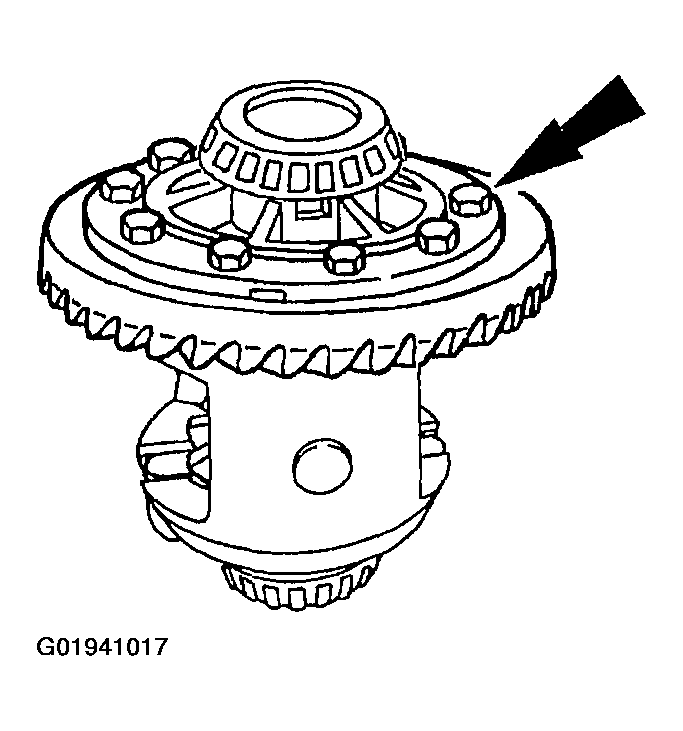

- Remove the bolts.

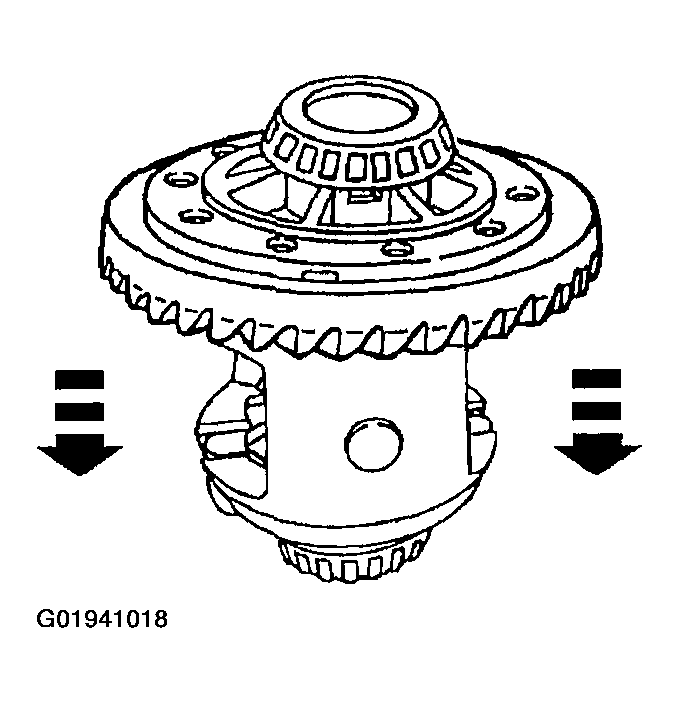

- Insert a punch in the bolt holes and drive off the differential ring gear.

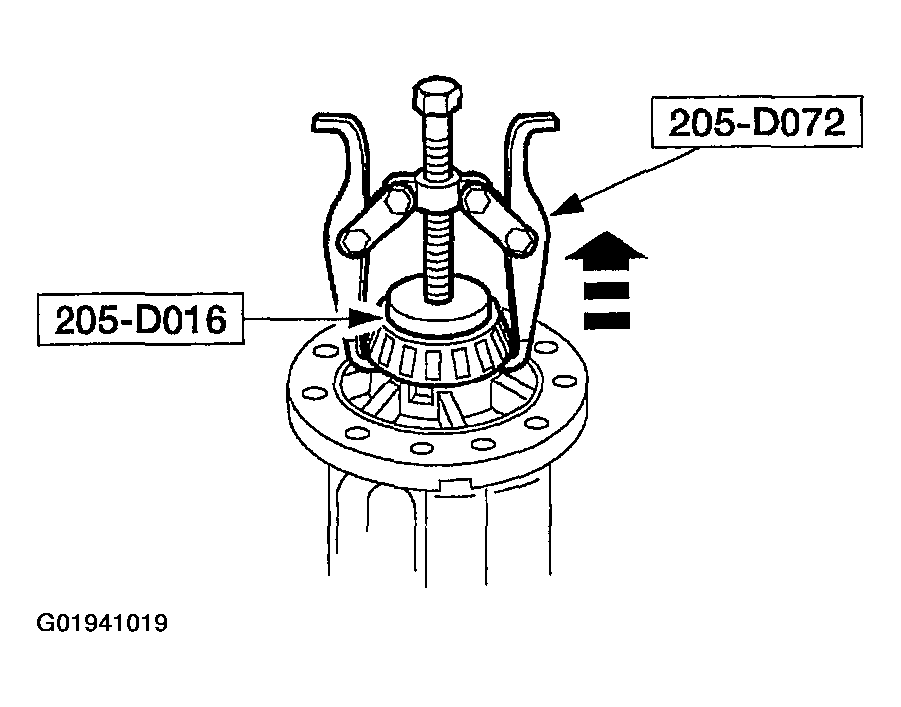

- Using the special tools, remove the differential bearings (4221).

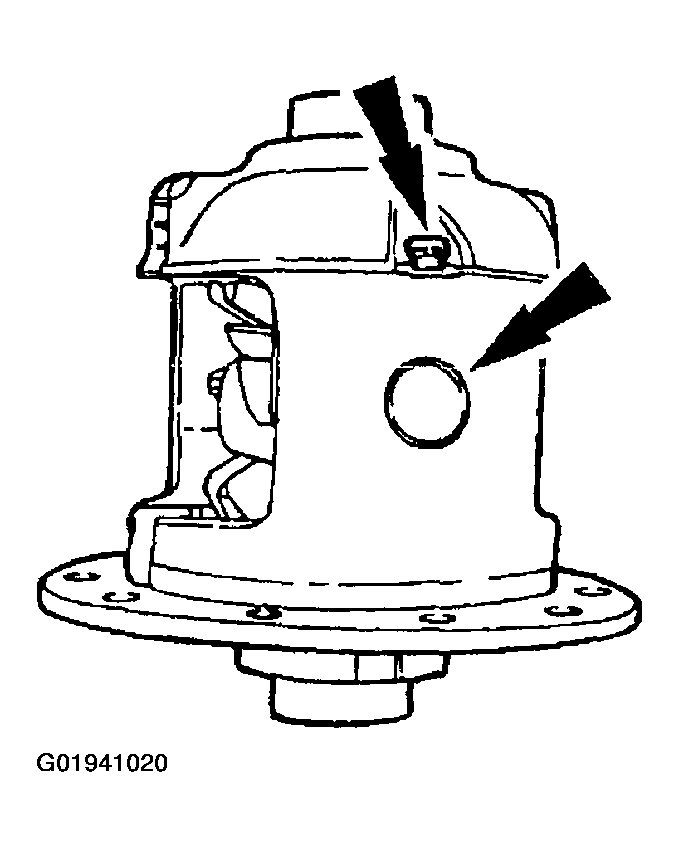

- Remove the bolt and remove the differential pinion shaft (4211).

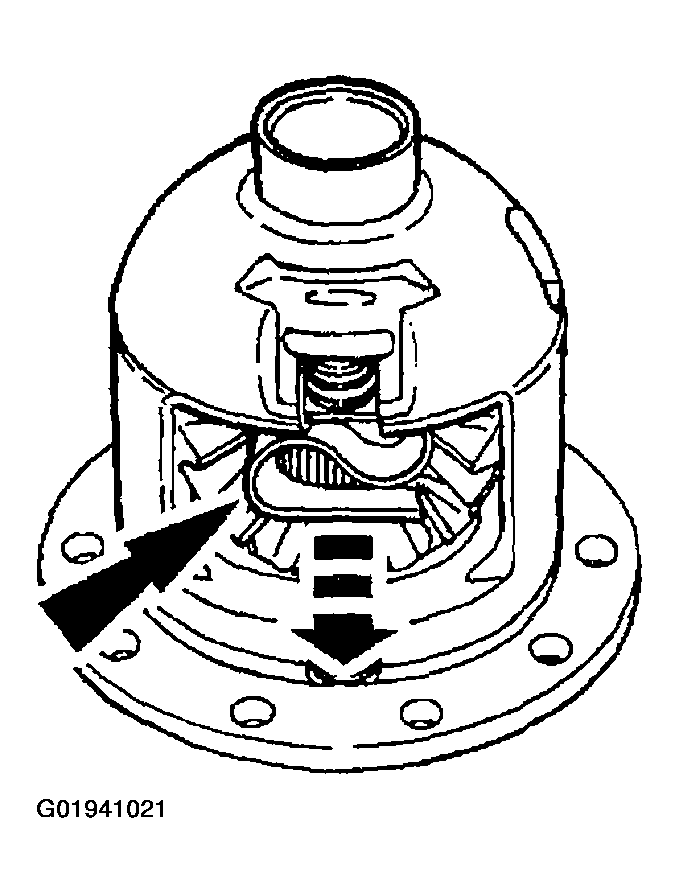

- Remove the differential clutch spring.

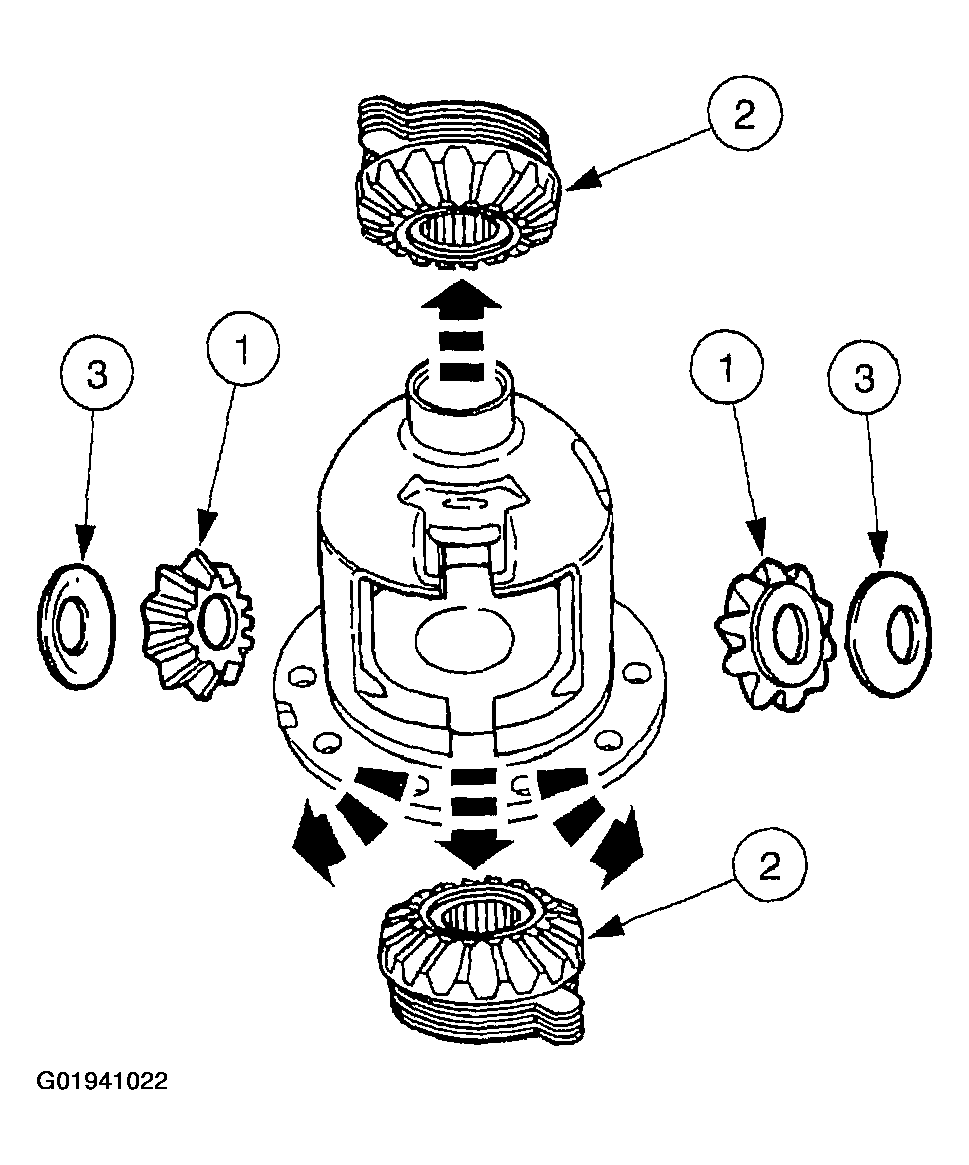

- Remove the differential gears.
- Remove the two differential pinion gears (4215).
- Remove the two differential side gears (4236).
- Remove the two differential pinion thrust washers (4230).

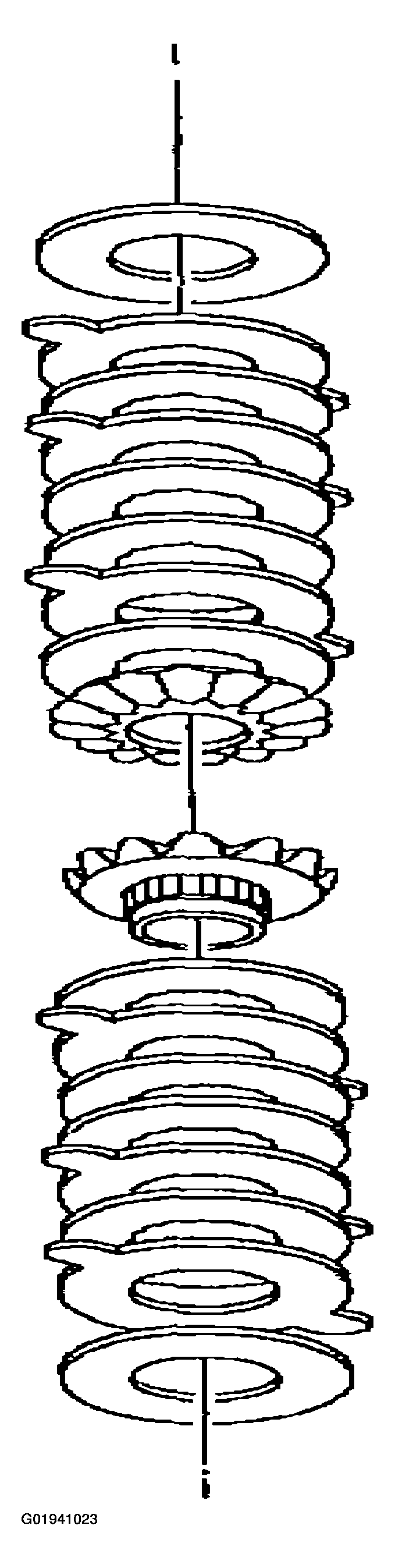

- Separate the differential clutch packs and shims from the differential side gears and tag them "right" and "left."
- Clean and inspect the remaining differential components for wear and damage and install new parts as necessary.
- Clean and inspect the differential clutch packs for wear and damage and install new parts as necessary.
CAUTION:
Do not damage the bolt hole threads.
WARNING:
Due to the spring tension, use care when removing the differential clutch spring (4214).
CAUTION:
Keep the differential clutch packs (4947) in order. Do not mix them. Always reassemble them in the same sequence.
CAUTION:
Do not use acids or solvents when cleaning the differential clutch packs. Wipe the components only with a clean, lint-free cloth.
