Pinpoint Test M: The Instrument Panel Illumination Does Not Dim

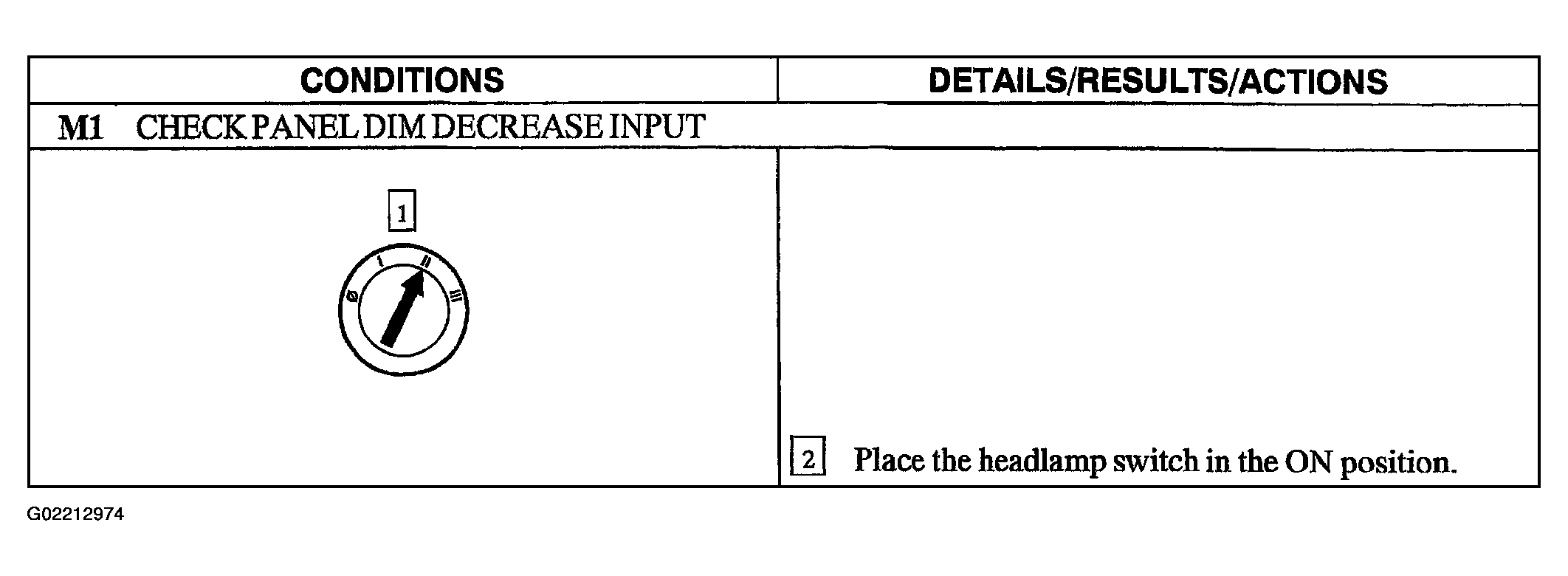

Fig 1: Pinpoint Test M: The Instrument Panel Illumination Does Not Dim (Step M1)

Courtesy of FORD MOTOR CO.

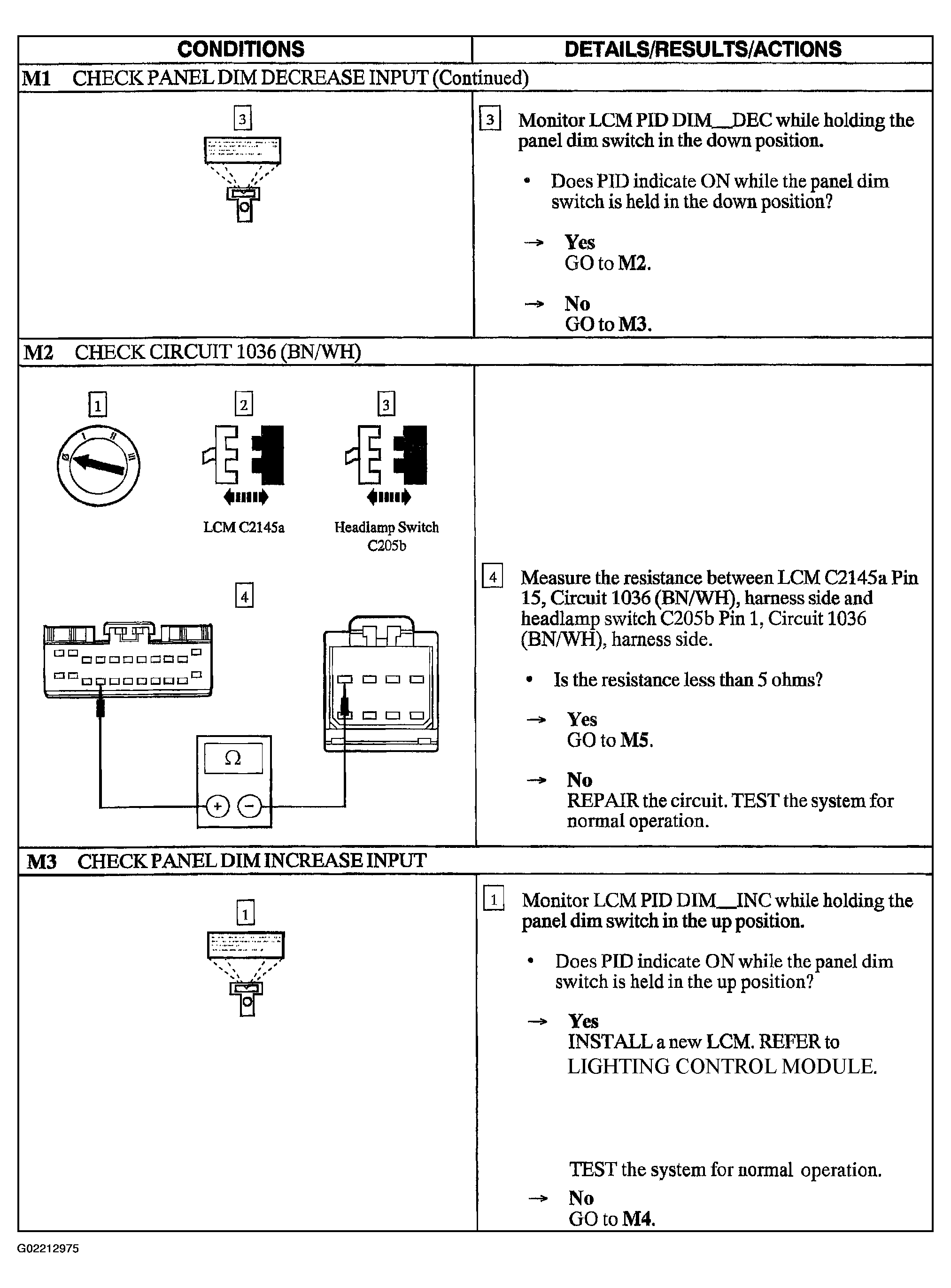

Fig 2: Pinpoint Test M: The Instrument Panel Illumination Does Not Dim (Steps M1 Cont.-M3)

Courtesy of FORD MOTOR CO.

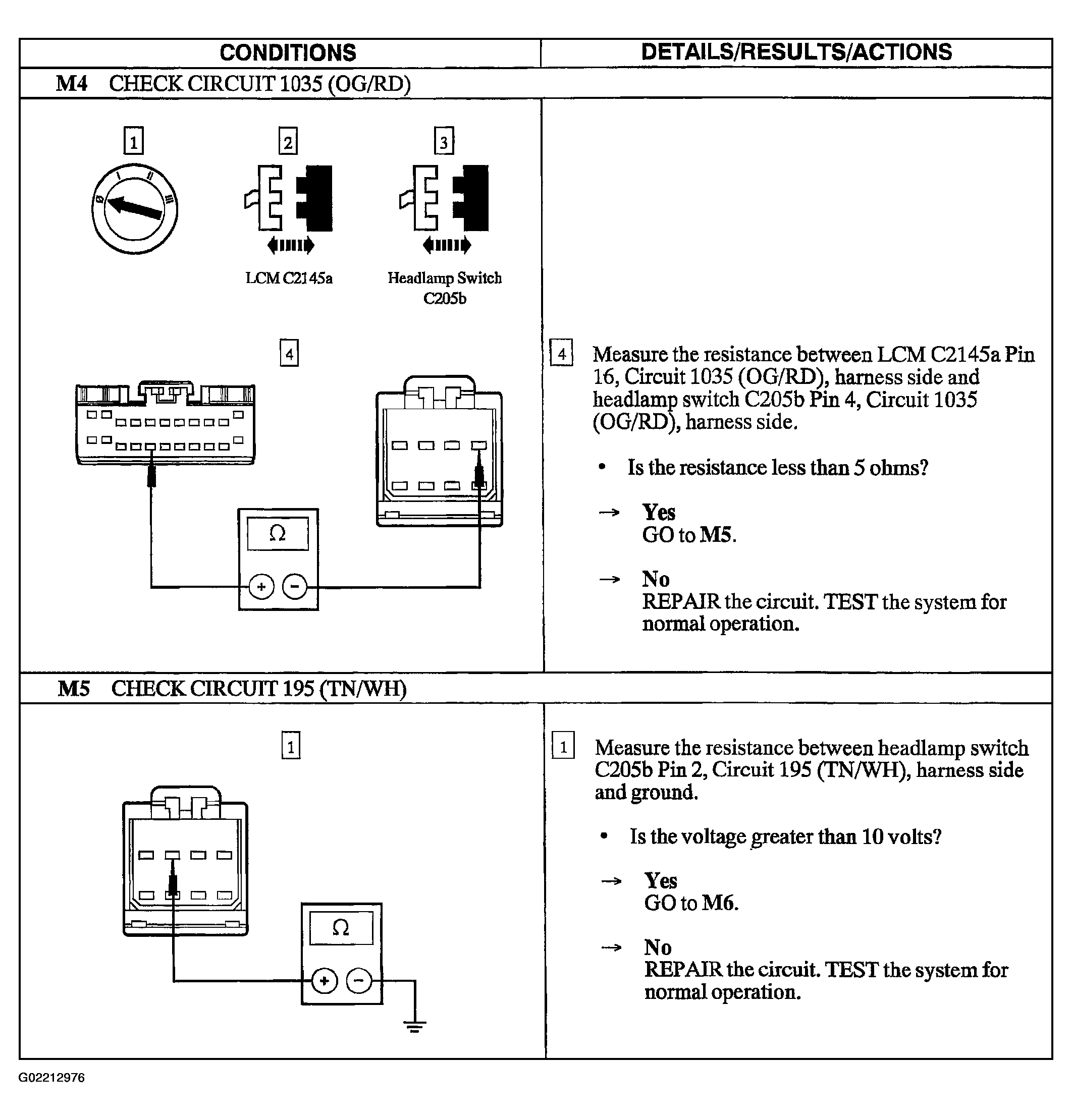

Fig 3: Pinpoint Test M: The Instrument Panel Illumination Does Not Dim (Steps M4-M5)

Courtesy of FORD MOTOR CO.

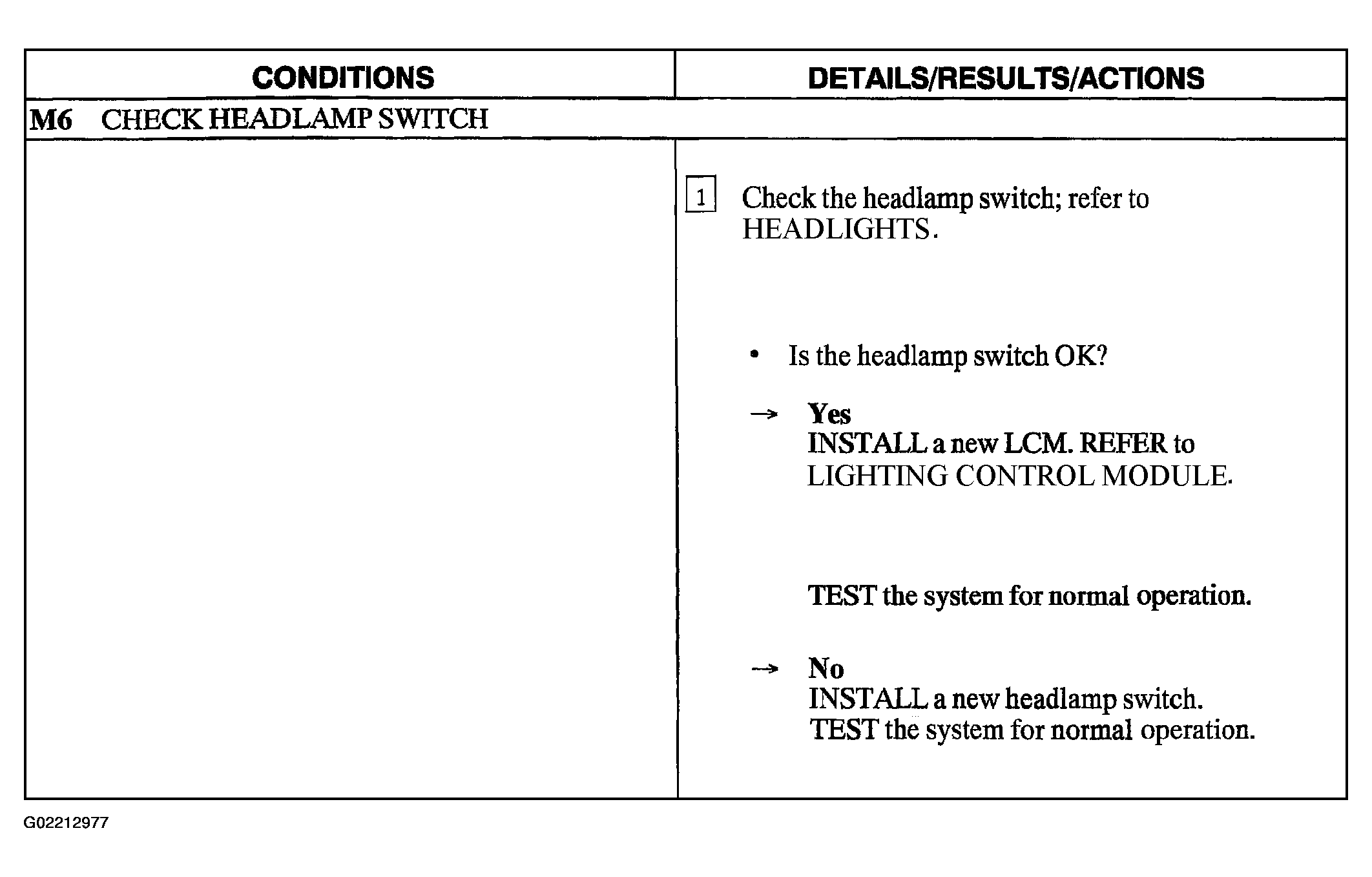

Fig 4: Pinpoint Test M: The Instrument Panel Illumination Does Not Dim (Step M6)

Courtesy of FORD MOTOR CO.
