Removal and Installation

  1. Remove the driver seat. For additional information, refer to FRONT SEAT .
  2. Remove the seat position sensor.
    1. Remove the bolt.
    2. Remove the connector.
    3. Press the sensor tab inward to release and remove the sensor.

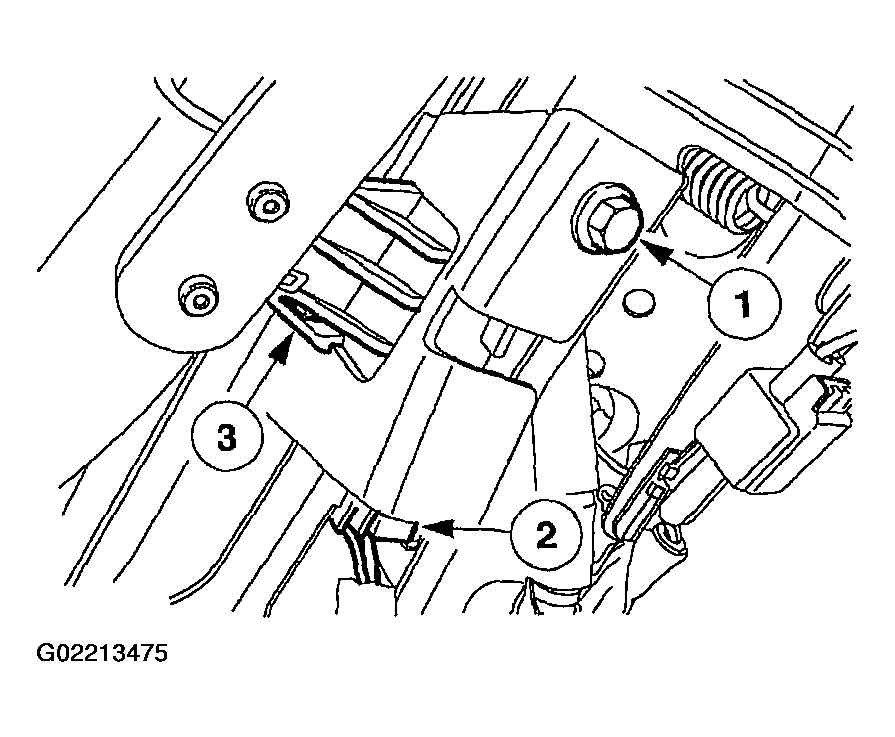

      Fig 1: Removing Connector And Sensor
      G02213475Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
  4. Check the active restraint system for correct operation.
