Disassembly and Assembly

Remove the front seat. For additional information, refer to FRONT SEAT .
Remove the front seat backrest. For additional information, refer to Front Seat Backrest .
Remove the headrest retainer covers (610A18).

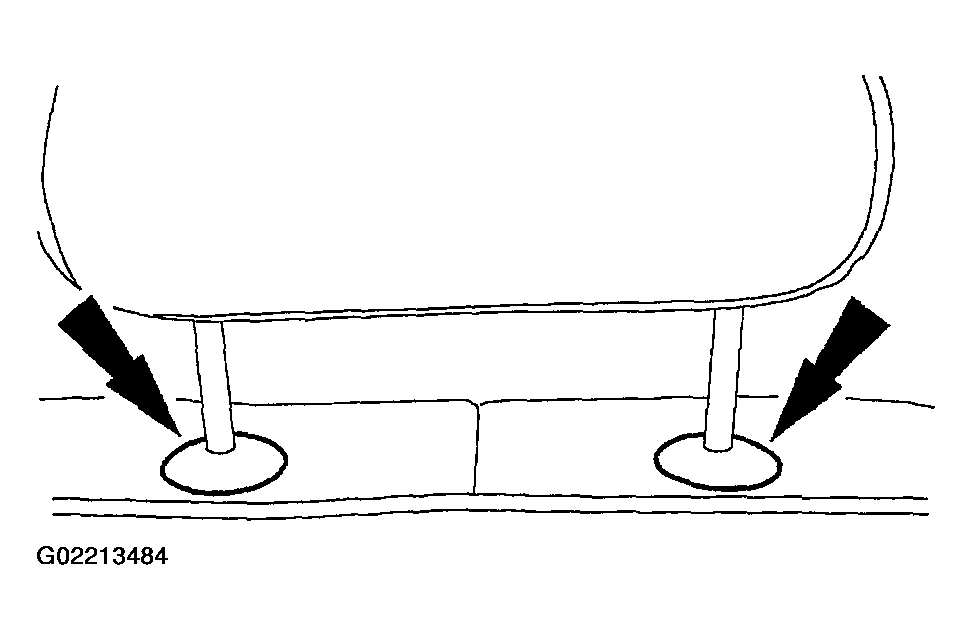

Fig 1: Removing Headrest Retainer Covers
Courtesy of FORD MOTOR CO.
Release the clip.

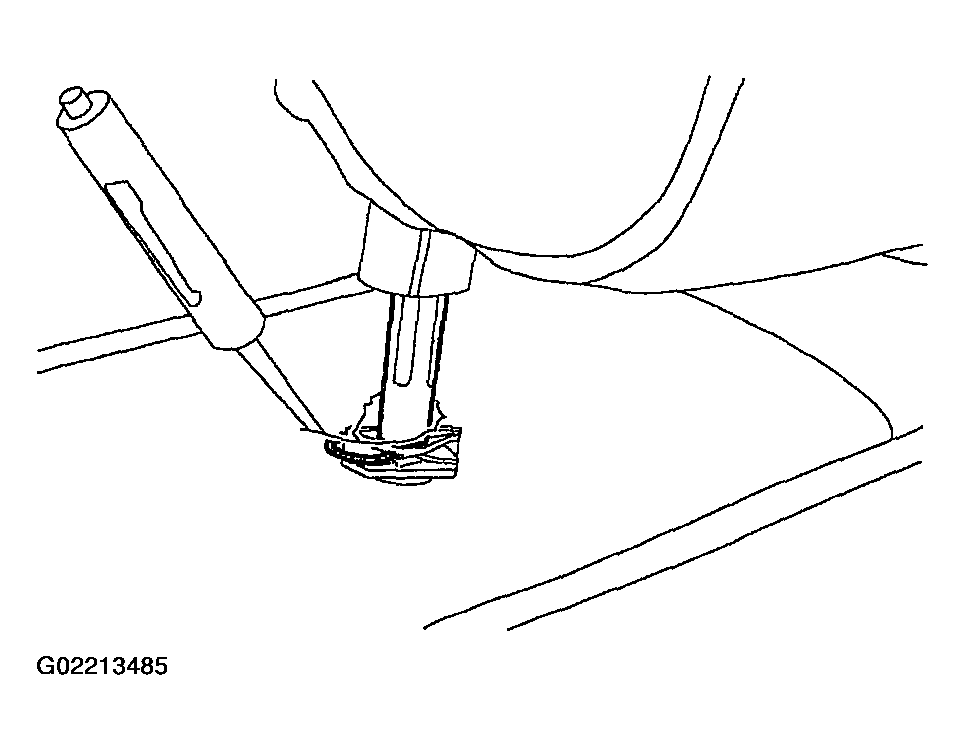

Fig 2: Releasing Clip
Courtesy of FORD MOTOR CO.
Remove the trim cover.

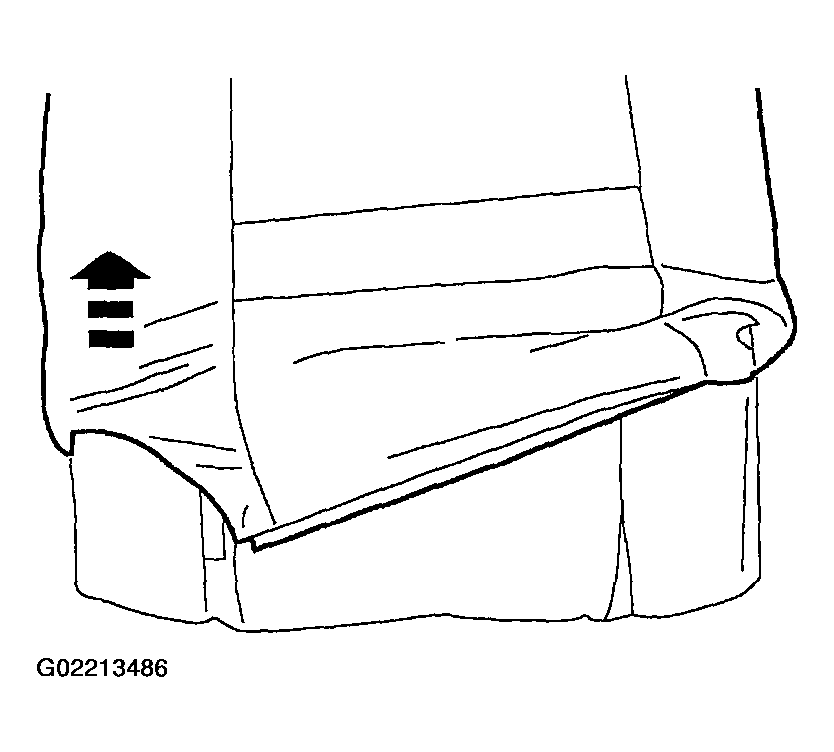

Fig 3: Removing Trim Cover
Courtesy of FORD MOTOR CO.
To assemble, reverse the disassembly procedure.
Check the active restraint system for correct operation.
