Pinpoint Test A: The Daytime Running Lamps Are Inoperative

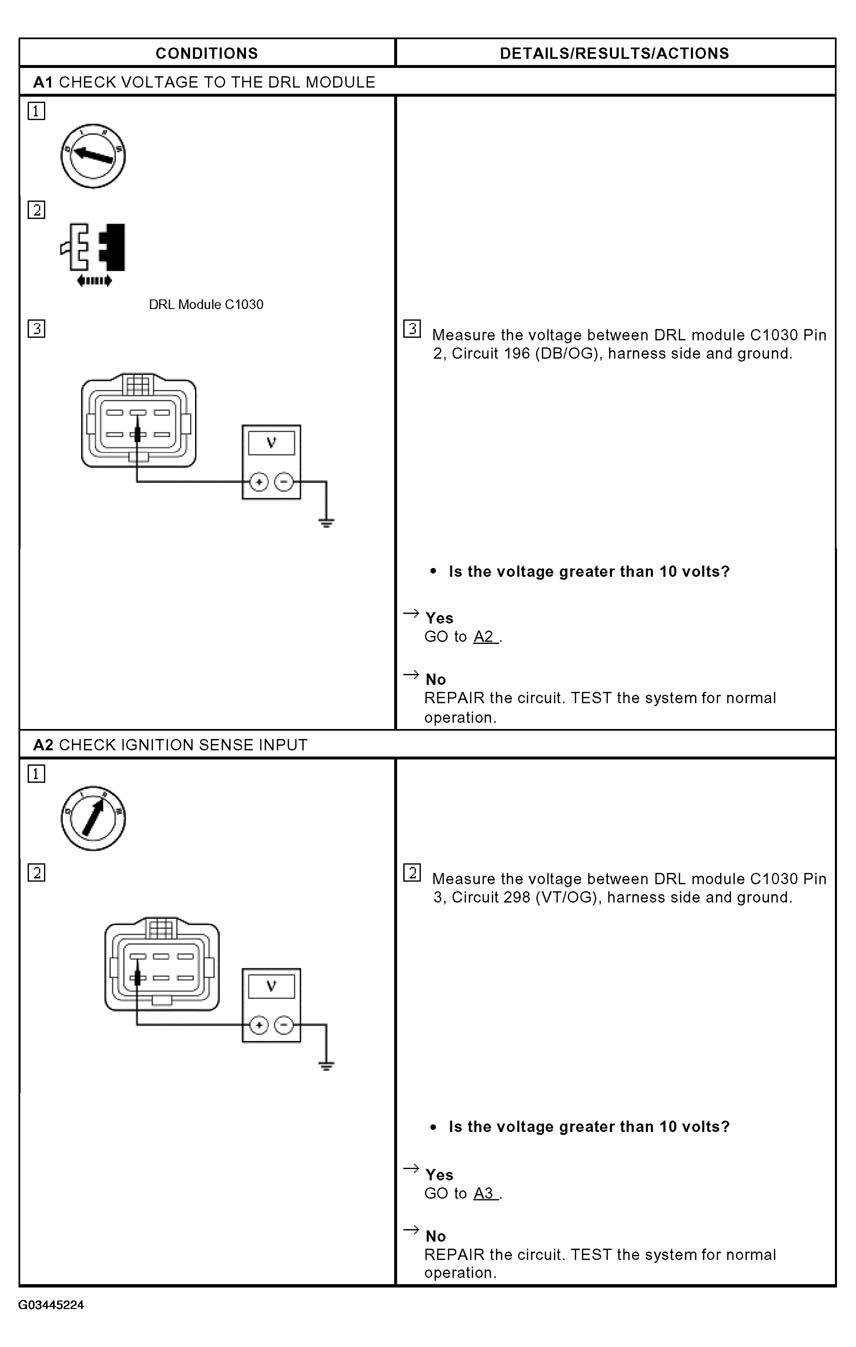

Fig 1: Pinpoint Test A: Daytime Running Lamps Are Inoperative (A1 - A2)
G03445224Courtesy of FORD MOTOR CO.

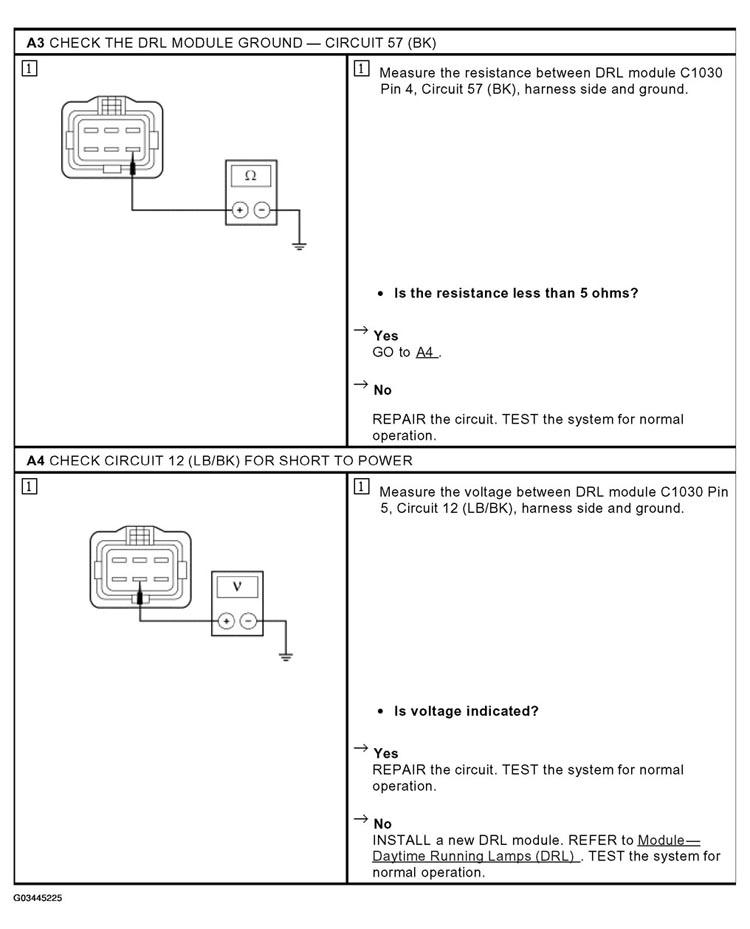

Fig 2: Pinpoint Test A: Daytime Running Lamps Are Inoperative (A3 - A4)
G03445225Courtesy of FORD MOTOR CO.
