Component Locations

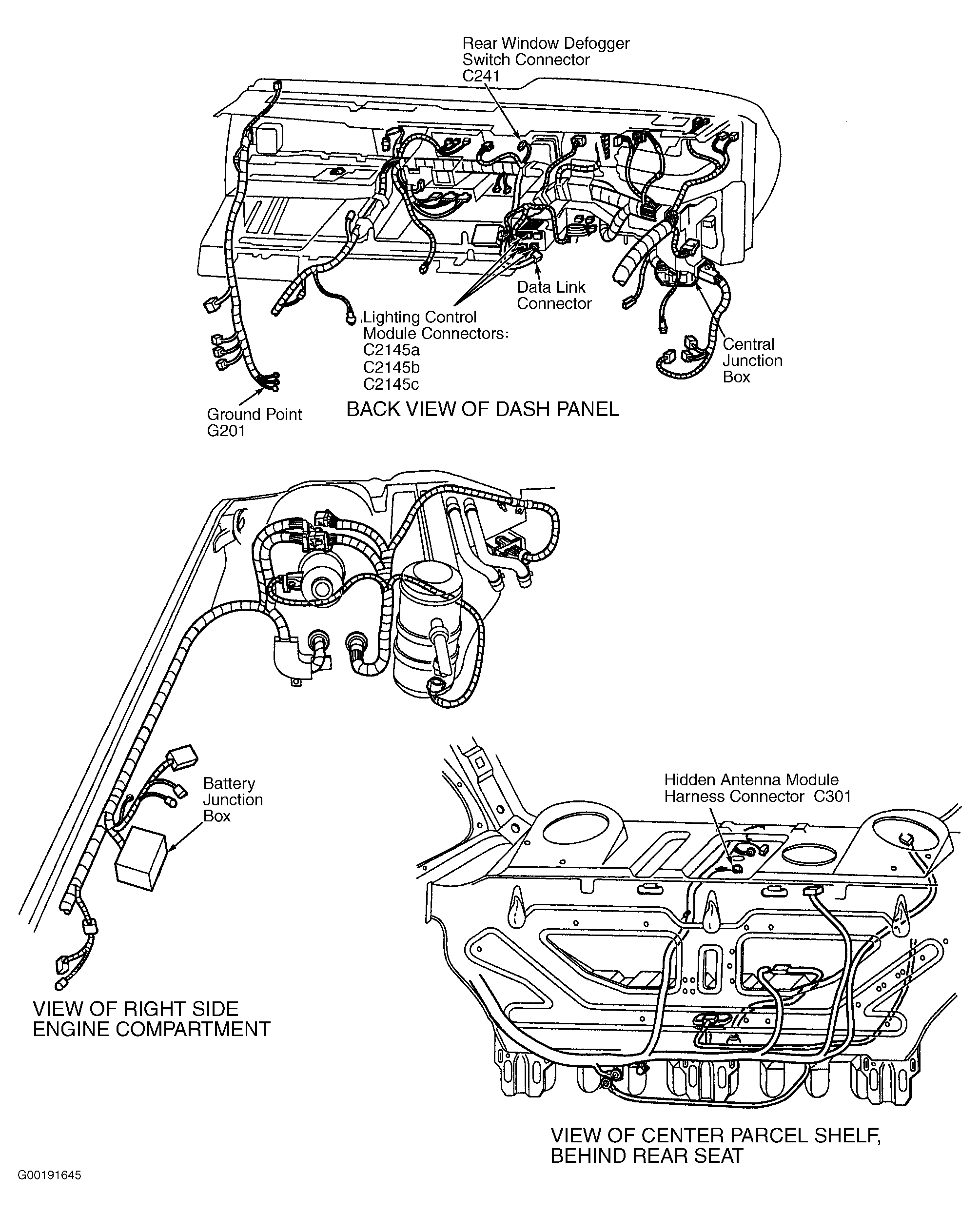

For rear window defogger system components and harness connectors locations, see Fig 1 and COMPONENT LOCATIONS table.
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Battery Junction Box | Right Front Of Engine Compartment, Behind Battery |
| Central Junction Box | Behind Left Side Of Instrument Panel |
| Data Link Connector | Behind Left Side Of Instrument Panel |
| Hidden Antenna Module | Right Front Of Luggage Compartment |
| Lighting Control Module | Behind Left Center Side Of Instrument Panel |
| Rear Window Defogger Relay | In Battery Junction Box |
