Automatic Transmission - Hydraulic Diagrams - 4R70W

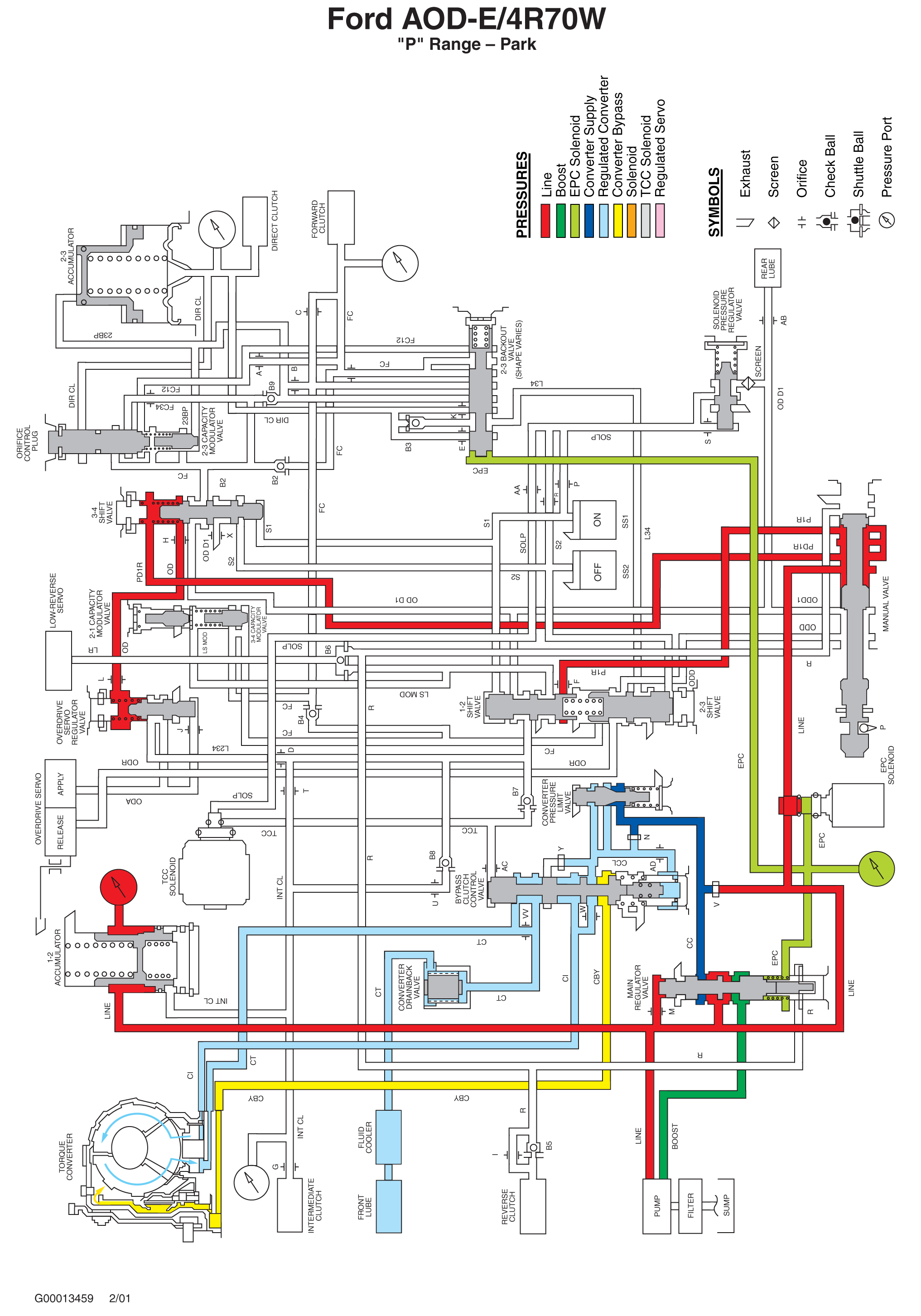

Fig 1: "P" Range - Park

Courtesy of FORD MOTOR CO.

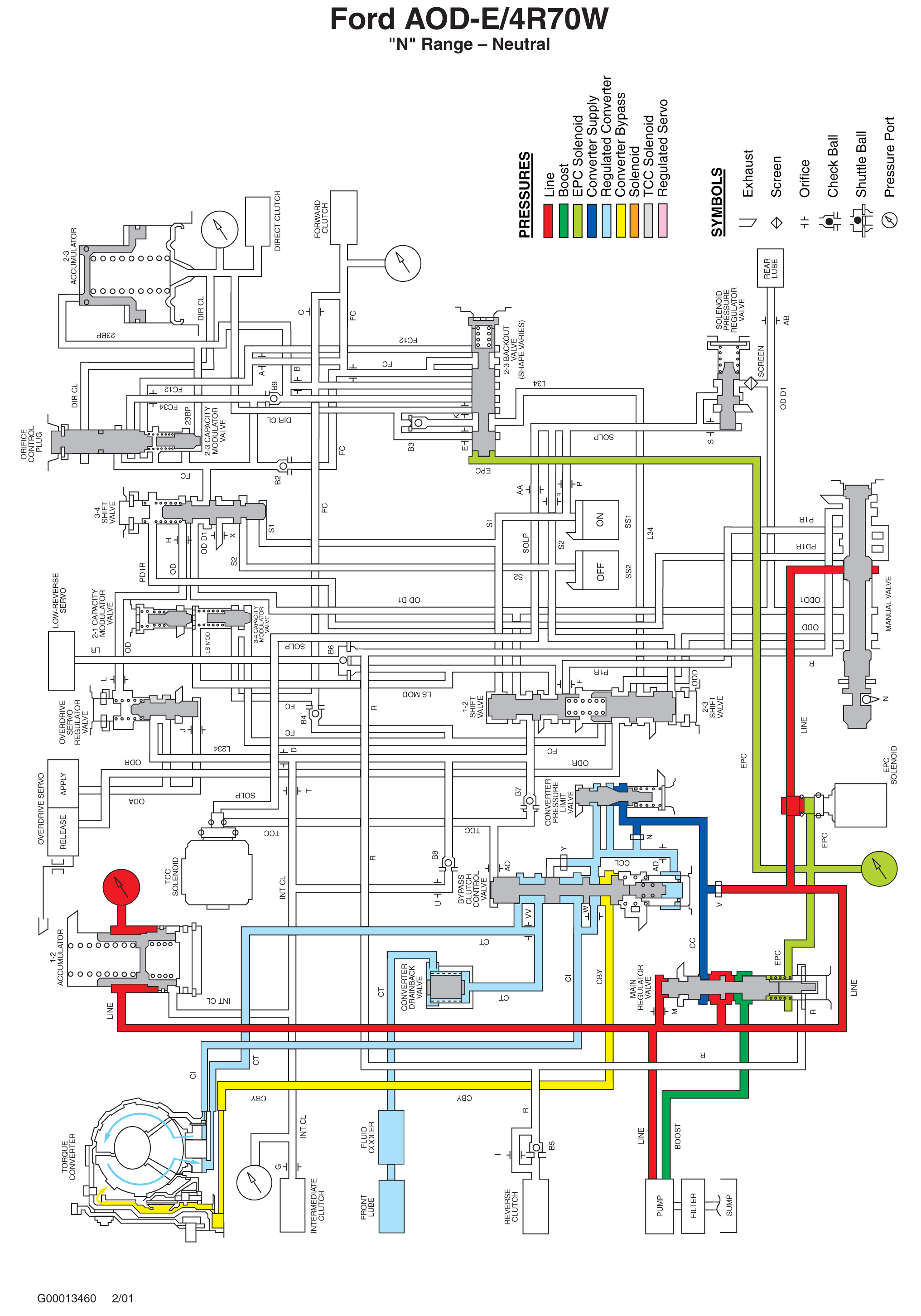

Fig 2: "N" Range - Neutral

Courtesy of FORD MOTOR CO.

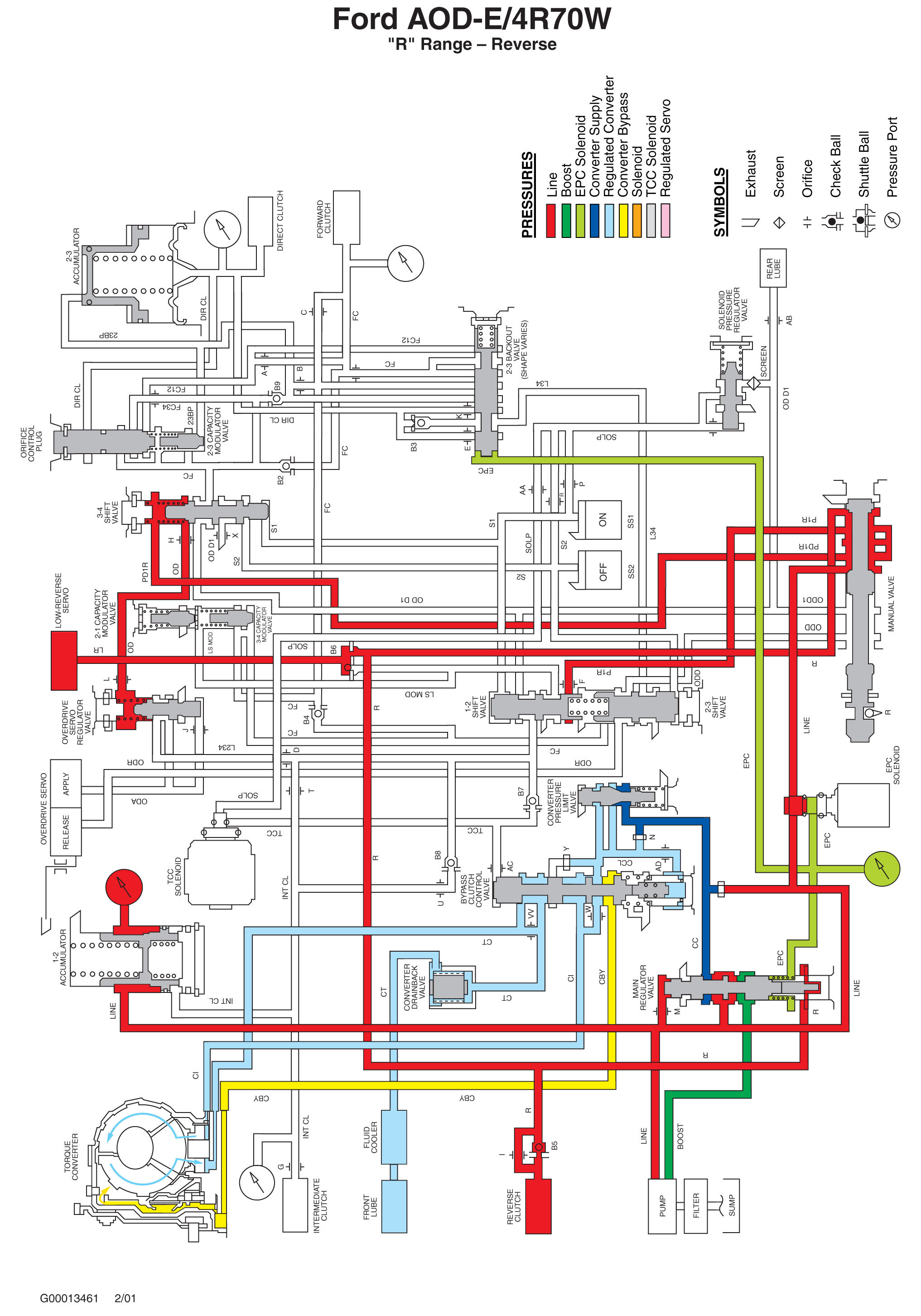

Fig 3: "R" Range - Reverse

Courtesy of FORD MOTOR CO.

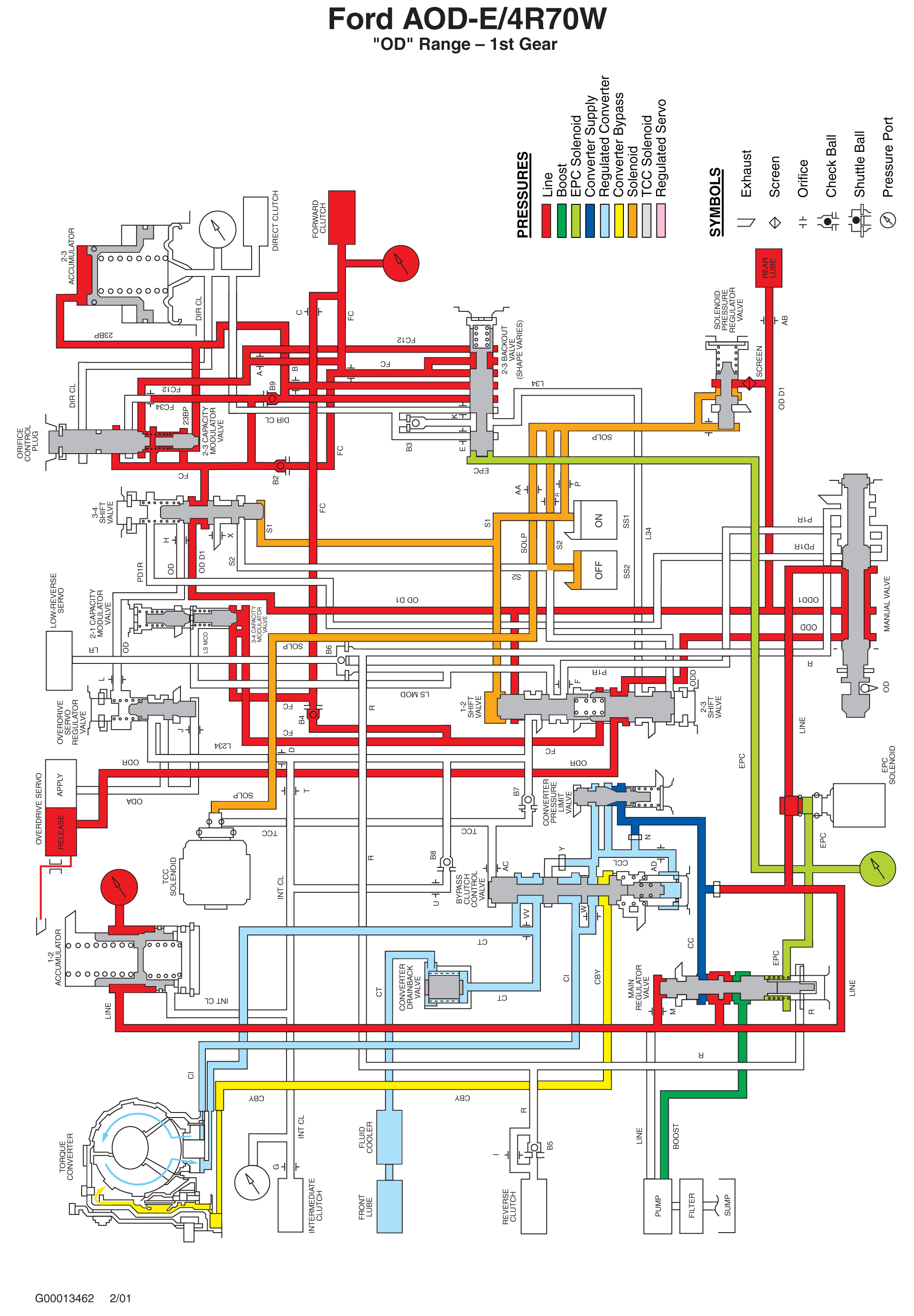

Fig 4: "OD" Range - 1st Gear

Courtesy of FORD MOTOR CO.

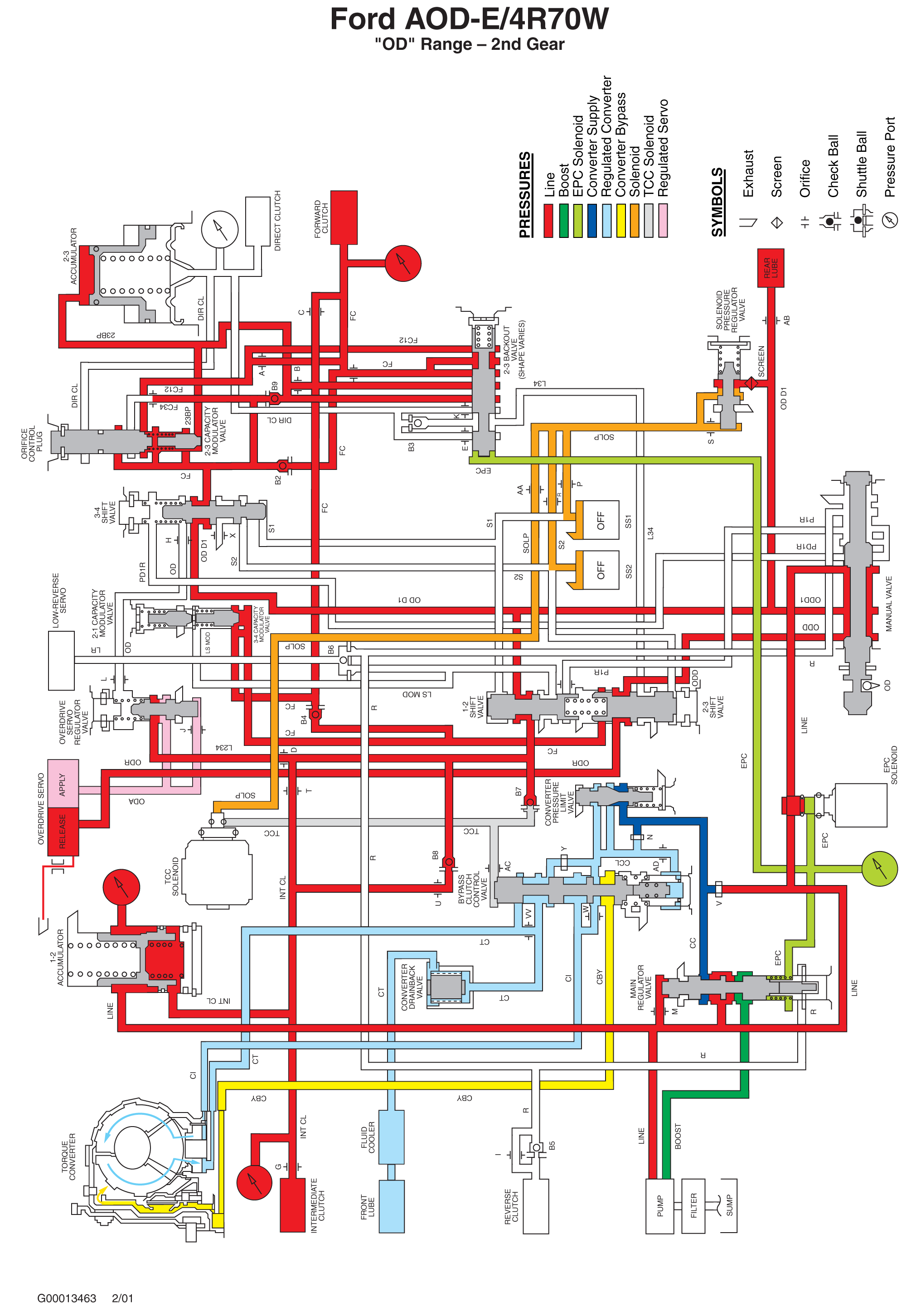

Fig 5: "OD" Range - 2nd Gear

Courtesy of FORD MOTOR CO.

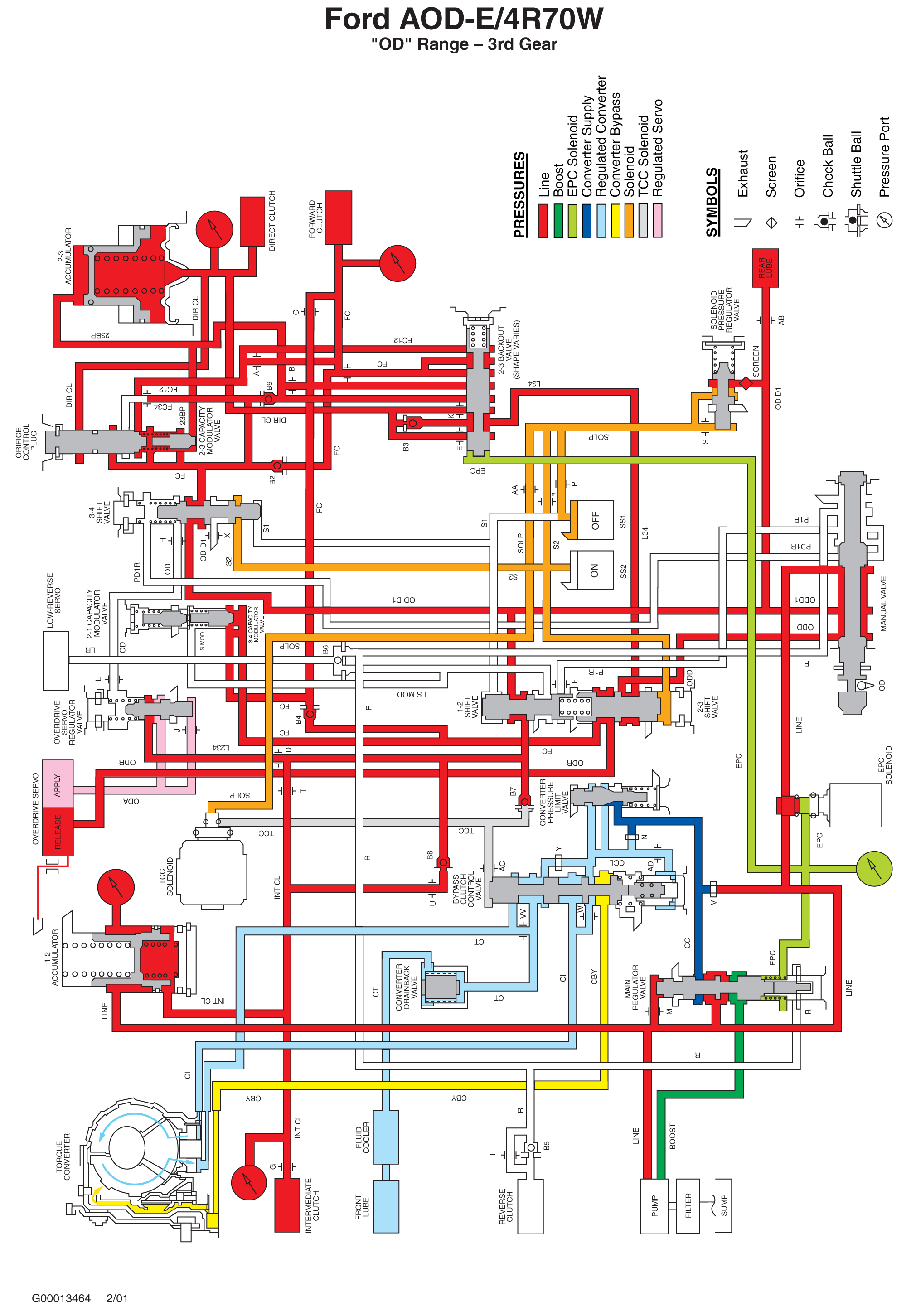

Fig 6: "OD" Range - 3rd Gear

Courtesy of FORD MOTOR CO.

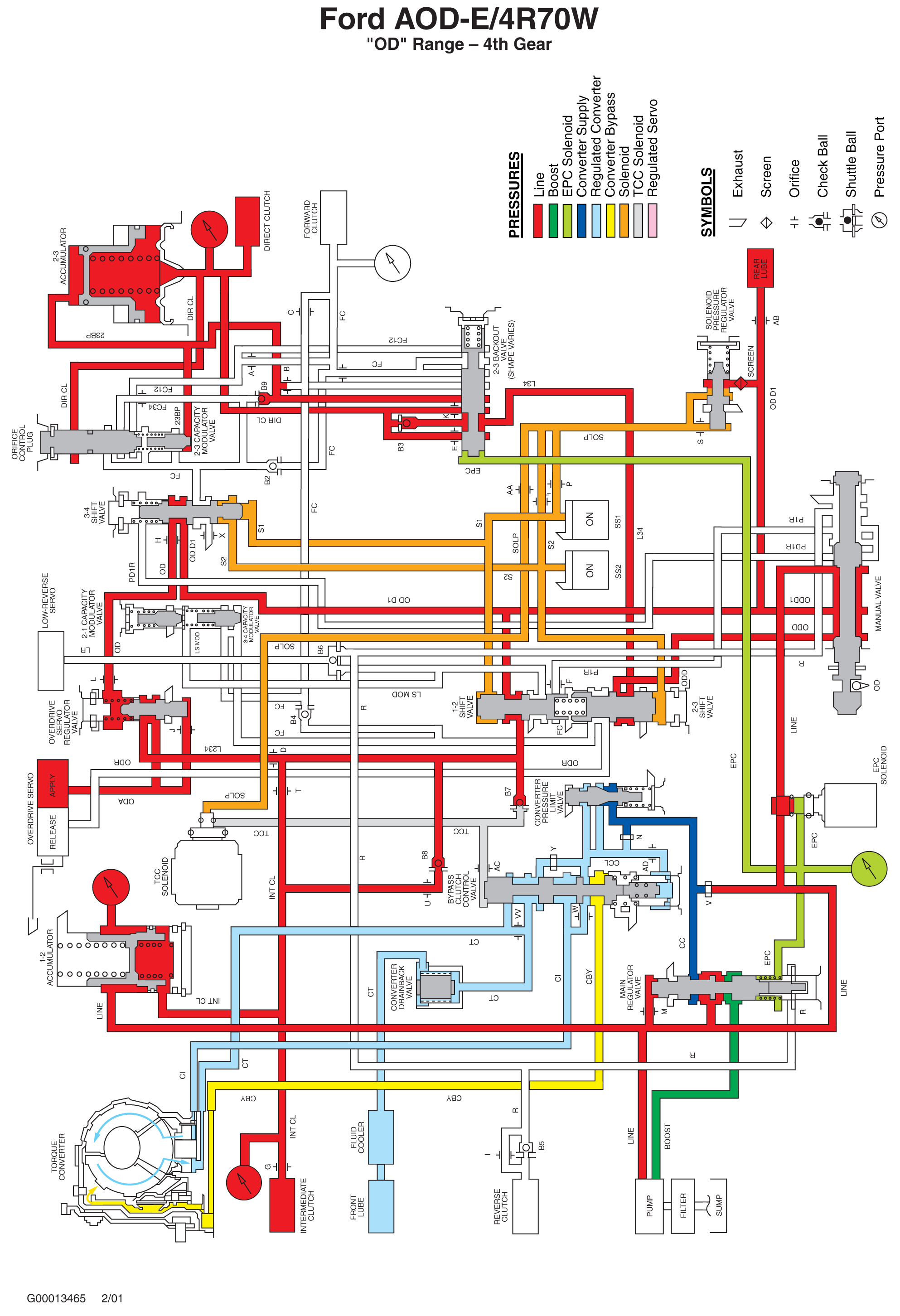

Fig 7: "OD" Range - 4th Gear

Courtesy of FORD MOTOR CO.

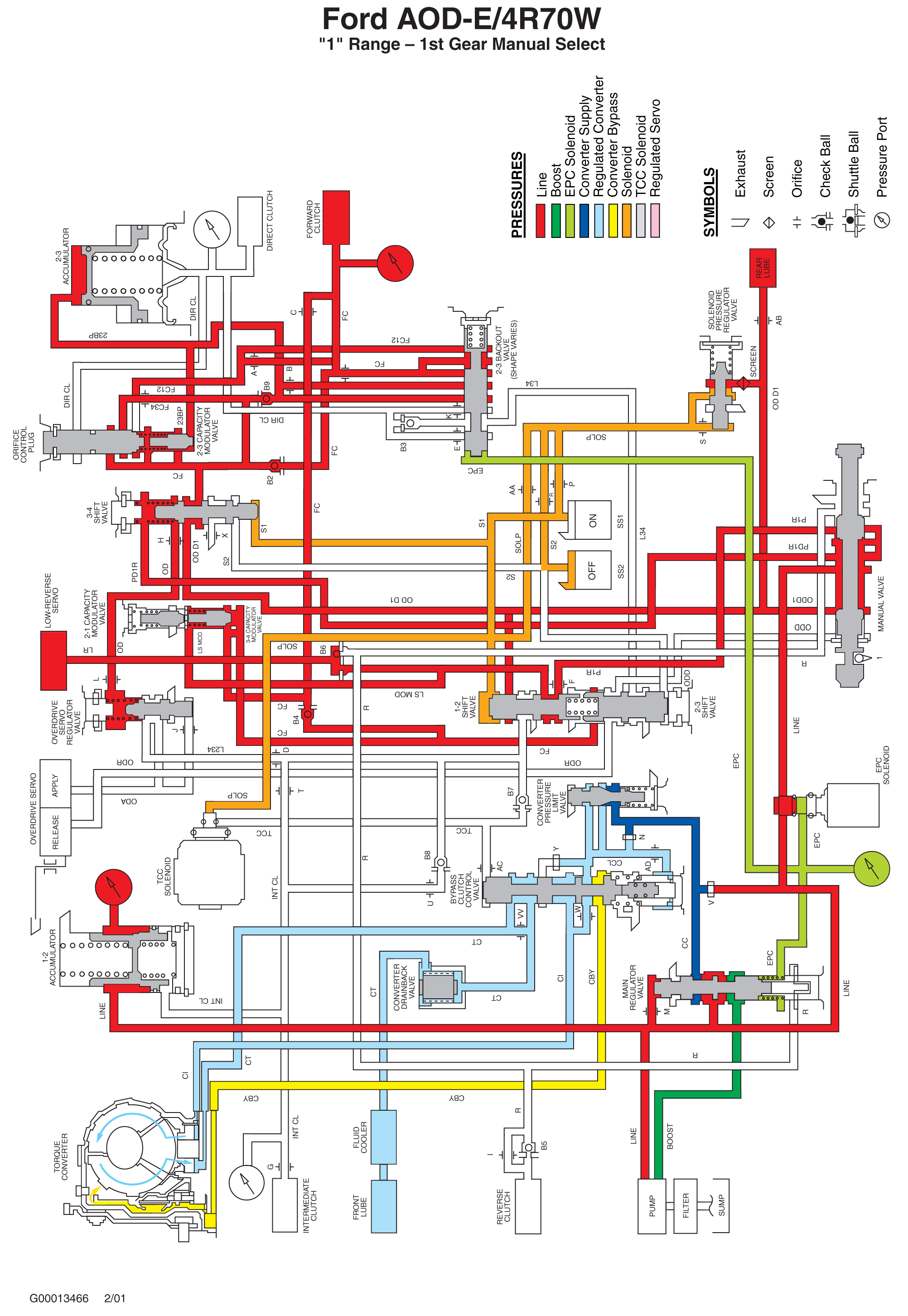

Fig 8: "1" Range - 1st Gear (Manual Select)

Courtesy of FORD MOTOR CO.

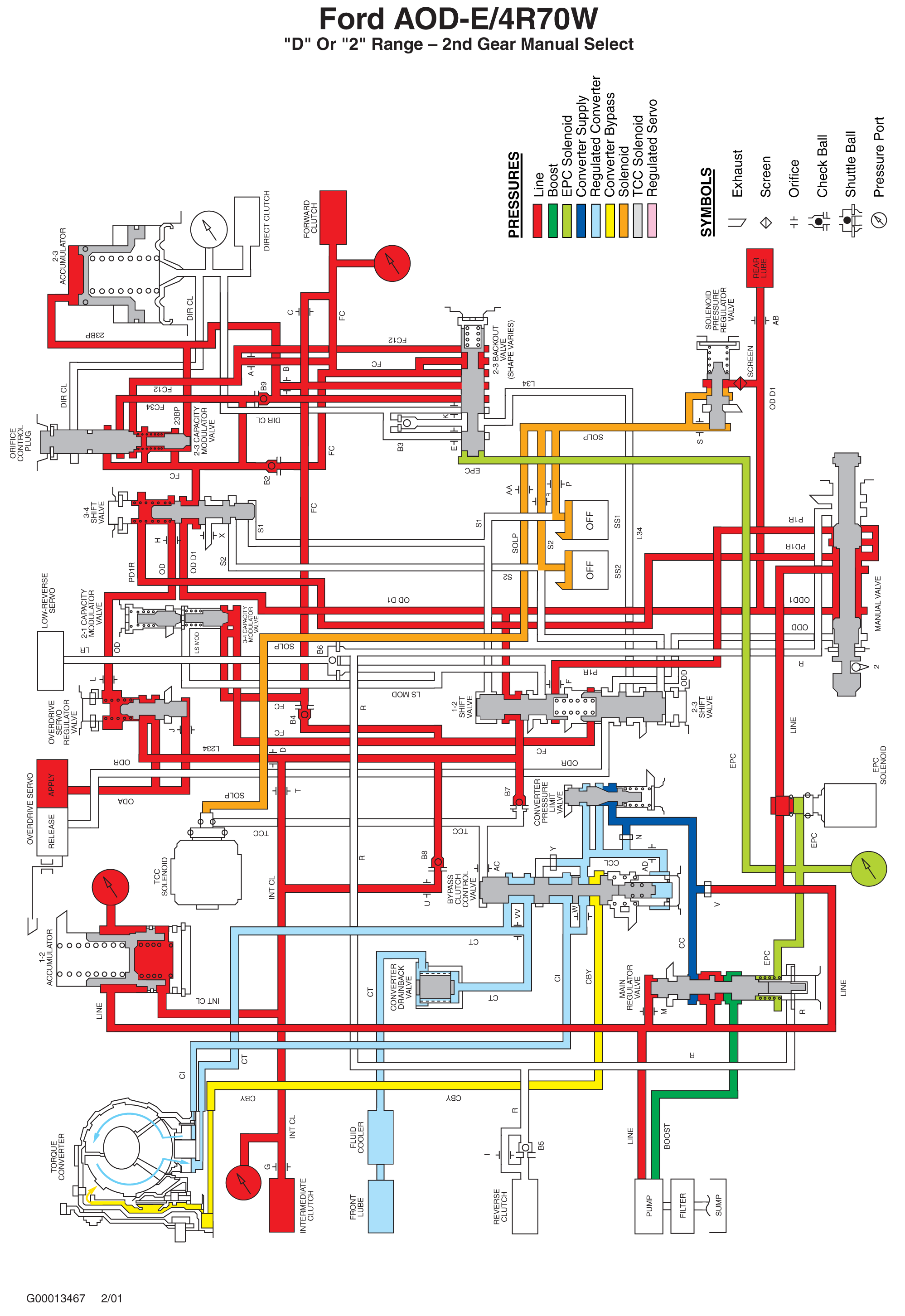

Fig 9: "D" Or "2" Range - 2nd Gear (Manual Select)

Courtesy of FORD MOTOR CO.
