Automatic Transmission
>>
Description & Operation
>>
Bushings, Bearing & Thrust Washer Locator
Bushings, Bearing & Thrust Washer Locator

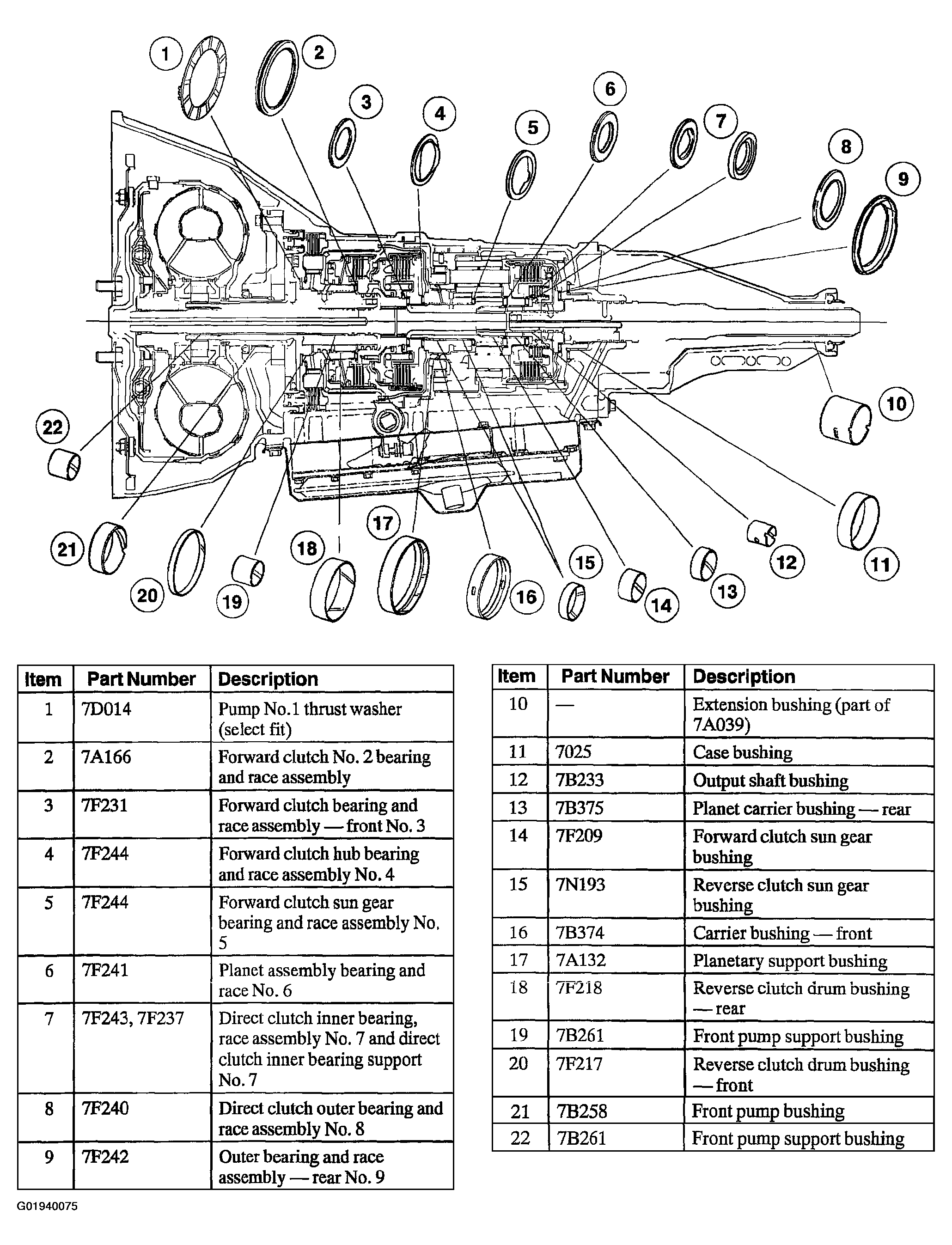

Fig 1: Identifying Bushings, Bearing & Thrust Washer Locations
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
