Description & Operation
>>
Seals, Rings & Gasket Locator
Seals, Rings & Gasket Locator

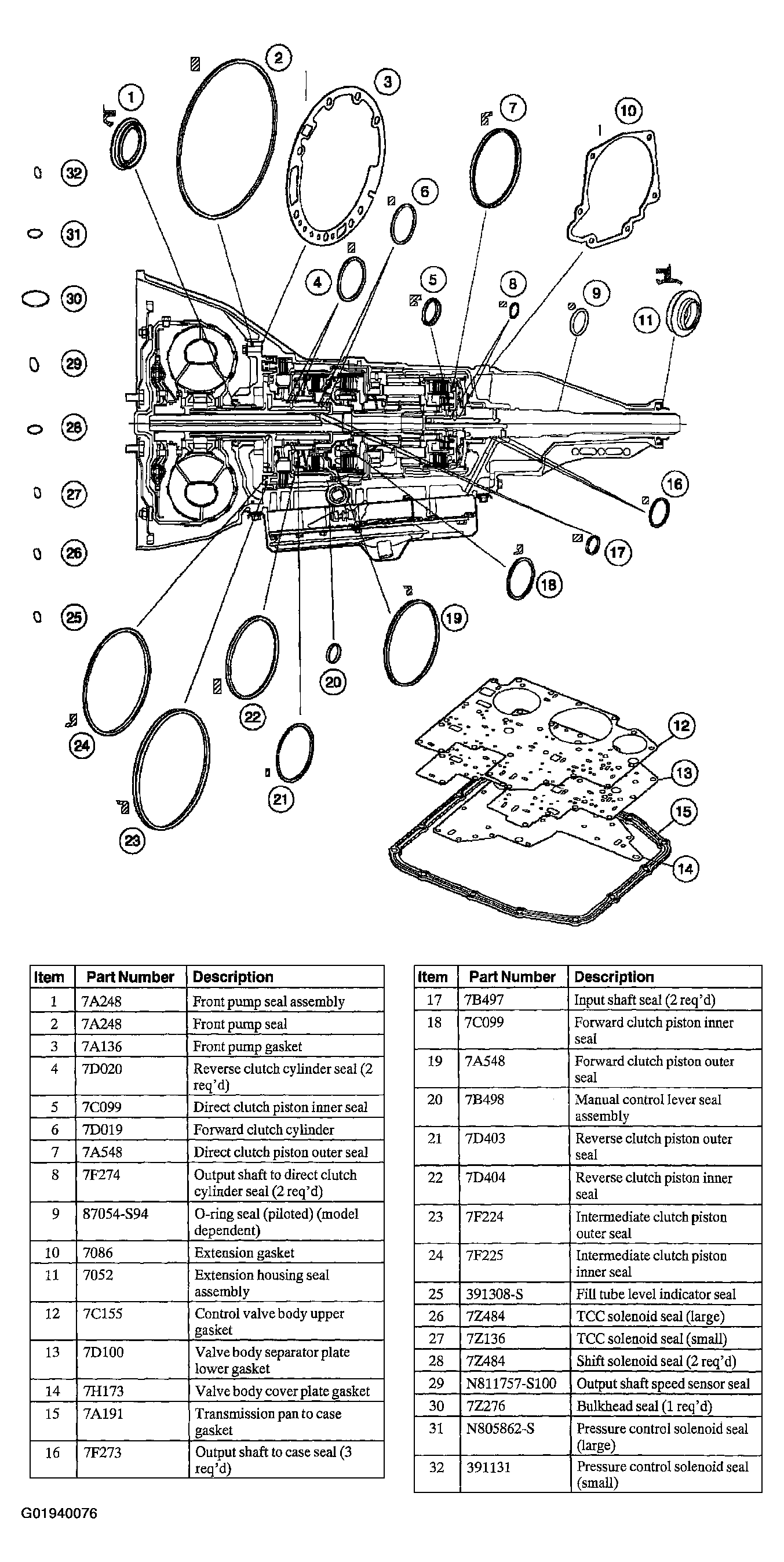

Fig 1: Identifying Seals, Rings & Gasket Locations
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
